CCE-05500-C (2 Pcs)

Name: CCE-05500-C (2 Pack) - External Retaining Rings - 55x2x52 mm Circlips - Carbon Steel Circlip
Brand: MBA
SKU: CCE05500C
Price: 4.59 AUD
Availability: InStock

External Retaining Rings - 55x2x52 mm Circlips - Carbon Steel Circlip

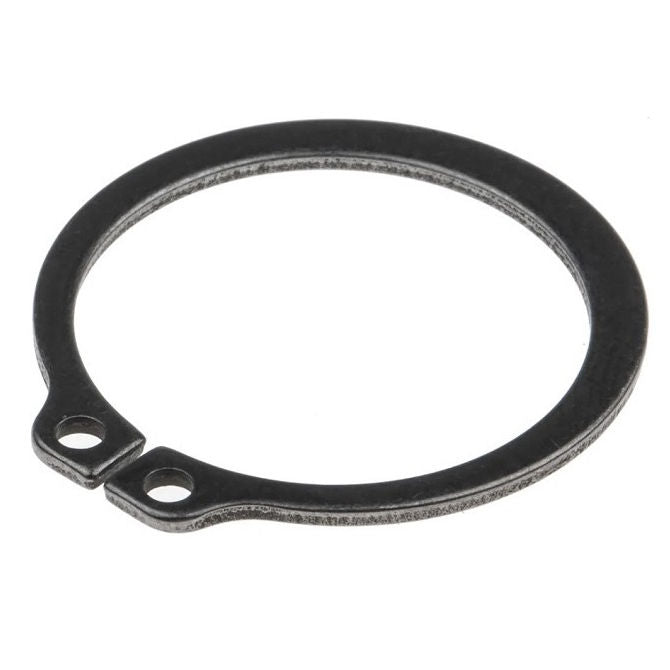

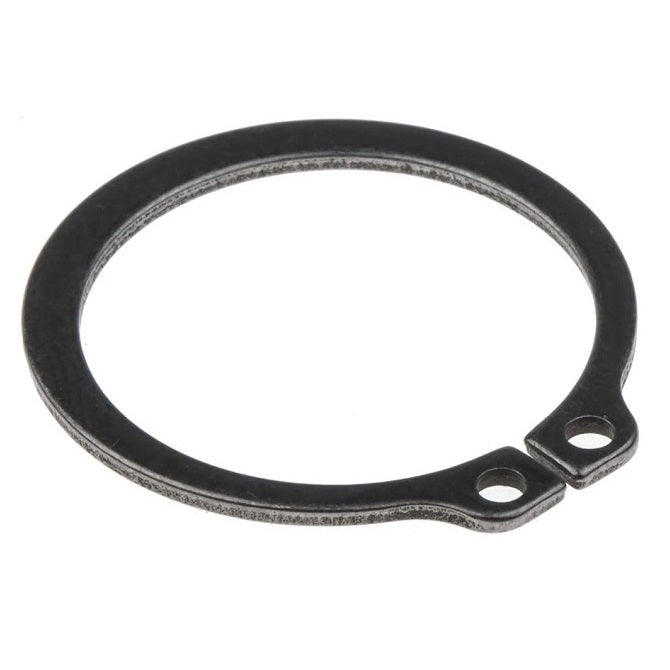

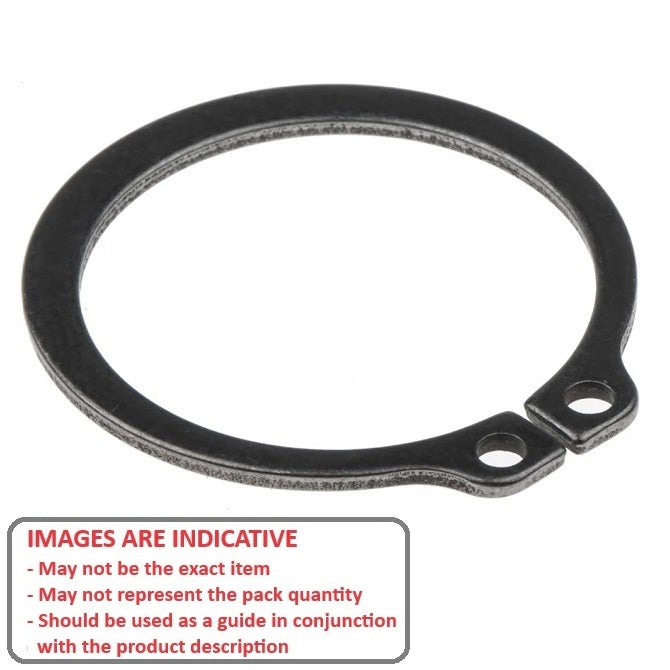

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$4.59 AUD

2 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Qty: 30 available now
Order 50 or more for $4.13 AUD

Product Details

Additional stock available from USA subject to Prior Sale = 894

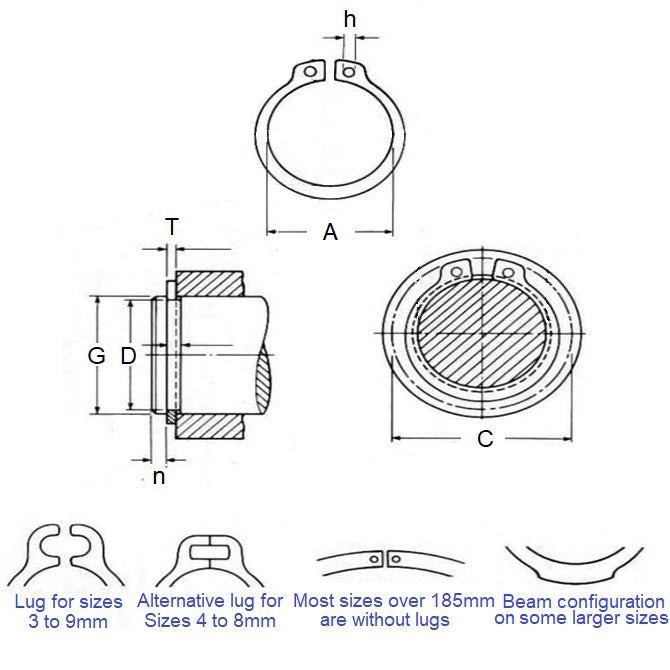

Shaft Diameter (Ds): 55.00mm
_{(55.00mm is 2.165 in.)}

Carbon Steel

Shaft Diameter (Ds): 55.00mm
_{(55.00mm is 2.165 in.)}
Clip Thickness (T): 2.00mm
_{+ 0.00 / - 0.25}
_{(2.00mm is 0.079 in.)}
Groove Dia. (Dg): 52.00mm
_{+ 0.00 / - 0.06}
_{(52.00mm is 2.047 in.)}
Approx. Loose Circlip ID (A): 50.80mm
Groove Width (W): 2.15mm
Clearance on Shaft (C1): 70.20mm
Clearance in Groove (C1): 66.40mm
Min. Lug Diameter (h): 2.50mm
Min. Extension (n): 4.50
Standard: DIN471

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Ellison 471-055
ALTPART
90154A810
ALTPART
98541A171
Seeger A-055
Seeger A55
Seeger A55-ARS
Seeger A55X2
Bossard BN818-055
Waldes D1400-055
NoCor DSH-055
Rotor Clip DSH-055
Seeger NZT.A55
A55ARS
A055
BN818055
14000550APP
1400-0550APP
DSH055
471055
D14000550
D1400-0550APP
D14000550APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
