S694-ZZ-SQP (200 Pcs)

Grooved OD Bearings - 4x11x4 mm Square Groove - Stainless Steel AISI 440C Bearing

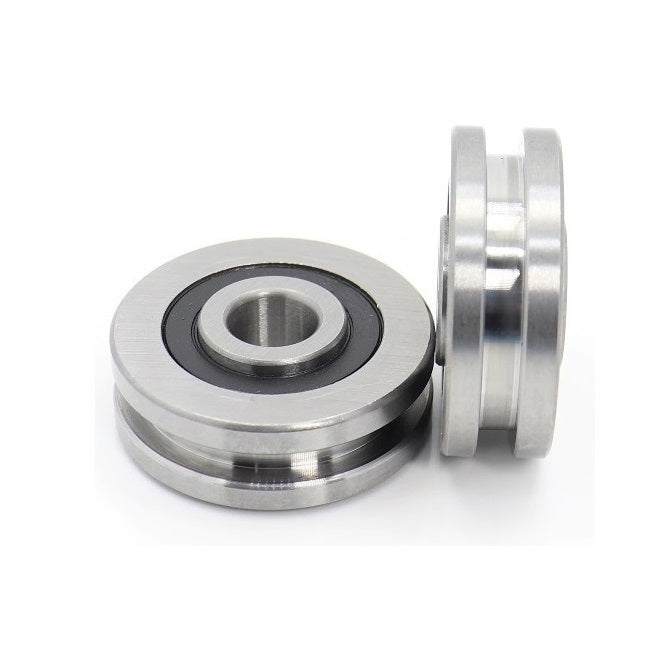

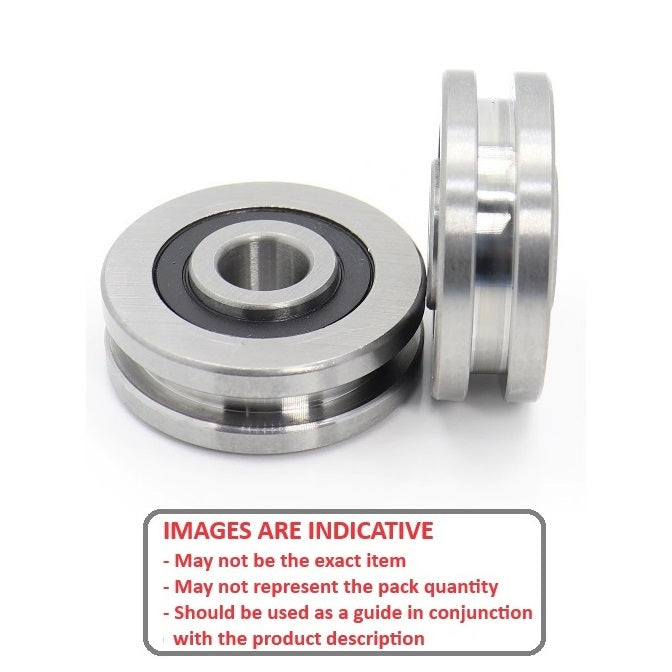

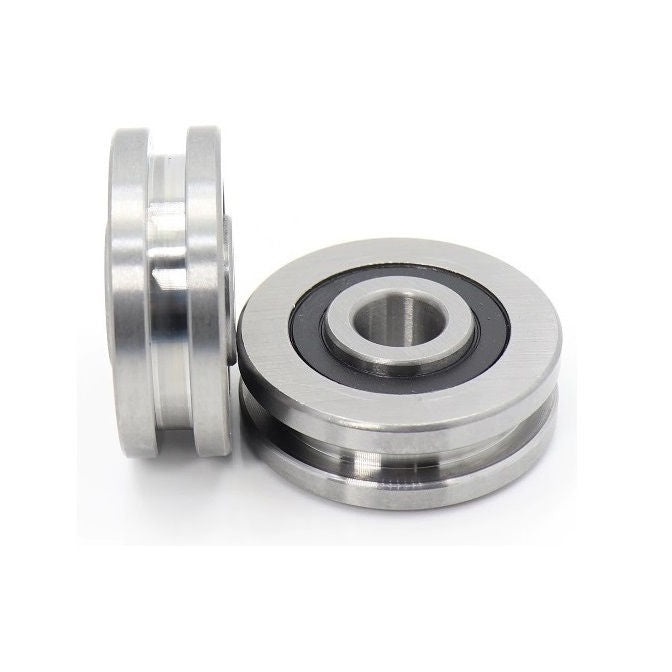

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Grooved OD Bearings - 4x11x4 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$2,922.68 AUD
$3,507.22 AUD $2,922.68 AUD
Excludes GST and overseas Taxes & Duties
 per 200
Backorder
Order 50 or more pack (10000 pcs) for $2,630.41 AUD per 200
Backorder now! Backorders for more than the stock quantity are expected before Oct 06, 2025

Base Category: Bearings - Grooved OD

Top Level Category: Bearings - Grooved OD - Square Groove

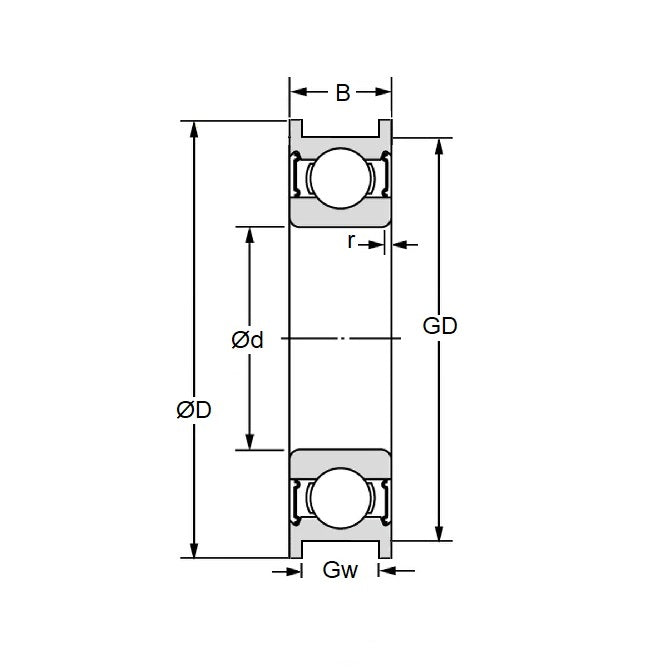

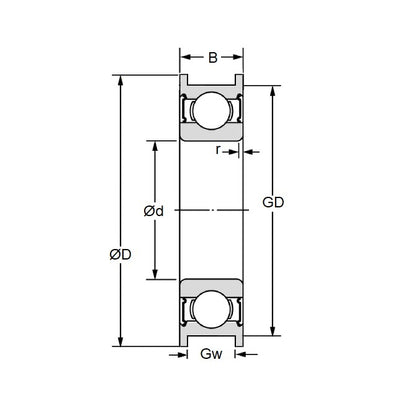

Product Details

ID (d): 4.000mm
(4.000mm is 0.157 in.)

Stainless Steel AISI 440C
  • ID (d): 4.000mm
    (4.000mm is 0.157 in.)
  • OD (D): 11.000mm
    (11.000mm is 0.433 in.)
  • Width (B): 4.000mm
    (4.000mm is 0.157 in.)
  • Groove Base Diameter (GD): 9.600mm
  • Groove Width (GB): 2.500mm
  • Dynamic Load: 42.5kgf
  • Closures: ZZ
  • Type: Square Groove Profile

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • Origin SS4-11U-ZZ
  • SS411UZZ

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
