CCI-04700-C (5 Pcs)

Name: 1157651 | CCI-04700-C (5 Pcs) --- Internal Retaining Rings - 47x1.75x49.5 mm - Carbon Steel
Brand: MBA
SKU: CCI04700C
Price: 7.32 AUD
Availability: InStock

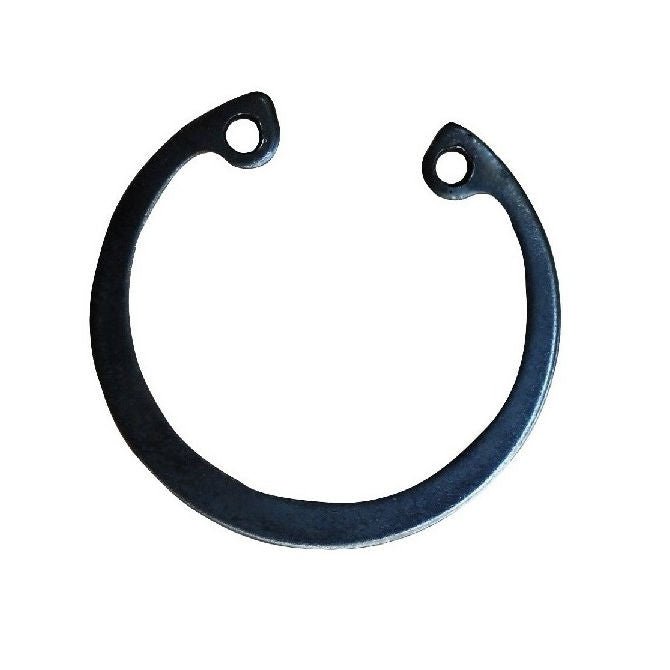

Internal Retaining Rings - 47x1.75x49.5 mm - Carbon Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

NaN -Infinity

MBA

Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$7.32 AUD

per 5
Qty: 62 available now (310 pcs)
Order 50 or more (250 pcs) for $6.59 AUD per 5

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 25, 2025

Quantity

Pickup available at Shop location

Usually ready in 4 hours

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 4209

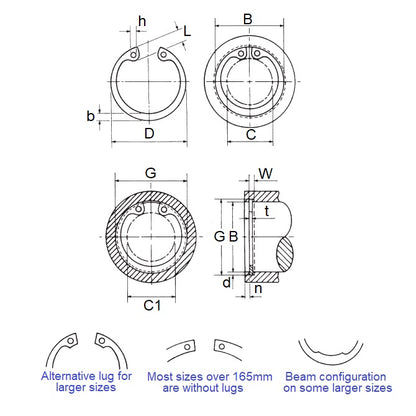

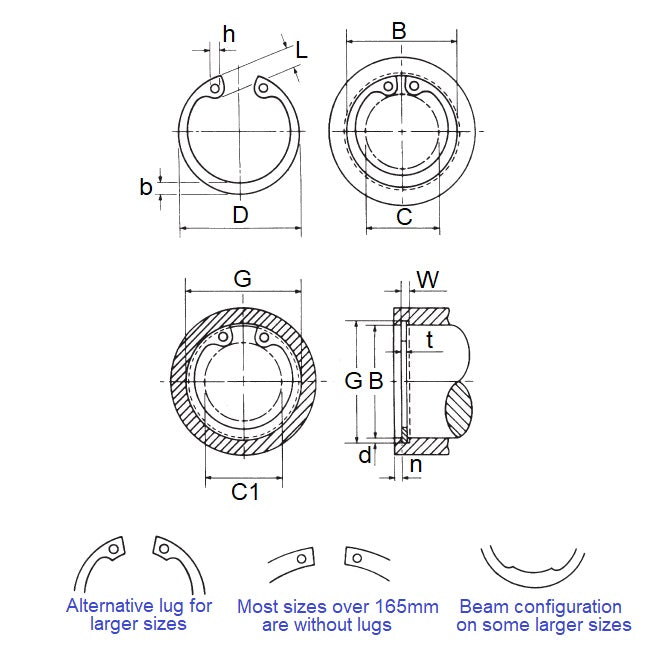

Housing Bore (B): 47.00mm
_{(47.00mm is 1.85 in.)}

Carbon Steel

Clip Thickness (T): 1.75mm
_{+ 0.25 / - 0.00}
_{(1.75mm is 0.069 in.)}
Groove Dia. (Dg): 49.50mm
_{+ 0.00 / - 0.06}
_{(49.50mm is 1.949 in.)}
Approx. Loose Circlip OD (Dr): 50.50mm
_{+ 1.10 / - 0.46}
Groove Width (W): 1.85mm
_{+ 0.10 / - 0.00}
Clearance in Bore (C): 33.50mm
Clearance in Groove (C1): 36.70mm
Min. Lug Diameter (h): 2.50mm
Min. Extension (n): 3.80
Standard: DIN472

Brand: MBA
Country of Origin: US

Alternative Parts Include: D1300-047, D1300047, D13000470APP, D1300-0470APP, D1300-0470, D13000470, BN822047, BN-822-047, DHO047, DHO-047, NZT.J47, 472047, 472-047, J047, J47, J47X1.75, J47-S, J47S, J-047, 1300-0470, 13000470, 13000470APP, 1300-0470APP, Ellison, Bossard, Waldes, NoCor, Rotor Clip, Seeger

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details

Click to open these sections

SHIPPING

Shipping Policy

Insurance, Brands & Related Information

PICK UP

Pick up is available from our Coopers Plains warehouse after your order is ready. Please refer to your ready notification email, and bring it with you to collect your parcel.

PDF CATALOGUES

You may freely download the following catalogues to review and compare products. To help you select the most readily available items, rows are colour coded and marked according to the key at the bottom of each page.

Part numbers from these catalogues can be checked in the online store. If they don't appear in the store, please email us for more information about the part.

Ball Lock Pins

Balls

Bearing Material Selection and Benefits

Bearings - Ceramic

Bearings - Corrosion Resistant

Bearings - Economy

Bearings - High Speed

Bearings - Plastic

Bearings - Radial - Master List

Bearings - Standard Range

Bearings - Super Precision

Bearings - Thrust

Bushes - Metallic & Plastic

Bushes - Sintered Bronze

Bushes - Solid Bronze

Poly Vee Belts and Pulleys

Push On & Push In Rings

Thumbs Screws and Nuts

Timing Belts

Timing Pulley Stock

Timing Pulleys

Vibration Mounts - Bobbins and Buffers

Washers - Disc Spring

Washers - Precision Shim

Washers - Wave

Washers and Spacers

CROSS REFERENCES

We provide equivalents to many brands including Berg - Designatronics - Nordex - NSK - Oilite - Ondrives - Reid Industrial - SDP-SI - SKF. The following PDF cross references contain hundreds of thousands of part conversions.

ADR and SKF

Anderton Circlips

Barden Bearings

Designatronics SDP-SI

Essentra

Flocast Bronze Bushes

K&S Metals

Miniature Precision Bearings

Timing Belts & Pulleys

Information, Catalogues, and News

View all

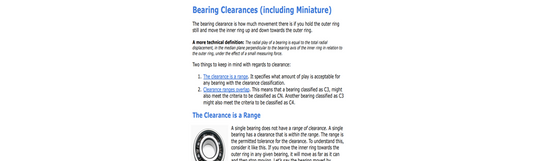

Bearing Clearance Information
