REM-048-R-CB

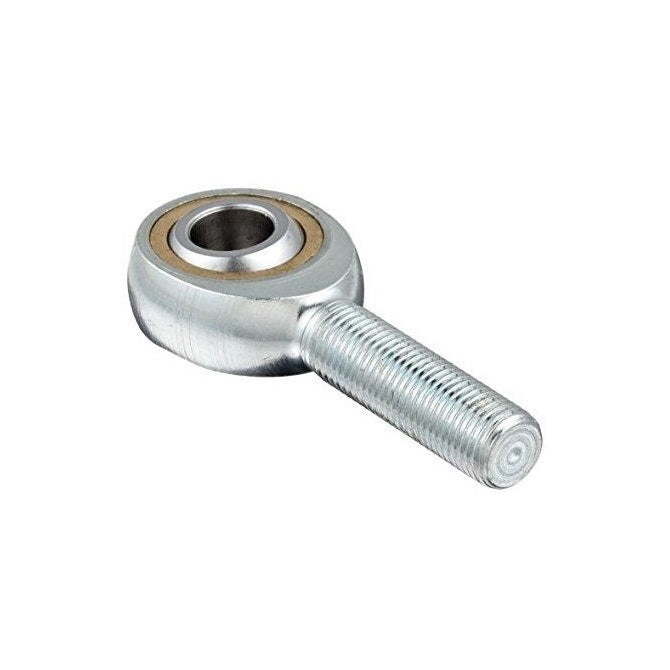

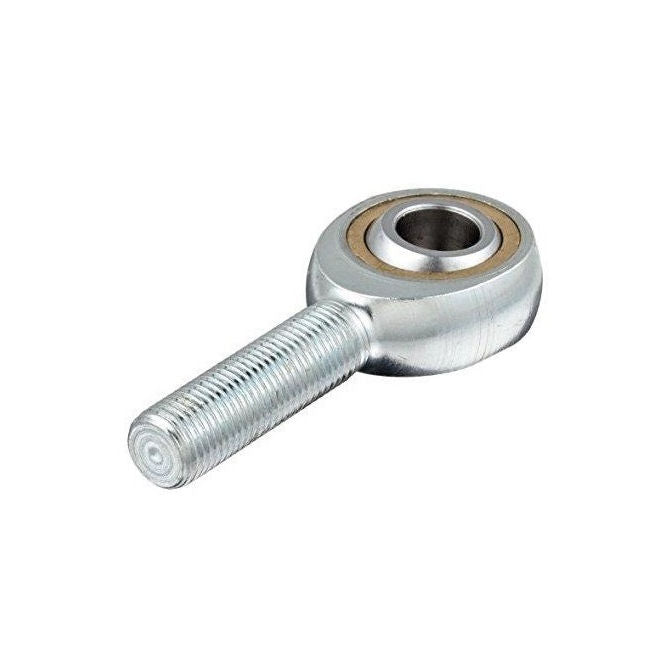

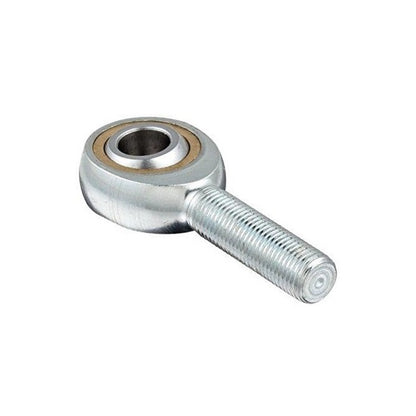

Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End

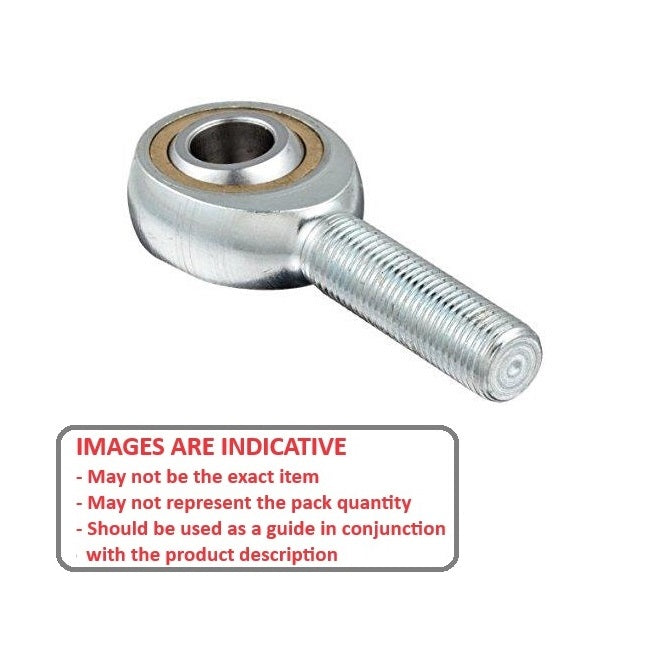

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$6.95 AUD
$6.95 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 14 available now
Order 50 or more for $6.26 AUD
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 22, 2025

Base Category: Rod Ends - Male

Top Level Category: Rod Ends - Male - Steel - Bronze Lined - Standard

Product Details

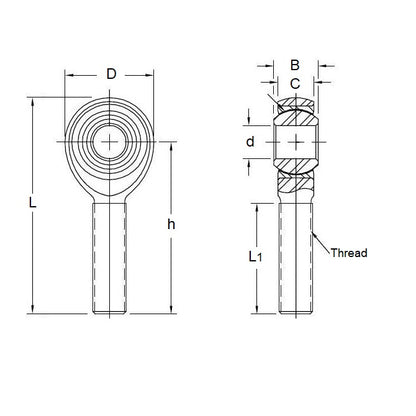

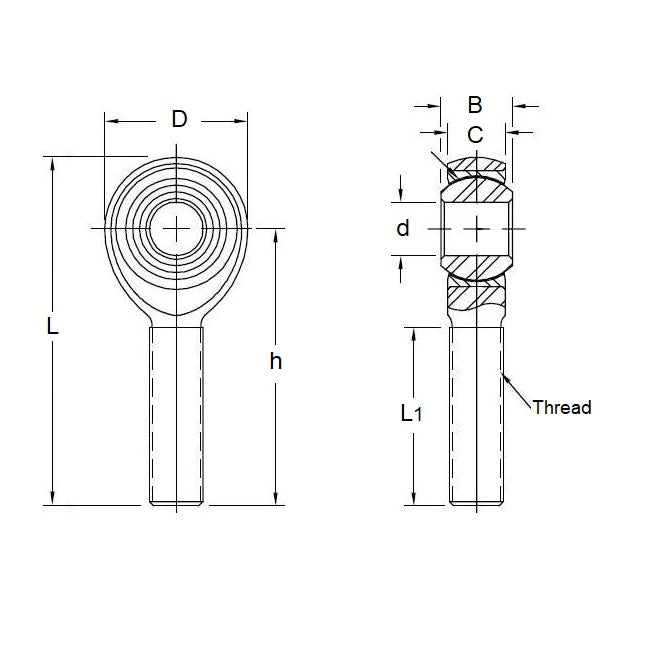

Eye Size (d1): 4.763mm
(4.763mm is 0.188 in.)

Bronze Lined Steel
  • Eye Size (d1): 4.763mm
    (4.763mm is 0.188 in.)
  • Overall Length (L): 39.70mm
    (39.70mm is 1.563 in.)
  • Thread Size: 10-32 UNF Right
  • Min. Thread Length (l2): 19.05mm
  • Head Width (W): 6.35mm
  • Eye Width (W1): 7.92mm
  • Head Diameter (D): 15.88mm
  • Centre Height (l1): 31.75mm
  • Grease Nipple: No

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • ALTPART
  • 6072K61-RIGHT
  • ASAHI JAMB3
  • KWK KMB3
  • IKO POSB3
  • Nachi POSB-3
  • NTN SMI-B3
  • SMIB3
  • 6072K61RIGHT

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
