BLP-048-0762-K1-S3 (Each)

Name: Ball Lock Pins - 4.76x76.2 mm - 303 Stainless Steel Keyring Style Pin - BLP-048-0762-K1-S3
Brand: MBA
SKU: BLP0480762K1S3
Price: 10.41 AUD
Availability: BackOrder

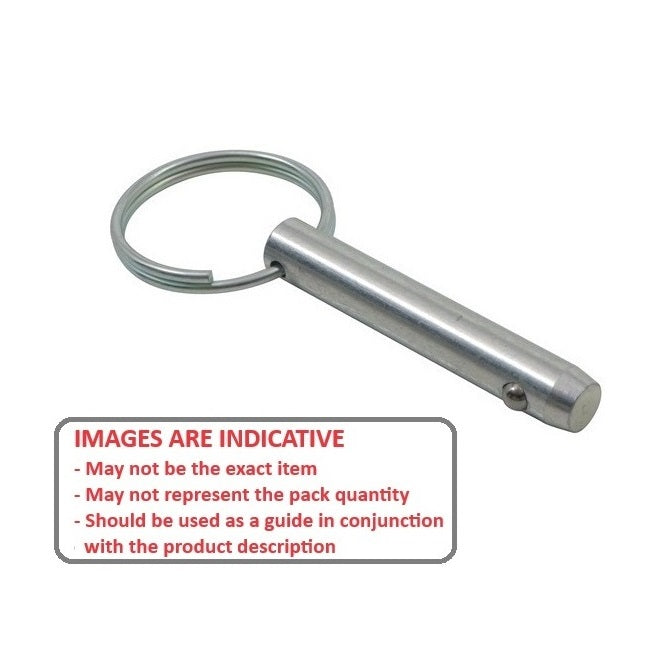

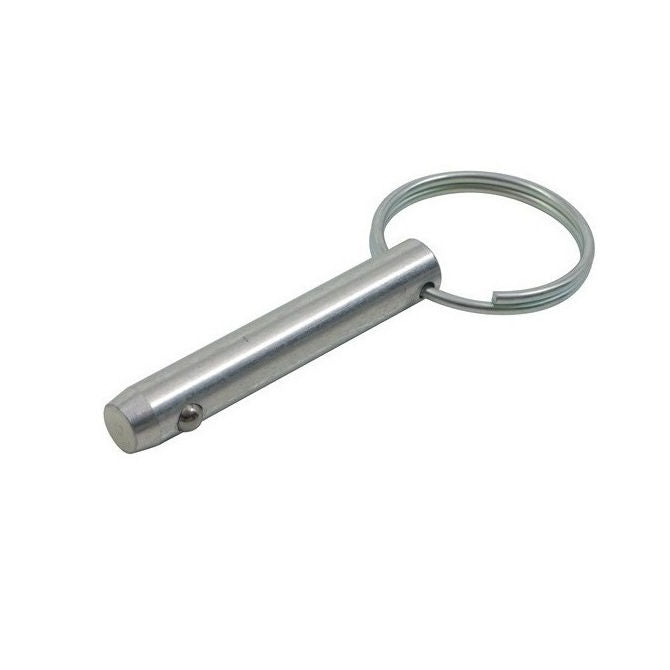

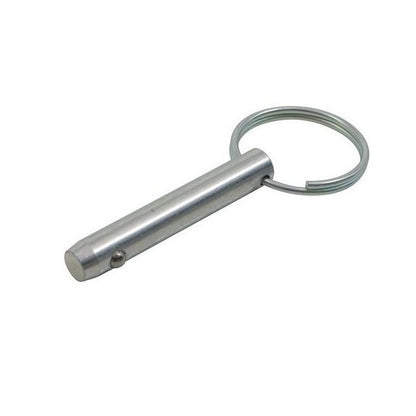

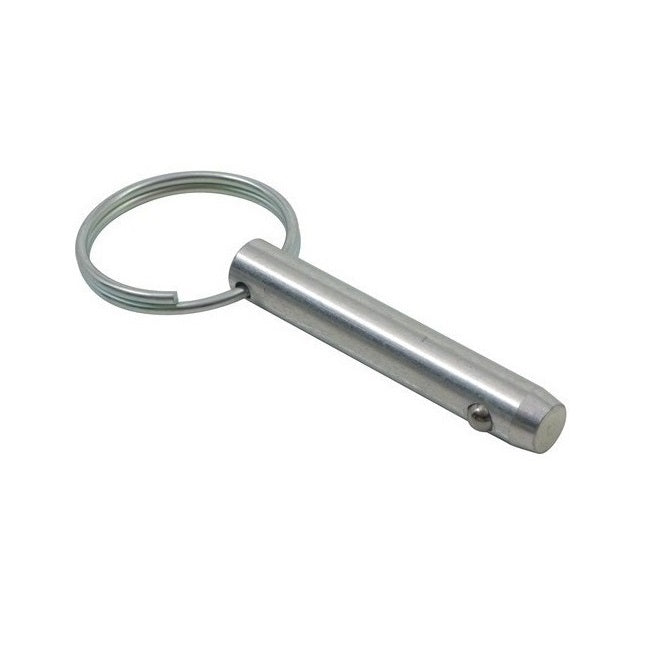

Ball Lock Pins - 4.76x76.2 mm - 303 Stainless Steel Keyring Style Pin

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Pins - Ball Lock - Keyring Style - Single Ball - 300 Grade Stainless Steel

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

Price:

$10.41 AUD

~~$12.49 AUD~~ $10.41 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more
for $9.37 AUD Each

Product Details

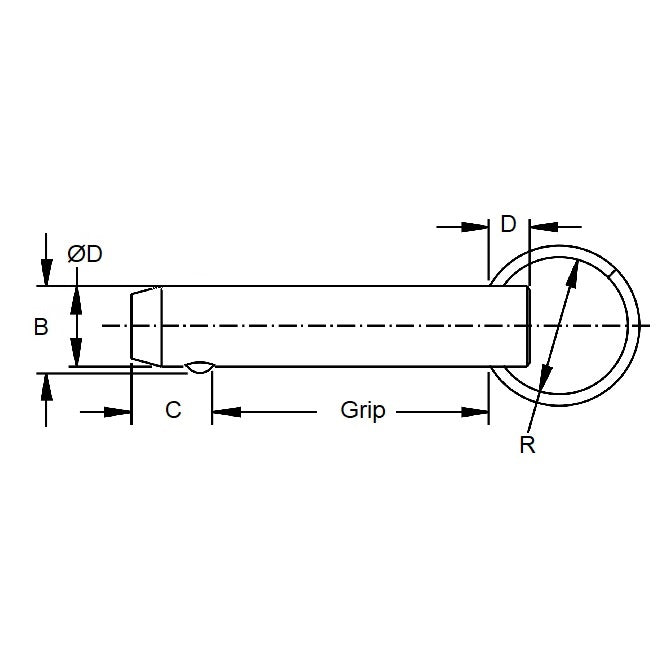

Nominal Diameter: 4.76mm
_{(4.76mm is 0.187 in.)}

Stainless Steel 303 (Similar to A2 or 304 or 18-8)

Nominal Diameter: 4.76mm
_{(4.76mm is 0.187 in.)}
Grip Length (B): 76.20mm
_{(76.20mm is 3 in.)}
Pin Material Grade: 303 Stainless Steel
Locking Ball to End (C ): 5.08mm
Open Ball Distance (B): 5.18mm
Ring Diameter (R ): 25.40mm
Depth of Ring in Pin (D): 4.75mm
Detent Style: 1 Ball Plain Pin No Shoulder

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
98404A030
Reid Tool® FPSC3-30R
FPSC330R

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP0480762
