SC028C-032-C-SK-S4 (50 Pcs)

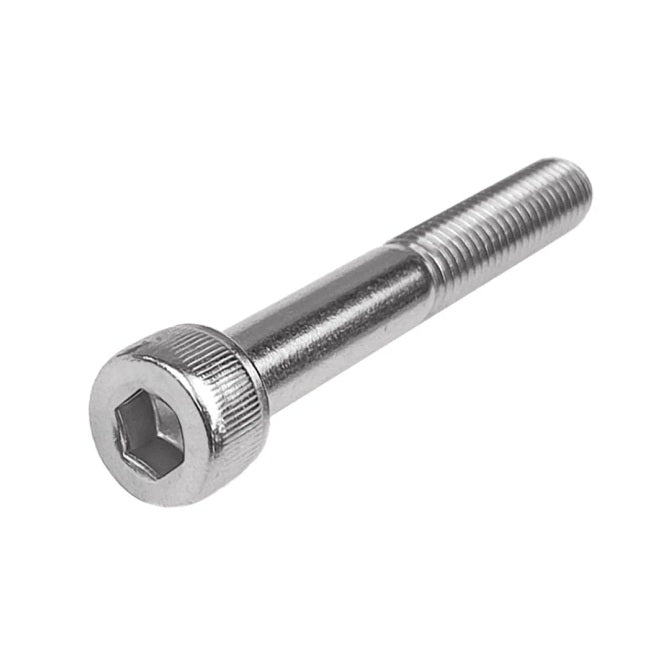

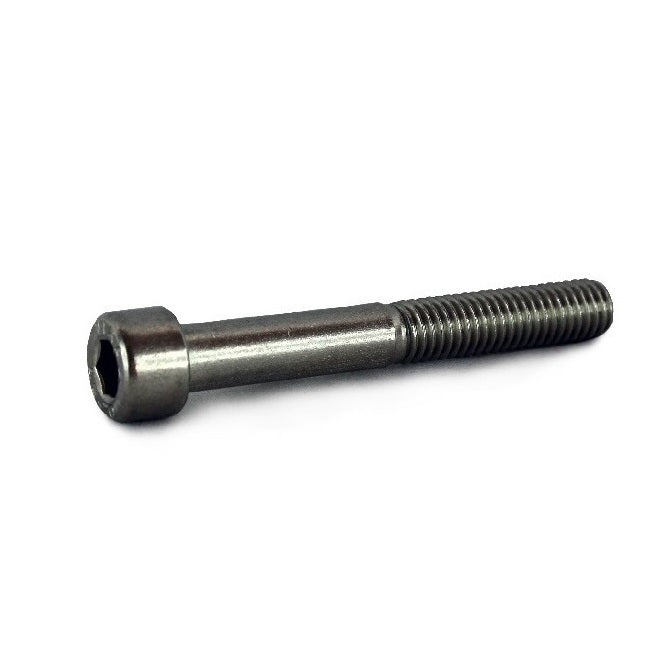

Socket Cap Screws - 4-40 UNC -2.85mm- 31.8 mm - 304 Stainless

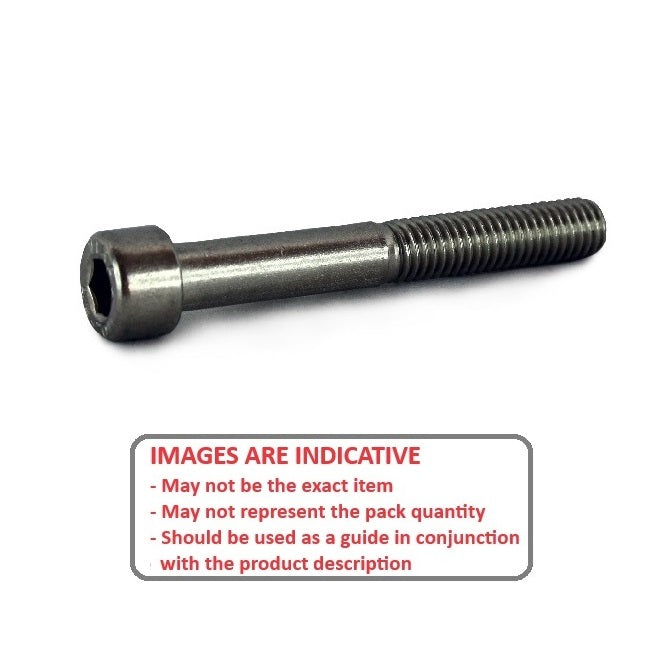

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

Brighton Best

Additional resources:
PDF Screws Catalogue
Washers
Nuts
Price:
$46.41 AUD
$46.41 AUD
per 50
Out Of Stock
Order 50 or more (2500 pcs) for $41.77 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Jun 06, 2025

Base Category: Screws - Socket Cap

Top Level Category: Screws - Socket Cap - Stainless - 303-304

Product Details:

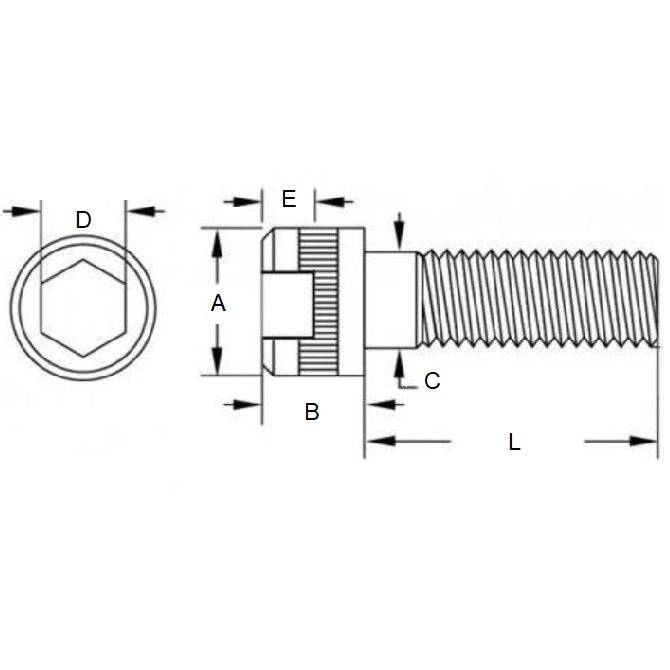

Thread Size (C): 4-40 UNC (2.85mm)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Thread Length (L): 31.8mm
    (31.8mm is 1.252 in.)
  • Material: 304 Stainless
  • Head Length (B Max.): 2.9mm
  • Head Diameter (A Max.): 4.7mm
  • Drive Depth (E): 1.30mm
  • Shank Diameter (C): 2.73 - 2.84mm
  • Hex Key (D): 2.38 (3/32)mm
  • Pitch: 0.635mm
  • Threads Per Inch: 40TPI
  • Min thread Length: 19.1mm

Brand: Brighton Best
Country of Origin: TW

Alternative Parts Include: 92196A302, SCS0420, 592081, Brighton Best, ALTPART, MicroFast

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
