W0381-FP-054-0160-CL

Name: W0381-FP-054-0160-CL - Flat Washers - 38.1x53.98x1.58 mm Precision Shim - Carbon Steel - Low Carbon 1010 Cold Rolled Washer
Brand: MBA
SKU: W0381FP0540160CL
Price: 16.41 AUD
Availability: InStock

Flat Washers - 38.1x53.98x1.58 mm Precision Shim - Carbon Steel - Low Carbon 1010 Cold Rolled Washer

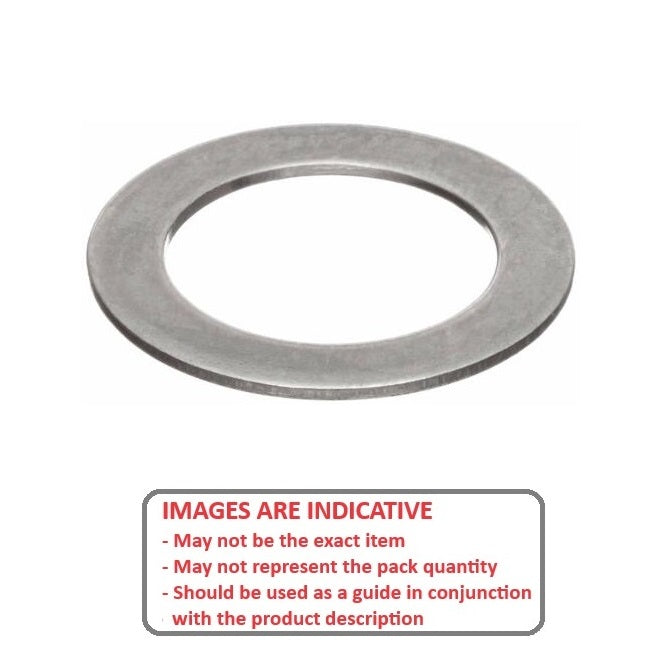

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Washers - Flat - Precision Shim - Carbon Spring Steel

Additional resources:
Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws

Price:

$16.41 AUD

~~$30.88 AUD~~ $16.41 AUD

Excludes GST and overseas Taxes & Duties

Each
Qty: 20 available now
Order 50 or more for $14.77 AUD Each

Product Details

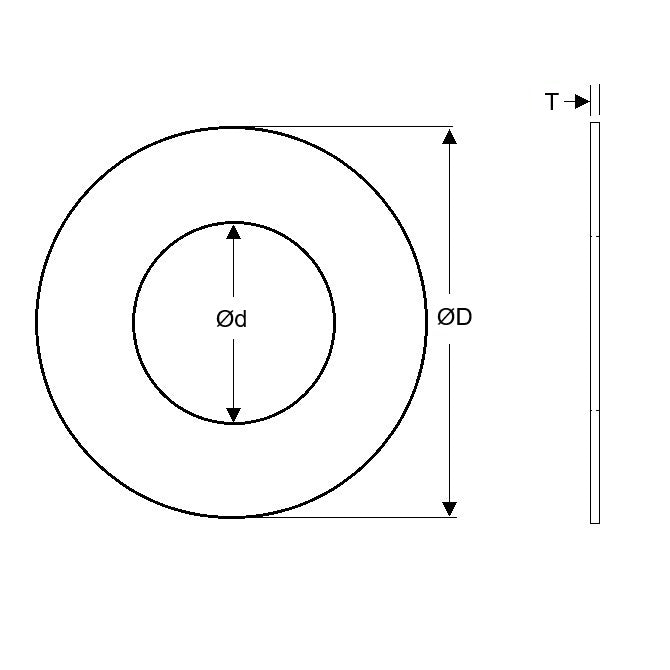

Nominal Inside Diameter (d): 38.100mm
_{+ 0.152 / + 0.025}
_{(38.100mm is 1.5 in.)}

Carbon Steel - Low Carbon 1010 Cold Rolled

Nominal Inside Diameter (d): 38.100mm
_{+ 0.152 / + 0.025}
_{(38.100mm is 1.5 in.)}
Nominal Outside Diameter (D): 53.980mm
_{- 0.05 / - 0.127}
_{(53.980mm is 2.125 in.)}
Thickness (T): 1.580mm
_{+ 0.000 / - 0.070}
_{(1.580mm is 0.062 in.)}
Other: Rockwell B 80 Min
Grade: Precision
Other: Arbor Shim
Min. Actual ID (Ref): 38.252mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
3088A476
PB25457
PB-25457
W0381FP054016C
W0381FP054016CL

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
