NRV-0350-080-W-ZZ (Each)

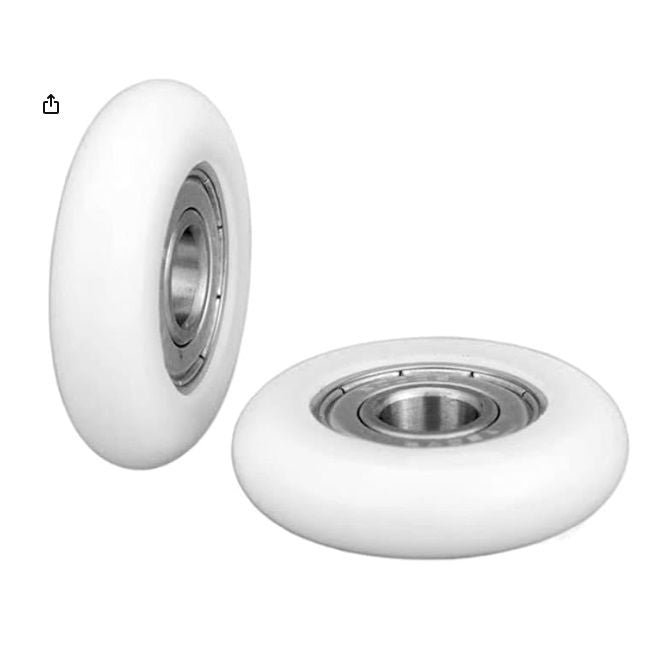

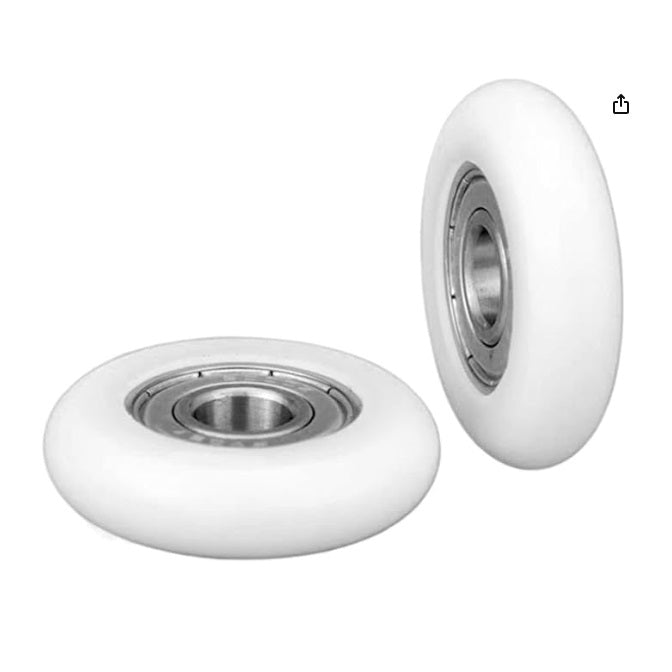

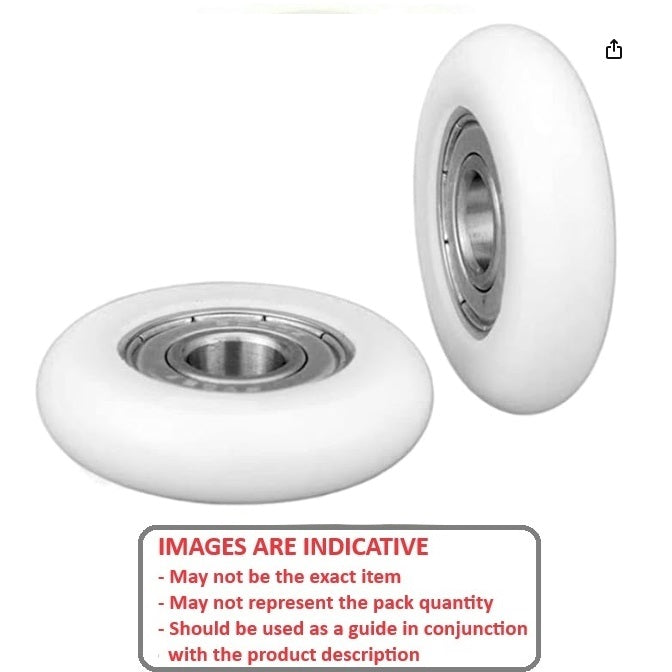

Nylon Tyre Through Bore Convex Rollers - 35x8x7 mm - Chrome Steel and Acetal Roller
MBA
Store: Minibearings - Miniature Bearings Australia - Retail & WholesaleOrder 50 or more
for $6.67 AUD Each
Couldn't load pickup availability
1-3/8 inch Roller - 35x8x7 mm Nylon Tyre Through Bore Convex Rollers - Chrome Steel and Acetal - Sold Per Each:
Base Category: Rollers - Nylon Tyre Through Bore Convex
Top Level Category: Rollers - Nylon Tyre Through Bore Convex
Product Details
Nylon tyre OD for popular exercise rower machines

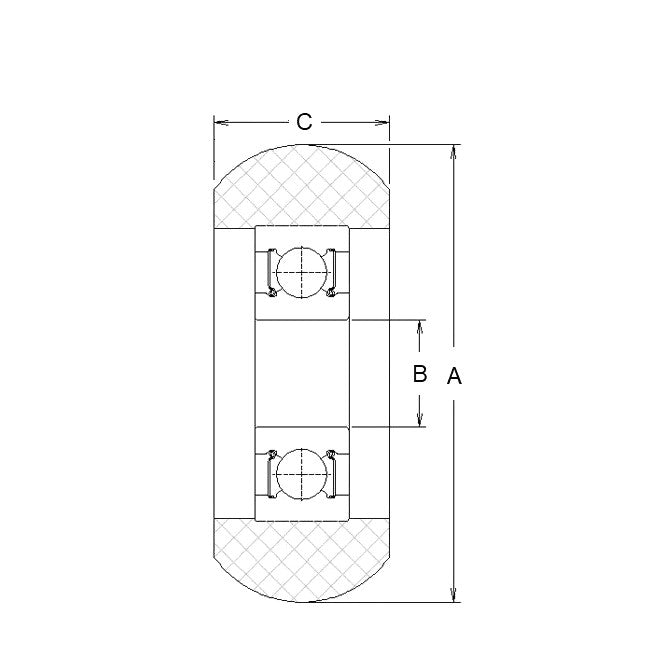

Outside Diameter (A): 35.00mm
+/- 0.2
(35.00mm is 1.378 in.)
Chrome Steel and Acetal
- Outside Diameter (A): 35.00mm
+/- 0.2
(35.00mm is 1.378 in.)
- Inside Diameter (B): 8.00mm
+ 0 / - 0.008
(8.00mm is 0.315 in.)
- Bearing Width (E): 7.0mm
(7.0mm is 0.276 in.)
- Roller Width (C): 8.0mm
- Tyre Radius: 4.0mm
- Weight: 12g
- Load Capacity: 35kg
- Colour: White
- Type: No Extended Rings on Bearing
Brand: MBA
Country of Origin: AU
Product Compliance and Data
Similar to
- NRV0350080ZZ
Used for
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
NRV0350080WZZ, NRV0350080
