CCE-03175-C (PK-50)

Name: External Retaining Rings - 31.75x1.27x29.87 mm Circlips - Carbon Steel Circlip (Sold Per PK-50) - - CCE-03175-C
Brand: MBA
SKU: CCE03175C
Price: 40.77 AUD
Availability: BackOrder

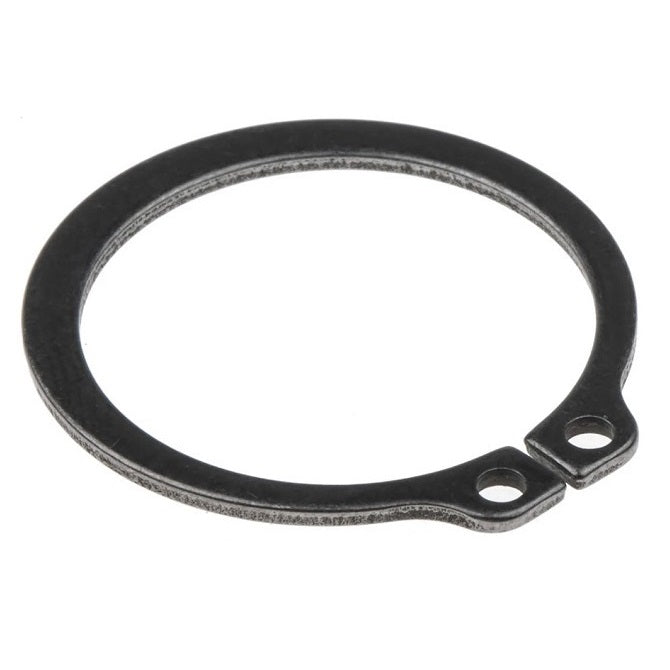

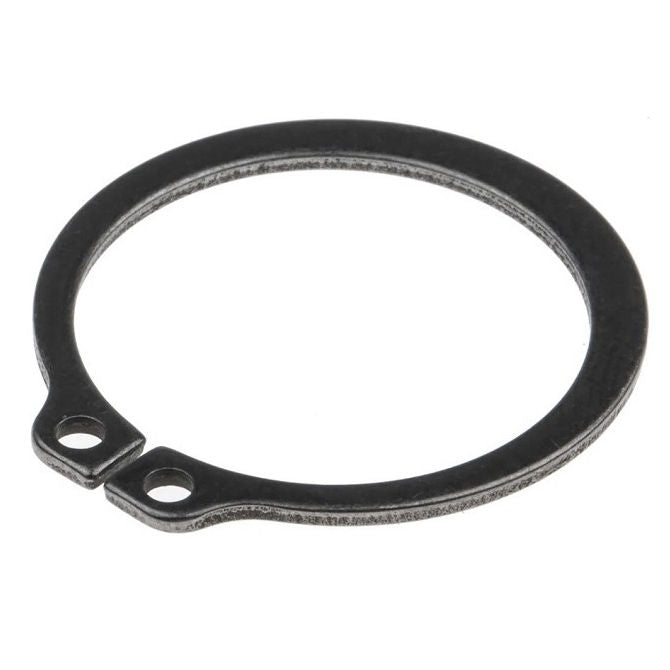

External Retaining Rings - 31.75x1.27x29.87 mm Circlips - Carbon Steel Circlip

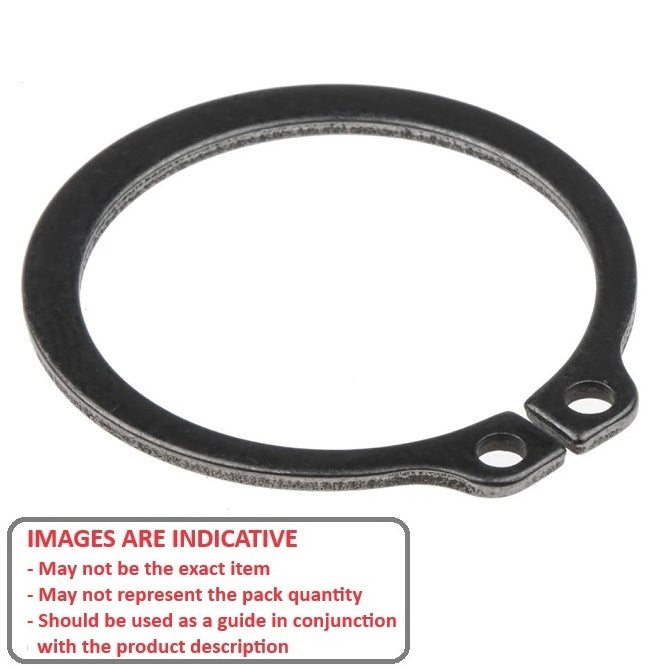

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits

Price:

$40.77 AUD

~~$48.93 AUD~~ $40.77 AUD

Priced, Stocked and Sold Per 50 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (2500 pcs)
for $36.69 AUD per 50

Product Details

Additional stock available from USA subject to Prior Sale = 13730

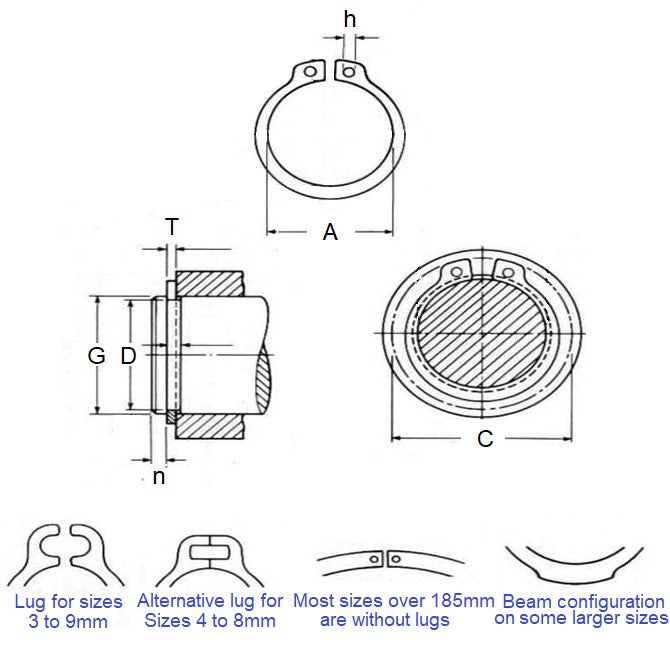

Shaft Diameter (Ds): 31.75mm
_{(31.75mm is 1.25 in.)}

Carbon Steel

Shaft Diameter (Ds): 31.75mm
_{(31.75mm is 1.25 in.)}
Clip Thickness (T): 1.27mm
_{+/- 0.051}
_{(1.27mm is 0.05 in.)}
Groove Dia. (Dg): 29.87mm
_{+/- 0.102}
_{(29.87mm is 1.176 in.)}
Approx. Loose Circlip ID (A): 29.36mm
Groove Width (W): 1.42mm
Clearance on Shaft (C1): 42.93mm
Clearance in Groove (C1): 41.15mm
Min. Lug Diameter (h): 1.93mm
Min. Extension (n): 2.97
Standard: MIL-16624

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
97633A340
Huyett® SH-125
NoCor® SH-125
SH125
N14000125
N1400-0125
A9Q27-125
A9Q27125

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
