T-0030-0080-G-BR

Base Category: Bearings - Thrust Ball

Top Level Category: Bearings - Thrust Ball - Grooved - Chrome Steel

Product Details

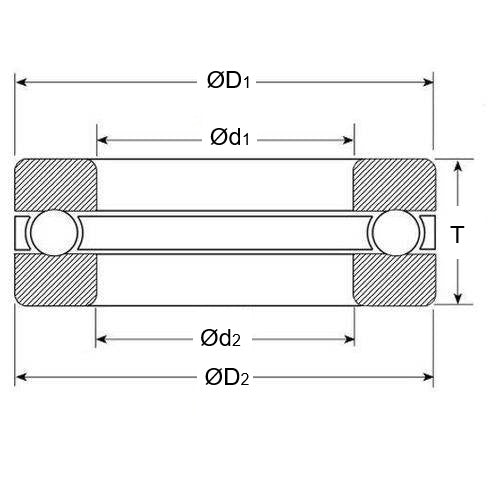

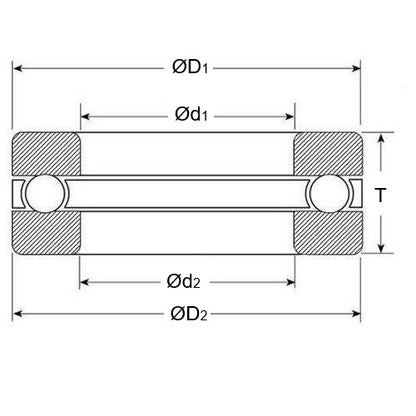

• Shaft Diameter (d1): 3.000mm
  _{(3.000mm is 0.118 in.)}

• OD (D1): 8.000mm
  _{(8.000mm is 0.315 in.)}

• Thickness (T): 3.500mm
  _{(3.500mm is 0.138 in.)}

• Bore (d2): 3.200mm
• OD (D2): 8.000mm
• Dynamic Load Capacity: 87kgf
• Cage Type: Brass

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• KYOSHO 3140
• Nachi 3TAM8
• Losi 50
• ALTPART
• 7806K53
• SCHUMACHER A520
• Schumaker A520
• INA AKL3
• E-Flite BLH1620
• Origin CRT3-8
• E-Flite EFLH1420
• E-SKY EK1-0500
• B308XP5PG48
• B308X-P5P-G48
• DDT830DSG
• F38M
• F3-8M
• CRT38
• EK10500

Used for

• RC Car Parts
• RC Helicopter Parts
• Corally - Assassin Mid Motor and Stock Option - Thrust Bearing 3-8-3.500mm
• Corally - Assassin Modified - Spur Pulley - Thrust Bearing 3-8-3.500mm
• Duratrax - Evader BX - Thrust Bearing 3-8-3.500mm
• Duratrax - Evader BX Nitro - Thrust Bearing 3-8-3.500mm
• Duratrax - Evader BX Pro RTR Electric - Thrust Bearing 3-8-3.500mm
• Duratrax - Evader ST - Thrust Bearing 3-8-3.500mm
• Duratrax - Evader ST Nitro - Thrust Bearing 3-8-3.500mm
• Duratrax - Evader ST Pro RTR - Thrust Bearing 3-8-3.500mm
• HPI - Micro RS4 - Thrust Bearing 3-8-3.500mm
• HPI - Micro RS4 Complete With Upgrade - Thrust Bearing 3-8-3.500mm
• HPI - Micro RS4 RTR 4WD - Thrust Bearing 3-8-3.500mm
• Losi - XX4 - Diff Thrust Bearing
• Schumaker - Cat 2000 - Thrust Bearing
• Schumaker - MI2 - Thrust Bearing 3-8-3.500mm
• Xray - T1 Evo 2 - Thrust Bearing 3-8-3.500mm
• Xray - T1 Factory Kit - Thrust Bearing 3-8-3.500mm
• Xray - T1 FK 05 Complete - Thrust Bearing 3-8-3.500mm
• Xray - T1M Mini - Thrust Bearing 3-8-3.500mm
• Xray - X Ray - Thrust Bearing 3-8-3.500mm
• Align - Trex 450 SE Special V2 - Thrust Bearing 3-8-3.5mm
• Kyosho - CONCEPT 30 DX Upgrade - Thrust Bearing 3-8-3.5mm
• Kyosho - CONCEPT 30 SE - Thrust Bearing 3-8-3.5mm
• Kyosho - CONCEPT 30 SR-T - Thrust Bearing 3-8-3.5mm
• Kyosho - CONCEPT 30 SX - Thrust Bearing 3-8-3.5mm
• Kyosho - CONCEPT 30-SE - 142 Thrust Bearing
• Kyosho - CONCEPT 30-SX - 142 Thrust Bearing
