HDP034-13R-S4 (5 Pcs)

Hammer Drive Pins - 3.45x12.7x3.65 mm Round Head Stainless Steel - Stainless Steel Pin

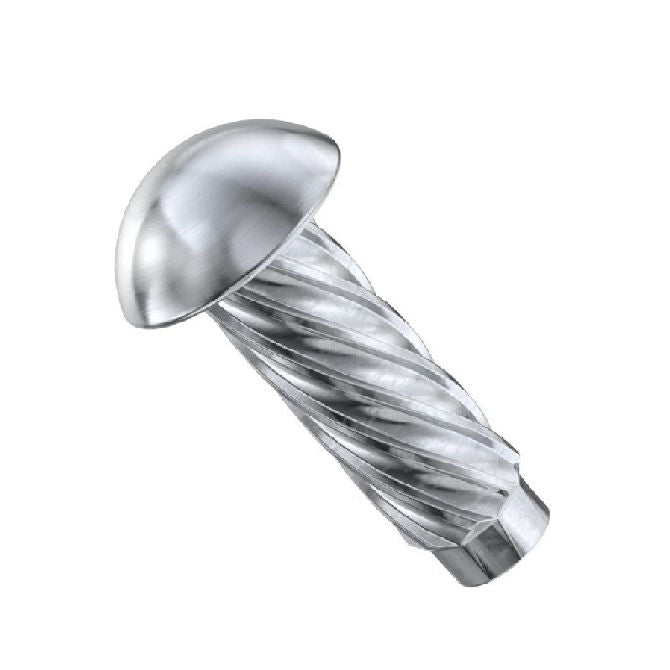

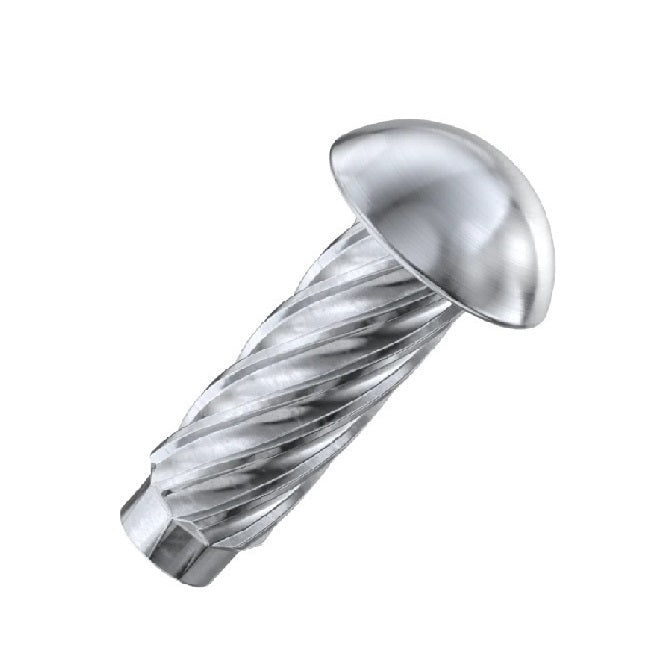

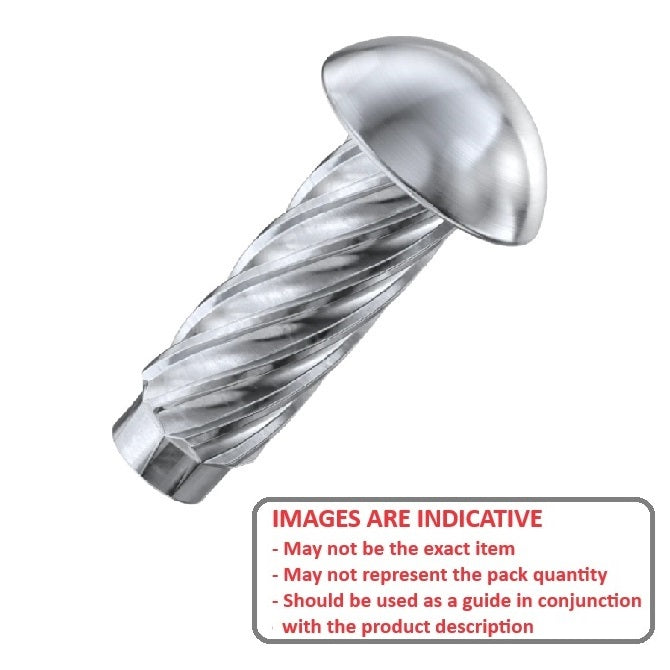

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Hammer Drive Pins - 3.45x12.7x3.65 mm - Stainless Steel
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Master Pins Catalogue PDF
Price:
$1.77 AUD
$8.93 AUD $1.77 AUD
Excludes GST and overseas Taxes & Duties
 per 5
Qty: 38 packs (190 pcs) available now
Order 50 or more packs (250 pcs) for $1.59 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 20, 2025

Base Category: Pins - Hammer Drive

Top Level Category: Pins - Hammer Drive - Round Head Stainless Steel

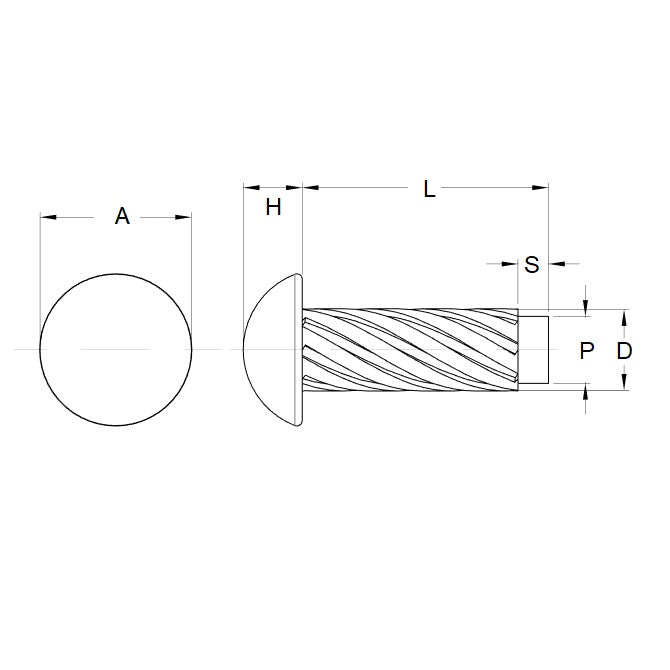

Product Details

Min Hole Diameter: 3.45mm
(3.45mm is 0.136 in.)

Stainless Steel
  • Min Hole Diameter: 3.45mm
    (3.45mm is 0.136 in.)
  • Approx. Length (l): 12.7mm
    (12.7mm is 0.5 in.)
  • Max Hole Dia.: 3.65mm
    (3.65mm is 0.144 in.)
  • Approx Pin Diameter (d1): 4.24mm
  • Max Head Diameter (d2): 7.85mm
  • Max Head Thickness (h): 3.05mm
  • Nom. Pilot Length: 1.6mm

Brand: NoCor
Country of Origin: TW

Product Compliance and Data

Similar to

  • Brighton Best V93185

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
