R2-5A-ZZ-MC3

Single Row Ball Bearings - 3.175x7.938x3.571 mm Unflanged - Chrome Steel SAE 52100 Bearing

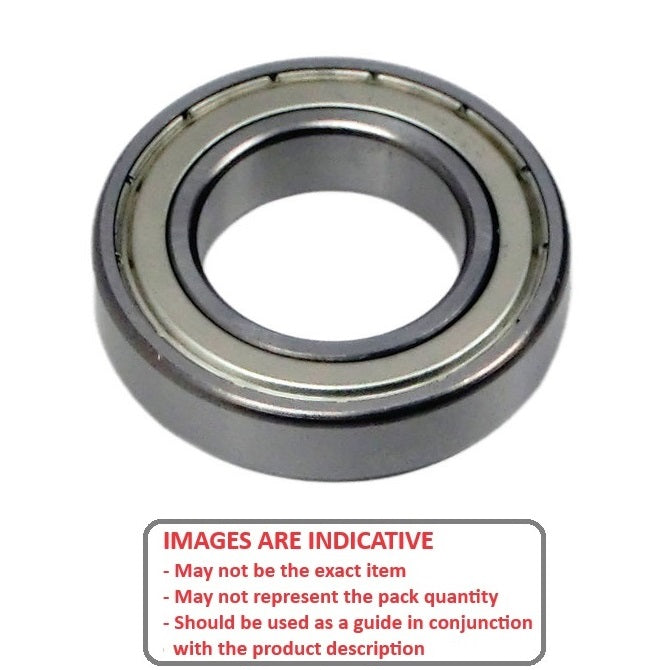

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 3.175x7.938x3.571 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$7.86 AUD
$7.86 AUD
Each
Qty: 153 available now
Order 50 or more for $7.07 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Oct 03, 2025

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

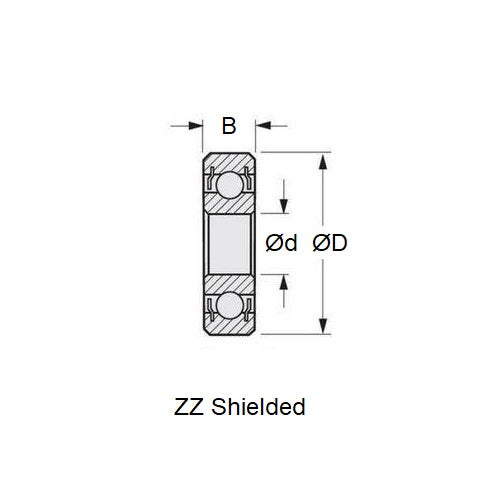

Product Details

ID (d): 3.175mm
+ 0.000 / - 0.0075
(3.175mm is 0.125 in.)

Chrome Steel SAE 52100
  • ID (d): 3.175mm
    + 0.000 / - 0.0075
    (3.175mm is 0.125 in.)
  • OD (D): 7.938mm
    + 0.000 / - 0.0075
    (7.938mm is 0.313 in.)
  • Width (B): 3.571mm
    + 0.000 / - 0.125
    (3.571mm is 0.141 in.)
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • GRW 1-8A-2Z
  • MPB 518CHH
  • GRW BR1-8A-2Z
  • Shielded R2 / 4
  • NHBB R2-5PP
  • ISO R25ZZ
  • ISO R2-5-ZZ
  • NTN R2-5-ZZ
  • FAG R820-ZZ
  • NTN RA2-5-ZZ
  • NTN RA2-5-ZZA
  • ADR X1-8-ZZ
  • R820ZZ
  • RA25ZZA
  • R2-5SS
  • R2-5A
  • R2-5A-ZZMC3
  • R25PP
  • R25SS
  • R25SS3G2
  • R2-5SS3G-2
  • R25AZZMC3
  • 18A2Z
  • X18ZZ
  • R1-518-ZZ
  • R1518ZZ
  • BR18A2Z
  • R2-5ABASIC

Used for

  • RC Car Parts
  • RC Nitro Engine Parts
  • Associated - RC10L3 Touring Team - Bearing 3.175-7.938-3.571mm
  • Associated - RC10LW - Bearing 3.175-7.938-3.571mm
  • Associated - RC12L3 Oval - Bearing 3.175-7.938-3.571mm
  • Associated - RC12LC - Bearing 3.175-7.938-3.571mm
  • Associated - RC12LSS - Bearing 3.175-7.938-3.571mm
  • Bolink - Eliminator 12-CF - Bearing 3.175-7.938-3.571mm
  • CRC Calandra Racing Concepts - 3 - Bearing 3.175-7.938-3.571mm
  • CRC Calandra Racing Concepts - 3.2 R Carpet Knif - Bearing 3.175-7.938-3.571mm
  • Losi - DoubleX Buggy - Bearing 3.175-7.938-3.571mm
  • Losi - DoubleX Truck - Bearing 3.175-7.938-3.571mm
  • Losi - GTX Gas TRK - Bearing 3.175-7.938-3.571mm
  • Losi - LX-T - Bearing 3.175-7.938-3.571mm
  • Losi - NXT - Bearing 3.175-7.938-3.571mm
  • Losi - XX - XXCR - XXT CR - Bearing 3.175-7.938-3.571mm
  • Losi - XXX-2WD Off-Road Racing Buggy - Bearing 3.175-7.938-3.571mm
  • Losi - XXX-BK2 Racer - Bearing 3.175-7.938-3.571mm
  • Losi - XXX-Buggy - Bearing 3.175-7.938-3.571mm
  • Losi - XXX-Kinwald Graphite Edition - Bearing 3.175-7.938-3.571mm
  • Losi - XXX-S - Bearing 3.175-7.938-3.571mm
  • Losi - XXX-T MF2 Sports - Bearing 3.175-7.938-3.571mm
  • AXI - 2212 Outrunner Motor - Bearing 3.18-7.94-3.57mm
  • AXI - 2217 - Bearing 3.18-7.94-3.57mm
  • E-Flite - 370 - 0.28 - Bearing 3.18-7.94-3.57mm
  • E-Flite - 400 Outrunners - 0.28 - Bearing 3.18-7.94-3.57mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
