SR144A-D650-ZS

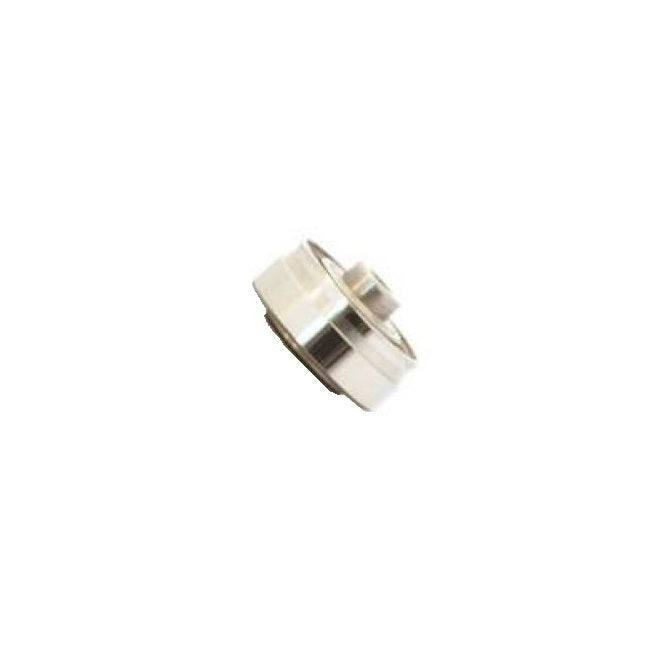

Dental Applications Bearings - 3.175x6.35 - 3.200 / 4.200 - Stainless Steel AISI 440C - Dental Special

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dental Applications Bearings - 3.175x6.35 - 3.200 / 4.200 - Stainless Steel AISI 440C - Dental Special
1 4

MBA

Additional resources:
Aftermarket Dental Handpiece Parts
Dental replacement Parts
Price:
$44.51 AUD
$124.36 AUD $44.51 AUD
Each
Qty: 1 available now
Only 1 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Dental Applications

Top Level Category: Bearings - Dental Applications

Product Details:

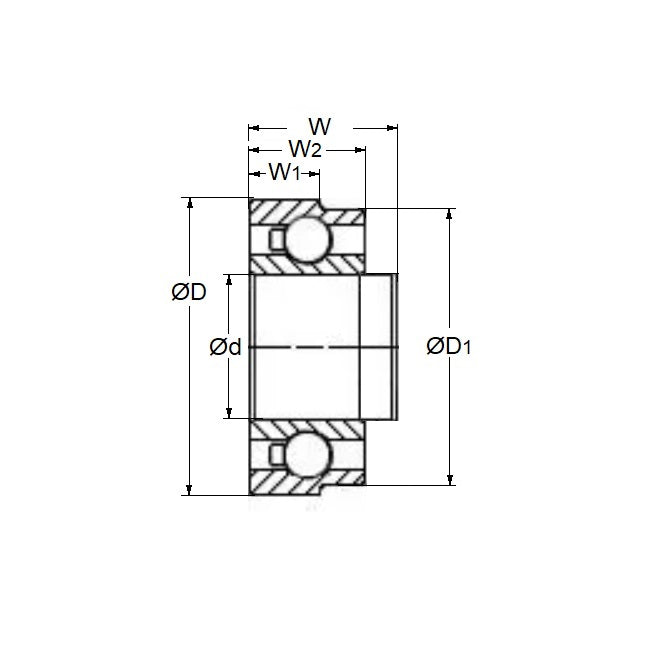

ID (d): 3.175mm
+ 0.000 / - 0.004
(3.175mm is 0.125 in.)

Stainless Steel AISI 440C - Dental Special
  • OD (D): 6.350mm
    + 0.000 / - 0.005
    (6.350mm is 0.25 in.)
  • Width (B): 3.200 / 4.200mm
    + 0.000 / - 0.040
    (3.200 / 4.200mm is 0.126 in.)
  • Precision Grade: Abec 7
  • Closure Type: ZS
  • Bearing Type: D650 (Large Shroud)
  • Lubricant: Oil - Undisclosed
  • Additional Information: Outer ring is stepped from 6.35mm to 5.979mm. Inner ring is wider than outer ring.

Brand: MBA
Country of Origin: DE

Alternative Parts Include: R144STAY39K3C10, 2202009, 220NK2009, 220-2009, KaVo

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

Used for Dental Handpiece Parts. Brands: Kavo. Models: 637B Mini Lux 3 BellaTorque, 650A FG, 650B PB - 650C PB.
