SF682-MC34-GR5-R-L23 (40 Pcs)

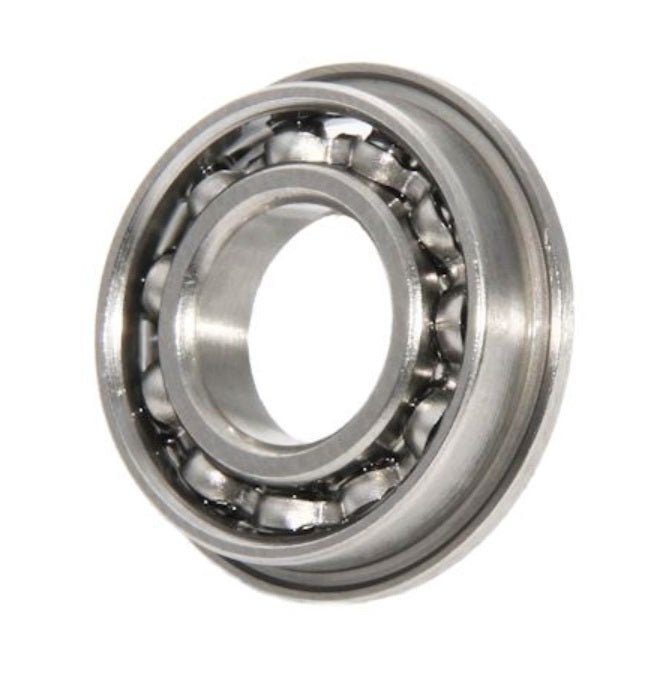

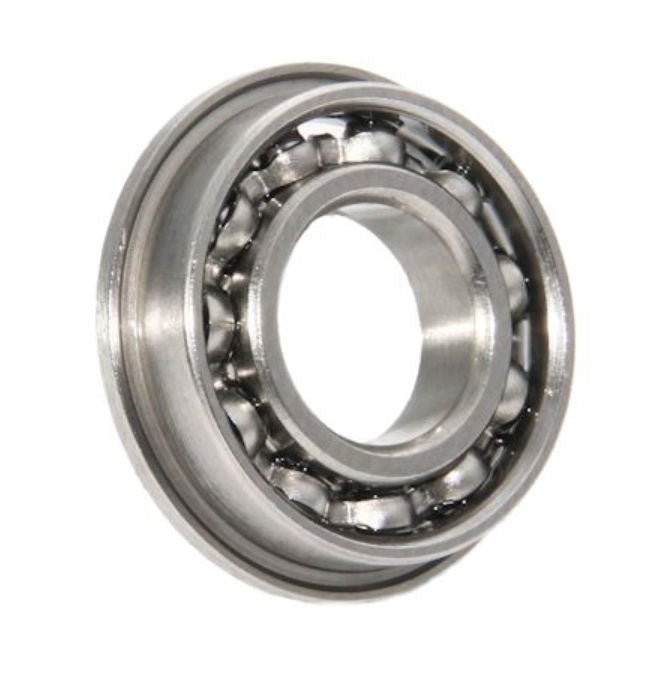

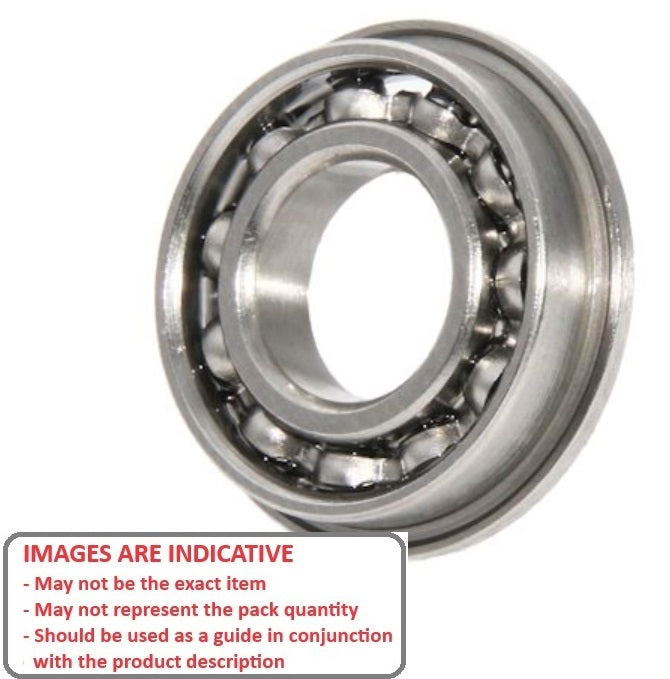

Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C Bearing
Myonic
Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:Tolerances
High Precision Bearings Catalogue PDF
Shafting
Order 50 or more for $1,539.45 AUD
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard
Product Details

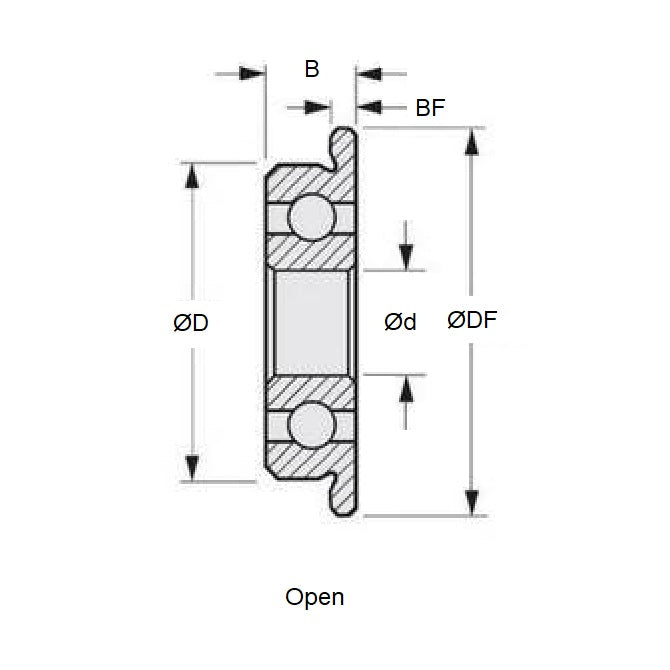

ID (d): 2.000mm+ 0.000 / - 0.005
(2.000mm is 0.079 in.)
Stainless Steel AISI 440C
- ID (d): 2.000mm
+ 0.000 / - 0.005
(2.000mm is 0.079 in.)
- OD (D): 5.000mm
+ 0.000 / - 0.005
(5.000mm is 0.197 in.)
- Width (B): 1.500mm
+ 0.000 / - 0.040
(1.500mm is 0.059 in.)
- Flange Diameter (DF): 6.100mm
- Flange Width (BF): 0.500mm
- Precision Grade: Abec 5
- Closure Type: Open
- Bearing Type: Radial Flanged
- Lubricant: Windsorlube L245X - L23 Oil
Brand: Myonic
Country of Origin: DE
Product Compliance and Data
Similar to
- GRW F682-P5
- GRW SF682-P5
- GRW SSF682-P5
- P5-SF682
- P5SF682
- P5F682
- P5-F682
- P4-F682
- P4-SF682
- P4SF682
- P4F682
- ULK205X-A5P-L23
- ULK205X48A5P6/15L23
- ULK205X-48-A5P-6/15-L23
- ULK205XA5P
- ULK205XA5PL23
- SF682MC3GR5L23
- SF682P5
- SF682RGR5MC34L23
- SSF682MC3GR5L23
- SSF682P5
- SSF682RGR5MC34L23
- F682BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
