DVAB2-ST-064-303

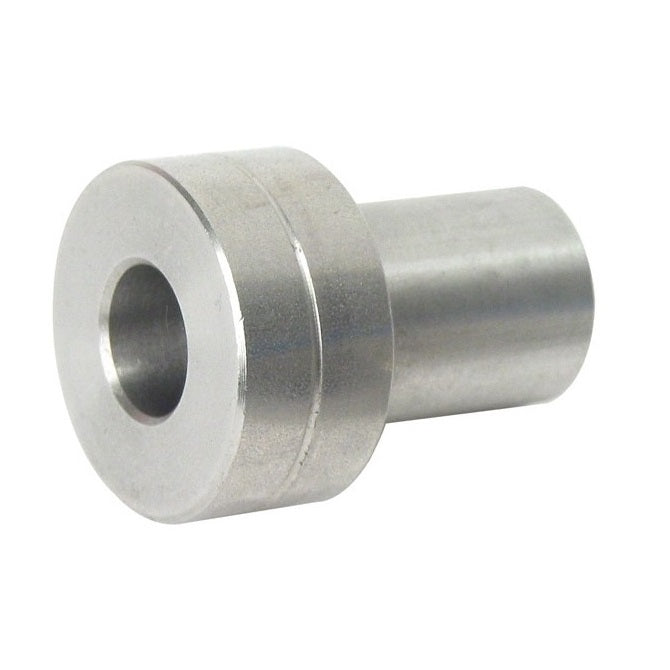

Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8

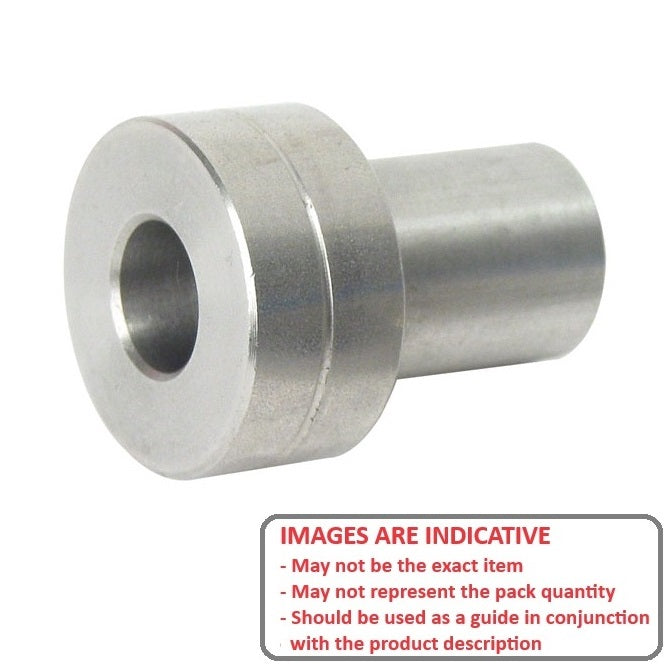

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Adaptor Bushings Dual Vee - Bushing Size 2 - 18x6.65 mm - Stainless Steel 303 Similar to A2, 304, 18-8
1 3

MBA

Price:
$8.05 AUD
$14.45 AUD $8.05 AUD
Each
Qty: 2 available now
Only 2 may be ordered online. If you need a large quantity, please contact us.

Base Category: Dual Vee - Adaptor Bushings

Top Level Category: Dual Vee - Adaptor Bushings

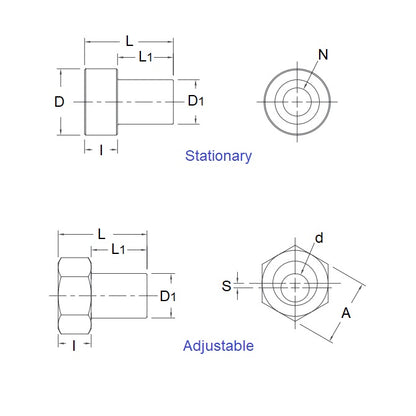

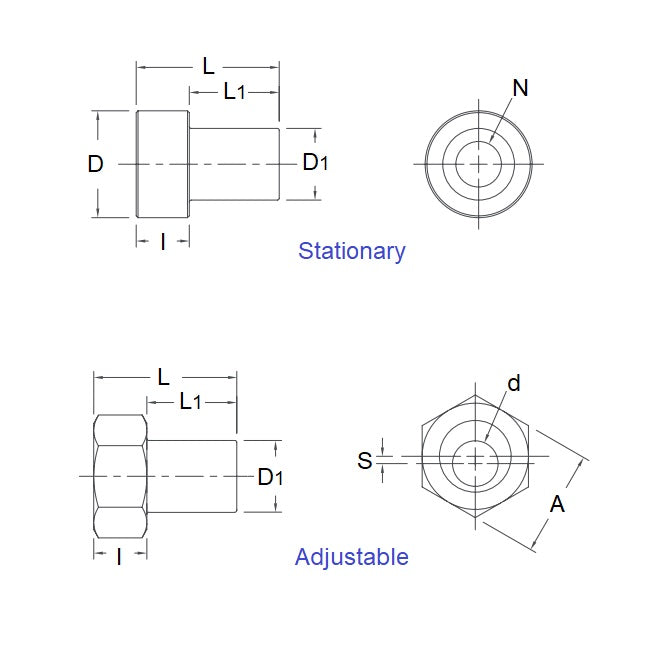

Product Details:

Bushing Size: 2

Stainless Steel 303 (Similar to A2, 304, 18-8)
  • Overall Length (L): 18.000mm
    + 0.000 / - 0.070
    (18.000mm is 0.709 in.)
  • Head Width (l): 6.650mm
    +/ - 0.03
    (6.650mm is 0.262 in.)
  • Shank Diameter (D1): 9.520mm
    + 0.000 / - 0.030
  • Diameter / Hex (D or A): 14.200mm
  • Inside Diameter (N or d): 6.350mm
    + 0.050 / - 0.000
  • Bush Type: Stationary
  • Head Configuration: Round

Brand: MBA
Country of Origin: US

Alternative Parts Include: B4SS, B4-SS, Dual Vee

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
