LCHP-0191-052-TSS

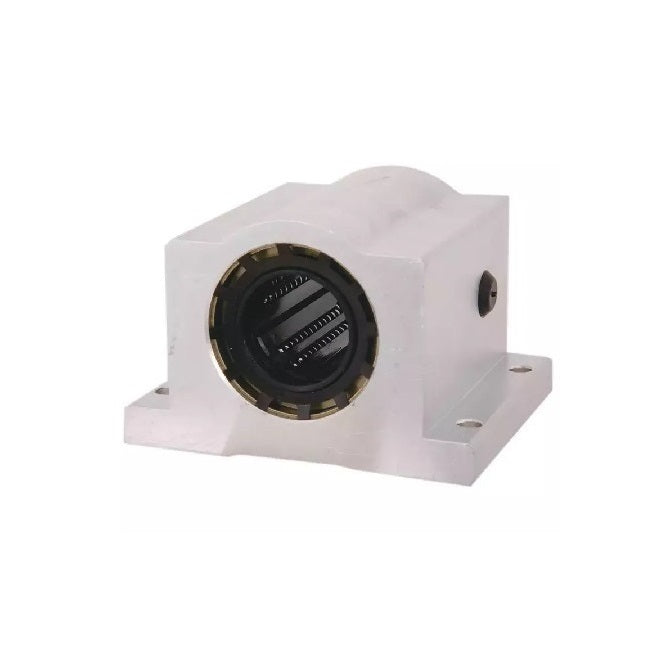

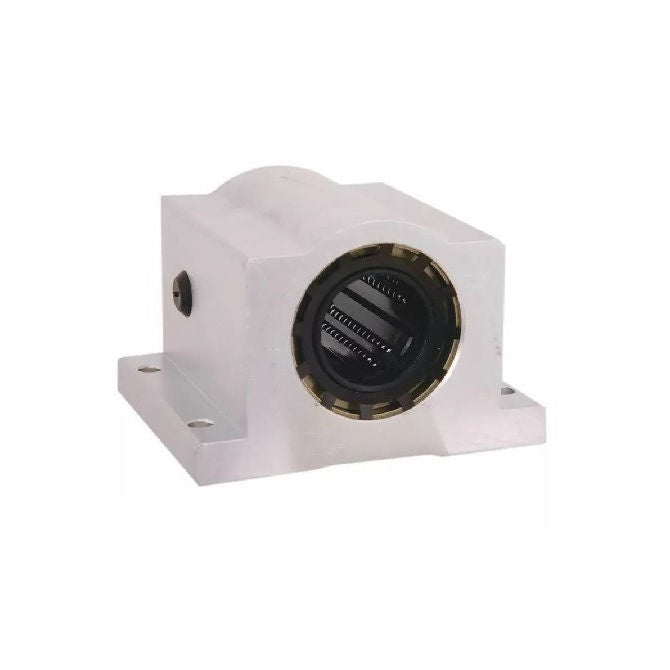

Thomson Super Smart Housings Linear - 19.05 69.850 x 47.752 52.32 mm Pillow Block Closed

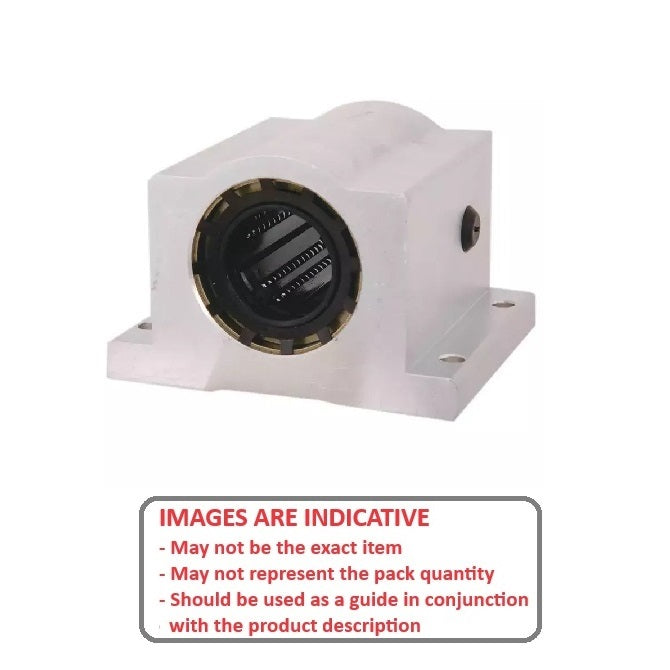

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thomson Super Smart Housings Linear - 19.05 69.850 x 47.752 52.32 mm
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale
Price:
$333.95 AUD
$400.75 AUD $333.95 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $300.56 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 24, 2025

Base Category: Linear - Thomson Super Smart Housings

Top Level Category: Linear - Thomson Super Smart Housings - Pillow Block Closed

Product Details

Nominal Diameter: 19.05mm
(19.05mm is 0.75 in.)
  • Nominal Diameter: 19.05mm
    (19.05mm is 0.75 in.)

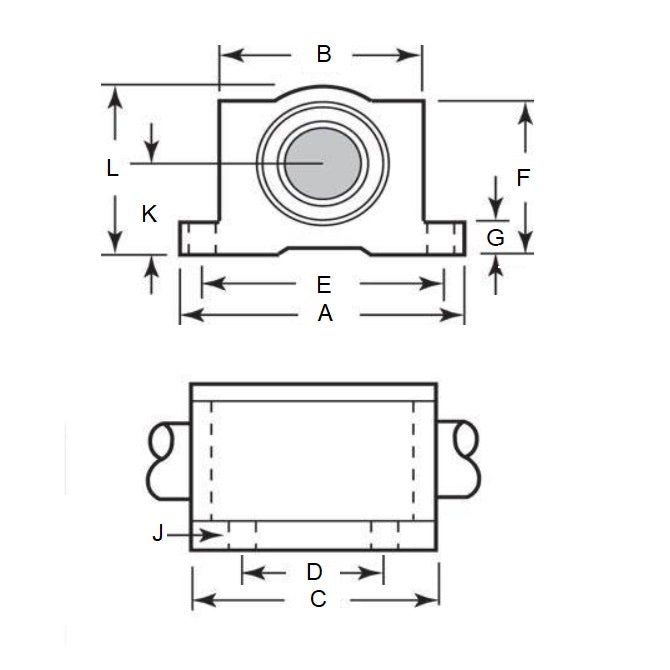

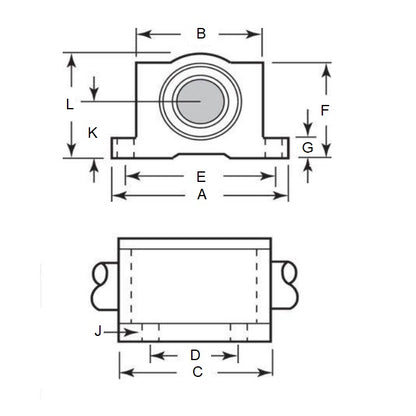

  • Widths (A x A2): 69.850 x 47.752mm
    (69.850 x 47.752mm is 2.75 in.)
  • Length (B): 52.32mm
    (52.32mm is 2.06 in.)
  • Bolt Distances (E x E1): 31.750 x 60.325mm
  • Height (H x H1): 23.800 x 44.450mm
  • Flange Height (F1): 7.87mm
  • Lube Hole Distance (G1 x G): 23.876 x 22.606mm
  • Bolt Dia.: 4.83mm
  • Weight: 0.28Kg
  • Dynamic Load Capacity: 504kgf

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • QBC TSS6UPB-12
  • TLM-960
  • TLM960
  • TSS6UPB12

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
