6903-ZZ

Name: 6903-ZZ - Single Row Ball Bearings - 17x30x7 mm Unflanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: 6903ZZ
Price: 14.50 AUD
Availability: BackOrder

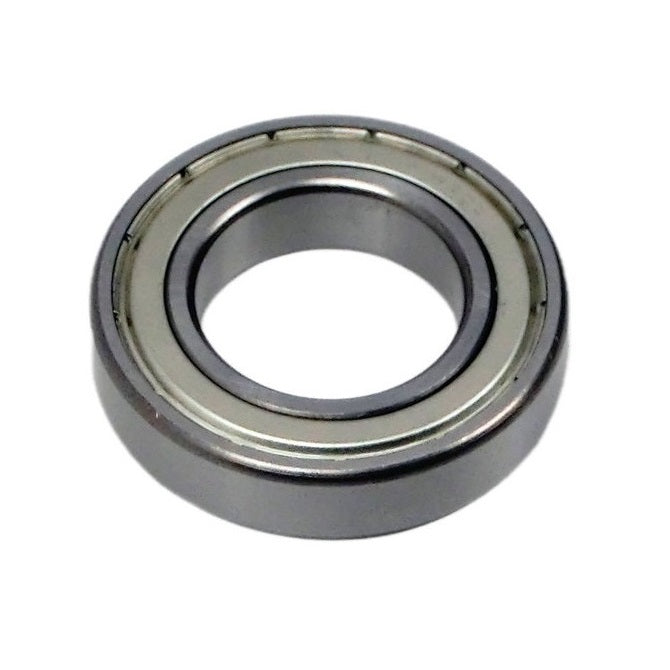

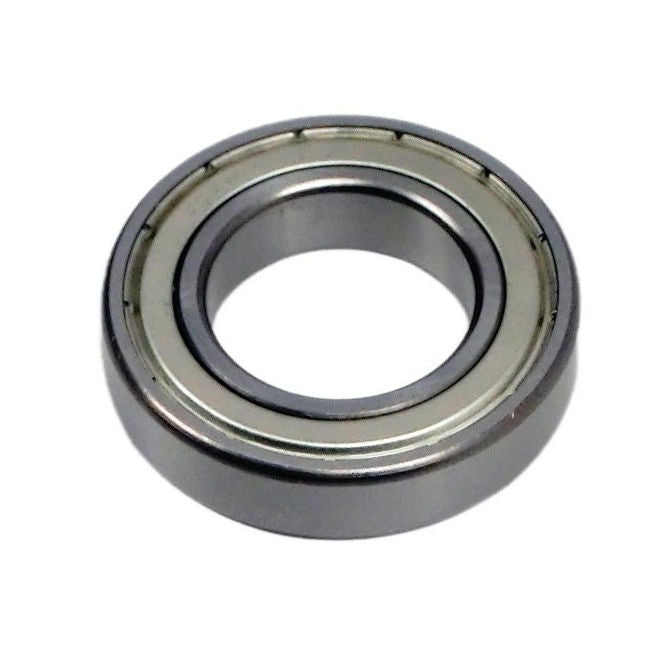

Single Row Ball Bearings - 17x30x7 mm Unflanged - Chrome Steel SAE 52100 Bearing

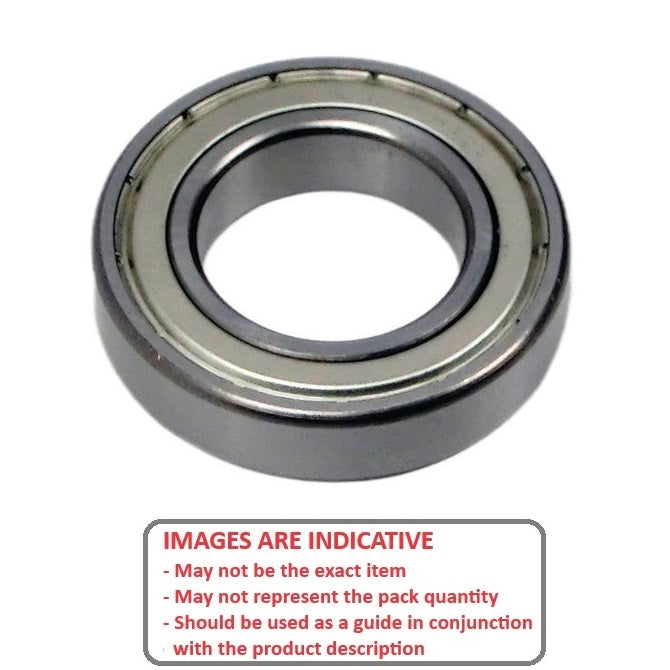

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$14.50 AUD

~~$17.40 AUD~~ $14.50 AUD

Excludes GST and overseas Taxes & Duties

Each
Backorder
Order 50 or more for $13.05 AUD Each

Product Details

ID (d): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}

Chrome Steel SAE 52100

ID (d): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}
OD (D): 30.000mm
_{+ 0.000 / - 0.010}
_{(30.000mm is 1.181 in.)}
Width (B): 7.000mm
_{+ 0.000 / - 0.125}
_{(7.000mm is 0.276 in.)}
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
5972K167
WIB 61903-2Z
WIB 61903-Z
Shielded 6903 / 7
Nachi 6903-ZZECM
ADR AY17-ZZ
AY17ZZ
6903ZZ
6903ZZECM
619032Z
61903Z
6903BASIC

Used for

Gearbox Parts
RC Car Parts
RC Nitro Engine Parts
Ondrives - P30-60 - Output Shaft Bearings
Rino - P30-60 - Output Shaft Bearings
HPI - Baja 5B - Bearing 17-30-7mm
ASP - 61 All Models - Bearing 17-30-7mm
ASP - 75 All Models - Bearing 17-30-7mm
Chapman - DC - 28 - Bearing 17-30-7mm
Enya - X 2Cand3 - 240 - Bearing 17-30-7mm
Fitzpatrick - 61 With Side Exhaust and ABC Engine - Bearing 17-30-7mm
Fox - 36 All Models - Bearing 17-30-7mm
Fox - Eagle IV - 46 - Bearing 17-30-7mm
HP - Gold Cup F - 21 - Bearing 17-30-7mm
Irvine - 15 All Models - Bearing 17-30-7mm
Irvine - 40 All Models - Bearing 17-30-7mm
Irvine - Old - 53 - Bearing 17-30-7mm
Jett - Fan Jet - 25 - Bearing 17-30-7mm
Jett - Fan Jet - 40 - Bearing 17-30-7mm
Jett - Fire - 40 - Bearing 17-30-7mm
Jett - Fire - 50 - Bearing 17-30-7mm
Jett - Fire - 95 - Bearing 17-30-7mm
Jett - Heli - 90 - Bearing 17-30-7mm
Jett - Sport - 105 - Bearing 17-30-7mm
Jett - Sport - 12 - Bearing 17-30-7mm
Jett - Sport - 40 - Bearing 17-30-7mm
K.B - 7.5 All Models - Bearing 17-30-7mm
K.B - 8702 - 21 - Bearing 17-30-7mm
K.B - DF - 82 - Bearing 17-30-7mm
K.B - OB New - 7.5 - Bearing 17-30-7mm
K.B - Outboard Late Model Marine - 3.5 - Bearing 17-30-7mm
K.B - Outboard Marine - 40 - Bearing 17-30-7mm
K.B - Outboard Marine Late Model - 90 - Bearing 17-30-7mm
K.B - Pro - 67 - Bearing 17-30-7mm
K.B - SS Marine - 7.5 .45CC - Bearing 17-30-7mm
K.B - Violet - 0.15 - Bearing 17-30-7mm
K.B - Violet - 3.5 - Bearing 17-30-7mm
K.B - Violet - 7.5 - Bearing 17-30-7mm
K.B - Violet - 72 - Bearing 17-30-7mm
Magnum Power - XL - 52 - Bearing 17-30-7mm
Magnum Power - XL - 53 - Bearing 17-30-7mm
MDS - 60 - Bearing 17-30-7mm
Moki - All - 61 - Bearing 17-30-7mm
Nelson - 45 - 12 - Bearing 17-30-7mm
Nelson - 45 All Models - Bearing 17-30-7mm
Nelson - 65 All Models - Bearing 17-30-7mm
Nelson - Quickie - 75 - Bearing 17-30-7mm
OS - FSR ABC - 61 - Bearing 17-30-7mm
OS - FSR Gold Head - 45 - Bearing 17-30-7mm
OS - FSR RC Special - 90 - Bearing 17-30-7mm
OS - FSR Ring ED - 108 - Bearing 17-30-7mm
OS - RF ABC RC - 40 - Bearing 17-30-7mm
OS - RF-H Pump - 21 - Bearing 17-30-7mm
OS - RF-H RC With 7H - 21 - Bearing 17-30-7mm
OS - RF-P - 61 - Bearing 17-30-7mm
OS - RF-P Ring Hanno Special - 61 - Bearing 17-30-7mm
OS - SF ABC RC W-Muffler - 61 - Bearing 17-30-7mm
OS - SF-HP RC - 46 - Bearing 17-30-7mm
OS - SF-P RC/Pump - 46 - Bearing 17-30-7mm
OS - VF-H ABC - 25 - Bearing 17-30-7mm
OS - VF-H RC With 7H - 25 - Bearing 17-30-7mm
Picco - 40 All Models - Bearing 17-30-7mm
Rossi - 3 and 2 - 3.5 - Bearing 17-30-7mm
Rossi - 45 All Models - Bearing 17-30-7mm
Rossi - 53 Glow Engine - 60 - Bearing 17-30-7mm
Rossi - Air - 53 - Bearing 17-30-7mm
Rossi - F1 RC - 21 C - Bearing 17-30-7mm
Rossi - R40T - 21 - Bearing 17-30-7mm
Rossi - RE - 90 - Bearing 17-30-7mm
Saito - 4C New - 45 - Bearing 17-30-7mm
Saito - 82 All Models - Bearing 17-30-7mm
Saito - FA 100 - Bearing 17-30-7mm
Saito - FA 150 - Bearing 17-30-7mm
Saito - FA 80 - Bearing 17-30-7mm
Saito - FA182TD - 100 - Rear Bearing 17-30-7mm
Saito - Old - 30 - Bearing 17-30-7mm
Tower - 61 BB ABC - 46 - Bearing 17-30-7mm
Tower - 75 BB ABC - 15 - Bearing 17-30-7mm
Webra - 28 All Models - Bearing 17-30-7mm
Webra - Heli - 80 - Bearing 17-30-7mm
Webra - Speed 61/P5 - 40 - Bearing 17-30-7mm
Webra - Speed P5 - 40 - Bearing 17-30-7mm
YS - 2-C - 24.7 - Bearing 17-30-7mm
YS - 4-C - 24.7 - Bearing 17-30-7mm
YS - 91 All Models - Bearing 17-30-7mm
