6903-C3-T9H-ACO (100 Pcs)

Name: 6903-C3-T9H-ACO (100 Pack) - Single Row Ball Bearings - 17x30x7 mm Unflanged - Chrome Steel SAE 52100 - High Speed Polyamide Cage Bearing
Brand: MBA
SKU: 6903C3T9HACO
Price: 1135.23 AUD
Availability: BackOrder

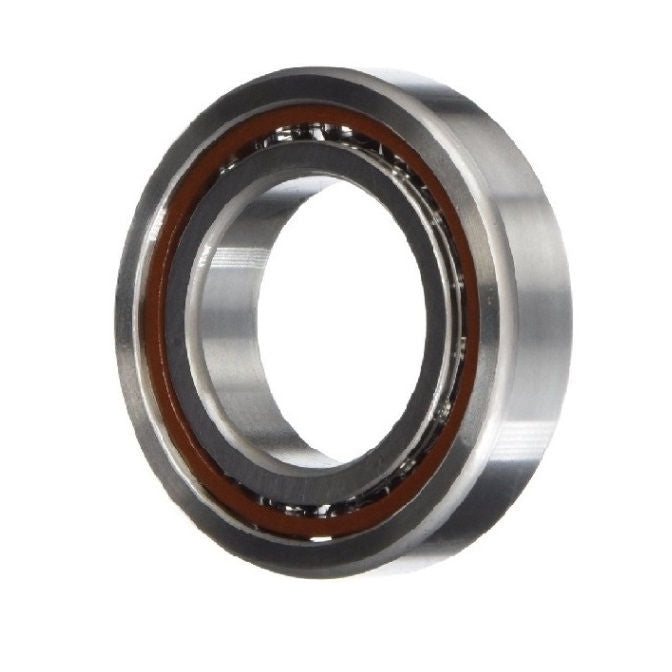

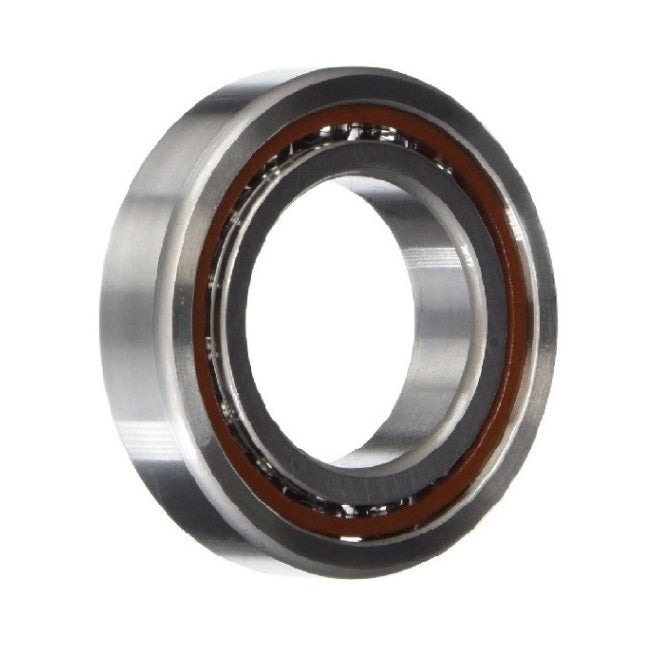

Single Row Ball Bearings - 17x30x7 mm Unflanged - Chrome Steel SAE 52100 - High Speed Polyamide Cage Bearing

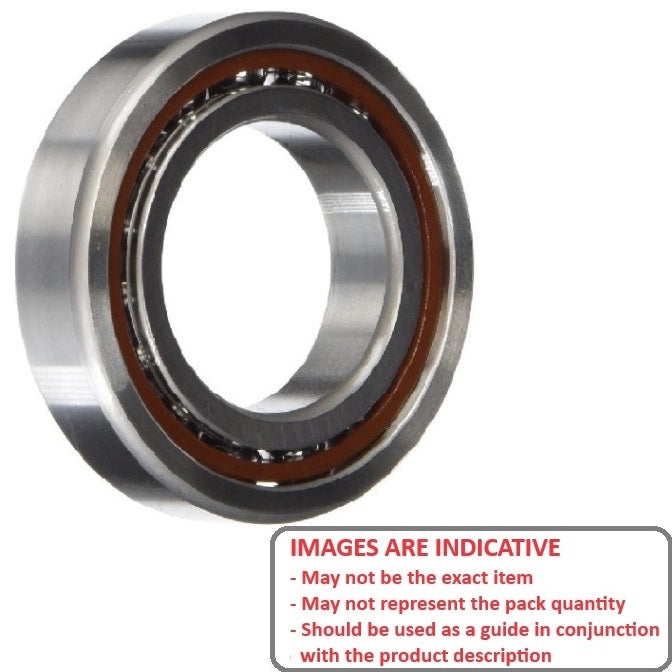

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - High Speed Cage

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$1,135.23 AUD

~~$1,362.27 AUD~~ $1,135.23 AUD

per 100
Backorder
Order 50 or more pack (5000 pcs) for $1,021.71 AUD per 100

Product Details

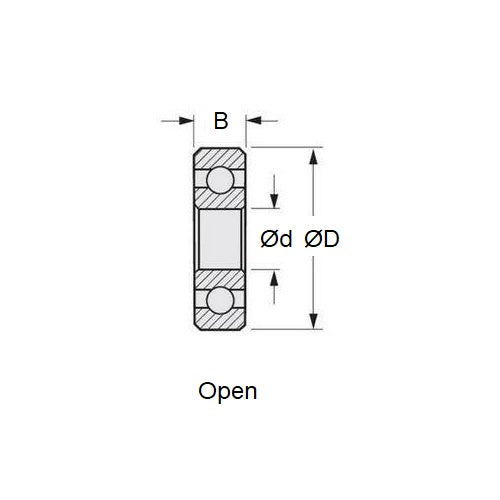

ID (d): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}

Chrome Steel SAE 52100 - High Speed Polyamide Cage

ID (d): 17.000mm
_{+ 0.000 / - 0.0075}
_{(17.000mm is 0.669 in.)}
OD (D): 30.000mm
_{+ 0.000 / - 0.010}
_{(30.000mm is 1.181 in.)}
Width (B): 7.000mm
_{+ 0.000 / - 0.125}
_{(7.000mm is 0.276 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

BOSCH 3600905019
WIB 61903-T9H
ISO 6903TWC3P13
ISO 6903-TW-C3-P13
ADR AY17-T9H
ADR AY17TW-C3-P13
61903T9H
AY17T9H
AY17TWC3P13
6903T9HC3ACO
6903BASIC

Used for

RC Nitro Engine Parts
ASP - 61 - Rear Bearing 17-30-7mm
ASP - 61 All Models - Bearing 17-30-7mm
ASP - 75 - Rear Bearing 17-30-7mm
ASP - 75 All Models - Bearing 17-30-7mm
Chapman - DC - 28 - Bearing 17-30-7mm
Enya - 60X 2Cand3 - Rear Bearing 17-30-7mm
Enya - X 2Cand3 - 240 - Bearing 17-30-7mm
Fitzpatrick - 61 - Rear Bearing 17-30-7mm
Fitzpatrick - 61 With Side Exhaust and ABC Engine - Bearing 17-30-7mm
Fox - 36 All Models - Bearing 17-30-7mm
Fox - 60 -74 Eagle IV - Rear Bearing 17-30-7mm
Fox - Eagle IV - 46 - Bearing 17-30-7mm
HP - 61 Gold Cup - Rear Bearing 17-30-7mm
HP - Gold Cup F - 21 - Bearing 17-30-7mm
Irvine - 15 All Models - Bearing 17-30-7mm
Irvine - 40 All Models - Bearing 17-30-7mm
Irvine - 46 Red - 2 Stroke - Rear Bearing 17-30-7mm
Irvine - 53 - 2 Stroke - Rear Bearing 17-30-7mm
Irvine - 53 ABC - 12 - Bearing 17-30-7mm
Irvine - 53 ABC - 150 - Bearing 17-30-7mm
Irvine - 53 All Models - Bearing 17-30-7mm
Irvine - 61 - 2 Stroke - Rear Bearing 17-30-7mm
Irvine - MK3 - 72 - Bearing 17-30-7mm
Irvine - Old - 15 - Bearing 17-30-7mm
Irvine - Old - 53 - Bearing 17-30-7mm
Jett - Fan Jet - 25 - Bearing 17-30-7mm
Jett - Fire - 40 - Bearing 17-30-7mm
Jett - Fire - 50 - Bearing 17-30-7mm
Jett - Fire - 95 - Bearing 17-30-7mm
Jett - Heli - 90 - Bearing 17-30-7mm
Jett - Sport - 105 - Bearing 17-30-7mm
Jett - Sport - 12 - Bearing 17-30-7mm
Jett - Sport - 40 - Bearing 17-30-7mm
K.B - 40 All Models - Bearing 17-30-7mm
K.B - 7.5 -11 Outboard - Rear Bearing 17-30-7mm
K.B - 72 -82 and 91 Violet - Rear Bearing 17-30-7mm
K.B - 8702 - 21 - Bearing 17-30-7mm
K.B - DF - 82 - Bearing 17-30-7mm
K.B - OB New - 7.5 - Bearing 17-30-7mm
K.B - Outboard Late Model Marine - 3.5 - Bearing 17-30-7mm
K.B - Outboard Marine - 40 - Bearing 17-30-7mm
K.B - Outboard Marine Late Model - 90 - Bearing 17-30-7mm
K.B - Pro - 67 - Bearing 17-30-7mm
K.B - SS Marine - 7.5 .45CC - Bearing 17-30-7mm
K.B - Violet - 3.5 - Bearing 17-30-7mm
K.B - Violet - 7.5 - Bearing 17-30-7mm
K.B - Violet - 72 - Bearing 17-30-7mm
K.B - Violet - 82 - Bearing 17-30-7mm
Magnum - 61XL - 2 Stroke - Rear Bearing 17-30-7mm
Magnum - 75XL - 2 Stroke - Rear Bearing 17-30-7mm
Magnum - 80XL - 2 Stroke - Rear Bearing 17-30-7mm
Magnum Power - XL - 53 - Bearing 17-30-7mm
MDS - 60 - Bearing 17-30-7mm
Moki - 61 1980 TO 1992 - Rear Bearing 17-30-7mm
Moki - All - 51 - Bearing 17-30-7mm
Moki - All - 61 - Bearing 17-30-7mm
Nelson - 45 - 12 - Bearing 17-30-7mm
Nelson - 45 All Models - Bearing 17-30-7mm
Nelson - 65 All Models - Bearing 17-30-7mm
Nelson - 91 - Rear Bearing 17-30-7mm
Nelson - Quickie - 75 - Bearing 17-30-7mm
Nelson - Quickie - 91 - Bearing 17-30-7mm
OS - 61 FR ABC Special - Rear Bearing 17-30-7mm
OS - 61 FR Gold Head - Rear Bearing 17-30-7mm
OS - 61 FR RC Special - Rear Bearing 17-30-7mm
OS - 61 RF ABC-P RC-Pump - Rear Bearing 17-30-7mm
OS - 61 RF-H RC - Rear Bearing 17-30-7mm
OS - 61 RF-H RC W-7H - Rear Bearing 17-30-7mm
OS - 61 RF-H-P RC W-Pump - Rear Bearing 17-30-7mm
OS - 61 SF ABC RC W-Muffler - Rear Bearing 17-30-7mm
OS - 61 SF ABC RC-Pump - Rear Bearing 17-30-7mm
OS - 61 SF RC W-Muffler - Rear Bearing 17-30-7mm
OS - 61 SF-H ABC RC - Rear Bearing 17-30-7mm
OS - 61 SF-H ABC-P W-PMP - Rear Bearing 17-30-7mm
OS - 61 SF-H RC - Rear Bearing 17-30-7mm
OS - 61 SF-H RC W-7H - Rear Bearing 17-30-7mm
OS - 61 SF-H RC W-Pump - Rear Bearing 17-30-7mm
OS - 61 SF-P RC-Pump - Rear Bearing 17-30-7mm
OS - 61 VF-H ABC RC W-7H - Rear Bearing 17-30-7mm
OS - 61 VF-H RC W-7H Car - Rear Bearing 17-30-7mm
OS - FSR ABC - 61 - Bearing 17-30-7mm
OS - FSR Gold Head - 45 - Bearing 17-30-7mm
OS - FSR RC Special - 90 - Bearing 17-30-7mm
OS - FSR Ring ED - 108 - Bearing 17-30-7mm
OS - RF ABC RC - 40 - Bearing 17-30-7mm
OS - RF-H Pump - 21 - Bearing 17-30-7mm
OS - RF-H RC With 7H - 21 - Bearing 17-30-7mm
OS - RF-P - 61 - Bearing 17-30-7mm
OS - RF-P Ring Hanno Special - 61 - Bearing 17-30-7mm
OS - SF ABC RC W-Muffler - 61 - Bearing 17-30-7mm
OS - SF-HP RC - 46 - Bearing 17-30-7mm
OS - SF-P RC/Pump - 46 - Bearing 17-30-7mm
OS - VF-H ABC - 25 - Bearing 17-30-7mm
OS - VF-H RC With 7H - 25 - Bearing 17-30-7mm
Picco - 40 All Models - Bearing 17-30-7mm
Picco - 61 - 2 Stroke - Rear Bearing 17-30-7mm
Rossi - 3 and 2 - 3.5 - Bearing 17-30-7mm
Rossi - 40 -45 Air - Rear Bearing 17-30-7mm
Rossi - 45 All Models - Bearing 17-30-7mm
Rossi - 53 Glow Engine - 60 - Bearing 17-30-7mm
Rossi - 60 3and2 - Rear Bearing 17-30-7mm
Rossi - 60 FI RC - 61 - Rear Bearing 17-30-7mm
Rossi - 60 RE - 61 ABC RE - Rear Bearing 17-30-7mm
Rossi - ABC RE - 60 - Bearing 17-30-7mm
Rossi - Air - 53 - Bearing 17-30-7mm
Rossi - F1 RC - 21 C - Bearing 17-30-7mm
Rossi - F1 RC - 81 - Bearing 17-30-7mm
Rossi - R40T - 21 - Bearing 17-30-7mm
Rossi - RE - 90 - Bearing 17-30-7mm
Saito - 120 Old - Rear Bearing 17-30-7mm
Saito - 270 - FA270T - FA300T - Bearing - Centre
Saito - 4C New - 45 - Bearing 17-30-7mm
Saito - 82 All Models - Bearing 17-30-7mm
Saito - FA 100 - Bearing 17-30-7mm
Saito - FA 150 - Bearing 17-30-7mm
Saito - FA 80 - Bearing 17-30-7mm
Saito - FA182TD - 100 - Rear Bearing 17-30-7mm
Saito - Old - 30 - Bearing 17-30-7mm
Tower - 61 BB ABC - 46 - Bearing 17-30-7mm
Tower - 75 BB ABC - 15 - Bearing 17-30-7mm
Webra - 28 All Models - Bearing 17-30-7mm
Webra - 60 -61 Heli - Rear Bearing 17-30-7mm
Webra - Heli - 32 - Bearing 17-30-7mm
Webra - Heli - 80 - Bearing 17-30-7mm
Webra - Speed 61/P5 - 40 - Bearing 17-30-7mm
Webra - Speed P5 - 35 - Bearing 17-30-7mm
Webra - Speed P5 - 40 - Bearing 17-30-7mm
YS - 2-C - 24.7 - Bearing 17-30-7mm
YS - 4-C - 140 - Bearing 17-30-7mm
YS - 60 -61 2C and 4C - Rear Bearing 17-30-7mm
YS - 91 All Models - Bearing 17-30-7mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
