P-050T-015-250FF-AS-N-060

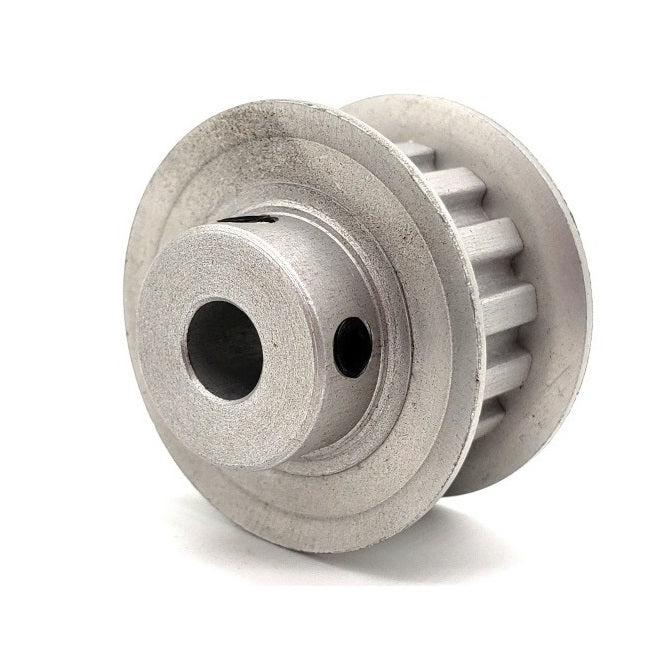

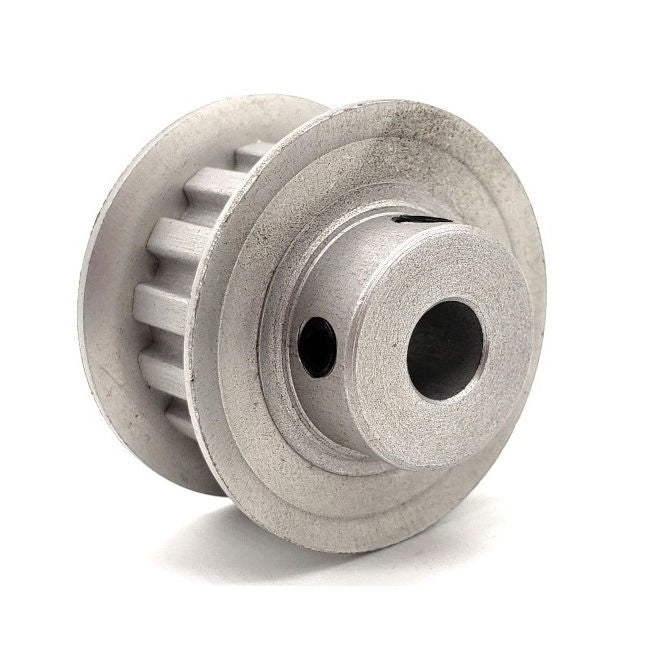

Metric Timing Pulleys - 15 tooth - 25x6 mm - Aluminium with Steel Flanges

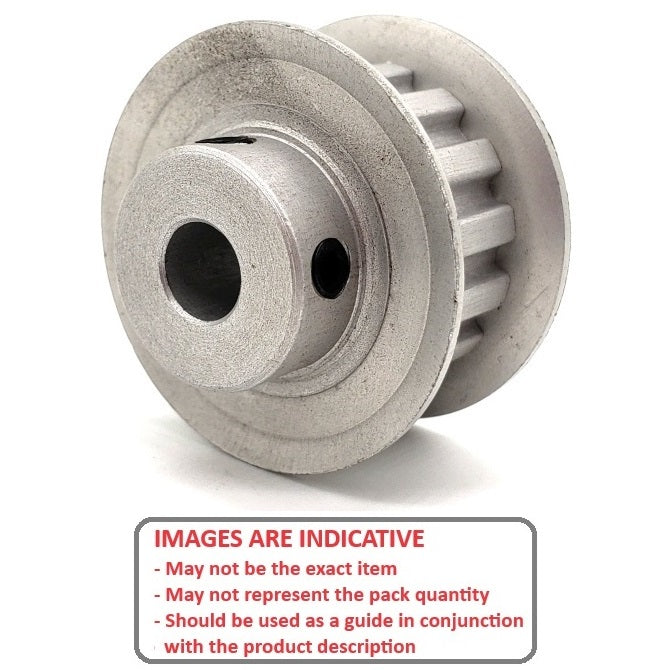

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Timing Pulleys Catalogue PDF
T 5mm Timing Belts
Price:
$42.68 AUD
$42.68 AUD
Each
Out Of Stock
Order 50 or more for $38.41 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jun 16, 2025

Base Category: Pulleys - Metric Timing

Top Level Category: Pulleys - Metric Timing - 5.000mm Pitch - T5 - 25mm Wide

Product Details:

Teeth: 15
Aluminium with Steel Flanges
  • Max Belt Width: 25.00mm
  • Bore (d): 6.000mm
  • Bore Type: Plain
  • Locking Type: None

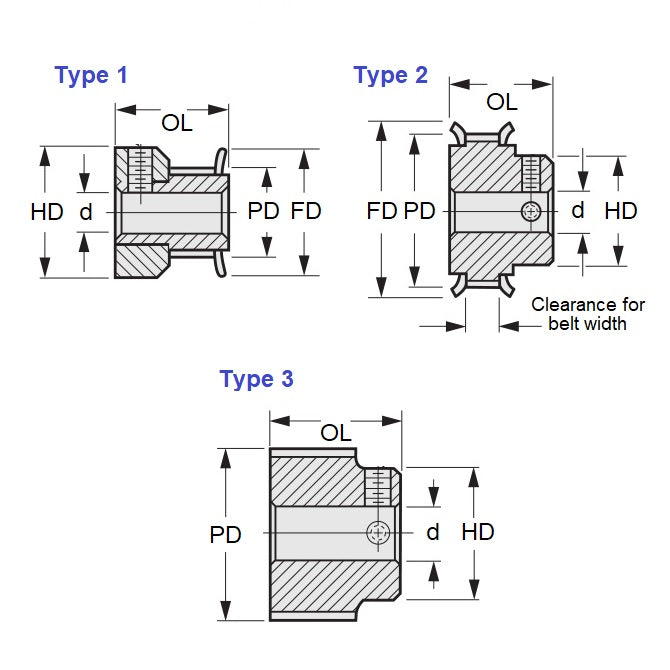

  • Type: 2
  • Pitch Dia. (PD): 23.86mm
  • Flange Diameter (FD): 27.0mm
  • Overall Length: 36.0mm
  • Hub Diameter (HD): 16.0

Brand: MBA
Country of Origin: US

Alternative Parts Include: 36T5-15-2, 36T5152, Gates

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
