BLP-159-0762-BT-S4

Ball Lock Pins - 15.88x76.2 mm - 304 Stainless Steel Shank / Aluminium Handle

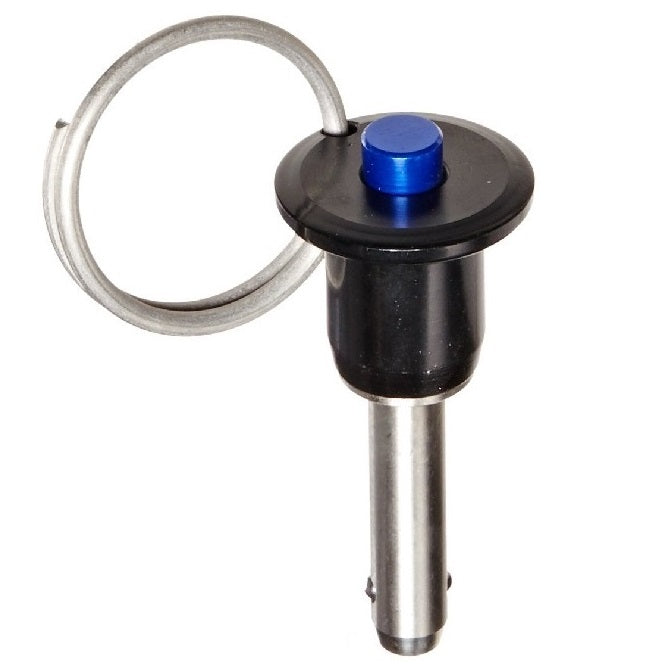

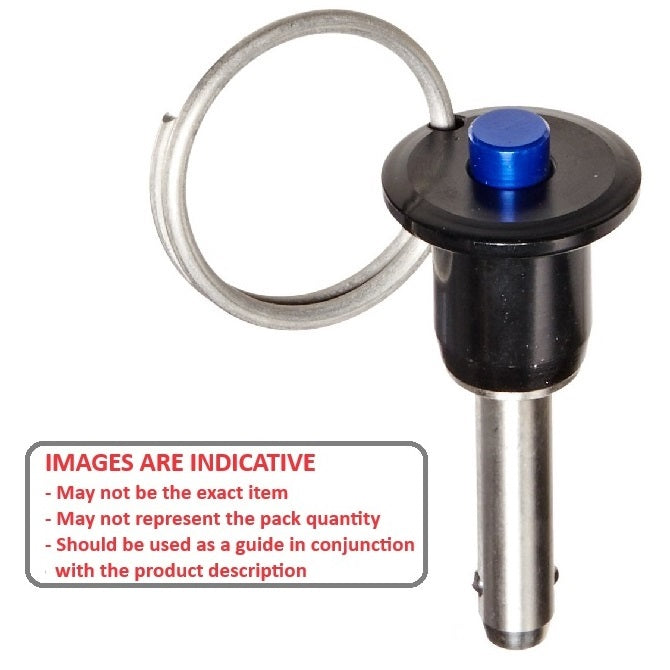

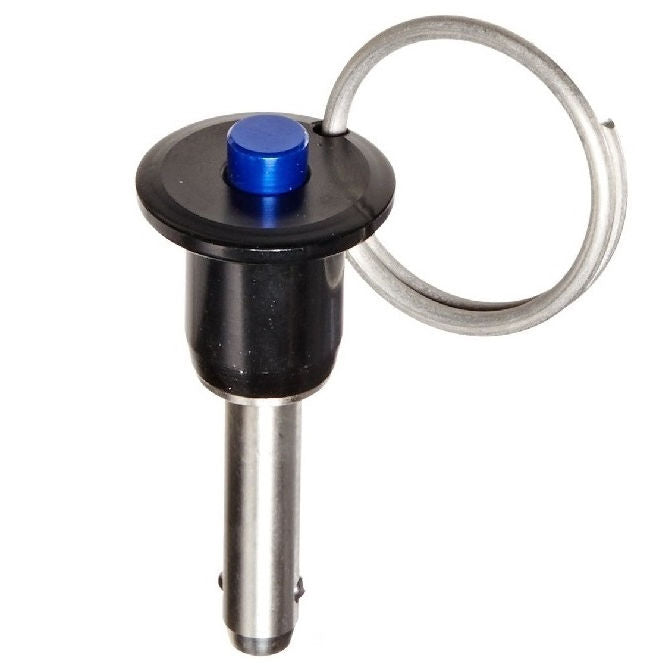

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$106.41 AUD
$106.41 AUD
Each
Out Of Stock
Order 50 or more for $95.77 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jul 29, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Button Handle - Commercial 304 Stainless

Product Details:

Nominal Diameter: 15.88mm
Stainless Steel 304 with Aluminium Handle

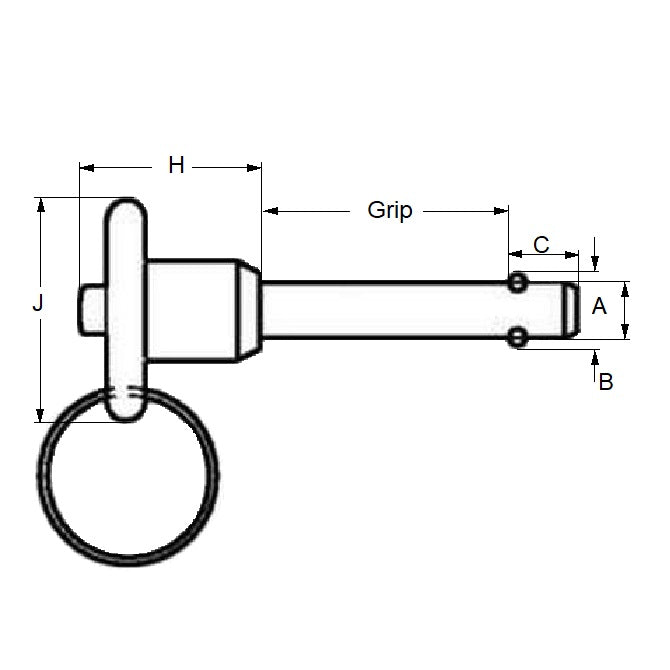

  • Grip Length (B): 76.20mm
  • Pin Material Grade: 304 Stainless Steel Shank / Aluminium Handle
  • Locking Ball to End (C): 14.73mm
  • Open Ball Distance (B): 19.05mm
  • Max. Handle Height (H): 38.10mm
  • Max. Handle Diameter (J): 43.18mm
  • Min. Handle Diameter (J): 38.86mm
  • Pull Out Strength: 670.00Kg
  • Calc. Double Shear Strength: 8480Kg

Brand: MBA
Country of Origin: US

Alternative Parts Include: CPB-200, CPB200

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
