WR11720-TTS

Single Row Ball Bearings - 15.875x26.988 - 6.350/7.142 / 7.142 mm Unflanged - Chrome Steel SAE 52100 Bearing

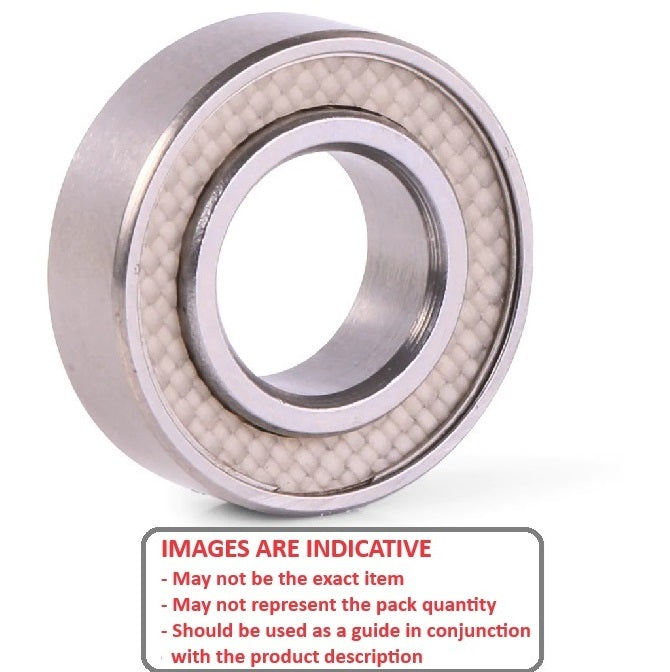

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 15.875x26.988 - 6.350/7.142 / 7.142 mm - Chrome Steel SAE 52100
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$21.64 AUD
$91.17 AUD $21.64 AUD
Each
Qty: 2 available now
Only 2 may be ordered online. If you need a large quantity, please contact us.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Extended Inner

Product Details


Deleted Item. Available while stocks last.

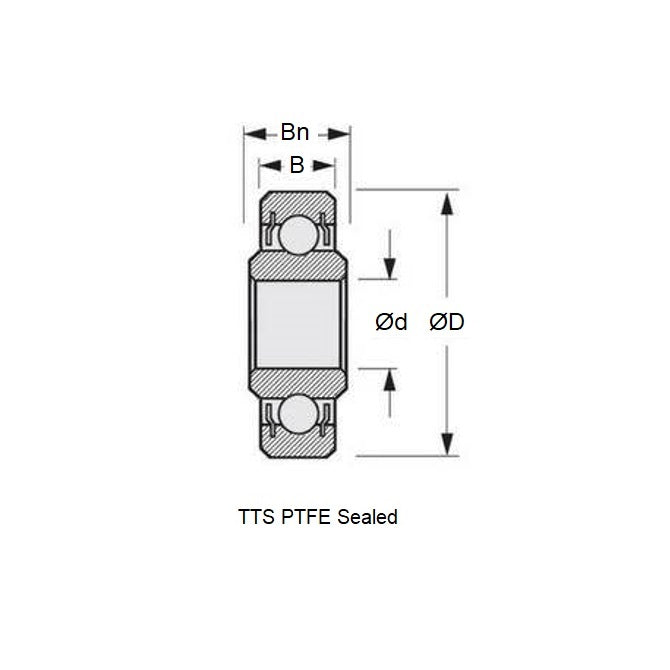

ID (d): 15.875mm
+ 0.000 / - 0.0075
(15.875mm is 0.625 in.)

Chrome Steel SAE 52100
  • ID (d): 15.875mm
    + 0.000 / - 0.0075
    (15.875mm is 0.625 in.)
  • OD (D): 26.988mm
    + 0.000 / - 0.010
    (26.988mm is 1.063 in.)
  • Width (B): 6.350/7.142mm
    + 0.000 / - 0.125
    (6.350/7.142mm is 0.25 in.)
  • Inner Ring Width (Bn): 7.142mm
  • Precision Grade: Abec 1
  • Closure Type: TTS
  • Bearing Type: Radial with Extended Inner

Brand: MBA
Country of Origin: TW

Product Compliance and Data

Similar to

  • NHBB B538DD
  • BOCA B538DDX
  • IJK B538DDX-IJK
  • WTW B538DDX-IJK
  • NHBB MB538DD
  • WR11720
  • B538DDXIJK
  • WR11720BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
