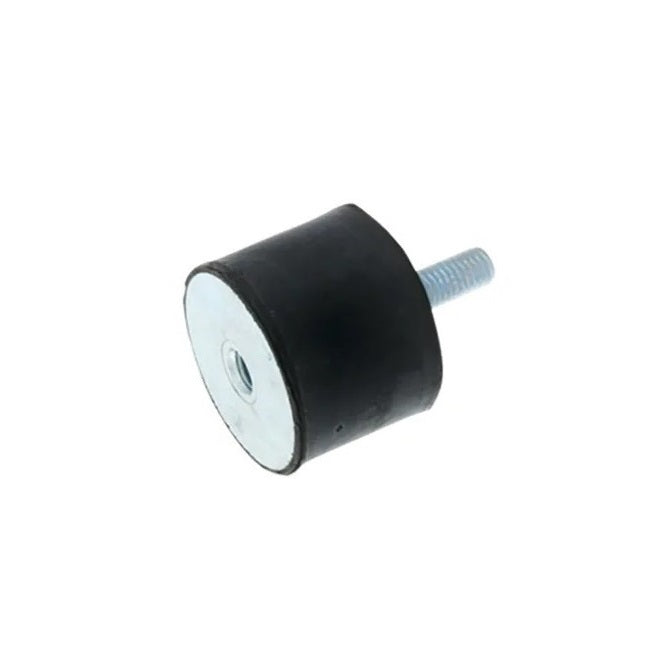

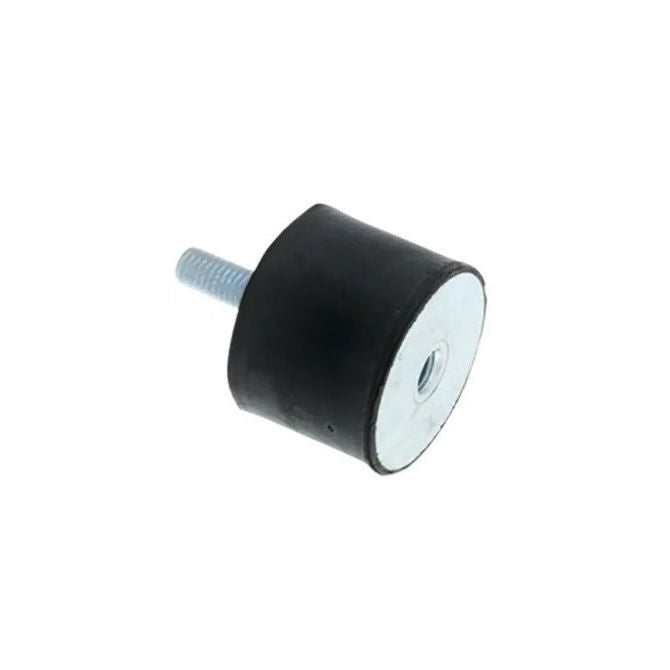

CMF015-13-040M-R60 (2 Pcs)

Bobbin Mounts - 15x13 mm - M4x0.7 - Natural Rubber

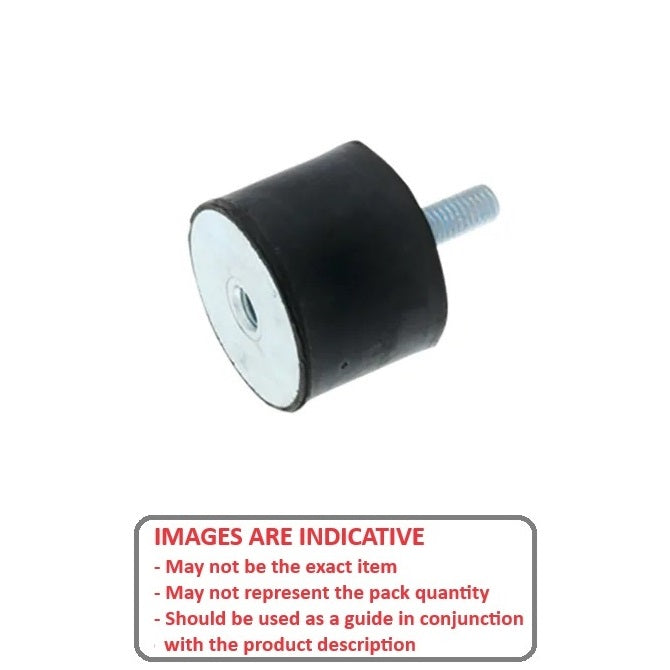

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Cylindrical Bobbin Mounts PDF Quick Guide
Price:
$10.23 AUD
$10.23 AUD
per 2
Qty: 19 available now (38 pcs)
Order 50 or more (100 pcs) for $9.21 AUD per 2
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 23, 2025

Base Category: Mounts - Bobbin

Top Level Category: Mounts - Bobbin - Male to Female

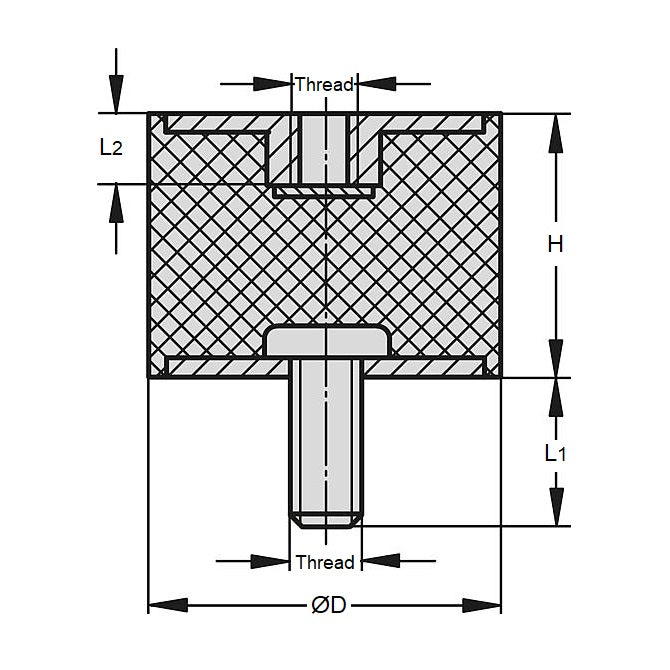

Product Details:

Nom. Body Dia. (D): 15.0mm
Natural Rubber
  • Body Height (H): 13.0mm
  • Thread Size: M4x0.7
  • Shore Hardness: 60
  • Thread Length/Depth (L1/L2): 10.0 / 4.0mm
  • Compression Load: 7.8 (17)Kg (lbs)
  • Deflection: 1.1mm
  • Configuration: Male to Female

Brand: MBA
Country of Origin: GB

Alternative Parts Include: 1513MF1060, 1513MF10-60, AV Industrial

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
