B-030H-0137-0060-NFB

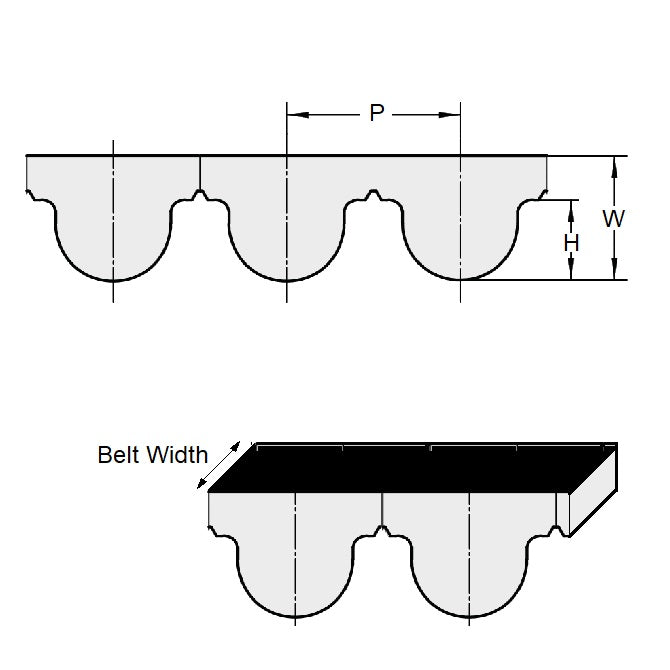

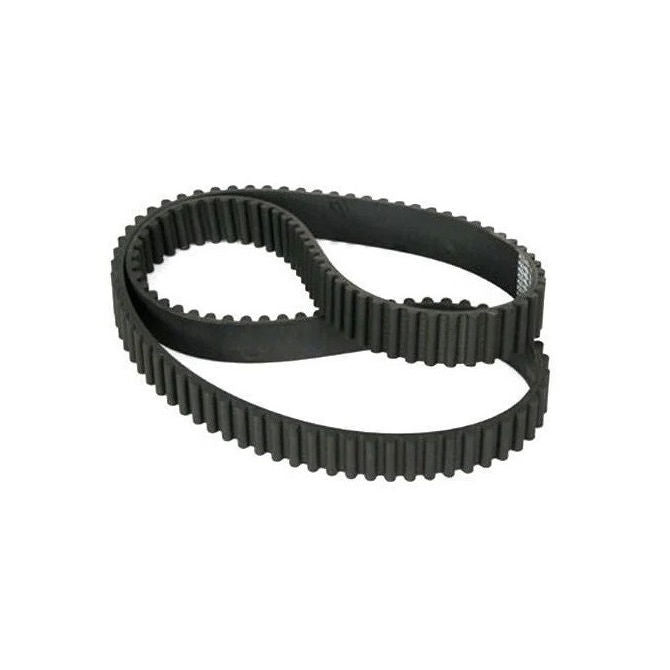

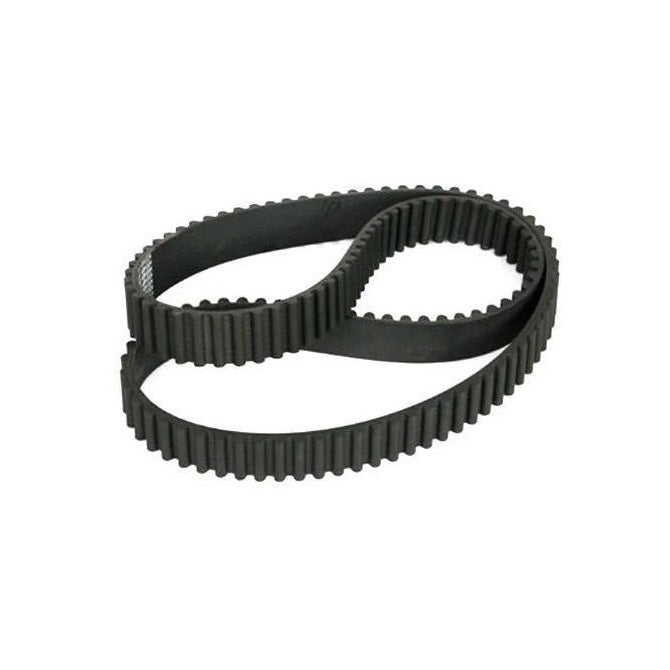

Timing 3.000mm Pitch Belts - 137 tooth - 411x6 mm - Nylon Covered Neoprene with Fibreglass Cords

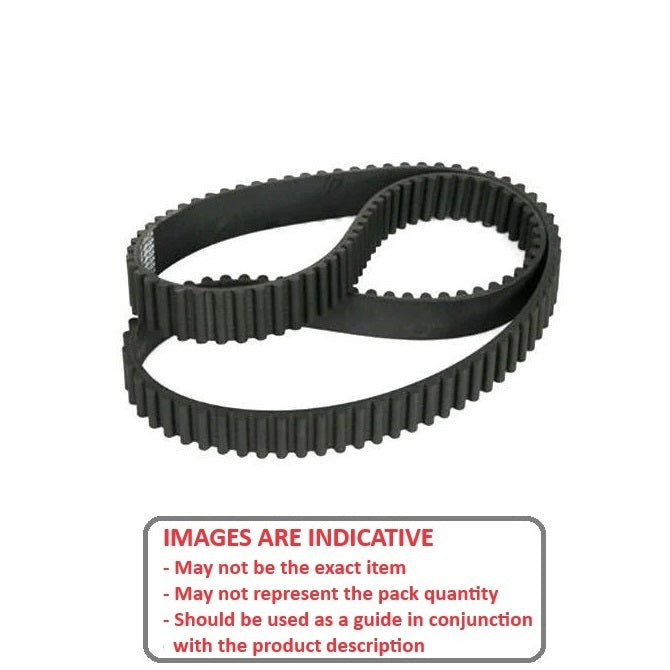

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Timing Belts Catalogue PDF
Idler Pulleys
3mm HTD Timing Pulleys
Price:
$4.50 AUD
$4.50 AUD
Each
Qty: 10 available now
Order 50 or more for $4.05 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jul 12, 2025

Couldn't load pickup availability

Base Category: Belts - Timing 3.000mm Pitch

Top Level Category: Belts - Timing 3.000mm Pitch - HTD - 6mm Wide - Single Sided

Product Details:

Teeth: 137

Nylon Covered Neoprene with Fibreglass Cords
  • Length: 411mm
    (411mm is 16.181 in.)
  • Width: 6.0mm
    (6.0mm is 0.236 in.)
  • Reinforcement: Fibreglass
  • Appearance: Black
  • Breaking Strength: 948N
  • Min Temperature (C): -34Deg C
  • Max Temperature (C): 85Deg C

Brand: MBA
Country of Origin: US

Alternative Parts Include: CHTBN411H3M60, C-HTBN411H3M-60, A6R23M137060, 411-3M-06, 4113M06, Gates, Misumi

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
