S6901-ZZ

Name: S6901-ZZ - Single Row Ball Bearings - 12x24x6 mm Unflanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: S6901ZZ
Price: 8.14 AUD
Availability: InStock

Single Row Ball Bearings - 12x24x6 mm Unflanged - Stainless Steel AISI 440C Bearing

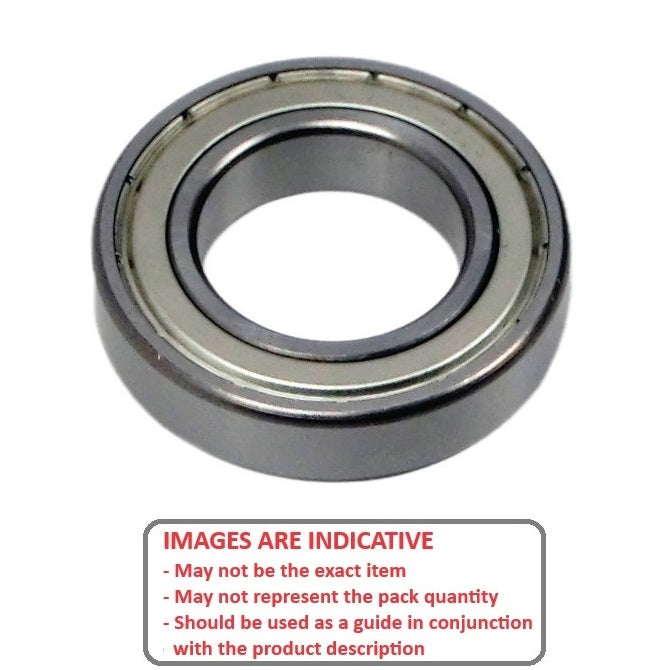

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$8.14 AUD

~~$9.76 AUD~~ $8.14 AUD

Excludes GST and overseas Taxes & Duties

Each
Qty: 6 available now

Product Details

Deleted Item. Available while stocks last.

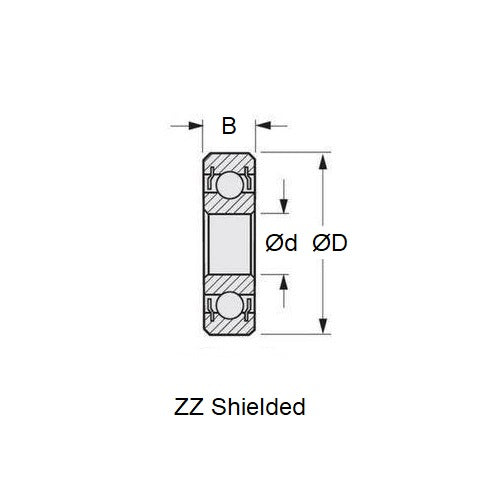

ID (d): 12.000mm
_{+ 0.000 / - 0.0075}
_{(12.000mm is 0.472 in.)}

Stainless Steel AISI 440C

ID (d): 12.000mm
_{+ 0.000 / - 0.0075}
_{(12.000mm is 0.472 in.)}
OD (D): 24.000mm
_{+ 0.000 / - 0.010}
_{(24.000mm is 0.945 in.)}
Width (B): 6.000mm
_{+ 0.000 / - 0.125}
_{(6.000mm is 0.236 in.)}
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

Stainless 6901ZZ
Stainless 6901-ZZ
Shielded S6901 / 6
Shielded SS6901 / 6
ADR WAY12-ZZ
WAY12ZZ
6901HZZ
6901H-ZZ
6901BASIC

Used for

RC Helicopter Parts
RC Nitro Engine Parts
Thunder Tiger - Raptor 60 V2 - Bearing 12-24-6mm
Thunder Tiger - Raptor 90 SE - Bearing 12-24-6mm
ASP - 25 All Models - Bearing 12-24-6mm
ASP - 36 All Models - Bearing 12-24-6mm
Bluebird - 28 All Models - Bearing 12-24-6mm
Bluebird - 2C - 32 - Bearing 12-24-6mm
Bluebird - 51 All Models - Bearing 12-24-6mm
Brat - 28 All Models - Bearing 12-24-6mm
China Shanghai - CSGF/F - 49 - Bearing 12-24-6mm
Duratrax - Torque 21 - 40 - Bearing 12-24-6mm
Enya - 35X Heli ABC - 60 - Bearing 12-24-6mm
Enya - 53 All Models - Bearing 12-24-6mm
Enya - X - 45 - Bearing 12-24-6mm
Evolution - 36NT - 80 - Bearing 12-24-6mm
Fitzpatrick - 61 - 46 - Bearing 12-24-6mm
Force - 61 All Models - Bearing 12-24-6mm
Force - E- 1501 Rear Exhaust EFRA - 21 - Bearing 12-24-6mm
Force - E-2101 Rear Exhaust - 0.15 - Bearing 12-24-6mm
Force - E-2106 Rear Exhaust - 0.15 - Bearing 12-24-6mm
Force - E-2106 Rear Exhaust - 0.21 - Bearing 12-24-6mm
GMS - 25 ABC - 50 - Bearing 12-24-6mm
GMS - 32 ABC - 12 - Bearing 12-24-6mm
GMS - 32 ABC - 120 - Bearing 12-24-6mm
GS General Silicone - R21B01P - 76 - Bearing 12-24-6mm
HB - 0.25 All Models - Bearing 12-24-6mm
HP - 21 All Models - Bearing 12-24-6mm
HP - 46 All Models - Bearing 12-24-6mm
HP - 61 All Models - Bearing 12-24-6mm
Irvine - 150 All Models - Bearing 12-24-6mm
Irvine - New Turbo - 15 - Bearing 12-24-6mm
Irvine - New Turbo - 72 - Bearing 12-24-6mm
K.B - 4 - 21 - Bearing 12-24-6mm
K.B - 45 All Models - Bearing 12-24-6mm
K.B - 48 All Models - Bearing 12-24-6mm
K.B - DF - 91 - Bearing 12-24-6mm
K.B - IB - 11 - Bearing 12-24-6mm
K.B - IB - 25 - Bearing 12-24-6mm
K.B - IB - 61 - Bearing 12-24-6mm
K.B - IB - 7.5 - Bearing 12-24-6mm
K.B - IB Old - 7.5 - Bearing 12-24-6mm
K.B - Inboard - 3.5 - Bearing 12-24-6mm
K.B - Inboard Early Model - 90 - Bearing 12-24-6mm
K.B - Inboard Marine - 21 - Bearing 12-24-6mm
K.B - Inboard Marine Late Model - 67 - Bearing 12-24-6mm
K.B - Inboard Marine Late Model - 82 - Bearing 12-24-6mm
K.B - New Marine - 67 - Bearing 12-24-6mm
K.B - OB 21 - 5.8 - Bearing 12-24-6mm
K.B - OB Old 12MM Crank Marine - 21 - Bearing 12-24-6mm
K.B - Outboard Marine Early Model - 1.0 - Bearing 12-24-6mm
Magnum Power - 45 All Models - Bearing 12-24-6mm
Magnum Power - Pro - 46 - Bearing 12-24-6mm
Magnum Power - XL - 120 - Bearing 12-24-6mm
Magnum Power - XL - 25 - Bearing 12-24-6mm
Magnum Power - XL - 32 - Bearing 12-24-6mm
Magnum Power - XL 30 RFS - 120 - Bearing 12-24-6mm
Magnum Power - XL 30 RFS - 75 - Bearing 12-24-6mm
Magnum Power - XL30 - 80 - Bearing 12-24-6mm
Magnum Power - XLS - 32 - Bearing 12-24-6mm
Magnum Power - XLS - 52 - Bearing 12-24-6mm
MDS - 38 Heli Pro - 29 - Bearing 12-24-6mm
MVVS - 1.6 All Models - Bearing 12-24-6mm
MVVS - 61 All Models - Bearing 12-24-6mm
MVVS - C - 21 - Bearing 12-24-6mm
Nelson - 45 All Models - Bearing 12-24-6mm
Norvel - 25 - 40 - Bearing 12-24-6mm
OPS - 12 - Bearing 12-24-6mm
OPS - 15 All Models - Bearing 12-24-6mm
OPS - 35 All Models - Bearing 12-24-6mm
OPS - 40 All Models - Bearing 12-24-6mm
OS - F - 21 - Bearing 12-24-6mm
OS - F ABC RC W-Muffler - 21 - Bearing 12-24-6mm
OS - F RC W-Muffler - 25 - Bearing 12-24-6mm
OS - F-F ABC RC - 28 - Bearing 12-24-6mm
OS - F-F RC - 32 - Bearing 12-24-6mm
OS - F-H RC - 32 - Bearing 12-24-6mm
OS - F-H RC W-Muffler - 28 - Bearing 12-24-6mm
OS - FH With COIL - 320 - Bearing 12-24-6mm
OS - FH With Recoil - 240 - Bearing 12-24-6mm
OS - F-HS RC With Cone - 32 - Bearing 12-24-6mm
OS - F-HX - 28 - Bearing 12-24-6mm
OS - F-MX - 32 - Bearing 12-24-6mm
OS - FS 26 Surpass RC 4C - 80 - Bearing 12-24-6mm
OS - FS 40S-C - 90 - Bearing 12-24-6mm
OS - FS 4C - 26 - Bearing 12-24-6mm
OS - FS M RC 4C Marine - 91 - Bearing 12-24-6mm
OS - FS Surpass RC 4C - 91 - Bearing 12-24-6mm
OS - FS40 - 120 - Bearing 12-24-6mm
OS - FS40 - 52 - Bearing 12-24-6mm
OS - FSR - 52 - Bearing 12-24-6mm
OS - FX - 160 - Bearing 12-24-6mm
OS - Maxx Old - 60 - Bearing 12-24-6mm
OS - Maxx Old - 61 - Bearing 12-24-6mm
OS - RC 4C - 40 - Bearing 12-24-6mm
OS - RF-B - 21 - Bearing 12-24-6mm
OS - RF-B - 61 - Bearing 12-24-6mm
OS - RG - 61 - Bearing 12-24-6mm
OS - RG P - 21 - Bearing 12-24-6mm
OS - RG P - 61 - Bearing 12-24-6mm
OS - RG-M Marine - 21 - Bearing 12-24-6mm
OS - RG-MX - 21 - Bearing 12-24-6mm
OS - RGX P - 21 - Bearing 12-24-6mm
OS - RX - 21 - Bearing 12-24-6mm
OS - RX With 10C - 140 - Bearing 12-24-6mm
OS - RX With 10C - 15 - Bearing 12-24-6mm
OS - SE-B - 21 - Bearing 12-24-6mm
OS - SE-M - 21 - Bearing 12-24-6mm
OS - SE-R - 21 - Bearing 12-24-6mm
OS - SF - 21 - Bearing 12-24-6mm
OS - SX - 40 - Bearing 12-24-6mm
OS - SX-H - 50 - Bearing 12-24-6mm
OS - SXH-R - 32 - Bearing 12-24-6mm
OS - SX-HX - 61 - Bearing 12-24-6mm
OS - SX-MX - 32 - Bearing 12-24-6mm
OS - VF ABC RC - 61 - Bearing 12-24-6mm
OS - VF-BR Buggy - 40 - Bearing 12-24-6mm
OS - VF-DF ABC RC - 25 - Bearing 12-24-6mm
OS - VF-HS With Cone - 61 - Bearing 12-24-6mm
OS - VG P - 21 - Bearing 12-24-6mm
OS - VR BR BUG - 61 - Bearing 12-24-6mm
Picco - 15 All Models - Bearing 12-24-6mm
Picco - 45 All Models - Bearing 12-24-6mm
Picco - 49 - Bearing 12-24-6mm
Picco - 67 - Bearing 12-24-6mm
Picco - 80 All Models - Bearing 12-24-6mm
Picco - 90 All Models - Bearing 12-24-6mm
Picco - Hydro - 45 - Bearing 12-24-6mm
PIP Marine - A90HP 4 BGS - 21 - Bearing 12-24-6mm
Power Racing - 21 - 45 - Bearing 12-24-6mm
Power Racing - 21 - 90 - Bearing 12-24-6mm
Power Racing - 26 - 21 - Bearing 12-24-6mm
Power Racing - 26 - 90 - Bearing 12-24-6mm
PRO F1 - Junior - 26 - Bearing 12-24-6mm
Rossi - Blackhead - 65 - Bearing 12-24-6mm
Royal - 21 All Models - Bearing 12-24-6mm
Royal - 60 All Models - Bearing 12-24-6mm
Saito - 4C - 100 - Bearing 12-24-6mm
Saito - 4C - 160 - Bearing 12-24-6mm
Saito - 4C - 40 - Bearing 12-24-6mm
Saito - 4C Old - 100 - Bearing 12-24-6mm
Saito - 4C Old - 56 - Bearing 12-24-6mm
Saito - 72 All Models - Bearing 12-24-6mm
Saito - 90 - Bearing 12-24-6mm
Saito - FA 150 - Bearing 12-24-6mm
Saito - FA 270T - Bearing 12-24-6mm
Saito - FA 300T - Bearing 12-24-6mm
Saito - FA 30S - 91 - Rear Bearing 12-24-6mm
Saito - FA 56 - 125 - Rear Bearing 12-24-6mm
Saito - FA TI Inline Twin - 82 - Rear Bearing 12-24-6mm
Saito - GK - 180 - Bearing 12-24-6mm
Saito - Mark II - 182 - Bearing 12-24-6mm
Saito - Mark II - 56 - Bearing 12-24-6mm
Saito - S - 45 - Bearing 12-24-6mm
Saito - Twin Old - 120 - Bearing 12-24-6mm
Stalker - Pro - 18 - Bearing 12-24-6mm
Stalker - Pro - 21 - Bearing 12-24-6mm
Stalker - Pro - 27 - Bearing 12-24-6mm
Stalker - Pro - 46 - Bearing 12-24-6mm
Super Tigre - G - 15 - Bearing 12-24-6mm
Super Tigre - G - 46 - Bearing 12-24-6mm
Super Tigre - GH - 75 - Bearing 12-24-6mm
Super Tigre - X - 60 - Bearing 12-24-6mm
Thunder Tiger - Marine - 12 - Bearing 12-24-6mm
Thunder Tiger - Marine - 90 - Bearing 12-24-6mm
Thunder Tiger - Pro - 120 - Bearing 12-24-6mm
Thunder Tiger - Pro - 21 - Bearing 12-24-6mm
Thunder Tiger - Pro H - 36 - Bearing 12-24-6mm
Thunder Tiger - Pro H - 61 - Bearing 12-24-6mm
Thunder Tiger - Pro H - 90 - Bearing 12-24-6mm
Veco - 3.3 All Models - Bearing 12-24-6mm
Webra - Heli - 2.2 - Bearing 12-24-6mm
Webra - Speed Heli MOD 1023H - 61 - Bearing 12-24-6mm
Webra - T46 All Models - Bearing 12-24-6mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
