R8-AF12 (2 Pcs)

Name: R8-AF12 (2 Pack) - Single Row Ball Bearings - 12.7x28.575x6.35 mm Unflanged - Chrome Steel SAE 52100 Bearing
Brand: MBA
SKU: R8AF12
Price: 3.00 AUD
Availability: LimitedAvailability

Single Row Ball Bearings - 12.7x28.575x6.35 mm Unflanged - Chrome Steel SAE 52100 Bearing

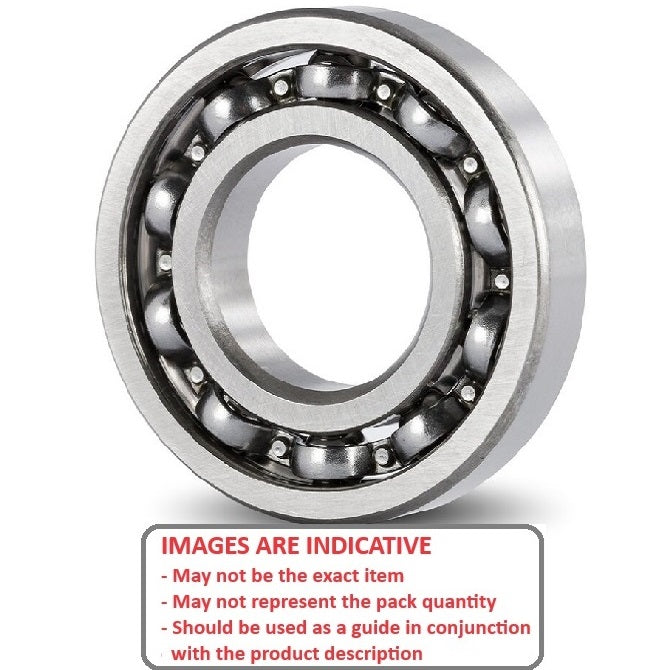

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$3.00 AUD

~~$9.51 AUD~~ $3.00 AUD

Excludes GST and overseas Taxes & Duties

per 2
Qty: 2 packs (4 pcs) available now

Product Details

Deleted Item. Available while stocks last.

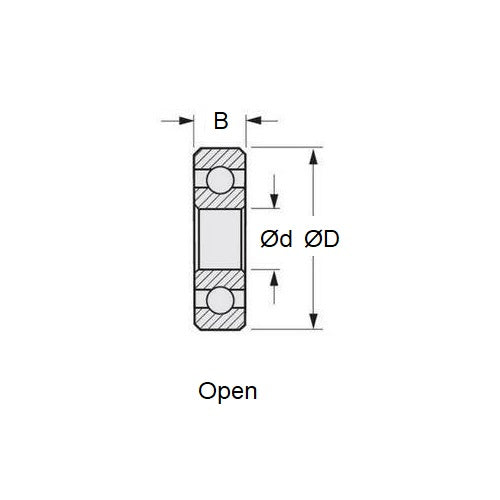

ID (d): 12.700mm
_{+ 0.000 / - 0.0075}
_{(12.700mm is 0.5 in.)}

Chrome Steel SAE 52100

ID (d): 12.700mm
_{+ 0.000 / - 0.0075}
_{(12.700mm is 0.5 in.)}
OD (D): 28.575mm
_{+ 0.000 / - 0.010}
_{(28.575mm is 1.125 in.)}
Width (B): 6.350mm
_{+ 0.000 / - 0.125}
_{(6.350mm is 0.25 in.)}
Precision Grade: Abec 1
Closure Type: Open
Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
60355K505
FAG EE4
RHP KLNJ1/2
RHP KLNJ1-2
NHBB R1-1812
AERODYNE R8
IKS R8
KSK R8
KYK R8
WIB R8
FAFNIR S5K
KLNJ12
R11812
R8BASIC

Used for

RC Nitro Engine Parts
Enya - 35 III - Rear Bearing 12.70-28.58-6.35mm
Enya - 4C - 35 - Bearing 12.70-28.58-6.35mm
Enya - 4C - 46 - Bearing 12.70-28.58-6.35mm
Enya - 60 - 4 Stroke - Rear Bearing 12.70-28.58-6.35mm
Enya - 80 - 4 Stroke - Rear Bearing 12.70-28.58-6.35mm
Enya - BB 6001 - 29 - Bearing 12.70-28.58-6.35mm
Enya - BB 6001 - 35 - Bearing 12.70-28.58-6.35mm
Enya - BB 6001 - 53 - Bearing 12.70-28.58-6.35mm
Enya - III - 45 - Bearing 12.70-28.58-6.35mm
Fox - 40 All Models - Bearing 12.70-28.58-6.35mm
Fox - 40 Four Spline Prop Drive Washer - 78 - Bearing 12.70-28.58-6.35mm
Fox - 40 With Tapered Collect - 0.17 - Bearing 12.70-28.58-6.35mm
Fox - Old 36 - 60 - Bearing 12.70-28.58-6.35mm
K.B - 3.5 21CC All Models - Bearing 12.70-28.58-6.35mm
K.B - New - 1 - Bearing 12.70-28.58-6.35mm
K.B - Old - 7.5 - Bearing 12.70-28.58-6.35mm
McCoy - Old - 52 - Bearing 12.70-28.58-6.35mm
Merco - 16 All Models - Bearing 12.70-28.58-6.35mm
Merco - 48 All Models - Bearing 12.70-28.58-6.35mm
Merco - 49 All Models - Bearing 12.70-28.58-6.35mm
OPS - 40 All Models - Bearing 12.70-28.58-6.35mm
OPS - 45 All Models - Bearing 12.70-28.58-6.35mm
OPS - 65 All Models - Bearing 12.70-28.58-6.35mm
RCV - 120SP - 15 - Bearing 12.70-28.58-6.35mm

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
