P-R8-AS6

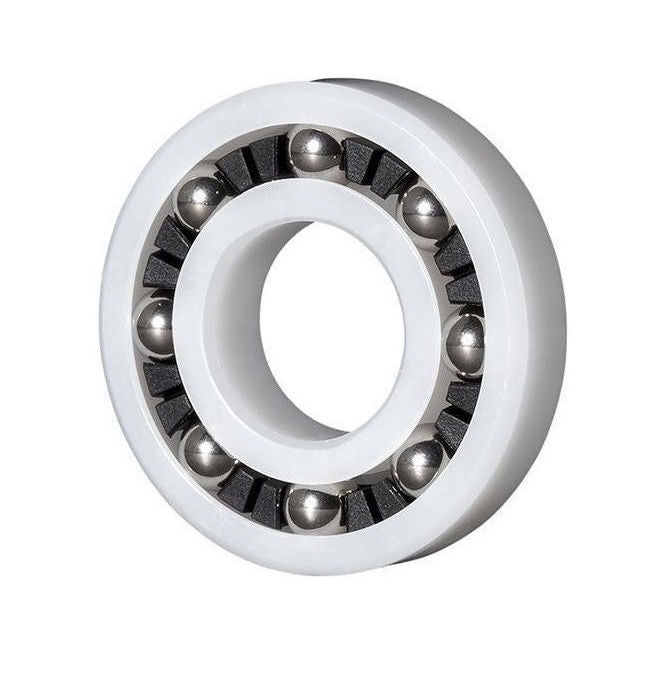

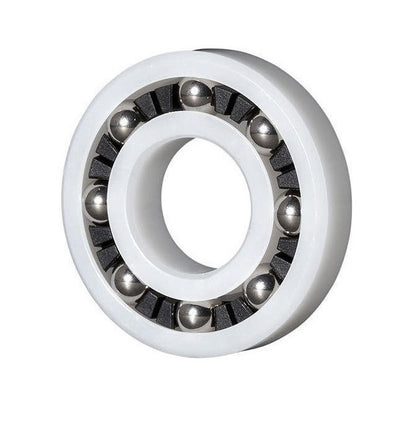

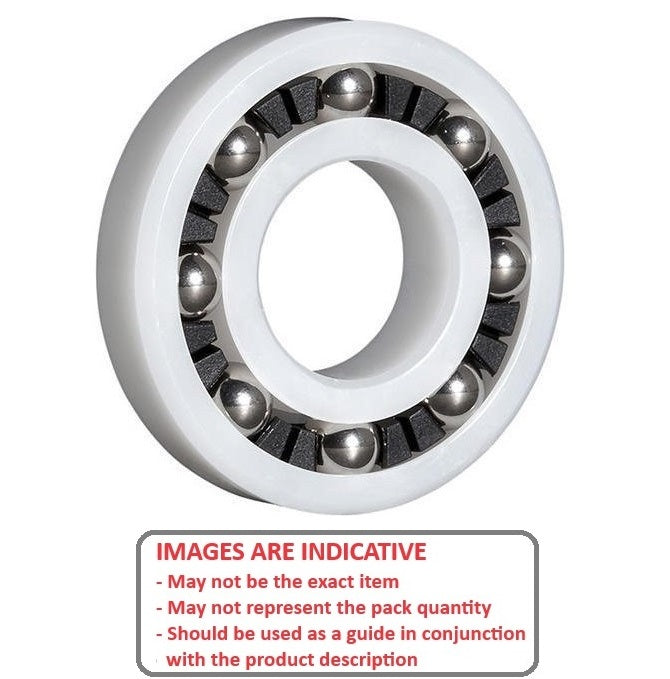

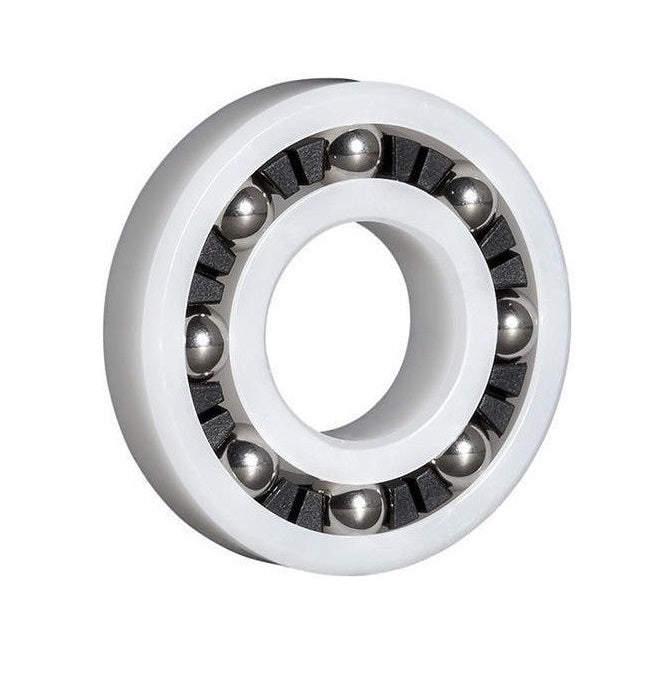

Plastic Bearings - 12.7x28.575x6.35 mm - Acetal with Stainless 316 Balls Bearing
KMS
Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale Additional resources:Tolerances
Plastic Bearings PDF Catalogue
Shafting
Order 50 or more for $20.09 AUD
Special Offer: If you purchase the remaining quantity of this item, you will receive the bulk price.
Couldn't load pickup availability
Base Category: Bearings - Plastic
Top Level Category: Bearings - Plastic - Acetal - Single Row - 316 Stainless Balls
Product Details

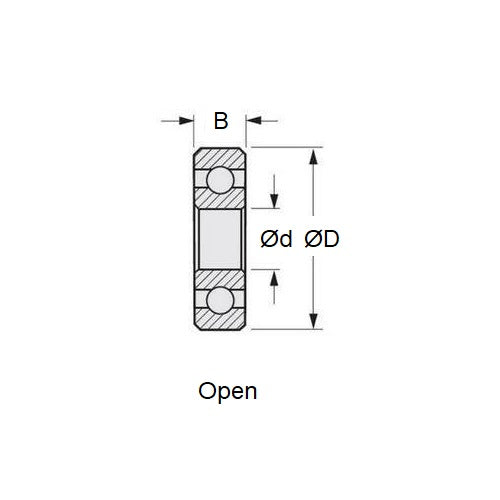

ID (d): 12.700mm+ 0.076 / - 0.000
(12.700mm is 0.5 in.)
Acetal with Stainless 316 Balls
- ID (d): 12.700mm
+ 0.076 / - 0.000
(12.700mm is 0.5 in.)
- OD (D): 28.575mm
+ 0.000 / - 0.102
(28.575mm is 1.125 in.)
- Width (B): 6.350mm
+ 0.127 / - 0.000
(6.350mm is 0.25 in.)
- Max RPM in Air: 1142
- Notes: Unlubricated
- Type: Radial
- Dynamic Load Rating: 24.6Kg
- Static Load Rating: 19.2Kg
Brand: KMS
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 6455K23
- KMS AR8-1-2B-6
- KMS AR8-6
- AS6R8
- AR86
- AR812B6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
