SR1-4B-ZZS-MC34-GR5-R-L23 (21 Pcs)

Name: SR1-4B-ZZS-MC34-GR5-R-L23 (21 Pack) - Single Row Ball Bearings - 1.984x6.35x3.571 mm Unflanged - Bearing
Brand: Myonic
SKU: SR14BZZSMC34GR5RL23
Price: 1111.32 AUD
Availability: BackOrder

Single Row Ball Bearings - 1.984x6.35x3.571 mm Unflanged - Stainless Steel AISI 440C - Ribbon Retainer Low Torque Bearing

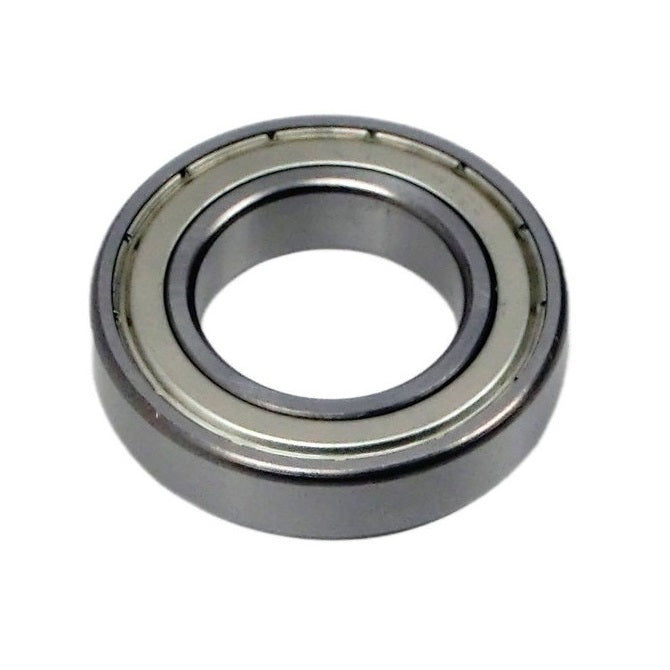

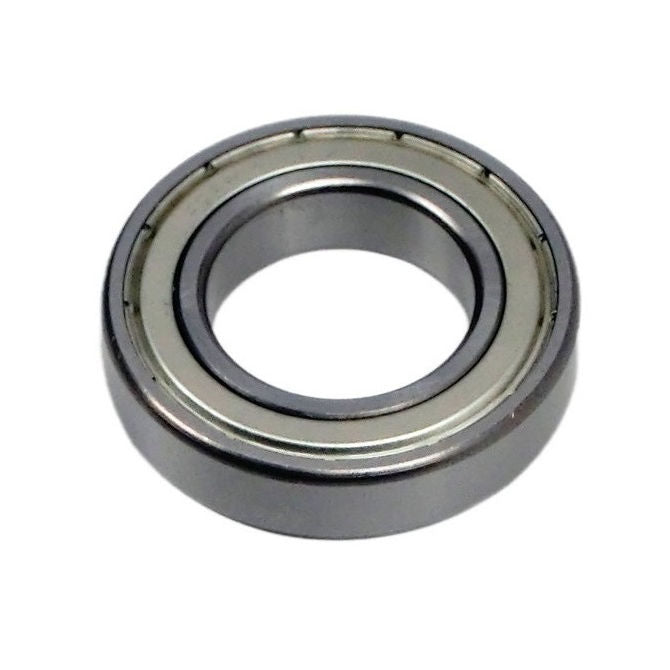

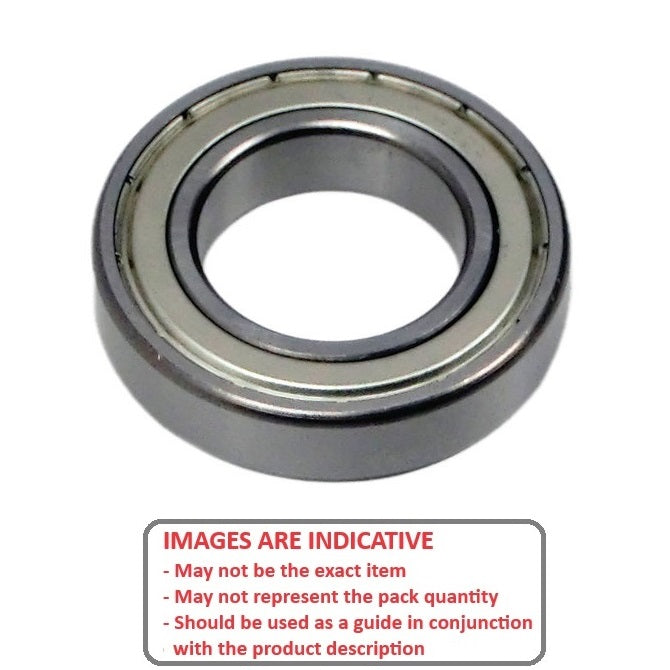

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Unflanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$1,111.32 AUD

per 21
Backorder
Order 50 or more pack (1050 pcs) for $1,000.19 AUD per 21

Product Details

ID (d): 1.984mm
_{+ 0.000 / - 0.005}
_{(1.984mm is 0.078 in.)}

Stainless Steel AISI 440C - Ribbon Retainer Low Torque

ID (d): 1.984mm
_{+ 0.000 / - 0.005}
_{(1.984mm is 0.078 in.)}
OD (D): 6.350mm
_{+ 0.000 / - 0.005}
_{(6.350mm is 0.25 in.)}
Width (B): 3.571mm
_{+ 0.000 / - 0.040}
_{(3.571mm is 0.141 in.)}
Precision Grade: Abec 5
Closure Type: ZZS
Bearing Type: Radial
Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

GRW BR5-64-2Z-P5
GRW SBR5-64-2Z-P5
BR5642ZP5
P5SR14SS
P5R14SS
P5-SR1-4SS
P5-R1-4SS
SR14BZZSMC3GR5L23
SR14BZZSRGR5MC34L23
R1-4B
RX2508X-A5P-L23
RX2508XA5PL23
RX-2508X-48-A5P-6/15-L23
RX2508X48A5P6/15L23
SBR5642ZP5
R1-4BBASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
