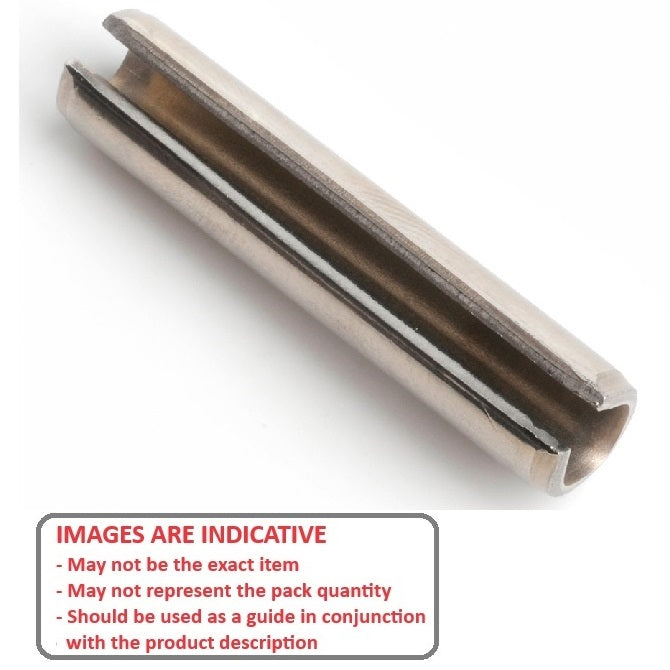

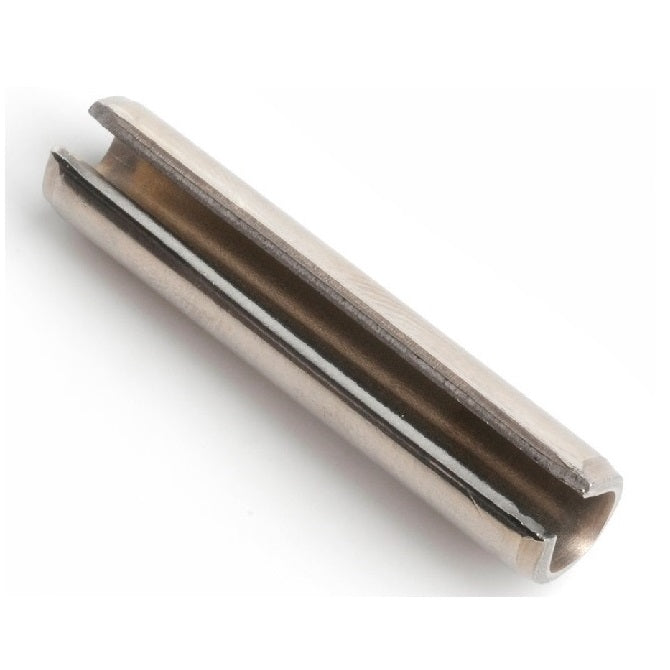

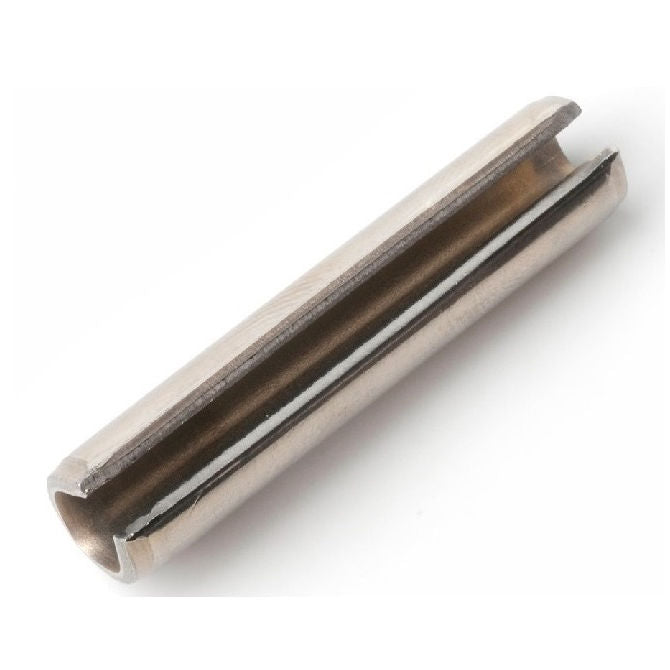

RP015-0160-4 (100 Pcs)

Roll Pins - 1.5x16x1.65 mm - Stainless Steel 304 (Similar to A2, 18-8) HRB80

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Master Pins Catalogue PDF
Roll Pins Catalogue PDF
Coiled Pins
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
per 100
Qty: 1 available now (100 pcs)
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Roll

Top Level Category: Pins - Roll - Stainless Steel - 300 Grade

Product Details:

Nominal Diameter (D): 1.50mm
Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Length (L): 16.00mm
  • Free Diameter: 1.65mm
  • Thickness (S): 0.35mm
  • Chamfer Length (cL): 0.15-0.70mm
  • Chamfer Diameter (cD): 1.4mm
  • Standard: DIN1481 / ISO8752
  • Type: Standard

Brand: MBA
Country of Origin: DE

Alternative Parts Include: SRP1.5-16, SPMS-015-016-304SS, SPMS015016304SS, SRP1516, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
