SFWR0-MC34-GR5-R-L23 (20 Pcs)

Name: 1036781 | SFWR0-MC34-GR5-R-L23 (20 Pcs) --- Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing
Brand: Myonic
SKU: SFWR0MC34GR5RL23
Price: 1427.68 AUD
Availability: BackOrder

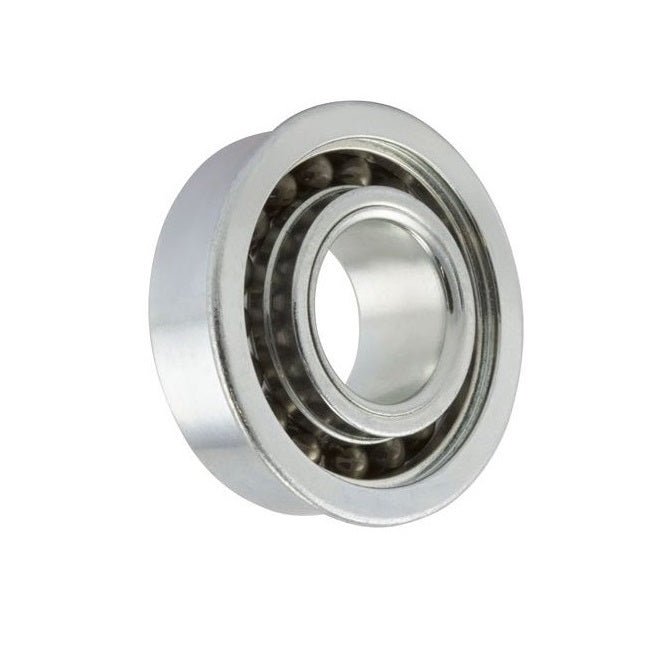

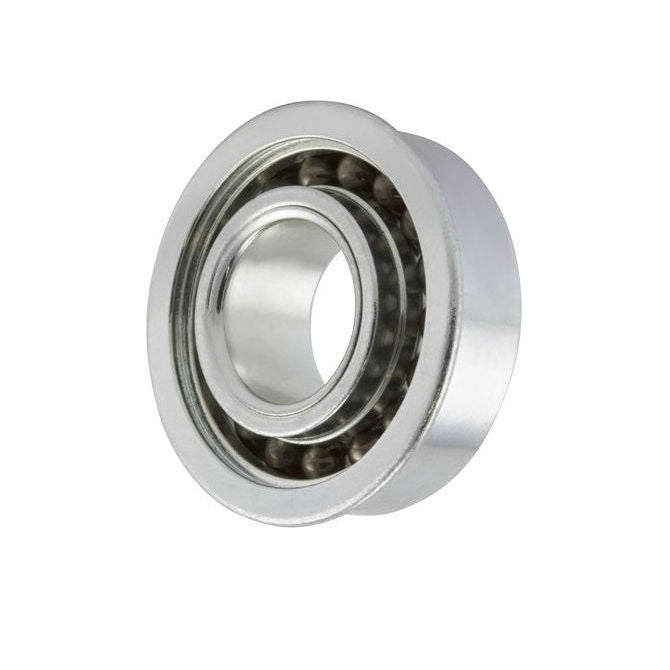

Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing

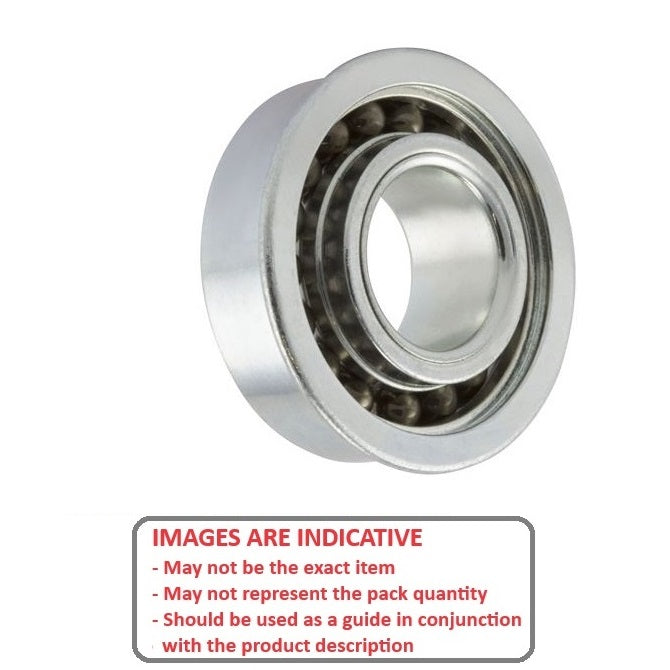

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

Myonic

Store: Minibearings - Miniature Bearings Australia - Retail & Wholesale

Category: Bearings - Single Row Ball - Flanged - High Precision - Extended Inner

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$1,427.68 AUD

20 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $1,284.91 AUD

Product Details

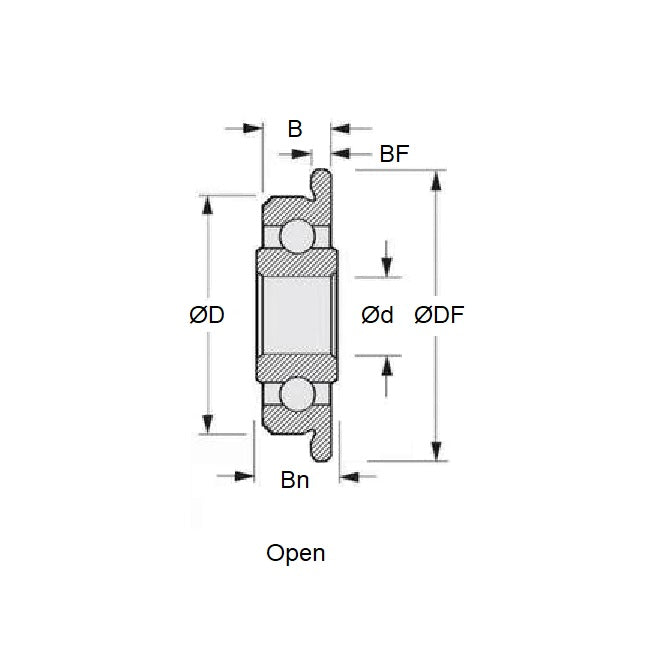

ID (d): 1.191mm
_{+ 0.000 / - 0.005}
_{(1.191mm is 0.047 in.)}

Stainless Steel AISI 440C

ID (d): 1.191mm
_{+ 0.000 / - 0.005}
_{(1.191mm is 0.047 in.)}
OD (D): 3.967mm
_{+ 0.000 / - 0.005}
_{(3.967mm is 0.156 in.)}
Width (B): 1.588mm
_{+ 0.000 / - 0.040}
_{(1.588mm is 0.063 in.)}
Inner Ring Width (Bn): 2.381mm
Flange Diameter (DF): 5.156mm
Flange Width (BF): 0.330mm
Precision Grade: Abec 5
Closure Type: Open
Bearing Type: Radial Flanged with Extended Inner
Lubricant: Windsorlube L245X - L23 Oil

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

GRW FE1191-P5
GRW SFE1191-P5
GRW SSFE1191-P5
P5-FRW0
P5SFRW0
P5FRW0
P5-SFRW0
ULKU1505XA5PL23
ULKU1505X-A5P-L23
ULKU-1505X-48-A5P-6/15-L23
ULKU1505X48A5P6/15L23
SFE1191P5
SFWR0MC3GR5L23
SFWR0RGR5MC34L23
SSFWR0RGR5MC34L23
SSFWR0MC3GR5L23
SSFE1191P5
FWR0BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
