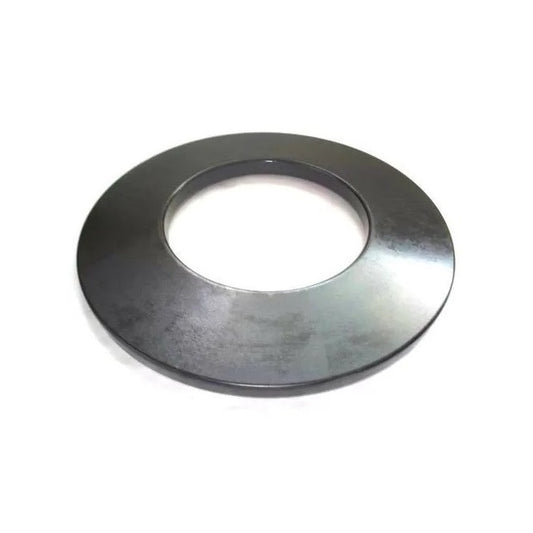

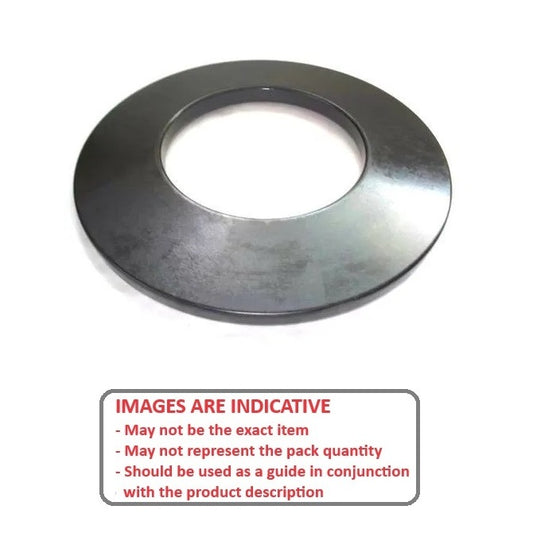

Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers (With Images)

Disc Spring

Standard

Carbon Steel
Plastic
Stainless Steel

259 Products in this selection

Includes disc springs to DIN 2093.
Manufactured under strict quality control to conform to DIN 2093

Additional resources:
Disc Spring Washers PDF
Screws

A more concise listing may be found on the Smallparts store at Washers - Disc Spring - Standard - Carbon Steel. Smallparts promote the most popular MBA products.

Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1	Indicative Image
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 2.25 mm _{(0.089 in.)}		Loaded Height (L1) 2.99 mm	Load at L1 661.0 kg
Material: Carbon Steel Free Height (E): 5.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.95 mm
Part Number: W0410-D-080-023-C (5 Pcs) Disc Spring Washers - 80x40x2.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $79.77 AUD Regular price Sale price $79.77 AUD Unit price per Per 5
Nominal OD (A)	Nominal ID (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 2.25 mm _{(0.089 in.)}
Material: Carbon Steel Loaded Height (L1): 2.99 mm Load at L1: 661.0 kg Free Height (E): 5.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.95 mm
Part Number: W0410-D-080-023-C (5 Pcs) Disc Spring Washers - 80x40x2.25 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $79.77 AUD Regular price Sale price $79.77 AUD Unit price per Per 5 View the product page first if you are unsure.
W0410-D-080-023-C (5 Pcs) --- Disc Spring Washers - 80x40x2.25 mm - Carbon Steel W0410-D-080-023-C (5 Pcs) --- Disc Spring Washers - 80x40x2.25 mm - Carbon Steel Regular price $79.77 AUD Regular price Sale price $79.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 3.00 mm _{(0.118 in.)}		Loaded Height (L1) 1.74 mm
Material: Carbon Steel Load at 0.75 Height: 1129.9 Kg Free Height (E): 5.30 mm Actual ID (Ref): 40.5 mm Inside Height (D): 2.32 mm
Part Number: W0405-D-080-030-C Disc Spring Washers - 80x40x3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $40.86 AUD Regular price Sale price $40.86 AUD Unit price per Each
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 3.00 mm _{(0.118 in.)}
Material: Carbon Steel Loaded Height (L1): 1.74 mm Load at 0.75 Height: 1129.9 Kg Free Height (E): 5.30 mm Actual ID (Ref): 40.5 mm Inside Height (D): 2.32 mm
Part Number: W0405-D-080-030-C Disc Spring Washers - 80x40x3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $40.86 AUD Regular price Sale price $40.86 AUD Unit price per Each View the product page first if you are unsure.
W0405-D-080-030-C --- Disc Spring Washers - 80x40x3 mm - Carbon Steel W0405-D-080-030-C --- Disc Spring Washers - 80x40x3 mm - Carbon Steel Regular price $40.86 AUD Regular price Sale price $40.86 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 3.00 mm _{(0.118 in.)}		Loaded Height (L1) 3.58 mm	Load at L1 1051.0 kg
Material: Carbon Steel Free Height (E): 5.30 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.30 mm
Part Number: W0410-D-080-030-C (5 Pcs) Disc Spring Washers - 80x40x3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $76.50 AUD Regular price Sale price $76.50 AUD Unit price per Per 5
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 3.00 mm _{(0.118 in.)}
Material: Carbon Steel Loaded Height (L1): 3.58 mm Load at L1: 1051.0 kg Free Height (E): 5.30 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.30 mm
Part Number: W0410-D-080-030-C (5 Pcs) Disc Spring Washers - 80x40x3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $76.50 AUD Regular price Sale price $76.50 AUD Unit price per Per 5 View the product page first if you are unsure.
W0410-D-080-030-C (5 Pcs) --- Disc Spring Washers - 80x40x3 mm - Carbon Steel W0410-D-080-030-C (5 Pcs) --- Disc Spring Washers - 80x40x3 mm - Carbon Steel Regular price $76.50 AUD Regular price Sale price $76.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}		Loaded Height (L1) 4.55 mm	Load at L1 2286.0 kg
Material: Carbon Steel Free Height (E): 6.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.20 mm
Part Number: W0410-D-080-040-C (5 Pcs) Disc Spring Washers - 80x40x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $120.14 AUD Regular price Sale price $120.14 AUD Unit price per Per 5
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}
Material: Carbon Steel Loaded Height (L1): 4.55 mm Load at L1: 2286.0 kg Free Height (E): 6.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.20 mm
Part Number: W0410-D-080-040-C (5 Pcs) Disc Spring Washers - 80x40x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $120.14 AUD Regular price Sale price $120.14 AUD Unit price per Per 5 View the product page first if you are unsure.
W0410-D-080-040-C (5 Pcs) --- Disc Spring Washers - 80x40x4 mm - Carbon Steel W0410-D-080-040-C (5 Pcs) --- Disc Spring Washers - 80x40x4 mm - Carbon Steel Regular price $120.14 AUD Regular price Sale price $120.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 1.29 mm
Material: Carbon Steel Load at 0.75 Height: 3656.9 Kg Free Height (E): 6.70 mm Actual ID (Ref): 40.5 mm Inside Height (D): 1.72 mm
Part Number: W0405-D-080-050-C Disc Spring Washers - 80x40x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $67.95 AUD Regular price Sale price $67.95 AUD Unit price per Each
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 1.29 mm Load at 0.75 Height: 3656.9 Kg Free Height (E): 6.70 mm Actual ID (Ref): 40.5 mm Inside Height (D): 1.72 mm
Part Number: W0405-D-080-050-C Disc Spring Washers - 80x40x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 03, 2025 Regular price $67.95 AUD Regular price Sale price $67.95 AUD Unit price per Each View the product page first if you are unsure.
W0405-D-080-050-C --- Disc Spring Washers - 80x40x5 mm - Carbon Steel W0405-D-080-050-C --- Disc Spring Washers - 80x40x5 mm - Carbon Steel Regular price $67.95 AUD Regular price Sale price $67.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 5.42 mm	Load at L1 3354.0 kg
Material: Carbon Steel Free Height (E): 6.70 mm Actual ID (Ref): 41.0 mm Inside Height (D): 1.70 mm
Part Number: W0410-D-080-050-C (5 Pcs) Disc Spring Washers - 80x40x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $146.59 AUD Regular price Sale price $146.59 AUD Unit price per Per 5
Nominal OD (A) 80.00 mm _{(3.15 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 5.42 mm Load at L1: 3354.0 kg Free Height (E): 6.70 mm Actual ID (Ref): 41.0 mm Inside Height (D): 1.70 mm
Part Number: W0410-D-080-050-C (5 Pcs) Disc Spring Washers - 80x40x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $146.59 AUD Regular price Sale price $146.59 AUD Unit price per Per 5 View the product page first if you are unsure.
W0410-D-080-050-C (5 Pcs) --- Disc Spring Washers - 80x40x5 mm - Carbon Steel W0410-D-080-050-C (5 Pcs) --- Disc Spring Washers - 80x40x5 mm - Carbon Steel Regular price $146.59 AUD Regular price Sale price $146.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 90.00 mm _{(3.543 in.)}	Nominal ID (B) 45.00 mm + 1.00 / - 0.00 _{(1.772 in.)}	Stock Thickness (C) 3.50 mm _{(0.138 in.)}		Loaded Height (L1) 4.13 mm	Load at L1 1415.0 kg
Material: Carbon Steel Free Height (E): 6.00 mm Actual ID (Ref): 46.0 mm Inside Height (D): 2.50 mm
Part Number: W0460-D-090-035-C (5 Pcs) Disc Spring Washers - 90x45x3.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $117.32 AUD Regular price Sale price $117.32 AUD Unit price per Per 5
Nominal OD (A) 90.00 mm _{(3.543 in.)}	Nominal ID (B) 45.00 mm + 1.00 / - 0.00 _{(1.772 in.)}	Stock Thickness (C) 3.50 mm _{(0.138 in.)}
Material: Carbon Steel Loaded Height (L1): 4.13 mm Load at L1: 1415.0 kg Free Height (E): 6.00 mm Actual ID (Ref): 46.0 mm Inside Height (D): 2.50 mm
Part Number: W0460-D-090-035-C (5 Pcs) Disc Spring Washers - 90x45x3.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $117.32 AUD Regular price Sale price $117.32 AUD Unit price per Per 5 View the product page first if you are unsure.
W0460-D-090-035-C (5 Pcs) --- Disc Spring Washers - 90x45x3.5 mm - Carbon Steel W0460-D-090-035-C (5 Pcs) --- Disc Spring Washers - 90x45x3.5 mm - Carbon Steel Regular price $117.32 AUD Regular price Sale price $117.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 90.00 mm _{(3.543 in.)}	Nominal ID (B) 45.00 mm + 1.00 / - 0.00 _{(1.772 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 5.50 mm	Load at L1 3134.0 kg
Material: Carbon Steel Free Height (E): 7.00 mm Actual ID (Ref): 46.0 mm Inside Height (D): 2.00 mm
Part Number: W0460-D-090-050-C (5 Pcs) Disc Spring Washers - 90x45x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $177.14 AUD Regular price Sale price $177.14 AUD Unit price per Per 5
Nominal OD (A) 90.00 mm _{(3.543 in.)}	Nominal ID (B) 45.00 mm + 1.00 / - 0.00 _{(1.772 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 5.50 mm Load at L1: 3134.0 kg Free Height (E): 7.00 mm Actual ID (Ref): 46.0 mm Inside Height (D): 2.00 mm
Part Number: W0460-D-090-050-C (5 Pcs) Disc Spring Washers - 90x45x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $177.14 AUD Regular price Sale price $177.14 AUD Unit price per Per 5 View the product page first if you are unsure.
W0460-D-090-050-C (5 Pcs) --- Disc Spring Washers - 90x45x5 mm - Carbon Steel W0460-D-090-050-C (5 Pcs) --- Disc Spring Washers - 90x45x5 mm - Carbon Steel Regular price $177.14 AUD Regular price Sale price $177.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}		Loaded Height (L1) 4.80 mm	Load at L1 2024.0 kg
Material: Carbon Steel Free Height (E): 7.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 3.20 mm
Part Number: W0410-D-100-040-C Disc Spring Washers - 100x40x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $37.77 AUD Regular price Sale price $37.77 AUD Unit price per Each
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}
Material: Carbon Steel Loaded Height (L1): 4.80 mm Load at L1: 2024.0 kg Free Height (E): 7.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 3.20 mm
Part Number: W0410-D-100-040-C Disc Spring Washers - 100x40x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $37.77 AUD Regular price Sale price $37.77 AUD Unit price per Each View the product page first if you are unsure.
W0410-D-100-040-C --- Disc Spring Washers - 100x40x4 mm - Carbon Steel W0410-D-100-040-C --- Disc Spring Washers - 100x40x4 mm - Carbon Steel Regular price $37.77 AUD Regular price Sale price $37.77 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 5.69 mm	Load at L1 3234.0 kg
Material: Carbon Steel Free Height (E): 7.75 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.75 mm
Part Number: W0410-D-100-050-C Disc Spring Washers - 100x40x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Each
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 5.69 mm Load at L1: 3234.0 kg Free Height (E): 7.75 mm Actual ID (Ref): 41.0 mm Inside Height (D): 2.75 mm
Part Number: W0410-D-100-050-C Disc Spring Washers - 100x40x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Each View the product page first if you are unsure.
W0410-D-100-050-C --- Disc Spring Washers - 100x40x5 mm - Carbon Steel W0410-D-100-050-C --- Disc Spring Washers - 100x40x5 mm - Carbon Steel Regular price $46.95 AUD Regular price Sale price $46.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 3.50 mm _{(0.138 in.)}		Loaded Height (L1) 4.20 mm	Load at L1 1306.0 kg
Material: Carbon Steel Free Height (E): 6.30 mm Actual ID (Ref): 51.0 mm Inside Height (D): 2.80 mm
Part Number: W0510-D-100-035-C Disc Spring Washers - 100x50x3.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $30.32 AUD Regular price Sale price $30.32 AUD Unit price per Each
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 3.50 mm _{(0.138 in.)}
Material: Carbon Steel Loaded Height (L1): 4.20 mm Load at L1: 1306.0 kg Free Height (E): 6.30 mm Actual ID (Ref): 51.0 mm Inside Height (D): 2.80 mm
Part Number: W0510-D-100-035-C Disc Spring Washers - 100x50x3.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $30.32 AUD Regular price Sale price $30.32 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-100-035-C --- Disc Spring Washers - 100x50x3.5 mm - Carbon Steel W0510-D-100-035-C --- Disc Spring Washers - 100x50x3.5 mm - Carbon Steel Regular price $30.32 AUD Regular price Sale price $30.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}		Loaded Height (L1) 2.27 mm
Material: Carbon Steel Load at 0.75 Height: 2230.77 Kg Free Height (E): 7.00 mm Actual ID (Ref): 51.0 mm Inside Height (D): 3.03 mm
Part Number: W0510-D-100-040-C Disc Spring Washers - 100x50x4 mm - Carbon Steel 16 Available Immediately \| Further orders can be expected around Thu, Aug 14, 2025 Regular price $24.86 AUD Regular price ~~$29.84 AUD~~ Sale price $24.86 AUD Unit price per Each
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}
Material: Carbon Steel Loaded Height (L1): 2.27 mm Load at 0.75 Height: 2230.77 Kg Free Height (E): 7.00 mm Actual ID (Ref): 51.0 mm Inside Height (D): 3.03 mm
Part Number: W0510-D-100-040-C Disc Spring Washers - 100x50x4 mm - Carbon Steel 16 Available Immediately \| Further orders can be expected around Thu, Aug 14, 2025 Regular price $24.86 AUD Regular price ~~$29.84 AUD~~ Sale price $24.86 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-100-040-C --- Disc Spring Washers - 100x50x4 mm - Carbon Steel Sale W0510-D-100-040-C --- Disc Spring Washers - 100x50x4 mm - Carbon Steel Regular price $24.86 AUD Regular price ~~$29.84 AUD~~ Sale price $24.86 AUD Unit price per 16 Available Now Sale
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 5.70 mm	Load at L1 3632.0 kg
Material: Carbon Steel Free Height (E): 7.80 mm Actual ID (Ref): 51.0 mm Inside Height (D): 2.80 mm
Part Number: W0510-D-100-050-C Disc Spring Washers - 100x50x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $45.95 AUD Regular price Sale price $45.95 AUD Unit price per Each
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 5.70 mm Load at L1: 3632.0 kg Free Height (E): 7.80 mm Actual ID (Ref): 51.0 mm Inside Height (D): 2.80 mm
Part Number: W0510-D-100-050-C Disc Spring Washers - 100x50x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $45.95 AUD Regular price Sale price $45.95 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-100-050-C --- Disc Spring Washers - 100x50x5 mm - Carbon Steel W0510-D-100-050-C --- Disc Spring Washers - 100x50x5 mm - Carbon Steel Regular price $45.95 AUD Regular price Sale price $45.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}		Loaded Height (L1) 1.67 mm
Material: Carbon Steel Load at 0.75 Height: 5225.38 Kg Free Height (E): 8.20 mm Actual ID (Ref): 51.0 mm Inside Height (D): 2.23 mm
Part Number: W0510-D-100-060-C Disc Spring Washers - 100x50x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $57.95 AUD Regular price Sale price $57.95 AUD Unit price per Each
Nominal OD (A) 100.00 mm _{(3.937 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}
Material: Carbon Steel Loaded Height (L1): 1.67 mm Load at 0.75 Height: 5225.38 Kg Free Height (E): 8.20 mm Actual ID (Ref): 51.0 mm Inside Height (D): 2.23 mm
Part Number: W0510-D-100-060-C Disc Spring Washers - 100x50x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $57.95 AUD Regular price Sale price $57.95 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-100-060-C --- Disc Spring Washers - 100x50x6 mm - Carbon Steel W0510-D-100-060-C --- Disc Spring Washers - 100x50x6 mm - Carbon Steel Regular price $57.95 AUD Regular price Sale price $57.95 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 112.00 mm _{(4.409 in.)}	Nominal ID (B) 55.00 mm + 2.00 / - 0.00 _{(2.165 in.)}	Stock Thickness (C) 3.00 mm _{(0.118 in.)}		Loaded Height (L1) 3.97 mm	Load at L1 1048.0 kg
Material: Carbon Steel Free Height (E): 6.90 mm Actual ID (Ref): 57.0 mm Inside Height (D): 3.90 mm
Part Number: W0570-D-112-030-C Disc Spring Washers - 112x55x3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $39.68 AUD Regular price Sale price $39.68 AUD Unit price per Each
Nominal OD (A) 112.00 mm _{(4.409 in.)}	Nominal ID (B) 55.00 mm + 2.00 / - 0.00 _{(2.165 in.)}	Stock Thickness (C) 3.00 mm _{(0.118 in.)}
Material: Carbon Steel Loaded Height (L1): 3.97 mm Load at L1: 1048.0 kg Free Height (E): 6.90 mm Actual ID (Ref): 57.0 mm Inside Height (D): 3.90 mm
Part Number: W0570-D-112-030-C Disc Spring Washers - 112x55x3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $39.68 AUD Regular price Sale price $39.68 AUD Unit price per Each View the product page first if you are unsure.
W0570-D-112-030-C --- Disc Spring Washers - 112x55x3 mm - Carbon Steel W0570-D-112-030-C --- Disc Spring Washers - 112x55x3 mm - Carbon Steel Regular price $39.68 AUD Regular price Sale price $39.68 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 112.00 mm _{(4.409 in.)}	Nominal ID (B) 55.00 mm + 2.00 / - 0.00 _{(2.165 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}		Loaded Height (L1) 4.87 mm	Load at L1 1774.0 kg
Material: Carbon Steel Free Height (E): 7.20 mm Actual ID (Ref): 57.0 mm Inside Height (D): 3.20 mm
Part Number: W0570-D-112-040-C Disc Spring Washers - 112x55x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Each
Nominal OD (A) 112.00 mm _{(4.409 in.)}	Nominal ID (B) 55.00 mm + 2.00 / - 0.00 _{(2.165 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}
Material: Carbon Steel Loaded Height (L1): 4.87 mm Load at L1: 1774.0 kg Free Height (E): 7.20 mm Actual ID (Ref): 57.0 mm Inside Height (D): 3.20 mm
Part Number: W0570-D-112-040-C Disc Spring Washers - 112x55x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Each View the product page first if you are unsure.
W0570-D-112-040-C --- Disc Spring Washers - 112x55x4 mm - Carbon Steel W0570-D-112-040-C --- Disc Spring Washers - 112x55x4 mm - Carbon Steel Regular price $46.50 AUD Regular price Sale price $46.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 112.00 mm _{(4.409 in.)}	Nominal ID (B) 55.00 mm + 2.00 / - 0.00 _{(2.165 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}		Loaded Height (L1) 6.63 mm	Load at L1 4368.0 kg
Material: Carbon Steel Free Height (E): 8.50 mm Actual ID (Ref): 57.0 mm Inside Height (D): 2.50 mm
Part Number: W0570-D-112-060-C Disc Spring Washers - 112x55x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $47.14 AUD Regular price Sale price $47.14 AUD Unit price per Each
Nominal OD (A) 112.00 mm _{(4.409 in.)}	Nominal ID (B) 55.00 mm + 2.00 / - 0.00 _{(2.165 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}
Material: Carbon Steel Loaded Height (L1): 6.63 mm Load at L1: 4368.0 kg Free Height (E): 8.50 mm Actual ID (Ref): 57.0 mm Inside Height (D): 2.50 mm
Part Number: W0570-D-112-060-C Disc Spring Washers - 112x55x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $47.14 AUD Regular price Sale price $47.14 AUD Unit price per Each View the product page first if you are unsure.
W0570-D-112-060-C --- Disc Spring Washers - 112x55x6 mm - Carbon Steel W0570-D-112-060-C --- Disc Spring Washers - 112x55x6 mm - Carbon Steel Regular price $47.14 AUD Regular price Sale price $47.14 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}		Loaded Height (L1) 5.05 mm	Load at L1 1734.0 kg
Material: Carbon Steel Free Height (E): 8.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 4.20 mm
Part Number: W0410-D-125-040-C Disc Spring Washers - 125x40x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.59 AUD Regular price Sale price $49.59 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 40.00 mm + 1.00 / - 0.00 _{(1.575 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}
Material: Carbon Steel Loaded Height (L1): 5.05 mm Load at L1: 1734.0 kg Free Height (E): 8.20 mm Actual ID (Ref): 41.0 mm Inside Height (D): 4.20 mm
Part Number: W0410-D-125-040-C Disc Spring Washers - 125x40x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $49.59 AUD Regular price Sale price $49.59 AUD Unit price per Each View the product page first if you are unsure.
W0410-D-125-040-C --- Disc Spring Washers - 125x40x4 mm - Carbon Steel W0410-D-125-040-C --- Disc Spring Washers - 125x40x4 mm - Carbon Steel Regular price $49.59 AUD Regular price Sale price $49.59 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}		Loaded Height (L1) 5.13 mm	Load at L1 1981.0 kg
Material: Carbon Steel Free Height (E): 8.50 mm Actual ID (Ref): 51.0 mm Inside Height (D): 4.50 mm
Part Number: W0510-D-125-040-C Disc Spring Washers - 125x50x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $53.32 AUD Regular price Sale price $53.32 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 4.00 mm _{(0.157 in.)}
Material: Carbon Steel Loaded Height (L1): 5.13 mm Load at L1: 1981.0 kg Free Height (E): 8.50 mm Actual ID (Ref): 51.0 mm Inside Height (D): 4.50 mm
Part Number: W0510-D-125-040-C Disc Spring Washers - 125x50x4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $53.32 AUD Regular price Sale price $53.32 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-125-040-C --- Disc Spring Washers - 125x50x4 mm - Carbon Steel W0510-D-125-040-C --- Disc Spring Washers - 125x50x4 mm - Carbon Steel Regular price $53.32 AUD Regular price Sale price $53.32 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 5.97 mm	Load at L1 3065.0 kg
Material: Carbon Steel Free Height (E): 8.90 mm Actual ID (Ref): 51.0 mm Inside Height (D): 3.90 mm
Part Number: W0510-D-125-050-C Disc Spring Washers - 125x50x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 5.97 mm Load at L1: 3065.0 kg Free Height (E): 8.90 mm Actual ID (Ref): 51.0 mm Inside Height (D): 3.90 mm
Part Number: W0510-D-125-050-C Disc Spring Washers - 125x50x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-125-050-C --- Disc Spring Washers - 125x50x5 mm - Carbon Steel W0510-D-125-050-C --- Disc Spring Washers - 125x50x5 mm - Carbon Steel Regular price $51.05 AUD Regular price Sale price $51.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}		Loaded Height (L1) 6.85 mm	Load at L1 4428.0 kg
Material: Carbon Steel Free Height (E): 9.40 mm Actual ID (Ref): 51.0 mm Inside Height (D): 3.40 mm
Part Number: W0510-D-125-060-C Disc Spring Washers - 125x50x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $68.50 AUD Regular price Sale price $68.50 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 50.00 mm + 1.00 / - 0.00 _{(1.969 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}
Material: Carbon Steel Loaded Height (L1): 6.85 mm Load at L1: 4428.0 kg Free Height (E): 9.40 mm Actual ID (Ref): 51.0 mm Inside Height (D): 3.40 mm
Part Number: W0510-D-125-060-C Disc Spring Washers - 125x50x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $68.50 AUD Regular price Sale price $68.50 AUD Unit price per Each View the product page first if you are unsure.
W0510-D-125-060-C --- Disc Spring Washers - 125x50x6 mm - Carbon Steel W0510-D-125-060-C --- Disc Spring Washers - 125x50x6 mm - Carbon Steel Regular price $68.50 AUD Regular price Sale price $68.50 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 60.00 mm + 1.00 / - 0.00 _{(2.362 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}		Loaded Height (L1) 6.00 mm	Load at L1 3395.0 kg
Material: Carbon Steel Free Height (E): 9.00 mm Actual ID (Ref): 61.0 mm Inside Height (D): 4.00 mm
Part Number: W0610-D-125-050-C Disc Spring Washers - 125x60x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $81.05 AUD Regular price Sale price $81.05 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 60.00 mm + 1.00 / - 0.00 _{(2.362 in.)}	Stock Thickness (C) 5.00 mm _{(0.197 in.)}
Material: Carbon Steel Loaded Height (L1): 6.00 mm Load at L1: 3395.0 kg Free Height (E): 9.00 mm Actual ID (Ref): 61.0 mm Inside Height (D): 4.00 mm
Part Number: W0610-D-125-050-C Disc Spring Washers - 125x60x5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $81.05 AUD Regular price Sale price $81.05 AUD Unit price per Each View the product page first if you are unsure.
W0610-D-125-050-C --- Disc Spring Washers - 125x60x5 mm - Carbon Steel W0610-D-125-050-C --- Disc Spring Washers - 125x60x5 mm - Carbon Steel Regular price $81.05 AUD Regular price Sale price $81.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 60.00 mm + 1.00 / - 0.00 _{(2.362 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}		Loaded Height (L1) 6.90 mm	Load at L1 5069.0 kg
Material: Carbon Steel Free Height (E): 9.60 mm Actual ID (Ref): 61.0 mm Inside Height (D): 3.60 mm
Part Number: W0610-D-125-060-C Disc Spring Washers - 125x60x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $100.05 AUD Regular price Sale price $100.05 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 60.00 mm + 1.00 / - 0.00 _{(2.362 in.)}	Stock Thickness (C) 6.00 mm _{(0.236 in.)}
Material: Carbon Steel Loaded Height (L1): 6.90 mm Load at L1: 5069.0 kg Free Height (E): 9.60 mm Actual ID (Ref): 61.0 mm Inside Height (D): 3.60 mm
Part Number: W0610-D-125-060-C Disc Spring Washers - 125x60x6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $100.05 AUD Regular price Sale price $100.05 AUD Unit price per Each View the product page first if you are unsure.
W0610-D-125-060-C --- Disc Spring Washers - 125x60x6 mm - Carbon Steel W0610-D-125-060-C --- Disc Spring Washers - 125x60x6 mm - Carbon Steel Regular price $100.05 AUD Regular price Sale price $100.05 AUD Unit price per Out of stock! Backorder Now
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 60.00 mm + 1.00 / - 0.00 _{(2.362 in.)}	Stock Thickness (C) 8.00 mm _{(0.315 in.)}		Loaded Height (L1) 8.72 mm	Load at L1 9353.0 kg
Material: Carbon Steel Free Height (E): 10.90 mm Actual ID (Ref): 61.0 mm Inside Height (D): 2.90 mm
Part Number: W0610-D-125-080-C Disc Spring Washers - 125x60x8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $142.23 AUD Regular price Sale price $142.23 AUD Unit price per Each
Nominal OD (A) 125.00 mm _{(4.921 in.)}	Nominal ID (B) 60.00 mm + 1.00 / - 0.00 _{(2.362 in.)}	Stock Thickness (C) 8.00 mm _{(0.315 in.)}
Material: Carbon Steel Loaded Height (L1): 8.72 mm Load at L1: 9353.0 kg Free Height (E): 10.90 mm Actual ID (Ref): 61.0 mm Inside Height (D): 2.90 mm
Part Number: W0610-D-125-080-C Disc Spring Washers - 125x60x8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jul 24, 2025 Regular price $142.23 AUD Regular price Sale price $142.23 AUD Unit price per Each View the product page first if you are unsure.
W0610-D-125-080-C --- Disc Spring Washers - 125x60x8 mm - Carbon Steel W0610-D-125-080-C --- Disc Spring Washers - 125x60x8 mm - Carbon Steel Regular price $142.23 AUD Regular price Sale price $142.23 AUD Unit price per Out of stock! Backorder Now
