Collection: Springs - Die

Springs (With Images)

Die

388 Products in this selection

This is a combined category of Die Springs.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Springs - Die

Additional resources:
Spings Catalogue PDF

A more concise listing may be found on the Smallparts store at Springs - Die. Smallparts promote the most popular MBA products.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 83.6 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-HDS Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Each
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 83.6 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-HDS Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-HDS --- Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Sale DS-095-064-HDS --- Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Regular price $28.41 AUD Regular price ~~$34.09 AUD~~ Sale price $28.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 82.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-MHDS Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $27.41 AUD Regular price ~~$32.89 AUD~~ Sale price $27.41 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 82.6 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-MHDS Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $27.41 AUD Regular price ~~$32.89 AUD~~ Sale price $27.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-MHDS --- Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Sale DS-095-064-MHDS --- Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Regular price $27.41 AUD Regular price ~~$32.89 AUD~~ Sale price $27.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 15.9 mm	Load at Optimal 73.1 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-MDS Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 15.9 mm Load at Optimal: 73.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-MDS Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-MDS --- Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Sale DS-095-064-MDS --- Die Springs - 9.53x4.763x63.5 mm - Chrome Silicon Regular price $18.77 AUD Regular price ~~$22.53 AUD~~ Sale price $18.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 15.9 mm	Load at Optimal 73.1 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-MD Die Springs - 9.53x4.763x63.5 mm - Spring Steel 3 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 15.9 mm Load at Optimal: 73.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial
Part Number: DS-095-064-MD Die Springs - 9.53x4.763x63.5 mm - Spring Steel 3 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per Each View the product page first if you are unsure.
DS-095-064-MD --- Die Springs - 9.53x4.763x63.5 mm - Spring Steel DS-095-064-MD --- Die Springs - 9.53x4.763x63.5 mm - Spring Steel Regular price $14.59 AUD Regular price Sale price $14.59 AUD Unit price per 3 Available Now
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 11.4 mm	Load at Optimal 82.1 N
Material: Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-HD Die Springs - 9.53x4.763x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 15 Percent
Material: Spring Steel Optimum Deflection: 11.4 mm Load at Optimal: 82.1 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-HD Die Springs - 9.53x4.763x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per Each View the product page first if you are unsure.
DS-095-076-HD --- Die Springs - 9.53x4.763x76.2 mm - Spring Steel Sale DS-095-076-HD --- Die Springs - 9.53x4.763x76.2 mm - Spring Steel Regular price $21.50 AUD Regular price ~~$25.80 AUD~~ Sale price $21.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 15 Percent	Optimum Deflection 11.4 mm	Load at Optimal 82.1 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-HDS Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.41 AUD Regular price ~~$40.09 AUD~~ Sale price $33.41 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 11.4 mm Load at Optimal: 82.1 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-HDS Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $33.41 AUD Regular price ~~$40.09 AUD~~ Sale price $33.41 AUD Unit price per Each View the product page first if you are unsure.
DS-095-076-HDS --- Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Sale DS-095-076-HDS --- Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Regular price $33.41 AUD Regular price ~~$40.09 AUD~~ Sale price $33.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 19.1 mm	Load at Optimal 70.7 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-MD Die Springs - 9.53x4.763x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.86 AUD Regular price ~~$22.64 AUD~~ Sale price $18.86 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 19.1 mm Load at Optimal: 70.7 N Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-MD Die Springs - 9.53x4.763x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $18.86 AUD Regular price ~~$22.64 AUD~~ Sale price $18.86 AUD Unit price per Each View the product page first if you are unsure.
DS-095-076-MD --- Die Springs - 9.53x4.763x76.2 mm - Spring Steel Sale DS-095-076-MD --- Die Springs - 9.53x4.763x76.2 mm - Spring Steel Regular price $18.86 AUD Regular price ~~$22.64 AUD~~ Sale price $18.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 19.1 mm	Load at Optimal 70.7 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-MDS Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 19.1 mm Load at Optimal: 70.7 N Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial
Part Number: DS-095-076-MDS Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per Each View the product page first if you are unsure.
DS-095-076-MDS --- Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Sale DS-095-076-MDS --- Die Springs - 9.53x4.763x76.2 mm - Chrome Silicon Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 304.800 mm _{(12 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 76.2 mm	Load at Optimal 83.8 N
Material: Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 121.9 mm Category: Springs - Die - Imperial
Part Number: DS-095-305-MD Die Springs - 9.53x4.763x304.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $68.77 AUD Regular price ~~$82.53 AUD~~ Sale price $68.77 AUD Unit price per Each
Hole Diameter (B) 9.53 mm _{(0.375 in.)}	Rod Diameter (A) 4.763 mm _{(0.188 in.)}	Length (L) 304.800 mm _{(12 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 76.2 mm Load at Optimal: 83.8 N Maximum Deflection: 40 Percent Maximum Deflection: 121.9 mm Category: Springs - Die - Imperial
Part Number: DS-095-305-MD Die Springs - 9.53x4.763x304.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $68.77 AUD Regular price ~~$82.53 AUD~~ Sale price $68.77 AUD Unit price per Each View the product page first if you are unsure.
DS-095-305-MD --- Die Springs - 9.53x4.763x304.8 mm - Spring Steel Sale DS-095-305-MD --- Die Springs - 9.53x4.763x304.8 mm - Spring Steel Regular price $68.77 AUD Regular price ~~$82.53 AUD~~ Sale price $68.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 100.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-MD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $14.32 AUD Regular price ~~$17.18 AUD~~ Sale price $14.32 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 100.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-MD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $14.32 AUD Regular price ~~$17.18 AUD~~ Sale price $14.32 AUD Unit price per Each View the product page first if you are unsure.
DS-100-025-MD --- Die Springs - 10x5x25 mm - Spring Steel Sale DS-100-025-MD --- Die Springs - 10x5x25 mm - Spring Steel Regular price $14.32 AUD Regular price ~~$17.18 AUD~~ Sale price $14.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 139.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-HD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 139.2 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-HD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Each View the product page first if you are unsure.
DS-100-025-HD --- Die Springs - 10x5x25 mm - Spring Steel Sale DS-100-025-HD --- Die Springs - 10x5x25 mm - Spring Steel Regular price $14.77 AUD Regular price ~~$17.73 AUD~~ Sale price $14.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 231.8 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 231.8 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-EHD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each View the product page first if you are unsure.
DS-100-025-EHD --- Die Springs - 10x5x25 mm - Spring Steel Sale DS-100-025-EHD --- Die Springs - 10x5x25 mm - Spring Steel Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 6.3 mm	Load at Optimal 63.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-LD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $13.41 AUD Regular price ~~$16.09 AUD~~ Sale price $13.41 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 25.00 mm _{(0.984 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 6.3 mm Load at Optimal: 63.0 N Maximum Deflection: 37 Percent Maximum Deflection: 9.3 mm Category: Springs - Die - Metric
Part Number: DS-100-025-LD Die Springs - 10x5x25 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $13.41 AUD Regular price ~~$16.09 AUD~~ Sale price $13.41 AUD Unit price per Each View the product page first if you are unsure.
DS-100-025-LD --- Die Springs - 10x5x25 mm - Spring Steel Sale DS-100-025-LD --- Die Springs - 10x5x25 mm - Spring Steel Regular price $13.41 AUD Regular price ~~$16.09 AUD~~ Sale price $13.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 104.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-MD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 104.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-MD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Each View the product page first if you are unsure.
DS-100-032-MD --- Die Springs - 10x5x32 mm - Spring Steel Sale DS-100-032-MD --- Die Springs - 10x5x32 mm - Spring Steel Regular price $18.23 AUD Regular price ~~$21.87 AUD~~ Sale price $18.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 140.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-HD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 140.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-HD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each View the product page first if you are unsure.
DS-100-032-HD --- Die Springs - 10x5x32 mm - Spring Steel Sale DS-100-032-HD --- Die Springs - 10x5x32 mm - Spring Steel Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 223.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 223.2 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-EHD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each View the product page first if you are unsure.
DS-100-032-EHD --- Die Springs - 10x5x32 mm - Spring Steel Sale DS-100-032-EHD --- Die Springs - 10x5x32 mm - Spring Steel Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 8.0 mm	Load at Optimal 68.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-LD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 32.00 mm _{(1.26 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 8.0 mm Load at Optimal: 68.0 N Maximum Deflection: 37 Percent Maximum Deflection: 11.8 mm Category: Springs - Die - Metric
Part Number: DS-100-032-LD Die Springs - 10x5x32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Each View the product page first if you are unsure.
DS-100-032-LD --- Die Springs - 10x5x32 mm - Spring Steel Sale DS-100-032-LD --- Die Springs - 10x5x32 mm - Spring Steel Regular price $16.86 AUD Regular price ~~$20.24 AUD~~ Sale price $16.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 113.1 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-MD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-MD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Each View the product page first if you are unsure.
DS-100-038-MD --- Die Springs - 10x5x38 mm - Spring Steel DS-100-038-MD --- Die Springs - 10x5x38 mm - Spring Steel Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 162.5 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-HD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 162.5 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-HD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per Each View the product page first if you are unsure.
DS-100-038-HD --- Die Springs - 10x5x38 mm - Spring Steel DS-100-038-HD --- Die Springs - 10x5x38 mm - Spring Steel Regular price $18.86 AUD Regular price Sale price $18.86 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 225.2 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 225.2 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-EHD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per Each View the product page first if you are unsure.
DS-100-038-EHD --- Die Springs - 10x5x38 mm - Spring Steel DS-100-038-EHD --- Die Springs - 10x5x38 mm - Spring Steel Regular price $18.95 AUD Regular price Sale price $18.95 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 64.6 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-LD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 38.00 mm _{(1.496 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 64.6 N Maximum Deflection: 37 Percent Maximum Deflection: 14.1 mm Category: Springs - Die - Metric
Part Number: DS-100-038-LD Die Springs - 10x5x38 mm - Spring Steel 4 Available Immediately \| Further orders can be expected around Mon, Jun 23, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Each View the product page first if you are unsure.
DS-100-038-LD --- Die Springs - 10x5x38 mm - Spring Steel DS-100-038-LD --- Die Springs - 10x5x38 mm - Spring Steel Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per 4 Available Now
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 44.00 mm _{(1.732 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 11.0 mm	Load at Optimal 113.3 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric
Part Number: DS-100-044-MD Die Springs - 10x5x44 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $21.86 AUD Regular price ~~$26.24 AUD~~ Sale price $21.86 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 44.00 mm _{(1.732 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 113.3 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric
Part Number: DS-100-044-MD Die Springs - 10x5x44 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $21.86 AUD Regular price ~~$26.24 AUD~~ Sale price $21.86 AUD Unit price per Each View the product page first if you are unsure.

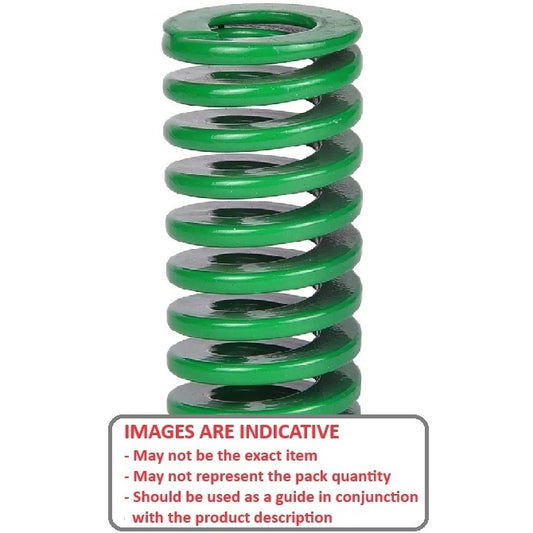

DS-100-044-MD --- Die Springs - 10x5x44 mm - Spring Steel Sale DS-100-044-MD --- Die Springs - 10x5x44 mm - Spring Steel Regular price $21.86 AUD Regular price ~~$26.24 AUD~~ Sale price $21.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 44.00 mm _{(1.732 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 11.0 mm	Load at Optimal 66.0 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric
Part Number: DS-100-044-LD Die Springs - 10x5x44 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $20.95 AUD Regular price ~~$25.15 AUD~~ Sale price $20.95 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 44.00 mm _{(1.732 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 11.0 mm Load at Optimal: 66.0 N Maximum Deflection: 37 Percent Maximum Deflection: 16.3 mm Category: Springs - Die - Metric
Part Number: DS-100-044-LD Die Springs - 10x5x44 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $20.95 AUD Regular price ~~$25.15 AUD~~ Sale price $20.95 AUD Unit price per Each View the product page first if you are unsure.
DS-100-044-LD --- Die Springs - 10x5x44 mm - Spring Steel Sale DS-100-044-LD --- Die Springs - 10x5x44 mm - Spring Steel Regular price $20.95 AUD Regular price ~~$25.15 AUD~~ Sale price $20.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 113.9 N
Material: Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-100-051-MD Die Springs - 10x5x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each
Hole Diameter (B) 10.00 mm _{(0.394 in.)}	Rod Diameter (A) 5.00 mm _{(0.197 in.)}	Length (L) 51.00 mm _{(2.008 in.)}	Optimum Deflection 25 Percent
Material: Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 113.9 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-100-051-MD Die Springs - 10x5x51 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jun 23, 2025 Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Each View the product page first if you are unsure.
DS-100-051-MD --- Die Springs - 10x5x51 mm - Spring Steel Sale DS-100-051-MD --- Die Springs - 10x5x51 mm - Spring Steel Regular price $22.23 AUD Regular price ~~$26.67 AUD~~ Sale price $22.23 AUD Unit price per Out of stock! Backorder Now Sale
