Collection: Springs - Die - Imperial - Medium-Heavy Duty

Springs (With Images)

Die

Imperial

70 Products in this selection

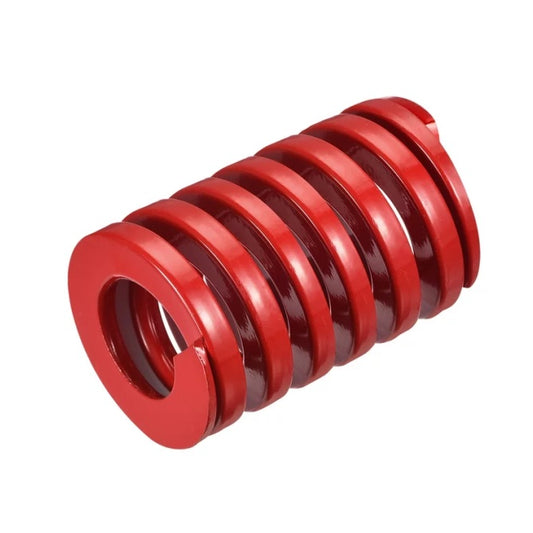

Vapor degassed high tensile strength chromium alloy steel. Spring ends are ground square. Designed for long life cycle with constant high end deflections and shot peened to increase fatigue life.

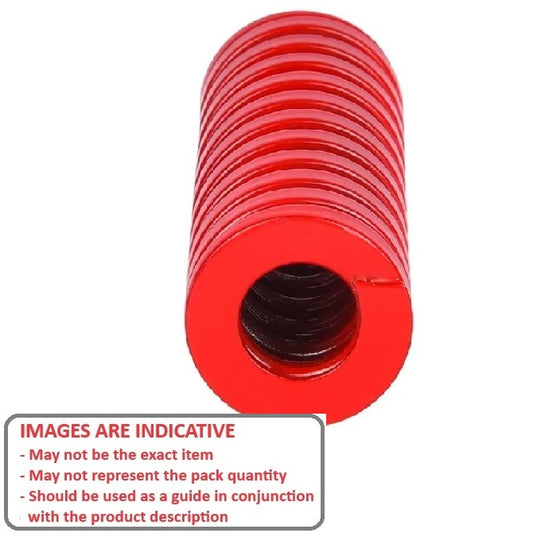

Colour coded red
Efficient operating range is 20 to 30 percent of the length
Maximum deflection is 37 percent of the length

Additional resources:
Spings Catalogue PDF

A more concise listing may be found on the Smallparts store at Springs - Die - Imperial - Medium-Heavy Duty. Smallparts promote the most popular MBA products.

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal	Indicative Image
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 8.9 mm	Load at Optimal 262.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 392.4 N Spring Rate: 29.5 N/mm Colour Code: Red
Part Number: DS-159-044-MHDS Die Springs - 15.88x8.731x44.45 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 8.9 mm Load at Optimal: 262.6 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 392.4 N Spring Rate: 29.5 N/mm Colour Code: Red
Part Number: DS-159-044-MHDS Die Springs - 15.88x8.731x44.45 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Each View the product page first if you are unsure.
DS-159-044-MHDS --- Die Springs - 15.88x8.731x44.45 mm - Chrome Silicon Sale DS-159-044-MHDS --- Die Springs - 15.88x8.731x44.45 mm - Chrome Silicon Regular price $28.50 AUD Regular price ~~$34.20 AUD~~ Sale price $28.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 276.4 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 411.9 N Spring Rate: 27.1 N/mm Colour Code: Red
Part Number: DS-159-051-MHD Die Springs - 15.88x8.731x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.95 AUD Regular price ~~$25.15 AUD~~ Sale price $20.95 AUD Unit price per Each
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 276.4 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 411.9 N Spring Rate: 27.1 N/mm Colour Code: Red
Part Number: DS-159-051-MHD Die Springs - 15.88x8.731x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.95 AUD Regular price ~~$25.15 AUD~~ Sale price $20.95 AUD Unit price per Each View the product page first if you are unsure.
DS-159-051-MHD --- Die Springs - 15.88x8.731x50.8 mm - Spring Steel Sale DS-159-051-MHD --- Die Springs - 15.88x8.731x50.8 mm - Spring Steel Regular price $20.95 AUD Regular price ~~$25.15 AUD~~ Sale price $20.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 277.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 413.4 N Spring Rate: 27.2 N/mm Colour Code: Red
Part Number: DS-159-051-MHDS Die Springs - 15.88x8.731x50.8 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 277.4 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 413.4 N Spring Rate: 27.2 N/mm Colour Code: Red
Part Number: DS-159-051-MHDS Die Springs - 15.88x8.731x50.8 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each View the product page first if you are unsure.
DS-159-051-MHDS --- Die Springs - 15.88x8.731x50.8 mm - Chrome Silicon Sale DS-159-051-MHDS --- Die Springs - 15.88x8.731x50.8 mm - Chrome Silicon Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 256.5 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 385.8 N Spring Rate: 20.2 N/mm Colour Code: Red
Part Number: DS-159-064-MHDS Die Springs - 15.88x8.731x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.50 AUD Regular price ~~$36.60 AUD~~ Sale price $30.50 AUD Unit price per Each
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 256.5 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 385.8 N Spring Rate: 20.2 N/mm Colour Code: Red
Part Number: DS-159-064-MHDS Die Springs - 15.88x8.731x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $30.50 AUD Regular price ~~$36.60 AUD~~ Sale price $30.50 AUD Unit price per Each View the product page first if you are unsure.
DS-159-064-MHDS --- Die Springs - 15.88x8.731x63.5 mm - Chrome Silicon Sale DS-159-064-MHDS --- Die Springs - 15.88x8.731x63.5 mm - Chrome Silicon Regular price $30.50 AUD Regular price ~~$36.60 AUD~~ Sale price $30.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 15.2 mm	Load at Optimal 266.0 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 400.8 N Spring Rate: 17.5 N/mm Colour Code: Red
Part Number: DS-159-076-MHD Die Springs - 15.88x8.731x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.68 AUD Regular price ~~$18.82 AUD~~ Sale price $15.68 AUD Unit price per Each
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 15.2 mm Load at Optimal: 266.0 N Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 400.8 N Spring Rate: 17.5 N/mm Colour Code: Red
Part Number: DS-159-076-MHD Die Springs - 15.88x8.731x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.68 AUD Regular price ~~$18.82 AUD~~ Sale price $15.68 AUD Unit price per Each View the product page first if you are unsure.
DS-159-076-MHD --- Die Springs - 15.88x8.731x76.2 mm - Spring Steel Sale DS-159-076-MHD --- Die Springs - 15.88x8.731x76.2 mm - Spring Steel Regular price $15.68 AUD Regular price ~~$18.82 AUD~~ Sale price $15.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 15.2 mm	Load at Optimal 266.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 400.8 N Spring Rate: 17.5 N/mm Colour Code: Red
Part Number: DS-159-076-MHDS Die Springs - 15.88x8.731x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Each
Hole Diameter (B) 15.88 mm _{(0.625 in.)}	Rod Diameter (A) 8.731 mm _{(0.344 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 15.2 mm Load at Optimal: 266.0 N Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 400.8 N Spring Rate: 17.5 N/mm Colour Code: Red
Part Number: DS-159-076-MHDS Die Springs - 15.88x8.731x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Each View the product page first if you are unsure.
DS-159-076-MHDS --- Die Springs - 15.88x8.731x76.2 mm - Chrome Silicon Sale DS-159-076-MHDS --- Die Springs - 15.88x8.731x76.2 mm - Chrome Silicon Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 446.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 665.8 N Spring Rate: 87.6 N/mm Colour Code: Red
Part Number: DS-191-025-MHD Die Springs - 19.05x9.525x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 446.8 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 665.8 N Spring Rate: 87.6 N/mm Colour Code: Red
Part Number: DS-191-025-MHD Die Springs - 19.05x9.525x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Each View the product page first if you are unsure.
DS-191-025-MHD --- Die Springs - 19.05x9.525x25.4 mm - Spring Steel Sale DS-191-025-MHD --- Die Springs - 19.05x9.525x25.4 mm - Spring Steel Regular price $14.41 AUD Regular price ~~$17.29 AUD~~ Sale price $14.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 425.6 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 631.8 N Spring Rate: 66.5 N/mm Colour Code: Red
Part Number: DS-191-032-MHD Die Springs - 19.05x9.525x31.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $41.86 AUD Regular price ~~$50.24 AUD~~ Sale price $41.86 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 31.750 mm _{(1.25 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 425.6 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Load at Maximum: 631.8 N Spring Rate: 66.5 N/mm Colour Code: Red
Part Number: DS-191-032-MHD Die Springs - 19.05x9.525x31.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 24, 2025 Regular price $41.86 AUD Regular price ~~$50.24 AUD~~ Sale price $41.86 AUD Unit price per Each View the product page first if you are unsure.
DS-191-032-MHD --- Die Springs - 19.05x9.525x31.75 mm - Spring Steel Sale DS-191-032-MHD --- Die Springs - 19.05x9.525x31.75 mm - Spring Steel Regular price $41.86 AUD Regular price ~~$50.24 AUD~~ Sale price $41.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 412.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 619.0 N Spring Rate: 54.3 N/mm Colour Code: Red
Part Number: DS-191-038-MHDS Die Springs - 19.05x9.525x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $43.77 AUD Regular price ~~$52.53 AUD~~ Sale price $43.77 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 412.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 619.0 N Spring Rate: 54.3 N/mm Colour Code: Red
Part Number: DS-191-038-MHDS Die Springs - 19.05x9.525x38.1 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $43.77 AUD Regular price ~~$52.53 AUD~~ Sale price $43.77 AUD Unit price per Each View the product page first if you are unsure.
DS-191-038-MHDS --- Die Springs - 19.05x9.525x38.1 mm - Chrome Silicon Sale DS-191-038-MHDS --- Die Springs - 19.05x9.525x38.1 mm - Chrome Silicon Regular price $43.77 AUD Regular price ~~$52.53 AUD~~ Sale price $43.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 412.7 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 619.0 N Spring Rate: 54.3 N/mm Colour Code: Red
Part Number: DS-191-038-MHD Die Springs - 19.05x9.525x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 412.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 619.0 N Spring Rate: 54.3 N/mm Colour Code: Red
Part Number: DS-191-038-MHD Die Springs - 19.05x9.525x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each View the product page first if you are unsure.
DS-191-038-MHD --- Die Springs - 19.05x9.525x38.1 mm - Spring Steel Sale DS-191-038-MHD --- Die Springs - 19.05x9.525x38.1 mm - Spring Steel Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 8.9 mm	Load at Optimal 421.0 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 629.1 N Spring Rate: 47.3 N/mm Colour Code: Red
Part Number: DS-191-044-MHD Die Springs - 19.05x9.525x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 8.9 mm Load at Optimal: 421.0 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 629.1 N Spring Rate: 47.3 N/mm Colour Code: Red
Part Number: DS-191-044-MHD Die Springs - 19.05x9.525x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Each View the product page first if you are unsure.
DS-191-044-MHD --- Die Springs - 19.05x9.525x44.45 mm - Spring Steel Sale DS-191-044-MHD --- Die Springs - 19.05x9.525x44.45 mm - Spring Steel Regular price $21.77 AUD Regular price ~~$26.13 AUD~~ Sale price $21.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 428.4 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 638.4 N Spring Rate: 42.0 N/mm Colour Code: Red
Part Number: DS-191-051-MHD Die Springs - 19.05x9.525x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 428.4 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 638.4 N Spring Rate: 42.0 N/mm Colour Code: Red
Part Number: DS-191-051-MHD Die Springs - 19.05x9.525x50.8 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Each View the product page first if you are unsure.
DS-191-051-MHD --- Die Springs - 19.05x9.525x50.8 mm - Spring Steel Sale DS-191-051-MHD --- Die Springs - 19.05x9.525x50.8 mm - Spring Steel Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 429.4 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 639.9 N Spring Rate: 42.1 N/mm Colour Code: Red
Part Number: DS-191-051-MHDS Die Springs - 19.05x9.525x50.8 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $41.59 AUD Regular price ~~$49.91 AUD~~ Sale price $41.59 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 50.800 mm _{(2 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 10.2 mm Load at Optimal: 429.4 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Load at Maximum: 639.9 N Spring Rate: 42.1 N/mm Colour Code: Red
Part Number: DS-191-051-MHDS Die Springs - 19.05x9.525x50.8 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $41.59 AUD Regular price ~~$49.91 AUD~~ Sale price $41.59 AUD Unit price per Each View the product page first if you are unsure.
DS-191-051-MHDS --- Die Springs - 19.05x9.525x50.8 mm - Chrome Silicon Sale DS-191-051-MHDS --- Die Springs - 19.05x9.525x50.8 mm - Chrome Silicon Regular price $41.59 AUD Regular price ~~$49.91 AUD~~ Sale price $41.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 417.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 628.4 N Spring Rate: 32.9 N/mm Colour Code: Red
Part Number: DS-191-064-MHD Die Springs - 19.05x9.525x63.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 12.7 mm Load at Optimal: 417.8 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 628.4 N Spring Rate: 32.9 N/mm Colour Code: Red
Part Number: DS-191-064-MHD Die Springs - 19.05x9.525x63.5 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Each View the product page first if you are unsure.
DS-191-064-MHD --- Die Springs - 19.05x9.525x63.5 mm - Spring Steel Sale DS-191-064-MHD --- Die Springs - 19.05x9.525x63.5 mm - Spring Steel Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 419.1 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 630.3 N Spring Rate: 33.0 N/mm Colour Code: Red
Part Number: DS-191-064-MHDS Die Springs - 19.05x9.525x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $45.50 AUD Regular price ~~$54.60 AUD~~ Sale price $45.50 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 63.500 mm _{(2.5 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 419.1 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Load at Maximum: 630.3 N Spring Rate: 33.0 N/mm Colour Code: Red
Part Number: DS-191-064-MHDS Die Springs - 19.05x9.525x63.5 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $45.50 AUD Regular price ~~$54.60 AUD~~ Sale price $45.50 AUD Unit price per Each View the product page first if you are unsure.
DS-191-064-MHDS --- Die Springs - 19.05x9.525x63.5 mm - Chrome Silicon Sale DS-191-064-MHDS --- Die Springs - 19.05x9.525x63.5 mm - Chrome Silicon Regular price $45.50 AUD Regular price ~~$54.60 AUD~~ Sale price $45.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 15.2 mm	Load at Optimal 396.7 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 597.7 N Spring Rate: 26.1 N/mm Colour Code: Red
Part Number: DS-191-076-MHD Die Springs - 19.05x9.525x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 15.2 mm Load at Optimal: 396.7 N Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 597.7 N Spring Rate: 26.1 N/mm Colour Code: Red
Part Number: DS-191-076-MHD Die Springs - 19.05x9.525x76.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Each View the product page first if you are unsure.
DS-191-076-MHD --- Die Springs - 19.05x9.525x76.2 mm - Spring Steel Sale DS-191-076-MHD --- Die Springs - 19.05x9.525x76.2 mm - Spring Steel Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 15.2 mm	Load at Optimal 396.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 597.7 N Spring Rate: 26.1 N/mm Colour Code: Red
Part Number: DS-191-076-MHDS Die Springs - 19.05x9.525x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $35.68 AUD Regular price ~~$42.82 AUD~~ Sale price $35.68 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 76.200 mm _{(3 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 15.2 mm Load at Optimal: 396.7 N Maximum Deflection: 30 Percent Maximum Deflection: 22.9 mm Load at Maximum: 597.7 N Spring Rate: 26.1 N/mm Colour Code: Red
Part Number: DS-191-076-MHDS Die Springs - 19.05x9.525x76.2 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $35.68 AUD Regular price ~~$42.82 AUD~~ Sale price $35.68 AUD Unit price per Each View the product page first if you are unsure.
DS-191-076-MHDS --- Die Springs - 19.05x9.525x76.2 mm - Chrome Silicon Sale DS-191-076-MHDS --- Die Springs - 19.05x9.525x76.2 mm - Chrome Silicon Regular price $35.68 AUD Regular price ~~$42.82 AUD~~ Sale price $35.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 88.900 mm _{(3.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 17.8 mm	Load at Optimal 398.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 598.1 N Spring Rate: 22.4 N/mm Colour Code: Red
Part Number: DS-191-089-MHDS Die Springs - 19.05x9.525x88.9 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $52.32 AUD Regular price ~~$62.78 AUD~~ Sale price $52.32 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 88.900 mm _{(3.5 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 17.8 mm Load at Optimal: 398.7 N Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 598.1 N Spring Rate: 22.4 N/mm Colour Code: Red
Part Number: DS-191-089-MHDS Die Springs - 19.05x9.525x88.9 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $52.32 AUD Regular price ~~$62.78 AUD~~ Sale price $52.32 AUD Unit price per Each View the product page first if you are unsure.
DS-191-089-MHDS --- Die Springs - 19.05x9.525x88.9 mm - Chrome Silicon Sale DS-191-089-MHDS --- Die Springs - 19.05x9.525x88.9 mm - Chrome Silicon Regular price $52.32 AUD Regular price ~~$62.78 AUD~~ Sale price $52.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 88.900 mm _{(3.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 17.8 mm	Load at Optimal 398.7 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 598.1 N Spring Rate: 22.4 N/mm Colour Code: Red
Part Number: DS-191-089-MHD Die Springs - 19.05x9.525x88.9 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $36.23 AUD Regular price ~~$43.47 AUD~~ Sale price $36.23 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 88.900 mm _{(3.5 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 17.8 mm Load at Optimal: 398.7 N Maximum Deflection: 30 Percent Maximum Deflection: 26.7 mm Load at Maximum: 598.1 N Spring Rate: 22.4 N/mm Colour Code: Red
Part Number: DS-191-089-MHD Die Springs - 19.05x9.525x88.9 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $36.23 AUD Regular price ~~$43.47 AUD~~ Sale price $36.23 AUD Unit price per Each View the product page first if you are unsure.
DS-191-089-MHD --- Die Springs - 19.05x9.525x88.9 mm - Spring Steel Sale DS-191-089-MHD --- Die Springs - 19.05x9.525x88.9 mm - Spring Steel Regular price $36.23 AUD Regular price ~~$43.47 AUD~~ Sale price $36.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 101.600 mm _{(4 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 20.3 mm	Load at Optimal 391.8 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 588.7 N Spring Rate: 19.3 N/mm Colour Code: Red
Part Number: DS-191-102-MHDS Die Springs - 19.05x9.525x101.6 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $57.95 AUD Regular price ~~$69.55 AUD~~ Sale price $57.95 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 101.600 mm _{(4 in.)}	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 20.3 mm Load at Optimal: 391.8 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 588.7 N Spring Rate: 19.3 N/mm Colour Code: Red
Part Number: DS-191-102-MHDS Die Springs - 19.05x9.525x101.6 mm - Chrome Silicon Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $57.95 AUD Regular price ~~$69.55 AUD~~ Sale price $57.95 AUD Unit price per Each View the product page first if you are unsure.
DS-191-102-MHDS --- Die Springs - 19.05x9.525x101.6 mm - Chrome Silicon Sale DS-191-102-MHDS --- Die Springs - 19.05x9.525x101.6 mm - Chrome Silicon Regular price $57.95 AUD Regular price ~~$69.55 AUD~~ Sale price $57.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 101.600 mm _{(4 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 20.3 mm	Load at Optimal 391.8 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 588.7 N Spring Rate: 19.3 N/mm Colour Code: Red
Part Number: DS-191-102-MHD Die Springs - 19.05x9.525x101.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $38.86 AUD Regular price ~~$46.64 AUD~~ Sale price $38.86 AUD Unit price per Each
Hole Diameter (B) 19.05 mm _{(0.75 in.)}	Rod Diameter (A) 9.525 mm _{(0.375 in.)}	Length (L) 101.600 mm _{(4 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 20.3 mm Load at Optimal: 391.8 N Maximum Deflection: 30 Percent Maximum Deflection: 30.5 mm Load at Maximum: 588.7 N Spring Rate: 19.3 N/mm Colour Code: Red
Part Number: DS-191-102-MHD Die Springs - 19.05x9.525x101.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $38.86 AUD Regular price ~~$46.64 AUD~~ Sale price $38.86 AUD Unit price per Each View the product page first if you are unsure.
DS-191-102-MHD --- Die Springs - 19.05x9.525x101.6 mm - Spring Steel Sale DS-191-102-MHD --- Die Springs - 19.05x9.525x101.6 mm - Spring Steel Regular price $38.86 AUD Regular price ~~$46.64 AUD~~ Sale price $38.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.40 mm _{(1 in.)}	Rod Diameter (A) 12.700 mm _{(0.5 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 738.5 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 1100.5 N Spring Rate: 144.8 N/mm Colour Code: Red
Part Number: DS-254-025-MHD Die Springs - 25.4x12.7x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each
Hole Diameter (B) 25.40 mm _{(1 in.)}	Rod Diameter (A) 12.700 mm _{(0.5 in.)}	Length (L) 25.400 mm _{(1 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 5.1 mm Load at Optimal: 738.5 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Load at Maximum: 1100.5 N Spring Rate: 144.8 N/mm Colour Code: Red
Part Number: DS-254-025-MHD Die Springs - 25.4x12.7x25.4 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Each View the product page first if you are unsure.
DS-254-025-MHD --- Die Springs - 25.4x12.7x25.4 mm - Spring Steel Sale DS-254-025-MHD --- Die Springs - 25.4x12.7x25.4 mm - Spring Steel Regular price $27.95 AUD Regular price ~~$33.55 AUD~~ Sale price $27.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.40 mm _{(1 in.)}	Rod Diameter (A) 12.700 mm _{(0.5 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 715.9 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 1073.9 N Spring Rate: 94.2 N/mm Colour Code: Red
Part Number: DS-254-038-MHD Die Springs - 25.4x12.7x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.95 AUD Regular price ~~$35.95 AUD~~ Sale price $29.95 AUD Unit price per Each
Hole Diameter (B) 25.40 mm _{(1 in.)}	Rod Diameter (A) 12.700 mm _{(0.5 in.)}	Length (L) 38.100 mm _{(1.5 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 715.9 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Load at Maximum: 1073.9 N Spring Rate: 94.2 N/mm Colour Code: Red
Part Number: DS-254-038-MHD Die Springs - 25.4x12.7x38.1 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.95 AUD Regular price ~~$35.95 AUD~~ Sale price $29.95 AUD Unit price per Each View the product page first if you are unsure.
DS-254-038-MHD --- Die Springs - 25.4x12.7x38.1 mm - Spring Steel Sale DS-254-038-MHD --- Die Springs - 25.4x12.7x38.1 mm - Spring Steel Regular price $29.95 AUD Regular price ~~$35.95 AUD~~ Sale price $29.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 25.40 mm _{(1 in.)}	Rod Diameter (A) 12.700 mm _{(0.5 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 20 Percent	Optimum Deflection 8.9 mm	Load at Optimal 718.2 N
Material: Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 1073.3 N Spring Rate: 80.7 N/mm Colour Code: Red
Part Number: DS-254-044-MHD Die Springs - 25.4x12.7x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each
Hole Diameter (B) 25.40 mm _{(1 in.)}	Rod Diameter (A) 12.700 mm _{(0.5 in.)}	Length (L) 44.450 mm _{(1.75 in.)}	Optimum Deflection 20 Percent
Material: Spring Steel Optimum Deflection: 8.9 mm Load at Optimal: 718.2 N Maximum Deflection: 30 Percent Maximum Deflection: 13.3 mm Load at Maximum: 1073.3 N Spring Rate: 80.7 N/mm Colour Code: Red
Part Number: DS-254-044-MHD Die Springs - 25.4x12.7x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Each View the product page first if you are unsure.
DS-254-044-MHD --- Die Springs - 25.4x12.7x44.45 mm - Spring Steel Sale DS-254-044-MHD --- Die Springs - 25.4x12.7x44.45 mm - Spring Steel Regular price $33.59 AUD Regular price ~~$40.31 AUD~~ Sale price $33.59 AUD Unit price per Out of stock! Backorder Now Sale
