Collection: Springs - Die - Imperial
Springs -> Die -> ImperialThere are 267 products in the sub-categories of Springs - Die - Imperial. Scroll down or follow the link to Springs - Die - Imperial in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

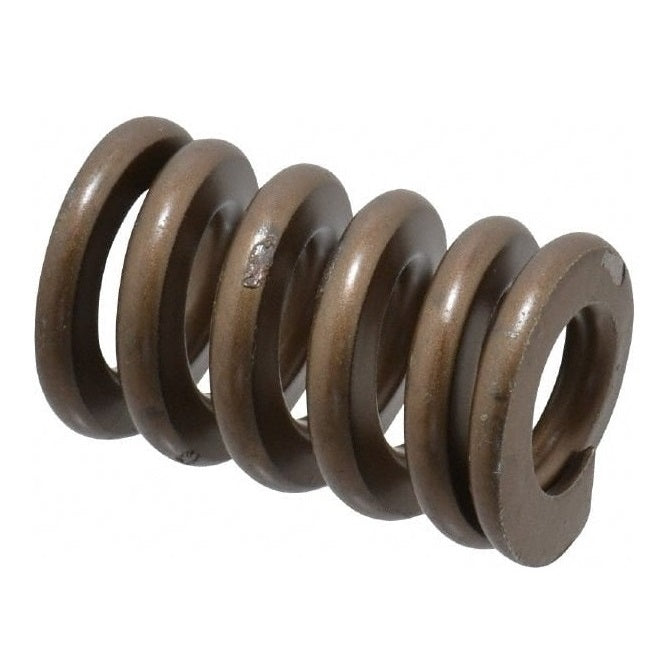

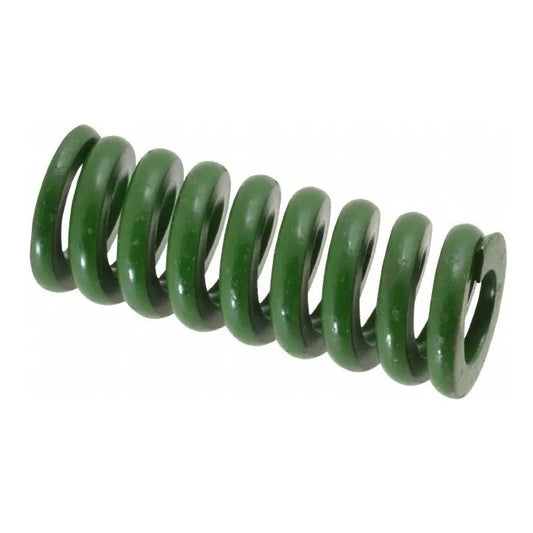

Springs - Die - Imperial - Extra Heavy Duty
A selection of Extra Heavy Duty Imperial Die Springs. Colour coded green....
Springs - Die - Imperial - Heavy Duty
This category includes various types of die springs. Heavy duty, high-stress compression...

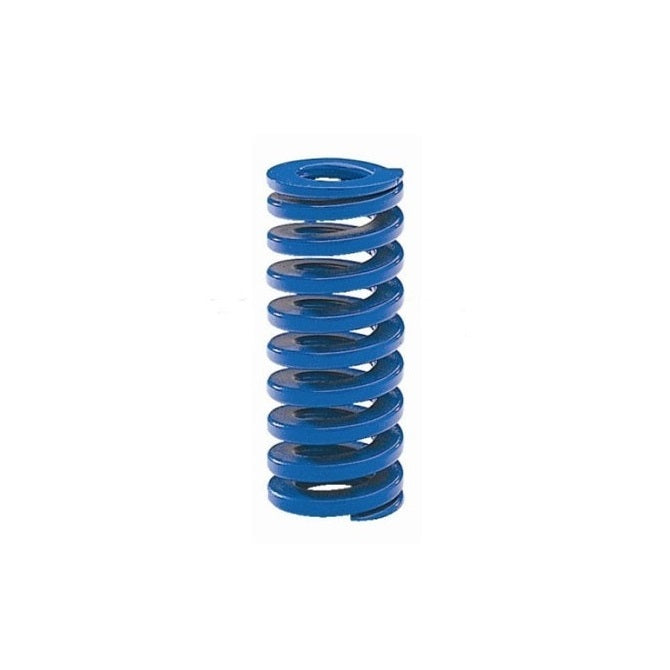

Springs - Die - Imperial - Medium Duty
This category includes various types of die springs. Heavy duty, high-stress compression...

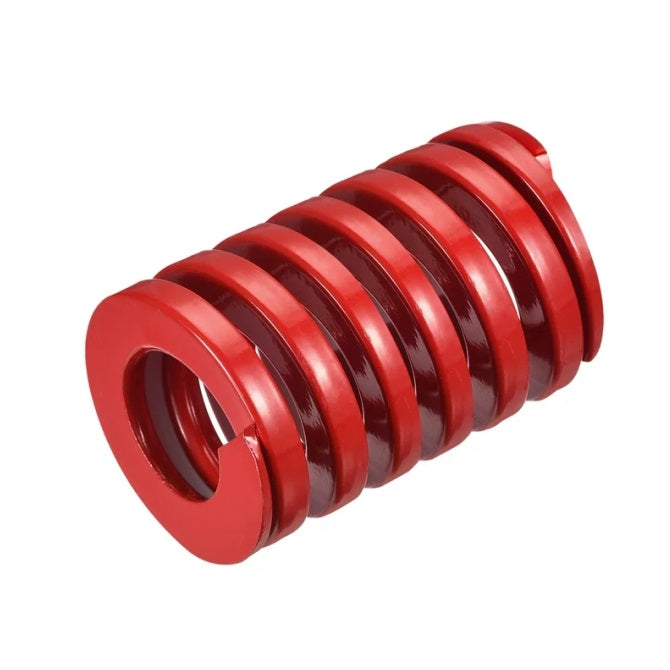

Springs - Die - Imperial - Medium-Heavy Duty
A selection of Medium-Heavy Duty Imperial Die Springs. Colour coded red. Vapor...
Springs - Die - Imperial - Medium-Heavy Duty
A selection of Medium-Heavy Duty Imperial Die Springs. Colour coded red. Vapor...
Category Details
This category includes various types of die springs.
- Heavy duty, high-stress compression springs designed to handle large loads and high temperatures in demanding applications like metalworking dies and production tooling.
- Unlike standard compression springs, die springs are typically made from rectangular or square wire, offering greater strength and deflection capabilities.
- Many die springs are colour-coded to indicate their load capacity, allowing for easy identification and selection. An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Springs - Die - Imperial category on the Small Parts & Bearings online store.
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection | Optimum Deflection | Load at Optimal |

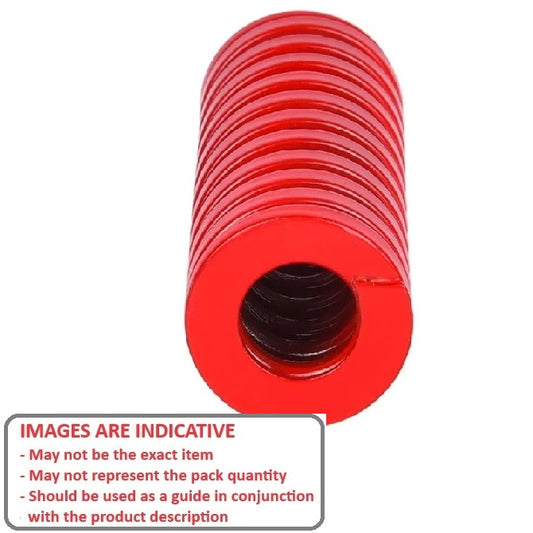

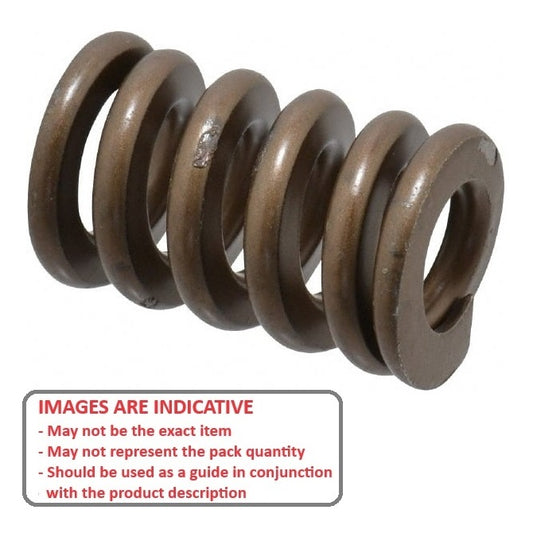

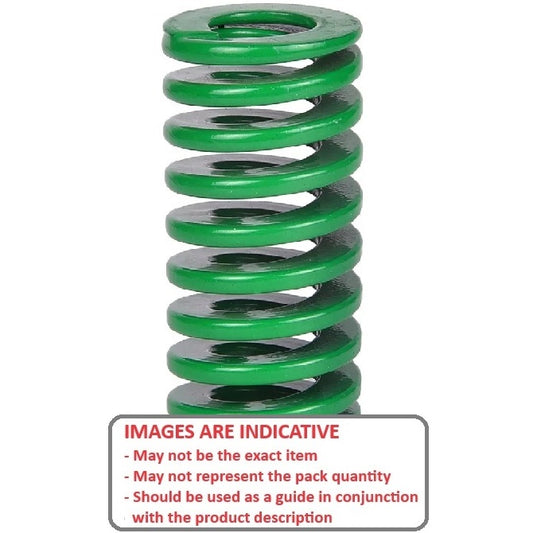

Indicative Image |
|---|---|---|---|---|---|---|
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
139.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 20 Percent
Maximum Deflection: 5.1 mm
Category: Springs - Die - Imperial - Extra Heavy Duty |
||||||
|
Part Number: DS-095-025-EHD (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026 Regular price
$7.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection |
Indicative Image |
||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 139.8 N
Maximum Deflection: 20 Percent
Maximum Deflection: 5.1 mm
Category: Springs - Die - Imperial - Extra Heavy Duty |
||||||
|
Part Number: DS-095-025-EHD (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026 Regular price
$7.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
77.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-025-HD (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 3.8 mm
Load at Optimal: 77.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-025-HD (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
3.8
mm |
Load at Optimal
77.1
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-025-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 3.8 mm
Load at Optimal: 77.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 6.4 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-025-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
5.1
mm |
Load at Optimal
75.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 30 Percent
Maximum Deflection: 7.6 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-025-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 5.1 mm
Load at Optimal: 75.0 N
Maximum Deflection: 30 Percent
Maximum Deflection: 7.6 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-025-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
5.1
mm |
Load at Optimal
75.0
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 30 Percent
Maximum Deflection: 7.6 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-025-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 5.1 mm
Load at Optimal: 75.0 N
Maximum Deflection: 30 Percent
Maximum Deflection: 7.6 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-025-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
6.4
mm |
Load at Optimal
67.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 10.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-025-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.4 mm
Load at Optimal: 67.2 N
Maximum Deflection: 40 Percent
Maximum Deflection: 10.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-025-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
6.4
mm |
Load at Optimal
67.2
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 10.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-025-MDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$16.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x25.4 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
25.400
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 6.4 mm
Load at Optimal: 67.2 N
Maximum Deflection: 40 Percent
Maximum Deflection: 10.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-025-MDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$16.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
6.4
mm |
Load at Optimal
81.9
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 30 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-032-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.4 mm
Load at Optimal: 81.9 N
Maximum Deflection: 30 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-032-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
6.4
mm |
Load at Optimal
81.9
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 30 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-032-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 6.4 mm
Load at Optimal: 81.9 N
Maximum Deflection: 30 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-032-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
7.9
mm |
Load at Optimal
69.5
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-032-MDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 7.9 mm
Load at Optimal: 69.5 N
Maximum Deflection: 40 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-032-MDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
7.9
mm |
Load at Optimal
69.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-032-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x31.75 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
31.750
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 7.9 mm
Load at Optimal: 69.5 N
Maximum Deflection: 40 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-032-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
79.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-038-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 5.7 mm
Load at Optimal: 79.8 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-038-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
5.7
mm |
Load at Optimal
79.8
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$14.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 5.7 mm
Load at Optimal: 79.8 N
Maximum Deflection: 25 Percent
Maximum Deflection: 9.5 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-038-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$14.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
88.9
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 30 Percent
Maximum Deflection: 11.4 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-038-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$10.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 7.6 mm
Load at Optimal: 88.9 N
Maximum Deflection: 30 Percent
Maximum Deflection: 11.4 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-038-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$10.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
88.9
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 30 Percent
Maximum Deflection: 11.4 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-038-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$14.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 7.6 mm
Load at Optimal: 88.9 N
Maximum Deflection: 30 Percent
Maximum Deflection: 11.4 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-038-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$14.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
70.3
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-038-MDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$15.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 9.5 mm
Load at Optimal: 70.3 N
Maximum Deflection: 40 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-038-MDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$15.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
70.3
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-038-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$9.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x38.1 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
38.100
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 70.3 N
Maximum Deflection: 40 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-038-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$9.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x44.45 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
44.450
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
11.1
mm |
Load at Optimal
72.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 17.8 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-044-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$10.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x44.45 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
44.450
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.1 mm
Load at Optimal: 72.2 N
Maximum Deflection: 40 Percent
Maximum Deflection: 17.8 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-044-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$10.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
7.6
mm |
Load at Optimal
82.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-051-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 7.6 mm
Load at Optimal: 82.8 N
Maximum Deflection: 25 Percent
Maximum Deflection: 12.7 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-051-HD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
10.2
mm |
Load at Optimal
89.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 30 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-051-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 10.2 mm
Load at Optimal: 89.8 N
Maximum Deflection: 30 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium-Heavy Duty |
||||||
|
Part Number: DS-095-051-MHD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$8.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
20
Percent |
Optimum Deflection
10.2
mm |
Load at Optimal
89.8
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 30 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-051-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$17.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
20
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 10.2 mm
Load at Optimal: 89.8 N
Maximum Deflection: 30 Percent
Maximum Deflection: 15.2 mm
Category: Springs - Die - Imperial - Medium Heavy Duty |
||||||
|
Part Number: DS-095-051-MHDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$17.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
12.7
mm |
Load at Optimal
68.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-051-MDS (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 12.7 mm
Load at Optimal: 68.6 N
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-051-MDS (Each)
2 Available Now | Further orders can be expected around Sat, Jun 27, 2026 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
25
Percent |
Optimum Deflection
12.7
mm |
Load at Optimal
68.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-051-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x50.8 mm Imperial - Carbon Spring Steel | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
50.800
mm |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.7 mm
Load at Optimal: 68.6 N
Maximum Deflection: 40 Percent
Maximum Deflection: 20.3 mm
Category: Springs - Die - Imperial - Medium Duty |
||||||
|
Part Number: DS-095-051-MD (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
63.500
mm |
Optimum Deflection
15
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
83.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$20.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring | ||||||
|
Hole Diameter (B)
9.53
mm |
Rod Diameter (A)
4.763
mm |
Length (L)
63.500
mm |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 9.5 mm
Load at Optimal: 83.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Category: Springs - Die - Imperial - Heavy Duty |
||||||
|
Part Number: DS-095-064-HDS (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Jun 27, 2026 Regular price
$20.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
