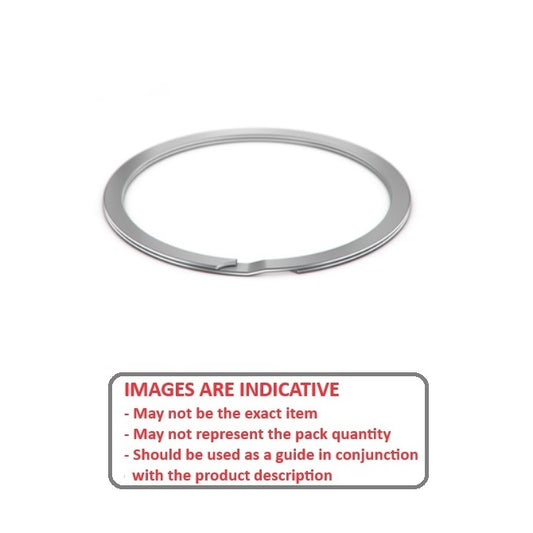

Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel

Retaining Rings -> Internal -> Spiral Rings -> Medium Duty -> Carbon Steel

There are 45 products in the sub-categories of Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel. Scroll down or follow the link to Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel Medium Duty Spiral Rings Internal Retaining Rings. Includes AI / WH / AS3217 / RR / MIL-R-27426B1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AI, Smalley: WH, Spirolox and Ramsey: RR, Aerospace AS3217, MIL-R-27426B1

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel category on the Small Parts & Bearings online store.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Approx. Groove Width (W) Indicative
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
13.35
mm

(Equiv. 0.526 in.)
Approx. Loose Circlip OD (Dr)
13.26
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 10.98 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 17962
Part Number: RR-050 (5 Pcs)
Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$21.68 AUD
$21.68 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
13.35
mm

(Equiv. 0.526 in.)
Approx. Loose Circlip OD (Dr)
13.26
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 10.98 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 17962
Part Number: RR-050 (5 Pcs)
Internal Retaining Rings - 12.7x0.64x13.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$21.68 AUD
$21.68 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
14.29
mm

(Equiv. 0.563 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
14.70
mm

(Equiv. 0.579 in.)
Approx. Loose Circlip OD (Dr)
14.92
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 12.64 +/- 0.04   Groove Depth (d): 0.33
Deleted Item. Available while stocks last.
Part Number: RR-056 (5 Pcs)
Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring
4 units (20 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$16.80 AUD $14.00 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
14.29
mm

(Equiv. 0.563 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
14.70
mm

(Equiv. 0.579 in.)
Approx. Loose Circlip OD (Dr)
14.92
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 12.64 +/- 0.04   Groove Depth (d): 0.33
Deleted Item. Available while stocks last.
Part Number: RR-056 (5 Pcs)
Internal Retaining Rings - 14.29x0.64x14.7 mm Spiral Rings - Carbon Spring Steel Spiral Ring
4 units (20 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$14.00 AUD
$16.80 AUD $14.00 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
15.09
mm

(Equiv. 0.594 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.72
mm

(Equiv. 0.619 in.)
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 13.47 +/- 0.04   Groove Depth (d): 0.33
Part Number: RR-059 (196 Pcs)
Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 21, 2026
$258.77 AUD
$310.53 AUD $258.77 AUD
196 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
15.09
mm

(Equiv. 0.594 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.72
mm

(Equiv. 0.619 in.)
Approx. Loose Circlip OD (Dr)
15.75
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 13.47 +/- 0.04   Groove Depth (d): 0.33
Part Number: RR-059 (196 Pcs)
Internal Retaining Rings - 15.09x0.64x15.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Wed, Jan 21, 2026
$258.77 AUD
$310.53 AUD $258.77 AUD
196 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.53
mm

(Equiv. 0.651 in.)
Approx. Loose Circlip OD (Dr)
16.58
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 14.3 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 19403
Part Number: RR-062 (2 Pcs)
Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
141 units (282 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$2.95 AUD
$2.95 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

141 units (282 pcs) Available Now. Backorder if more than 141.
Housing Bore (B)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.53
mm

(Equiv. 0.651 in.)
Approx. Loose Circlip OD (Dr)
16.58
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 14.3 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 19403
Part Number: RR-062 (2 Pcs)
Internal Retaining Rings - 15.88x0.64x16.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
141 units (282 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$2.95 AUD
$2.95 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

141 units (282 pcs) Available Now. Backorder if more than 141.
Housing Bore (B)
17.45
mm

(Equiv. 0.687 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
18.11
mm

(Equiv. 0.713 in.)
Approx. Loose Circlip OD (Dr)
18.22
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 15.94 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 472
Part Number: RR-068 (100 Pcs)
Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$10.14 AUD
$12.16 AUD $10.14 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
17.45
mm

(Equiv. 0.687 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
18.11
mm

(Equiv. 0.713 in.)
Approx. Loose Circlip OD (Dr)
18.22
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip ID: 15.94 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 472
Part Number: RR-068 (100 Pcs)
Internal Retaining Rings - 17.45x0.64x18.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$10.14 AUD
$12.16 AUD $10.14 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
22.94
mm

(Equiv. 0.903 in.)
Approx. Loose Circlip OD (Dr)
22.97
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.08
Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 19.67 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 188
Part Number: RR-086 (6 Pcs)
Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.86 AUD
$14.24 AUD $11.86 AUD
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
22.00
mm

(Equiv. 0.866 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
22.94
mm

(Equiv. 0.903 in.)
Approx. Loose Circlip OD (Dr)
22.97
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.08   Approx. Loose Clip ID: 19.67 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 188
Part Number: RR-086 (6 Pcs)
Internal Retaining Rings - 22x0.79x22.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.86 AUD
$14.24 AUD $11.86 AUD
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
23.17
mm

(Equiv. 0.912 in.)
Approx. Loose Circlip OD (Dr)
23.21
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 19.91 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2402
Part Number: RR-087 (6 Pcs)
Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.86 AUD
$14.24 AUD $11.86 AUD
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
23.17
mm

(Equiv. 0.912 in.)
Approx. Loose Circlip OD (Dr)
23.21
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip ID: 19.91 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2402
Part Number: RR-087 (6 Pcs)
Internal Retaining Rings - 22.23x0.79x23.17 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.86 AUD
$14.24 AUD $11.86 AUD
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
24.77
mm

(Equiv. 0.975 in.)
Approx. Loose Circlip OD (Dr)
24.88
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 21.58 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2682
Part Number: RR-093 (40 Pcs)
Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$9.23 AUD
$11.07 AUD $9.23 AUD
40 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
24.77
mm

(Equiv. 0.975 in.)
Approx. Loose Circlip OD (Dr)
24.88
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip ID: 21.58 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 2682
Part Number: RR-093 (40 Pcs)
Internal Retaining Rings - 23.83x0.79x24.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$9.23 AUD
$11.07 AUD $9.23 AUD
40 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
26.50
mm

(Equiv. 1.043 in.)
Approx. Loose Circlip OD (Dr)
26.52
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.07
Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 22.7 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 25907
Part Number: RR-100 (2 Pcs)
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring
106 units (212 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$4.41 AUD
$4.41 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

106 units (212 pcs) Available Now. Backorder if more than 106.
Housing Bore (B)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
26.50
mm

(Equiv. 1.043 in.)
Approx. Loose Circlip OD (Dr)
26.52
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.07   Approx. Loose Clip ID: 22.7 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 25907
Part Number: RR-100 (2 Pcs)
Internal Retaining Rings - 25.4x0.94x26.5 mm Spiral Rings - Carbon Spring Steel Spiral Ring
106 units (212 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$4.41 AUD
$4.41 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

106 units (212 pcs) Available Now. Backorder if more than 106.
Housing Bore (B)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.08
mm

(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
27.12
mm
+ 0.33 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.07
Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 23.3 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 2354
Part Number: RR-102
Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.05 AUD
$13.25 AUD $11.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.08
mm

(Equiv. 1.066 in.)
Approx. Loose Circlip OD (Dr)
27.12
mm
+ 0.33 / - 0.00
Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.07   Approx. Loose Clip ID: 23.3 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 2354
Part Number: RR-102
Internal Retaining Rings - 25.98x0.94x27.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.05 AUD
$13.25 AUD $11.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
26.97
mm

(Equiv. 1.062 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
28.04
mm

(Equiv. 1.104 in.)
Approx. Loose Circlip OD (Dr)
28.16
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 24.34 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 989
Part Number: RR-106 (9 Pcs)
Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.86 AUD
$14.24 AUD $11.86 AUD
9 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
26.97
mm

(Equiv. 1.062 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
28.04
mm

(Equiv. 1.104 in.)
Approx. Loose Circlip OD (Dr)
28.16
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip ID: 24.34 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 989
Part Number: RR-106 (9 Pcs)
Internal Retaining Rings - 26.97x0.94x28.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$11.86 AUD
$14.24 AUD $11.86 AUD
9 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
29.64
mm

(Equiv. 1.167 in.)
Approx. Loose Circlip OD (Dr)
29.84
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 26.02 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 8845
Part Number: RR-112 (2 Pcs)
Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring
54 units (108 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$1.59 AUD
$1.59 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

54 units (108 pcs) Available Now. Backorder if more than 54.
Housing Bore (B)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
29.64
mm

(Equiv. 1.167 in.)
Approx. Loose Circlip OD (Dr)
29.84
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip ID: 26.02 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 8845
Part Number: RR-112 (2 Pcs)
Internal Retaining Rings - 28.58x0.94x29.64 mm Spiral Rings - Carbon Spring Steel Spiral Ring
54 units (108 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$1.59 AUD
$1.59 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

54 units (108 pcs) Available Now. Backorder if more than 54.
Housing Bore (B)
30.94
mm

(Equiv. 1.218 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.16
mm

(Equiv. 1.266 in.)
Approx. Loose Circlip OD (Dr)
32.30
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.11
Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 27.98 +/- 0.05   Groove Depth (d): 0.61
Part Number: RR-121 (74 Pcs)
Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 05, 2025
$213.50 AUD
$213.50 AUD
74 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
30.94
mm

(Equiv. 1.218 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.16
mm

(Equiv. 1.266 in.)
Approx. Loose Circlip OD (Dr)
32.30
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.11   Approx. Loose Clip ID: 27.98 +/- 0.05   Groove Depth (d): 0.61
Part Number: RR-121 (74 Pcs)
Internal Retaining Rings - 30.94x1.09x32.16 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 05, 2025
$213.50 AUD
$213.50 AUD
74 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.97
mm

(Equiv. 1.298 in.)
Approx. Loose Circlip OD (Dr)
33.15
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 28.83 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 18124
Part Number: RR-125 (10 Pcs)
Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring
15 units (150 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$7.77 AUD
$7.77 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

15 units (150 pcs) Available Now. Backorder if more than 15.
Housing Bore (B)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.97
mm

(Equiv. 1.298 in.)
Approx. Loose Circlip OD (Dr)
33.15
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 28.83 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 18124
Part Number: RR-125 (10 Pcs)
Internal Retaining Rings - 31.75x1.09x32.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring
15 units (150 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$7.77 AUD
$7.77 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

15 units (150 pcs) Available Now. Backorder if more than 15.
Housing Bore (B)
33.34
mm

(Equiv. 1.313 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
34.54
mm

(Equiv. 1.36 in.)
Approx. Loose Circlip OD (Dr)
34.81
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 30.49 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 22368
Part Number: RR-131 (5 Pcs)
Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring
17 units (85 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$3.50 AUD
$3.50 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

17 units (85 pcs) Available Now. Backorder if more than 17.
Housing Bore (B)
33.34
mm

(Equiv. 1.313 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
34.54
mm

(Equiv. 1.36 in.)
Approx. Loose Circlip OD (Dr)
34.81
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 30.49 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 22368
Part Number: RR-131 (5 Pcs)
Internal Retaining Rings - 33.34x1.09x34.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring
17 units (85 pcs) Available Now | Further orders can be expected around Fri, Nov 21, 2025
$3.50 AUD
$3.50 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

17 units (85 pcs) Available Now. Backorder if more than 17.
Housing Bore (B)
34.11
mm

(Equiv. 1.343 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
35.43
mm

(Equiv. 1.395 in.)
Approx. Loose Circlip OD (Dr)
35.61
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 31.29 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 876
Part Number: RR-134 (19 Pcs)
Internal Retaining Rings - 34.11x1.09x35.43 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$12.23 AUD
$14.67 AUD $12.23 AUD
19 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
34.11
mm

(Equiv. 1.343 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
35.43
mm

(Equiv. 1.395 in.)
Approx. Loose Circlip OD (Dr)
35.61
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 31.29 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 876
Part Number: RR-134 (19 Pcs)
Internal Retaining Rings - 34.11x1.09x35.43 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$12.23 AUD
$14.67 AUD $12.23 AUD
19 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
34.80
mm

(Equiv. 1.37 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
36.24
mm

(Equiv. 1.427 in.)
Approx. Loose Circlip OD (Dr)
36.33
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 31.51 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 14727
Part Number: RR-137
Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring
4876 Available Now | Further orders can be expected around Fri, Nov 21, 2025
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4876 Available Now. Backorder if more than 4876.
Housing Bore (B)
34.80
mm

(Equiv. 1.37 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
36.24
mm

(Equiv. 1.427 in.)
Approx. Loose Circlip OD (Dr)
36.33
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 31.51 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 14727
Part Number: RR-137
Internal Retaining Rings - 34.8x1.09x36.24 mm Spiral Rings - Carbon Spring Steel Spiral Ring
4876 Available Now | Further orders can be expected around Fri, Nov 21, 2025
$5.41 AUD
$5.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

4876 Available Now. Backorder if more than 4876.
Housing Bore (B)
36.50
mm

(Equiv. 1.437 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
37.82
mm

(Equiv. 1.489 in.)
Approx. Loose Circlip OD (Dr)
38.11
mm
+ 0.38 / - 0.00
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 33.29 +/- 0.05   Groove Depth (d): 0.66
Deleted Item. Available while stocks last.
Part Number: RR-143
Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring
44 Available Now | Item Discontinued - Up to 44 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

44 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
36.50
mm

(Equiv. 1.437 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
37.82
mm

(Equiv. 1.489 in.)
Approx. Loose Circlip OD (Dr)
38.11
mm
+ 0.38 / - 0.00
Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip ID: 33.29 +/- 0.05   Groove Depth (d): 0.66
Deleted Item. Available while stocks last.
Part Number: RR-143
Internal Retaining Rings - 36.5x1.09x37.82 mm Spiral Rings - Carbon Spring Steel Spiral Ring
44 Available Now | Item Discontinued - Up to 44 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

44 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Housing Bore (B)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
42.77
mm

(Equiv. 1.684 in.)
Approx. Loose Circlip OD (Dr)
43.10
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
2.74
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 37.62 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 84
Part Number: RR-162 (5 Pcs)
Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$19.50 AUD
$19.50 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
42.77
mm

(Equiv. 1.684 in.)
Approx. Loose Circlip OD (Dr)
43.10
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.74 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 37.62 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 84
Part Number: RR-162 (5 Pcs)
Internal Retaining Rings - 41.28x1.25x42.77 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$19.50 AUD
$19.50 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
44.45
mm

(Equiv. 1.75 in.)
Approx. Loose Circlip OD (Dr)
44.74
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 38.74 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 801
Part Number: RR-168 (5 Pcs)
Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$12.59 AUD
$15.11 AUD $12.59 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
44.45
mm

(Equiv. 1.75 in.)
Approx. Loose Circlip OD (Dr)
44.74
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 38.74 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 801
Part Number: RR-168 (5 Pcs)
Internal Retaining Rings - 42.85x1.25x44.45 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$12.59 AUD
$15.11 AUD $12.59 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
44.45
mm

(Equiv. 1.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
46.05
mm

(Equiv. 1.813 in.)
Approx. Loose Circlip OD (Dr)
46.41
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 40.41 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 25373
Part Number: RR-175 (5 Pcs)
Internal Retaining Rings - 44.45x1.25x46.05 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$6.95 AUD
$8.35 AUD $6.95 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
44.45
mm

(Equiv. 1.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
46.05
mm

(Equiv. 1.813 in.)
Approx. Loose Circlip OD (Dr)
46.41
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 44.45x1.25x46.05 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 40.41 +/- 0.05   Groove Depth (d): 0.79
Additional stock available from USA subject to Prior Sale = 25373
Part Number: RR-175 (5 Pcs)
Internal Retaining Rings - 44.45x1.25x46.05 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$6.95 AUD
$8.35 AUD $6.95 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
52.60
mm

(Equiv. 2.071 in.)
Approx. Loose Circlip OD (Dr)
53.04
mm
+ 0.51 / - 0.00
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 46.54 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 226
Part Number: RR-200
Internal Retaining Rings - 50.8x1.25x52.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
60 Available Now | Further orders can be expected around Fri, Nov 21, 2025
$6.86 AUD
$6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

60 Available Now. Backorder if more than 60.
Housing Bore (B)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
52.60
mm

(Equiv. 2.071 in.)
Approx. Loose Circlip OD (Dr)
53.04
mm
+ 0.51 / - 0.00
Internal Retaining Rings - 50.8x1.25x52.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip ID: 46.54 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 226
Part Number: RR-200
Internal Retaining Rings - 50.8x1.25x52.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
60 Available Now | Further orders can be expected around Fri, Nov 21, 2025
$6.86 AUD
$6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

60 Available Now. Backorder if more than 60.
Housing Bore (B)
53.98
mm

(Equiv. 2.125 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
55.75
mm

(Equiv. 2.195 in.)
Approx. Loose Circlip OD (Dr)
56.36
mm
+ 0.64 / - 0.00
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.15
Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 49.86 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 7771
Part Number: RR-212 (100 Pcs)
Internal Retaining Rings - 53.98x1.25x55.75 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$22.86 AUD
$27.44 AUD $22.86 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
53.98
mm

(Equiv. 2.125 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
55.75
mm

(Equiv. 2.195 in.)
Approx. Loose Circlip OD (Dr)
56.36
mm
+ 0.64 / - 0.00
Internal Retaining Rings - 53.98x1.25x55.75 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip ID: 49.86 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 7771
Part Number: RR-212 (100 Pcs)
Internal Retaining Rings - 53.98x1.25x55.75 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$22.86 AUD
$27.44 AUD $22.86 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
59.03
mm

(Equiv. 2.324 in.)
Approx. Loose Circlip OD (Dr)
59.66
mm
+ 0.64 / - 0.00
Radial Wall (S) Approx.
3.51
mm
+/- 0.11
Groove Width (W)
1.47
mm
+/- 0.15
Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip ID: 52.64 +/- 0.05   Groove Depth (d): 0.94
Additional stock available from USA subject to Prior Sale = 1874
Part Number: RR-225
Internal Retaining Rings - 57.15x1.25x59.03 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$9.50 AUD
$11.40 AUD $9.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Housing Bore (B)
57.15
mm

(Equiv. 2.25 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
59.03
mm

(Equiv. 2.324 in.)
Approx. Loose Circlip OD (Dr)
59.66
mm
+ 0.64 / - 0.00
Internal Retaining Rings - 57.15x1.25x59.03 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.51 mm +/- 0.11    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip ID: 52.64 +/- 0.05   Groove Depth (d): 0.94
Additional stock available from USA subject to Prior Sale = 1874
Part Number: RR-225
Internal Retaining Rings - 57.15x1.25x59.03 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 21, 2025
$9.50 AUD
$11.40 AUD $9.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
