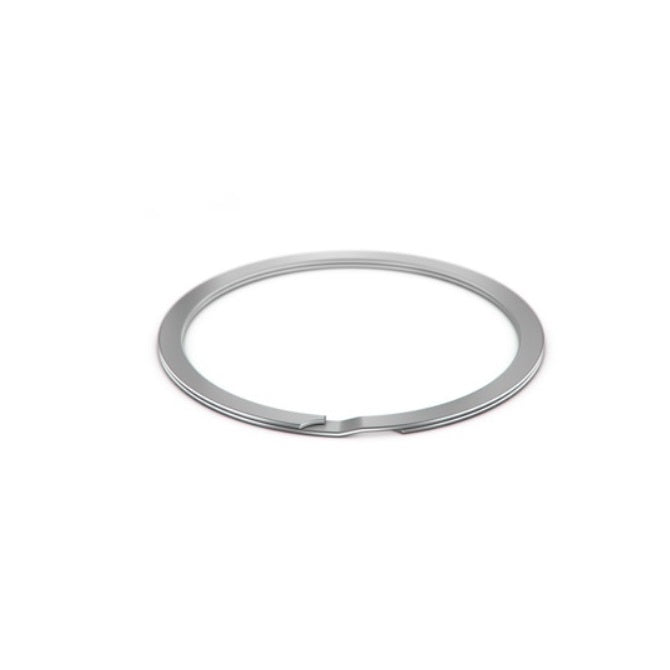

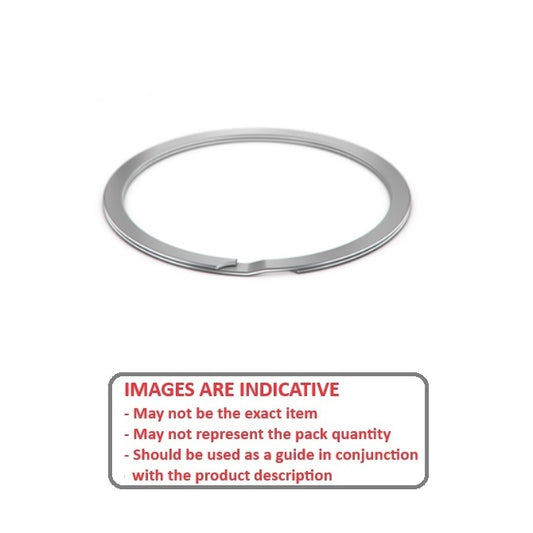

Collection: Retaining Rings - Internal - Spiral Rings - Medium Duty

Retaining Rings (With Images)

Internal

Spiral Rings

Medium-Heavy
Medium-Heavy Duty

56 Products in this selection

This is a combined category of Medium Duty Spiral Rings Internal Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Spiral Rings - Medium Duty. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 13.35 mm _{(0.526 in.)}	Approx. Loose Circlip OD (Dr) 13.26 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip ID: 10.98 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-050 (5 Pcs) Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Per 5
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 12.70 mm _{(0.5 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 13.35 mm _{(0.526 in.)}	Approx. Loose Circlip OD (Dr) 13.26 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 10.98 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-050 (5 Pcs) Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-050 (5 Pcs) --- Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel RR-050 (5 Pcs) --- Internal Retaining Rings - 12.7x0.64x13.35 mm - Spring Steel Regular price $21.68 AUD Regular price Sale price $21.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 14.70 mm _{(0.579 in.)}	Approx. Loose Circlip OD (Dr) 14.92 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip ID: 12.64 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-056 (5 Pcs) Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 5
Housing Bore (B) 14.29 mm _{(0.563 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 14.70 mm _{(0.579 in.)}	Approx. Loose Circlip OD (Dr) 14.92 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 12.64 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-056 (5 Pcs) Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-056 (5 Pcs) --- Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel RR-056 (5 Pcs) --- Internal Retaining Rings - 14.29x0.64x14.7 mm - Spring Steel Regular price $14.14 AUD Regular price Sale price $14.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 15.72 mm _{(0.619 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip ID: 13.47 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-059 (98 Pcs) Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $153.41 AUD Regular price Sale price $153.41 AUD Unit price per Per 98
Housing Bore (B) 15.09 mm _{(0.594 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 15.72 mm _{(0.619 in.)}	Approx. Loose Circlip OD (Dr) 15.75 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 13.47 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-059 (98 Pcs) Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $153.41 AUD Regular price Sale price $153.41 AUD Unit price per Per 98 View the product page first if you are unsure.
RR-059 (98 Pcs) --- Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel RR-059 (98 Pcs) --- Internal Retaining Rings - 15.09x0.64x15.72 mm - Spring Steel Regular price $153.41 AUD Regular price Sale price $153.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 16.53 mm _{(0.651 in.)}	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-062 (2 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel 141 units (282 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Per 2
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 16.53 mm _{(0.651 in.)}	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-062 (2 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel 141 units (282 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-062 (2 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel RR-062 (2 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm - Spring Steel Regular price $8.95 AUD Regular price Sale price $8.95 AUD Unit price per 141 Available Now
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 16.53 mm _{(0.651 in.)}	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-062-S02 (10 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 48 units (480 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Per 10
Housing Bore (B) 15.88 mm _{(0.625 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 16.53 mm _{(0.651 in.)}	Approx. Loose Circlip OD (Dr) 16.58 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 14.3 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-062-S02 (10 Pcs) Internal Retaining Rings - 15.88x0.64x16.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 48 units (480 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Per 10 View the product page first if you are unsure.
RR-062-S02 (10 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 RR-062-S02 (10 Pcs) --- Internal Retaining Rings - 15.88x0.64x16.53 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 48 Available Now
Housing Bore (B) 17.45 mm _{(0.687 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 18.11 mm _{(0.713 in.)}	Approx. Loose Circlip OD (Dr) 18.22 mm + 0.33 / - 0.00	Radial Wall (S) 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Spring Steel Approx. Loose Clip ID: 15.94 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-068 (100 Pcs) Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Per 100
Housing Bore (B) 17.45 mm _{(0.687 in.)}	Clip Thickness (T) 0.64 mm +/- 0.06 _{(0.025 in.)}	Groove Dia. (Dg) 18.11 mm _{(0.713 in.)}	Approx. Loose Circlip OD (Dr) 18.22 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip ID: 15.94 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-068 (100 Pcs) Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Per 100 View the product page first if you are unsure.
RR-068 (100 Pcs) --- Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel RR-068 (100 Pcs) --- Internal Retaining Rings - 17.45x0.64x18.11 mm - Spring Steel Regular price $12.23 AUD Regular price Sale price $12.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 19.86 mm _{(0.782 in.)}	Approx. Loose Circlip OD (Dr) 19.89 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 16.59 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-075-S02 (38 Pcs) Internal Retaining Rings - 19.05x0.79x19.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Per 38
Housing Bore (B) 19.05 mm _{(0.75 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 19.86 mm _{(0.782 in.)}	Approx. Loose Circlip OD (Dr) 19.89 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.05 Approx. Loose Clip ID: 16.59 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-075-S02 (38 Pcs) Internal Retaining Rings - 19.05x0.79x19.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Per 38 View the product page first if you are unsure.
RR-075-S02 (38 Pcs) --- Internal Retaining Rings - 19.05x0.79x19.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 RR-075-S02 (38 Pcs) --- Internal Retaining Rings - 19.05x0.79x19.86 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $14.86 AUD Regular price Sale price $14.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 22.94 mm _{(0.903 in.)}	Approx. Loose Circlip OD (Dr) 22.97 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.08
Material: Spring Steel Approx. Loose Clip ID: 19.67 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-086 (6 Pcs) Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 6
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 22.94 mm _{(0.903 in.)}	Approx. Loose Circlip OD (Dr) 22.97 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.08 Approx. Loose Clip ID: 19.67 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-086 (6 Pcs) Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 6 View the product page first if you are unsure.
RR-086 (6 Pcs) --- Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel RR-086 (6 Pcs) --- Internal Retaining Rings - 22x0.79x22.94 mm - Spring Steel Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 23.17 mm _{(0.912 in.)}	Approx. Loose Circlip OD (Dr) 23.21 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip ID: 19.91 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-087 (6 Pcs) Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 6
Housing Bore (B) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 23.17 mm _{(0.912 in.)}	Approx. Loose Circlip OD (Dr) 23.21 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip ID: 19.91 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-087 (6 Pcs) Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Per 6 View the product page first if you are unsure.
RR-087 (6 Pcs) --- Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel RR-087 (6 Pcs) --- Internal Retaining Rings - 22.23x0.79x23.17 mm - Spring Steel Regular price $14.32 AUD Regular price Sale price $14.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 23.83 mm _{(0.938 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 24.77 mm _{(0.975 in.)}	Approx. Loose Circlip OD (Dr) 24.88 mm + 0.33 / - 0.00	Radial Wall (S) 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip ID: 21.58 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-093 (40 Pcs) Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Per 40
Housing Bore (B) 23.83 mm _{(0.938 in.)}	Clip Thickness (T) 0.79 mm +/- 0.05 _{(0.031 in.)}	Groove Dia. (Dg) 24.77 mm _{(0.975 in.)}	Approx. Loose Circlip OD (Dr) 24.88 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip ID: 21.58 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-093 (40 Pcs) Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Per 40 View the product page first if you are unsure.
RR-093 (40 Pcs) --- Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel RR-093 (40 Pcs) --- Internal Retaining Rings - 23.83x0.79x24.77 mm - Spring Steel Regular price $11.14 AUD Regular price Sale price $11.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 26.50 mm _{(1.043 in.)}	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-100 (2 Pcs) Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel 106 units (212 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 26.50 mm _{(1.043 in.)}	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-100 (2 Pcs) Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel 106 units (212 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-100 (2 Pcs) --- Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel RR-100 (2 Pcs) --- Internal Retaining Rings - 25.4x0.94x26.5 mm - Spring Steel Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 106 Available Now
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 26.50 mm _{(1.043 in.)}	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-100-S02 Internal Retaining Rings - 25.4x0.94x26.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 80 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 26.50 mm _{(1.043 in.)}	Approx. Loose Circlip OD (Dr) 26.52 mm + 0.33 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 22.7 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-100-S02 Internal Retaining Rings - 25.4x0.94x26.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 80 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each View the product page first if you are unsure.
RR-100-S02 --- Internal Retaining Rings - 25.4x0.94x26.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 RR-100-S02 --- Internal Retaining Rings - 25.4x0.94x26.5 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per 80 Available Now
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.12 mm + 0.33 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Spring Steel Approx. Loose Clip ID: 23.3 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-102 Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Each
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 27.08 mm _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 27.12 mm + 0.33 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip ID: 23.3 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-102 Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Each View the product page first if you are unsure.
RR-102 --- Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel RR-102 --- Internal Retaining Rings - 25.98x0.94x27.08 mm - Spring Steel Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 28.04 mm _{(1.104 in.)}	Approx. Loose Circlip OD (Dr) 28.16 mm + 0.38 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 24.34 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-106 (9 Pcs) Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 9
Housing Bore (B) 26.97 mm _{(1.062 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 28.04 mm _{(1.104 in.)}	Approx. Loose Circlip OD (Dr) 28.16 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip ID: 24.34 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-106 (9 Pcs) Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 9 View the product page first if you are unsure.
RR-106 (9 Pcs) --- Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel RR-106 (9 Pcs) --- Internal Retaining Rings - 26.97x0.94x28.04 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 29.64 mm _{(1.167 in.)}	Approx. Loose Circlip OD (Dr) 29.84 mm + 0.38 / - 0.00	Radial Wall (S) 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 26.02 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-112 (2 Pcs) Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel 54 units (108 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $1.86 AUD Regular price Sale price $1.86 AUD Unit price per Per 2
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 0.94 mm +/- 0.05 _{(0.037 in.)}	Groove Dia. (Dg) 29.64 mm _{(1.167 in.)}	Approx. Loose Circlip OD (Dr) 29.84 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip ID: 26.02 +/- 0.03 Groove Depth (d): 0.53 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-112 (2 Pcs) Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel 54 units (108 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $1.86 AUD Regular price Sale price $1.86 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel RR-112 (2 Pcs) --- Internal Retaining Rings - 28.58x0.94x29.64 mm - Spring Steel Regular price $1.86 AUD Regular price Sale price $1.86 AUD Unit price per 54 Available Now
Housing Bore (B) 30.94 mm _{(1.218 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.16 mm _{(1.266 in.)}	Approx. Loose Circlip OD (Dr) 32.30 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Spring Steel Approx. Loose Clip ID: 27.98 +/- 0.05 Groove Depth (d): 0.61 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-121 (27 Pcs) Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 27
Housing Bore (B) 30.94 mm _{(1.218 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.16 mm _{(1.266 in.)}	Approx. Loose Circlip OD (Dr) 32.30 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip ID: 27.98 +/- 0.05 Groove Depth (d): 0.61 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-121 (27 Pcs) Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Per 27 View the product page first if you are unsure.
RR-121 (27 Pcs) --- Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel RR-121 (27 Pcs) --- Internal Retaining Rings - 30.94x1.09x32.16 mm - Spring Steel Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.97 mm _{(1.298 in.)}	Approx. Loose Circlip OD (Dr) 33.15 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 28.83 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-125 (10 Pcs) Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel 19 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 10
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 32.97 mm _{(1.298 in.)}	Approx. Loose Circlip OD (Dr) 33.15 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 28.83 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-125 (10 Pcs) Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel 19 units (190 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per Per 10 View the product page first if you are unsure.
RR-125 (10 Pcs) --- Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel RR-125 (10 Pcs) --- Internal Retaining Rings - 31.75x1.09x32.97 mm - Spring Steel Regular price $8.77 AUD Regular price Sale price $8.77 AUD Unit price per 19 Available Now
Housing Bore (B) 33.34 mm _{(1.313 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 34.54 mm _{(1.36 in.)}	Approx. Loose Circlip OD (Dr) 34.81 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 30.49 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-131 (5 Pcs) Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5
Housing Bore (B) 33.34 mm _{(1.313 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 34.54 mm _{(1.36 in.)}	Approx. Loose Circlip OD (Dr) 34.81 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 30.49 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-131 (5 Pcs) Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel 19 units (95 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-131 (5 Pcs) --- Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel RR-131 (5 Pcs) --- Internal Retaining Rings - 33.34x1.09x34.54 mm - Spring Steel Regular price $3.86 AUD Regular price Sale price $3.86 AUD Unit price per 19 Available Now
Housing Bore (B) 34.11 mm _{(1.343 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 35.43 mm _{(1.395 in.)}	Approx. Loose Circlip OD (Dr) 35.61 mm + 0.38 / - 0.00	Radial Wall (S) 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 31.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-134 (19 Pcs) Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Per 19
Housing Bore (B) 34.11 mm _{(1.343 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 35.43 mm _{(1.395 in.)}	Approx. Loose Circlip OD (Dr) 35.61 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 31.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-134 (19 Pcs) Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Per 19 View the product page first if you are unsure.
RR-134 (19 Pcs) --- Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel RR-134 (19 Pcs) --- Internal Retaining Rings - 34.11x1.09x35.43 mm - Spring Steel Regular price $14.77 AUD Regular price Sale price $14.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 34.80 mm _{(1.37 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 36.24 mm _{(1.427 in.)}	Approx. Loose Circlip OD (Dr) 36.33 mm + 0.38 / - 0.00	Radial Wall (S) 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 31.51 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-137 Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel 4876 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each
Housing Bore (B) 34.80 mm _{(1.37 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 36.24 mm _{(1.427 in.)}	Approx. Loose Circlip OD (Dr) 36.33 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 31.51 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-137 Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel 4876 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each View the product page first if you are unsure.
RR-137 --- Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel RR-137 --- Internal Retaining Rings - 34.8x1.09x36.24 mm - Spring Steel Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 4876 Available Now
Housing Bore (B) 36.50 mm _{(1.437 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 37.82 mm _{(1.489 in.)}	Approx. Loose Circlip OD (Dr) 38.11 mm + 0.38 / - 0.00	Radial Wall (S) 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Spring Steel Approx. Loose Clip ID: 33.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-143 Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel 44 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Each
Housing Bore (B) 36.50 mm _{(1.437 in.)}	Clip Thickness (T) 1.09 mm +/- 0.05 _{(0.043 in.)}	Groove Dia. (Dg) 37.82 mm _{(1.489 in.)}	Approx. Loose Circlip OD (Dr) 38.11 mm + 0.38 / - 0.00
Material: Spring Steel Radial Wall (S): 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip ID: 33.29 +/- 0.05 Groove Depth (d): 0.66 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-143 Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel 44 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per Each View the product page first if you are unsure.
RR-143 --- Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel RR-143 --- Internal Retaining Rings - 36.5x1.09x37.82 mm - Spring Steel Regular price $3.50 AUD Regular price Sale price $3.50 AUD Unit price per 44 Available Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-162-S02 (2 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 2
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RR-162-S02 (2 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Per 2 View the product page first if you are unsure.
RR-162-S02 (2 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 RR-162-S02 (2 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.59 AUD Regular price Sale price $10.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00	Radial Wall (S) 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-162 (5 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Per 5
Housing Bore (B) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.77 mm _{(1.684 in.)}	Approx. Loose Circlip OD (Dr) 43.10 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 37.62 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-162 (5 Pcs) Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-162 (5 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel RR-162 (5 Pcs) --- Internal Retaining Rings - 41.28x1.25x42.77 mm - Spring Steel Regular price $16.86 AUD Regular price Sale price $16.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 44.45 mm _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 44.74 mm + 0.51 / - 0.00	Radial Wall (S) 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip ID: 38.74 +/- 0.05 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-168 (5 Pcs) Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 5
Housing Bore (B) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 44.45 mm _{(1.75 in.)}	Approx. Loose Circlip OD (Dr) 44.74 mm + 0.51 / - 0.00
Material: Spring Steel Radial Wall (S): 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip ID: 38.74 +/- 0.05 Groove Depth (d): 0.79 Category: Retaining Rings - Internal - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RR-168 (5 Pcs) Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RR-168 (5 Pcs) --- Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel RR-168 (5 Pcs) --- Internal Retaining Rings - 42.85x1.25x44.45 mm - Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
