Collection: Retaining Rings - Internal - Round Wire

Retaining Rings (With Images)

Internal

57 Products in this selection

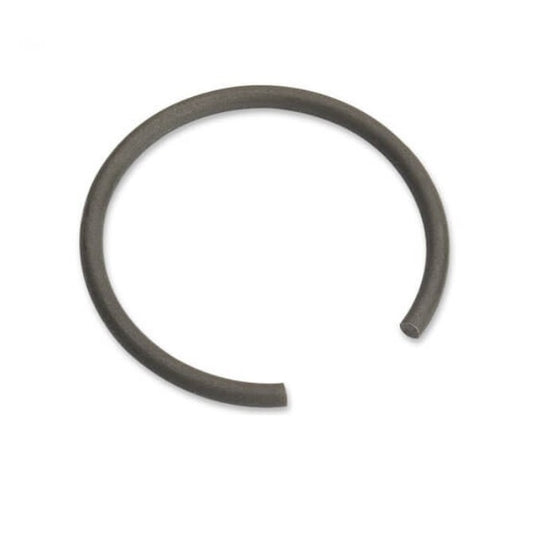

Includes DIN7993B / RB / M1700 / BN826. Retaining rings. Snap Rings (USA). Round section circlips.
Round section wire rings are mostly used in semicircular grooves.
Applications include gear systems, automotive engineering and open gudgeon pins.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Round Wire. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)
Housing Bore (B) 85.00 mm _{(3.346 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 88.20 mm + 1.0 / - 0.0 _{(3.472 in.)}	Approx. Loose Circlip OD (Dr) 89.00 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 82.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0850-RD Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel 6 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each

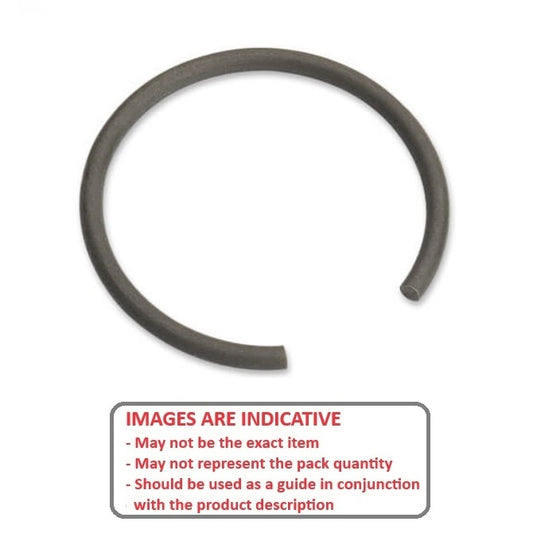

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 85.00 mm _{(3.346 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 88.20 mm + 1.0 / - 0.0 _{(3.472 in.)}	Approx. Loose Circlip OD (Dr) 89.00 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 82.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0850-RD Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel 6 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Each View the product page first if you are unsure.
WRI-0850-RD --- Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel WRI-0850-RD --- Internal Retaining Rings - 85x3.2x88.2 mm - Spring Steel Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 6 Available Now
Housing Bore (B) 90.00 mm _{(3.543 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 93.20 mm + 1.0 / - 0.0 _{(3.669 in.)}	Approx. Loose Circlip OD (Dr) 94.00 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 87.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0900-RD Internal Retaining Rings - 90x3.2x93.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each
Housing Bore (B) 90.00 mm _{(3.543 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 93.20 mm + 1.0 / - 0.0 _{(3.669 in.)}	Approx. Loose Circlip OD (Dr) 94.00 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 87.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0900-RD Internal Retaining Rings - 90x3.2x93.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Each View the product page first if you are unsure.
WRI-0900-RD --- Internal Retaining Rings - 90x3.2x93.2 mm - Spring Steel WRI-0900-RD --- Internal Retaining Rings - 90x3.2x93.2 mm - Spring Steel Regular price $16.41 AUD Regular price Sale price $16.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 95.00 mm _{(3.74 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 98.20 mm + 1.2 / - 0.0 _{(3.866 in.)}	Approx. Loose Circlip OD (Dr) 99.00 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 92.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0950-RD Internal Retaining Rings - 95x3.2x98.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 95.00 mm _{(3.74 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 98.20 mm + 1.2 / - 0.0 _{(3.866 in.)}	Approx. Loose Circlip OD (Dr) 99.00 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 92.6 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 25.000 mm
Part Number: WRI-0950-RD Internal Retaining Rings - 95x3.2x98.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 100.00 mm _{(3.937 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 103.20 mm + 1.2 / - 0.0 _{(4.063 in.)}	Approx. Loose Circlip OD (Dr) 104.20 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 97.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1000-RD Internal Retaining Rings - 100x3.2x103.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 100.00 mm _{(3.937 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 103.20 mm + 1.2 / - 0.0 _{(4.063 in.)}	Approx. Loose Circlip OD (Dr) 104.20 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 97.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1000-RD Internal Retaining Rings - 100x3.2x103.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 105.00 mm _{(4.134 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 108.20 mm + 1.2 / - 0.0 _{(4.26 in.)}	Approx. Loose Circlip OD (Dr) 109.20 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 102.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1050-RD Internal Retaining Rings - 105x3.2x108.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 105.00 mm _{(4.134 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 108.20 mm + 1.2 / - 0.0 _{(4.26 in.)}	Approx. Loose Circlip OD (Dr) 109.20 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 102.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1050-RD Internal Retaining Rings - 105x3.2x108.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 113.20 mm + 1.2 / - 0.0 _{(4.457 in.)}	Approx. Loose Circlip OD (Dr) 114.20 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 107.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1100-RD Internal Retaining Rings - 110x3.2x113.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 110.00 mm _{(4.331 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 113.20 mm + 1.2 / - 0.0 _{(4.457 in.)}	Approx. Loose Circlip OD (Dr) 114.20 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 107.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1100-RD Internal Retaining Rings - 110x3.2x113.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 115.00 mm _{(4.528 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 118.20 mm + 1.2 / - 0.0 _{(4.654 in.)}	Approx. Loose Circlip OD (Dr) 119.20 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 112.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1150-RD Internal Retaining Rings - 115x3.2x118.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 115.00 mm _{(4.528 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 118.20 mm + 1.2 / - 0.0 _{(4.654 in.)}	Approx. Loose Circlip OD (Dr) 119.20 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 112.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1150-RD Internal Retaining Rings - 115x3.2x118.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 120.00 mm _{(4.724 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 123.20 mm + 1.2 / - 0.0 _{(4.85 in.)}	Approx. Loose Circlip OD (Dr) 124.20 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 117.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1200-RD Internal Retaining Rings - 120x3.2x123.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 120.00 mm _{(4.724 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 123.20 mm + 1.2 / - 0.0 _{(4.85 in.)}	Approx. Loose Circlip OD (Dr) 124.20 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 117.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1200-RD Internal Retaining Rings - 120x3.2x123.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 125.00 mm _{(4.921 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 128.20 mm + 1.2 / - 0.0 _{(5.047 in.)}	Approx. Loose Circlip OD (Dr) 129.20 mm		Groove Width (W) 3.60
Material: Spring Steel Free Inside Diameter (D): 122.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1250-RD Internal Retaining Rings - 125x3.2x128.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
Housing Bore (B) 125.00 mm _{(4.921 in.)}	Clip Thickness (T) 3.2 mm B DIN 2076 _{(0.126 in.)}	Groove Dia. (Dg) 128.20 mm + 1.2 / - 0.0 _{(5.047 in.)}	Approx. Loose Circlip OD (Dr) 129.20 mm
Material: Spring Steel Groove Width (W): 3.60 Free Inside Diameter (D): 122.8 Info: DIN7993 Section Profile: Round Section Groove Radius (r): 1.80 mm Gap (g): 32.000 mm
Part Number: WRI-1250-RD Internal Retaining Rings - 125x3.2x128.2 mm - Spring Steel Contact Us \| Item Discontinued - Please contact us if you need a large quantity
