| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

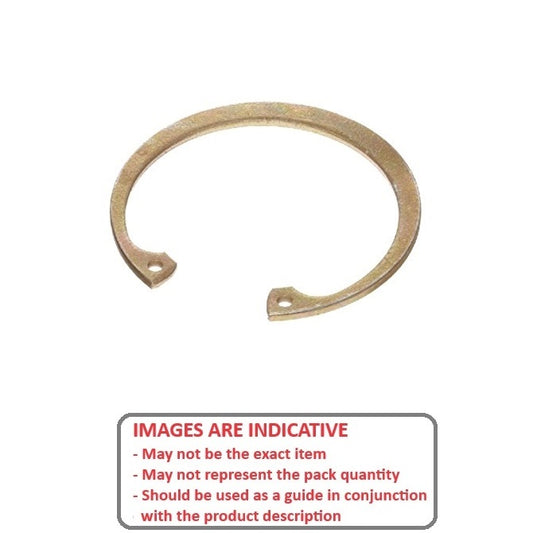

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Steel Zinc Plated Clearance in Bore (C): 71.90 mm Clearance in Groove (C1): 76.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09000-CZ
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Zinc Plated Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

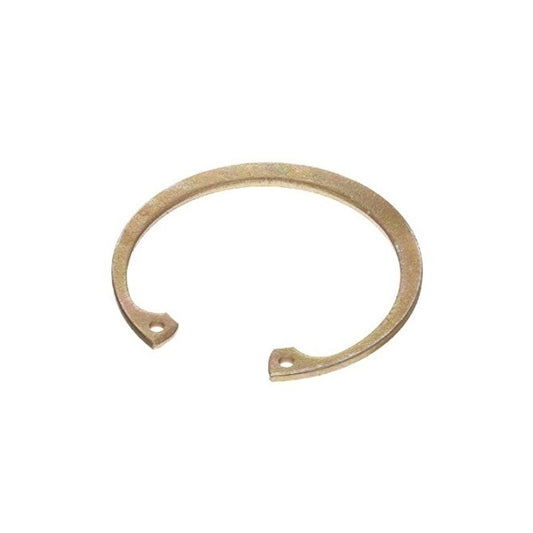

Indicative Image |
||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Steel Zinc Plated Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 71.90 mm Clearance in Groove (C1): 76.30 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09000-CZ
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Zinc Plated Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jul 21, 2028 |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.99
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 340 |
||||||
|
Part Number: CCI-10001-CZY
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$17.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.99
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 340 |
||||||
|
Part Number: CCI-10001-CZY
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$17.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
107.54
mm + 0.00 / - 0.10 (Equiv. 4.234 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 82.30 mm
Clearance in Groove (C1): 88.14 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 9.14
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 174 |
||||||
|
Part Number: CCI-10160-CZY
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$18.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
107.54
mm + 0.00 / - 0.10 (Equiv. 4.234 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.30 mm
Clearance in Groove (C1): 88.14 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 9.14
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 174 |
||||||
|
Part Number: CCI-10160-CZY
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$18.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
120.65
mm (Equiv. 4.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
126.21
mm + 0.00 / - 0.10 (Equiv. 4.969 in.) |
Approx. Loose Circlip OD (Dr)
129.03
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 369 |
||||||
|
Part Number: CCI-12065-CZY
Internal Retaining Rings - 120.65x2.77x126.21 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$23.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
120.65
mm (Equiv. 4.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
126.21
mm + 0.00 / - 0.10 (Equiv. 4.969 in.) |
Approx. Loose Circlip OD (Dr)
129.03
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 369 |
||||||
|
Part Number: CCI-12065-CZY
Internal Retaining Rings - 120.65x2.77x126.21 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$23.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
133.45
mm + 0.00 / - 0.08 (Equiv. 5.254 in.) |
Approx. Loose Circlip OD (Dr)
139.32
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 103.90 mm
Clearance in Groove (C1): 109.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 6.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 549 |
||||||
|
Part Number: CCI-12700N-CZY
Internal Retaining Rings - 127x2.84x133.45 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$26.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
133.45
mm + 0.00 / - 0.08 (Equiv. 5.254 in.) |
Approx. Loose Circlip OD (Dr)
139.32
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 103.90 mm
Clearance in Groove (C1): 109.00 mm
Min. Lug Diameter (h): 4.00 mm
Min. Extension (n): 6.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 549 |
||||||
|
Part Number: CCI-12700N-CZY
Internal Retaining Rings - 127x2.84x133.45 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$26.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
