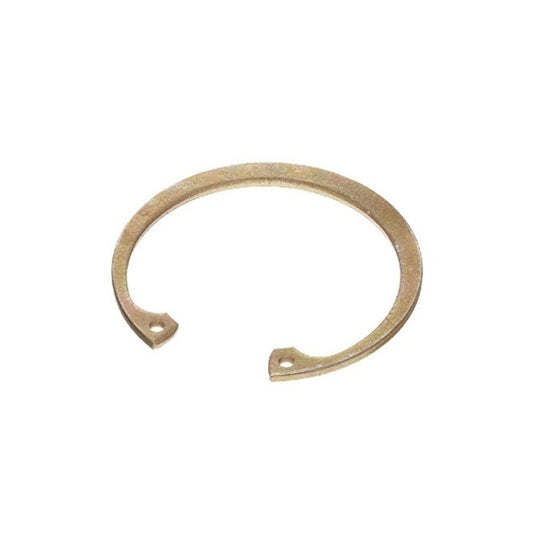

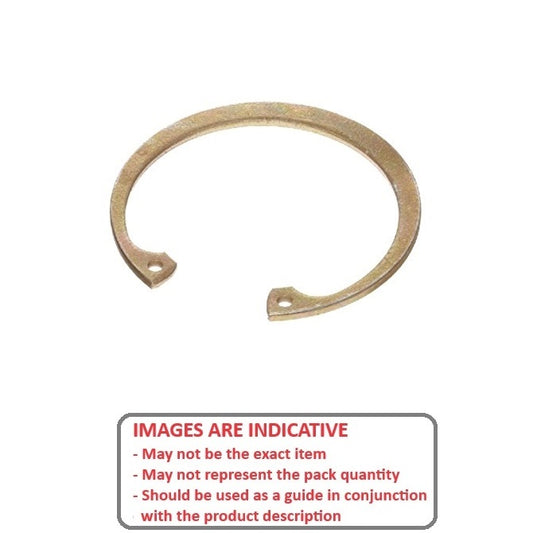

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

53 Products in this selection
  • Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
  • Zinc plated carbon steel
  • Tolerances on request.
Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools
A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard - Zinc Plated. Smallparts promote the most popular MBA products.
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Radial Wall (S) Groove Width (W) Indicative
Housing Bore (B)
36.53
mm

(1.438 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(0.05 in.)
Groove Dia. (Dg)
38.81
mm
+ 0.00 / - 0.06
(1.528 in.)
Approx. Loose Circlip OD (Dr)
40.54
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 26.92 mm    Clearance in Groove (C1): 29.21 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.43    Standard: MIL-16625
Part Number: CCI-03653-CZY (6 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$22.14 AUD
$22.14 AUD
Per 6
Housing Bore (B) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip OD (Dr) Indicative
Housing Bore (B)
36.53
mm

(1.438 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(0.05 in.)
Groove Dia. (Dg)
38.81
mm
+ 0.00 / - 0.06
(1.528 in.)
Approx. Loose Circlip OD (Dr)
40.54
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 26.92 mm    Clearance in Groove (C1): 29.21 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.43    Standard: MIL-16625
Part Number: CCI-03653-CZY (6 Pcs) Internal Retaining Rings - 36.53x1.27x38.81 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$22.14 AUD
$22.14 AUD
Per 6
View the product page first if you are unsure.
Housing Bore (B)
38.10
mm

(1.5 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(0.05 in.)
Groove Dia. (Dg)
40.49
mm
+ 0.00 / - 0.06
(1.594 in.)
Approx. Loose Circlip OD (Dr)
42.16
mm
+ 0.64 / - 0.38
Groove Width (W)
1.42
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 28.70 mm    Clearance in Groove (C1): 30.99 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.58    Standard: MIL-16625
Part Number: CCI-03810-CZY (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.23 AUD
$20.23 AUD
Per 7
Housing Bore (B)
38.10
mm

(1.5 in.)
Clip Thickness (T)
1.27
mm
+/- 0.102
(0.05 in.)
Groove Dia. (Dg)
40.49
mm
+ 0.00 / - 0.06
(1.594 in.)
Approx. Loose Circlip OD (Dr)
42.16
mm
+ 0.64 / - 0.38
Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.42 mm + 0.10 / - 0.00   Clearance in Bore (C): 28.70 mm    Clearance in Groove (C1): 30.99 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.58    Standard: MIL-16625
Part Number: CCI-03810-CZY (7 Pcs) Internal Retaining Rings - 38.1x1.27x40.49 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.23 AUD
$20.23 AUD
Per 7
View the product page first if you are unsure.
Housing Bore (B)
39.67
mm

(1.562 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
42.11
mm
+ 0.00 / - 0.06
(1.658 in.)
Approx. Loose Circlip OD (Dr)
44.04
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 29.21 mm    Clearance in Groove (C1): 31.50 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.66    Standard: MIL-16625
Part Number: CCI-03967-CZY (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$18.41 AUD
$18.41 AUD
Per 5
Housing Bore (B)
39.67
mm

(1.562 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
42.11
mm
+ 0.00 / - 0.06
(1.658 in.)
Approx. Loose Circlip OD (Dr)
44.04
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 29.21 mm    Clearance in Groove (C1): 31.50 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.66    Standard: MIL-16625
Part Number: CCI-03967-CZY (5 Pcs) Internal Retaining Rings - 39.67x1.57x42.11 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$18.41 AUD
$18.41 AUD
Per 5
View the product page first if you are unsure.
Housing Bore (B)
41.28
mm

(1.625 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
43.82
mm
+ 0.00 / - 0.06
(1.725 in.)
Approx. Loose Circlip OD (Dr)
45.82
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 30.73 mm    Clearance in Groove (C1): 33.27 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.81    Standard: MIL-16625
Part Number: CCI-04128-CZY (5 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.77 AUD
$20.77 AUD
Per 5
Housing Bore (B)
41.28
mm

(1.625 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
43.82
mm
+ 0.00 / - 0.06
(1.725 in.)
Approx. Loose Circlip OD (Dr)
45.82
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 30.73 mm    Clearance in Groove (C1): 33.27 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 3.81    Standard: MIL-16625
Part Number: CCI-04128-CZY (5 Pcs) Internal Retaining Rings - 41.28x1.57x43.82 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.77 AUD
$20.77 AUD
Per 5
View the product page first if you are unsure.
Housing Bore (B)
44.45
mm

(1.75 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
47.19
mm
+ 0.00 / - 0.06
(1.858 in.)
Approx. Loose Circlip OD (Dr)
49.33
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 44.45x1.57x47.19 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 34.04 mm    Clearance in Groove (C1): 36.58 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 4.11    Standard: MIL-16625
Part Number: CCI-04445-CZY (4 Pcs) Internal Retaining Rings - 44.45x1.57x47.19 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.77 AUD
$20.77 AUD
Per 4
Housing Bore (B)
44.45
mm

(1.75 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
47.19
mm
+ 0.00 / - 0.06
(1.858 in.)
Approx. Loose Circlip OD (Dr)
49.33
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 44.45x1.57x47.19 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 34.04 mm    Clearance in Groove (C1): 36.58 mm    Min. Lug Diameter (h): 1.93 mm    Min. Extension (n): 4.11    Standard: MIL-16625
Part Number: CCI-04445-CZY (4 Pcs) Internal Retaining Rings - 44.45x1.57x47.19 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$20.77 AUD
$20.77 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
46.04
mm

(1.813 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
48.82
mm
+ 0.00 / - 0.06
(1.922 in.)
Approx. Loose Circlip OD (Dr)
51.10
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 46.04x1.57x48.82 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 35.56 mm    Clearance in Groove (C1): 38.35 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.19    Standard: MIL-16625
Part Number: CCI-04604-CZY (125 Pcs) Internal Retaining Rings - 46.04x1.57x48.82 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$723.77 AUD
$723.77 AUD
Per 125
Housing Bore (B)
46.04
mm

(1.813 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
48.82
mm
+ 0.00 / - 0.06
(1.922 in.)
Approx. Loose Circlip OD (Dr)
51.10
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 46.04x1.57x48.82 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 35.56 mm    Clearance in Groove (C1): 38.35 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.19    Standard: MIL-16625
Part Number: CCI-04604-CZY (125 Pcs) Internal Retaining Rings - 46.04x1.57x48.82 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$723.77 AUD
$723.77 AUD
Per 125
View the product page first if you are unsure.
Housing Bore (B)
47.63
mm

(1.875 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
50.52
mm
+ 0.00 / - 0.06
(1.989 in.)
Approx. Loose Circlip OD (Dr)
52.63
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 47.63x1.57x50.52 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 37.08 mm    Clearance in Groove (C1): 40.13 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.34    Standard: MIL-16625
Part Number: CCI-04763-CZY (4 Pcs) Internal Retaining Rings - 47.63x1.57x50.52 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$22.14 AUD
$22.14 AUD
Per 4
Housing Bore (B)
47.63
mm

(1.875 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
50.52
mm
+ 0.00 / - 0.06
(1.989 in.)
Approx. Loose Circlip OD (Dr)
52.63
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 47.63x1.57x50.52 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 37.08 mm    Clearance in Groove (C1): 40.13 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.34    Standard: MIL-16625
Part Number: CCI-04763-CZY (4 Pcs) Internal Retaining Rings - 47.63x1.57x50.52 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$22.14 AUD
$22.14 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
50.80
mm

(2 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
53.90
mm
+ 0.00 / - 0.07
(2.122 in.)
Approx. Loose Circlip OD (Dr)
56.13
mm
+ 0.89 / - 0.64
Groove Width (W)
1.73
mm
+ 0.10 / - 0.00
Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 40.39 mm    Clearance in Groove (C1): 43.43 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.65    Standard: MIL-16625
Part Number: CCI-05080-CZY (5 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$32.68 AUD
$32.68 AUD
Per 5
Housing Bore (B)
50.80
mm

(2 in.)
Clip Thickness (T)
1.57
mm
+/- 0.127
(0.062 in.)
Groove Dia. (Dg)
53.90
mm
+ 0.00 / - 0.07
(2.122 in.)
Approx. Loose Circlip OD (Dr)
56.13
mm
+ 0.89 / - 0.64
Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 1.73 mm + 0.10 / - 0.00   Clearance in Bore (C): 40.39 mm    Clearance in Groove (C1): 43.43 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.65    Standard: MIL-16625
Part Number: CCI-05080-CZY (5 Pcs) Internal Retaining Rings - 50.8x1.57x53.9 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$32.68 AUD
$32.68 AUD
Per 5
View the product page first if you are unsure.
Housing Bore (B)
52.39
mm

(2.063 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
55.52
mm
+ 0.00 / - 0.07
(2.186 in.)
Approx. Loose Circlip OD (Dr)
57.91
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 40.89 mm    Clearance in Groove (C1): 43.94 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.72    Standard: MIL-16625
Part Number: CCI-05239-CZY (4 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$34.32 AUD
$34.32 AUD
Per 4
Housing Bore (B)
52.39
mm

(2.063 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
55.52
mm
+ 0.00 / - 0.07
(2.186 in.)
Approx. Loose Circlip OD (Dr)
57.91
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 40.89 mm    Clearance in Groove (C1): 43.94 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.72    Standard: MIL-16625
Part Number: CCI-05239-CZY (4 Pcs) Internal Retaining Rings - 52.39x1.98x55.52 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$34.32 AUD
$34.32 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
53.98
mm

(2.125 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
57.18
mm
+ 0.00 / - 0.07
(2.251 in.)
Approx. Loose Circlip OD (Dr)
59.69
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 41.91 mm    Clearance in Groove (C1): 45.21 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.80    Standard: MIL-16625
Part Number: CCI-05398-CZY (4 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$35.05 AUD
$35.05 AUD
Per 4
Housing Bore (B)
53.98
mm

(2.125 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
57.18
mm
+ 0.00 / - 0.07
(2.251 in.)
Approx. Loose Circlip OD (Dr)
59.69
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 41.91 mm    Clearance in Groove (C1): 45.21 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 4.80    Standard: MIL-16625
Part Number: CCI-05398-CZY (4 Pcs) Internal Retaining Rings - 53.98x1.98x57.18 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$35.05 AUD
$35.05 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
57.15
mm

(2.25 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
60.50
mm
+ 0.00 / - 0.07
(2.382 in.)
Approx. Loose Circlip OD (Dr)
63.25
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 57.15x1.98x60.5 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 44.96 mm    Clearance in Groove (C1): 48.51 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 5.03    Standard: MIL-16625
Part Number: CCI-05715-CZY (4 Pcs) Internal Retaining Rings - 57.15x1.98x60.5 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$36.14 AUD
$36.14 AUD
Per 4
Housing Bore (B)
57.15
mm

(2.25 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
60.50
mm
+ 0.00 / - 0.07
(2.382 in.)
Approx. Loose Circlip OD (Dr)
63.25
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 57.15x1.98x60.5 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 44.96 mm    Clearance in Groove (C1): 48.51 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 5.03    Standard: MIL-16625
Part Number: CCI-05715-CZY (4 Pcs) Internal Retaining Rings - 57.15x1.98x60.5 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$36.14 AUD
$36.14 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
58.74
mm

(2.313 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
62.23
mm
+ 0.00 / - 0.07
(2.45 in.)
Approx. Loose Circlip OD (Dr)
65.02
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 58.74x1.98x62.23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 46.74 mm    Clearance in Groove (C1): 50.29 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 5.26    Standard: MIL-16625
Part Number: CCI-05874-CZY (5 Pcs) Internal Retaining Rings - 58.74x1.98x62.23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$49.05 AUD
$49.05 AUD
Per 5
Housing Bore (B)
58.74
mm

(2.313 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
62.23
mm
+ 0.00 / - 0.07
(2.45 in.)
Approx. Loose Circlip OD (Dr)
65.02
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 58.74x1.98x62.23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 46.74 mm    Clearance in Groove (C1): 50.29 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 5.26    Standard: MIL-16625
Part Number: CCI-05874-CZY (5 Pcs) Internal Retaining Rings - 58.74x1.98x62.23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$49.05 AUD
$49.05 AUD
Per 5
View the product page first if you are unsure.
Housing Bore (B)
60.33
mm

(2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
63.93
mm
+ 0.00 / - 0.07
(2.517 in.)
Approx. Loose Circlip OD (Dr)
66.80
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 48.26 mm    Clearance in Groove (C1): 51.82 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 5.41    Standard: MIL-16625
Part Number: CCI-06033-CZY (4 Pcs) Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$40.23 AUD
$40.23 AUD
Per 4
Housing Bore (B)
60.33
mm

(2.375 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
63.93
mm
+ 0.00 / - 0.07
(2.517 in.)
Approx. Loose Circlip OD (Dr)
66.80
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 48.26 mm    Clearance in Groove (C1): 51.82 mm    Min. Lug Diameter (h): 2.31 mm    Min. Extension (n): 5.41    Standard: MIL-16625
Part Number: CCI-06033-CZY (4 Pcs) Internal Retaining Rings - 60.33x1.98x63.93 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$40.23 AUD
$40.23 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
61.98
mm

(2.44 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
65.63
mm
+ 0.00 / - 0.07
(2.584 in.)
Approx. Loose Circlip OD (Dr)
68.63
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 49.78 mm    Clearance in Groove (C1): 53.59 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.49    Standard: MIL-16625
Part Number: CCI-06198-CZY Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Zinc Plated
48 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025
$11.05 AUD
$11.05 AUD
Each
Housing Bore (B)
61.98
mm

(2.44 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
65.63
mm
+ 0.00 / - 0.07
(2.584 in.)
Approx. Loose Circlip OD (Dr)
68.63
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 49.78 mm    Clearance in Groove (C1): 53.59 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.49    Standard: MIL-16625
Part Number: CCI-06198-CZY Internal Retaining Rings - 61.98x1.98x65.63 mm - Carbon Steel Zinc Plated
48 Available Immediately | Further orders can be expected around Sun, Jun 08, 2025
$11.05 AUD
$11.05 AUD
Each
View the product page first if you are unsure.
Housing Bore (B)
63.50
mm

(2.5 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
67.26
mm
+ 0.00 / - 0.07
(2.648 in.)
Approx. Loose Circlip OD (Dr)
70.49
mm
+ 1.02 / - 0.76
Groove Width (W)
2.18
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 51.31 mm    Clearance in Groove (C1): 55.12 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.64    Standard: MIL-16625
Part Number: CCI-06350-CZY (4 Pcs) Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$36.86 AUD
$36.86 AUD
Per 4
Housing Bore (B)
63.50
mm

(2.5 in.)
Clip Thickness (T)
1.98
mm
+/- 0.152
(0.078 in.)
Groove Dia. (Dg)
67.26
mm
+ 0.00 / - 0.07
(2.648 in.)
Approx. Loose Circlip OD (Dr)
70.49
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.18 mm + 0.13 / - 0.00   Clearance in Bore (C): 51.31 mm    Clearance in Groove (C1): 55.12 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.64    Standard: MIL-16625
Part Number: CCI-06350-CZY (4 Pcs) Internal Retaining Rings - 63.5x1.98x67.26 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$36.86 AUD
$36.86 AUD
Per 4
View the product page first if you are unsure.
Housing Bore (B)
65.07
mm

(2.562 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
68.94
mm
+ 0.00 / - 0.07
(2.714 in.)
Approx. Loose Circlip OD (Dr)
72.24
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 65.07x2.36x68.94 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 51.31 mm    Clearance in Groove (C1): 55.37 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.79    Standard: MIL-16625
Part Number: CCI-06507-CZY (50 Pcs) Internal Retaining Rings - 65.07x2.36x68.94 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 02, 2025
$861.86 AUD
$861.86 AUD
Per 50
Housing Bore (B)
65.07
mm

(2.562 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
68.94
mm
+ 0.00 / - 0.07
(2.714 in.)
Approx. Loose Circlip OD (Dr)
72.24
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 65.07x2.36x68.94 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 51.31 mm    Clearance in Groove (C1): 55.37 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.79    Standard: MIL-16625
Part Number: CCI-06507-CZY (50 Pcs) Internal Retaining Rings - 65.07x2.36x68.94 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Wed, Jul 02, 2025
$861.86 AUD
$861.86 AUD
Per 50
View the product page first if you are unsure.
Housing Bore (B)
68.26
mm

(2.687 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
72.34
mm
+ 0.00 / - 0.07
(2.848 in.)
Approx. Loose Circlip OD (Dr)
75.69
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 68.26x2.36x72.34 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.94    Standard: MIL-16625
Part Number: CCI-06826-CZY (125 Pcs) Internal Retaining Rings - 68.26x2.36x72.34 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$1,959.32 AUD
$1,959.32 AUD
Per 125
Housing Bore (B)
68.26
mm

(2.687 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
72.34
mm
+ 0.00 / - 0.07
(2.848 in.)
Approx. Loose Circlip OD (Dr)
75.69
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 68.26x2.36x72.34 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 5.94    Standard: MIL-16625
Part Number: CCI-06826-CZY (125 Pcs) Internal Retaining Rings - 68.26x2.36x72.34 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$1,959.32 AUD
$1,959.32 AUD
Per 125
View the product page first if you are unsure.
Housing Bore (B)
71.42
mm

(2.812 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
75.69
mm
+ 0.00 / - 0.07
(2.98 in.)
Approx. Loose Circlip OD (Dr)
79.27
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 71.42x2.36x75.69 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 56.90 mm    Clearance in Groove (C1): 60.96 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.40    Standard: MIL-16625
Part Number: CCI-07142-CZY (3 Pcs) Internal Retaining Rings - 71.42x2.36x75.69 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$48.59 AUD
$48.59 AUD
Per 3
Housing Bore (B)
71.42
mm

(2.812 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
75.69
mm
+ 0.00 / - 0.07
(2.98 in.)
Approx. Loose Circlip OD (Dr)
79.27
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 71.42x2.36x75.69 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 56.90 mm    Clearance in Groove (C1): 60.96 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.40    Standard: MIL-16625
Part Number: CCI-07142-CZY (3 Pcs) Internal Retaining Rings - 71.42x2.36x75.69 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$48.59 AUD
$48.59 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
73.03
mm

(2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
77.50
mm
+ 0.00 / - 0.07
(3.051 in.)
Approx. Loose Circlip OD (Dr)
81.05
mm
+ 1.02 / - 0.76
Groove Width (W)
2.62
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 58.42 mm    Clearance in Groove (C1): 62.74 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.71    Standard: MIL-16625
Part Number: CCI-07303-CZY (3 Pcs) Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$50.41 AUD
$50.41 AUD
Per 3
Housing Bore (B)
73.03
mm

(2.875 in.)
Clip Thickness (T)
2.36
mm
+/- 0.152
(0.093 in.)
Groove Dia. (Dg)
77.50
mm
+ 0.00 / - 0.07
(3.051 in.)
Approx. Loose Circlip OD (Dr)
81.05
mm
+ 1.02 / - 0.76
Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.62 mm + 0.13 / - 0.00   Clearance in Bore (C): 58.42 mm    Clearance in Groove (C1): 62.74 mm    Min. Lug Diameter (h): 2.74 mm    Min. Extension (n): 6.71    Standard: MIL-16625
Part Number: CCI-07303-CZY (3 Pcs) Internal Retaining Rings - 73.03x2.36x77.5 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$50.41 AUD
$50.41 AUD
Per 3
View the product page first if you are unsure.
Housing Bore (B)
75.00
mm

(2.953 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(0.098 in.)
Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.07
(3.071 in.)
Approx. Loose Circlip OD (Dr)
79.50
mm
+ 1.10 / - 0.46
Groove Width (W)
2.65
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 75x2.5x78 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 58.60 mm    Clearance in Groove (C1): 62.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07500-CZ (32 Pcs) Internal Retaining Rings - 75x2.5x78 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$304.50 AUD
$304.50 AUD
Per 32
Housing Bore (B)
75.00
mm

(2.953 in.)
Clip Thickness (T)
2.50
mm
+ 0.30 / - 0.00
(0.098 in.)
Groove Dia. (Dg)
78.00
mm
+ 0.00 / - 0.07
(3.071 in.)
Approx. Loose Circlip OD (Dr)
79.50
mm
+ 1.10 / - 0.46
Internal Retaining Rings - 75x2.5x78 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 2.65 mm + 0.13 / - 0.00   Clearance in Bore (C): 58.60 mm    Clearance in Groove (C1): 62.40 mm    Min. Lug Diameter (h): 3.00 mm    Min. Extension (n): 4.50    Standard: DIN472
Part Number: CCI-07500-CZ (32 Pcs) Internal Retaining Rings - 75x2.5x78 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$304.50 AUD
$304.50 AUD
Per 32
View the product page first if you are unsure.
Housing Bore (B)
79.38
mm

(3.125 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
84.20
mm
+ 0.00 / - 0.08
(3.315 in.)
Approx. Loose Circlip OD (Dr)
88.60
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 79.38x2.77x84.2 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 64.01 mm    Clearance in Groove (C1): 68.83 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.24    Standard: MIL-16625
Part Number: CCI-07938-CZY (25 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 01, 2025
$1,101.14 AUD
$1,101.14 AUD
Per 25
Housing Bore (B)
79.38
mm

(3.125 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
84.20
mm
+ 0.00 / - 0.08
(3.315 in.)
Approx. Loose Circlip OD (Dr)
88.60
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 79.38x2.77x84.2 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 64.01 mm    Clearance in Groove (C1): 68.83 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.24    Standard: MIL-16625
Part Number: CCI-07938-CZY (25 Pcs) Internal Retaining Rings - 79.38x2.77x84.2 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 01, 2025
$1,101.14 AUD
$1,101.14 AUD
Per 25
View the product page first if you are unsure.
Housing Bore (B)
79.98
mm

(3.149 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
85.04
mm
+ 0.00 / - 0.08
(3.348 in.)
Approx. Loose Circlip OD (Dr)
89.48
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 79.98x2.77x85.04 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 64.77 mm    Clearance in Groove (C1): 69.60 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.32    Standard: MIL-16625
Part Number: CCI-07998-CZY (2 Pcs) Internal Retaining Rings - 79.98x2.77x85.04 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$49.59 AUD
$49.59 AUD
Per 2
Housing Bore (B)
79.98
mm

(3.149 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
85.04
mm
+ 0.00 / - 0.08
(3.348 in.)
Approx. Loose Circlip OD (Dr)
89.48
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 79.98x2.77x85.04 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 64.77 mm    Clearance in Groove (C1): 69.60 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.32    Standard: MIL-16625
Part Number: CCI-07998-CZY (2 Pcs) Internal Retaining Rings - 79.98x2.77x85.04 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$49.59 AUD
$49.59 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
84.99
mm

(3.346 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
90.07
mm
+ 0.00 / - 0.08
(3.546 in.)
Approx. Loose Circlip OD (Dr)
94.84
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 68.33 mm    Clearance in Groove (C1): 73.41 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.62    Standard: MIL-16625
Part Number: CCI-08499-CZY (2 Pcs) Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$57.14 AUD
$57.14 AUD
Per 2
Housing Bore (B)
84.99
mm

(3.346 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
90.07
mm
+ 0.00 / - 0.08
(3.546 in.)
Approx. Loose Circlip OD (Dr)
94.84
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 68.33 mm    Clearance in Groove (C1): 73.41 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 7.62    Standard: MIL-16625
Part Number: CCI-08499-CZY (2 Pcs) Internal Retaining Rings - 84.99x2.77x90.07 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Sun, Jun 08, 2025
$57.14 AUD
$57.14 AUD
Per 2
View the product page first if you are unsure.
Housing Bore (B)
88.90
mm

(3.5 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
94.23
mm
+ 0.00 / - 0.08
(3.71 in.)
Approx. Loose Circlip OD (Dr)
98.81
mm
+ 1.40 / - 1.40
Groove Width (W)
3.05
mm
+ 0.13 / - 0.00
Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Clearance in Bore (C): 71.12 mm    Clearance in Groove (C1): 73.66 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 8.00    Standard: MIL-16625
Part Number: CCI-08890-CZY (25 Pcs) Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$716.05 AUD
$716.05 AUD
Per 25
Housing Bore (B)
88.90
mm

(3.5 in.)
Clip Thickness (T)
2.77
mm
+/- 0.152
(0.109 in.)
Groove Dia. (Dg)
94.23
mm
+ 0.00 / - 0.08
(3.71 in.)
Approx. Loose Circlip OD (Dr)
98.81
mm
+ 1.40 / - 1.40
Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Zinc Plated
Material: Carbon Steel Zinc Plated    Groove Width (W): 3.05 mm + 0.13 / - 0.00   Clearance in Bore (C): 71.12 mm    Clearance in Groove (C1): 73.66 mm    Min. Lug Diameter (h): 3.12 mm    Min. Extension (n): 8.00    Standard: MIL-16625
Part Number: CCI-08890-CZY (25 Pcs) Internal Retaining Rings - 88.9x2.77x94.23 mm - Carbon Steel Zinc Plated
Out of Stock | Backorder Now | Orders can be expected around Fri, Aug 08, 2025
$716.05 AUD
$716.05 AUD
Per 25
View the product page first if you are unsure.
