Collection: Retaining Rings - Internal - Circlips - Standard - Stainless Steel

Retaining Rings (With Images)

Internal

Circlips

Standard

Carbon Steel
Stainless Steel
Zinc Plated

130 Products in this selection

Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
PH15-7 Mo Stainless Steel.
Tolerances on request.

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

A more concise listing may be found on the Smallparts store at Retaining Rings - Internal - Circlips - Standard - Stainless Steel. Smallparts promote the most popular MBA products.

Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Radial Wall (S)	Groove Width (W)	Indicative Image
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625

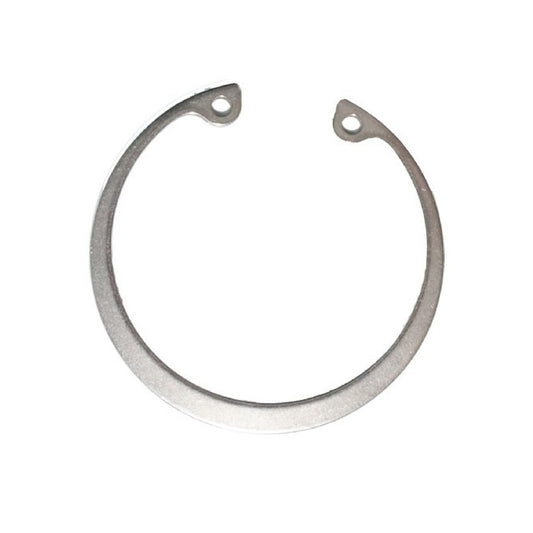

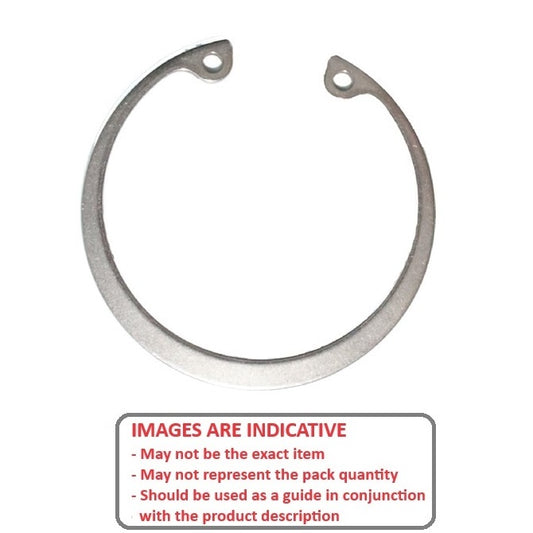

Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4
Housing Bore (B)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip OD (Dr)	Indicative Image
Housing Bore (B) 20.64 mm _{(0.813 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 21.89 mm + 0.00 / - 0.06 _{(0.862 in.)}	Approx. Loose Circlip OD (Dr) 22.89 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.45 mm Clearance in Groove (C1): 13.46 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 1.91 Standard: MIL-16625
Part Number: CCI-02064-S15 (4 Pcs) Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Per 4 View the product page first if you are unsure.
CCI-02064-S15 (4 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo CCI-02064-S15 (4 Pcs) --- Internal Retaining Rings - 20.64x1.07x21.89 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.32 AUD Regular price Sale price $20.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $105.32 AUD Regular price Sale price $105.32 AUD Unit price per Per 50
Housing Bore (B) 21.00 mm _{(0.827 in.)}	Clip Thickness (T) 1.00 mm + 0.13 / - 0.00 _{(0.039 in.)}	Groove Dia. (Dg) 22.00 mm + 0.00 / - 0.06 _{(0.866 in.)}	Approx. Loose Circlip OD (Dr) 22.50 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 12.20 mm Clearance in Groove (C1): 13.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: DIN472
Part Number: CCI-02100-S15 (50 Pcs) Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $105.32 AUD Regular price Sale price $105.32 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02100-S15 (50 Pcs) --- Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo CCI-02100-S15 (50 Pcs) --- Internal Retaining Rings - 21x1x22 mm - Stainless Steel Grade PH15-7 Mo Regular price $105.32 AUD Regular price Sale price $105.32 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625
Part Number: CCI-02200N-S15 Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.00 mm +/- 0.075 _{(0.039 in.)}	Groove Dia. (Dg) 23.00 mm + 0.00 / - 0.06 _{(0.906 in.)}	Approx. Loose Circlip OD (Dr) 23.50 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.20 mm Clearance in Groove (C1): 14.60 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.50 Standard: MIL-16625
Part Number: CCI-02200N-S15 Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Each View the product page first if you are unsure.
CCI-02200N-S15 --- Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo CCI-02200N-S15 --- Internal Retaining Rings - 22x1x23 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.59 AUD Regular price Sale price $7.59 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.07 mm + 0.13 / - 0.00 _{(0.042 in.)}	Groove Dia. (Dg) 23.37 mm + 0.00 / - 0.06 _{(0.92 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13		Groove Width (W) 1.10 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Standard: DIN472
Part Number: CCI-02200-S15 (50 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Per 50
Housing Bore (B) 22.00 mm _{(0.866 in.)}	Clip Thickness (T) 1.07 mm + 0.13 / - 0.00 _{(0.042 in.)}	Groove Dia. (Dg) 23.37 mm + 0.00 / - 0.06 _{(0.92 in.)}	Approx. Loose Circlip OD (Dr) 24.41 mm + 0.42 / - 0.13
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.72 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.06 Standard: DIN472
Part Number: CCI-02200-S15 (50 Pcs) Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-02200-S15 (50 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo CCI-02200-S15 (50 Pcs) --- Internal Retaining Rings - 22x1.07x23.37 mm - Stainless Steel Grade PH15-7 Mo Regular price $108.68 AUD Regular price Sale price $108.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 23.65 mm + 0.00 / - 0.06 _{(0.931 in.)}	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-S15 Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo 18 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each
Housing Bore (B) 22.23 mm _{(0.875 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 23.65 mm + 0.00 / - 0.06 _{(0.931 in.)}	Approx. Loose Circlip OD (Dr) 24.66 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 13.97 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.13 Standard: MIL-16625
Part Number: CCI-02223-S15 Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo 18 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per Each View the product page first if you are unsure.
CCI-02223-S15 --- Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo CCI-02223-S15 --- Internal Retaining Rings - 22.23x1.07x23.65 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.14 AUD Regular price Sale price $7.14 AUD Unit price per 18 Available Now
Housing Bore (B) 22.89 mm _{(0.901 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 24.36 mm + 0.00 / - 0.06 _{(0.959 in.)}	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625
Part Number: CCI-02289-S15 (250 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,132.41 AUD Regular price Sale price $2,132.41 AUD Unit price per Per 250
Housing Bore (B) 22.89 mm _{(0.901 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 24.36 mm + 0.00 / - 0.06 _{(0.959 in.)}	Approx. Loose Circlip OD (Dr) 25.40 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.73 mm Clearance in Groove (C1): 16.00 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.21 Standard: MIL-16625
Part Number: CCI-02289-S15 (250 Pcs) Internal Retaining Rings - 22.89x1.07x24.36 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,132.41 AUD Regular price Sale price $2,132.41 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-02289-S15 (250 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm - Stainless Steel Grade PH15-7 Mo CCI-02289-S15 (250 Pcs) --- Internal Retaining Rings - 22.89x1.07x24.36 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,132.41 AUD Regular price Sale price $2,132.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 24.10 mm + 0.00 / - 0.06 _{(0.949 in.)}	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472
Part Number: CCI-02300-S15 Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo 44 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each
Housing Bore (B) 23.00 mm _{(0.906 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 24.10 mm + 0.00 / - 0.06 _{(0.949 in.)}	Approx. Loose Circlip OD (Dr) 24.60 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.20 mm Clearance in Groove (C1): 15.70 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.70 Standard: DIN472
Part Number: CCI-02300-S15 Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo 44 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each View the product page first if you are unsure.
CCI-02300-S15 --- Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo CCI-02300-S15 --- Internal Retaining Rings - 23x1.2x24.1 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 44 Available Now
Housing Bore (B) 23.81 mm _{(0.937 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 25.40 mm + 0.00 / - 0.06 _{(1 in.)}	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-S15 Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
Housing Bore (B) 23.81 mm _{(0.937 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 25.40 mm + 0.00 / - 0.06 _{(1 in.)}	Approx. Loose Circlip OD (Dr) 26.44 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.49 mm Clearance in Groove (C1): 17.02 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.36 Standard: MIL-16625
Part Number: CCI-02381-S15 Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
CCI-02381-S15 --- Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo CCI-02381-S15 --- Internal Retaining Rings - 23.81x1.07x25.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 2 Available Now
Housing Bore (B) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 25.20 mm + 0.00 / - 0.06 _{(0.992 in.)}	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02400-S15 (3 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Per 3
Housing Bore (B) 24.00 mm _{(0.945 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 25.20 mm + 0.00 / - 0.06 _{(0.992 in.)}	Approx. Loose Circlip OD (Dr) 25.90 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 14.80 mm Clearance in Groove (C1): 16.40 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02400-S15 (3 Pcs) Internal Retaining Rings - 24x1.2x25.2 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02400-S15 (3 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm - Stainless Steel Grade PH15-7 Mo CCI-02400-S15 (3 Pcs) --- Internal Retaining Rings - 24x1.2x25.2 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.23 AUD Regular price Sale price $23.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 26.20 mm + 0.00 / - 0.06 _{(1.031 in.)}	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02500-S15 Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo 4 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each
Housing Bore (B) 25.00 mm _{(0.984 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 26.20 mm + 0.00 / - 0.06 _{(1.031 in.)}	Approx. Loose Circlip OD (Dr) 26.90 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 15.50 mm Clearance in Groove (C1): 17.20 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02500-S15 Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo 4 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-02500-S15 --- Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo CCI-02500-S15 --- Internal Retaining Rings - 25x1.2x26.2 mm - Stainless Steel Grade PH15-7 Mo Regular price $7.77 AUD Regular price Sale price $7.77 AUD Unit price per 4 Available Now
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm + 0.00 / - 0.06 _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-S15 Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each
Housing Bore (B) 25.40 mm _{(1 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 27.08 mm + 0.00 / - 0.06 _{(1.066 in.)}	Approx. Loose Circlip OD (Dr) 28.22 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.27 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.51 Standard: MIL-16625
Part Number: CCI-02540-S15 Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo 2 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Each View the product page first if you are unsure.
CCI-02540-S15 --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo CCI-02540-S15 --- Internal Retaining Rings - 25.4x1.07x27.08 mm - Stainless Steel Grade PH15-7 Mo Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 2 Available Now
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 27.71 mm + 0.00 / - 0.06 _{(1.091 in.)}	Approx. Loose Circlip OD (Dr) 28.85 mm + 0.38 / - 0.25		Groove Width (W) 1.17 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02598-S15 (3 Pcs) Internal Retaining Rings - 25.98x1.07x27.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Per 3
Housing Bore (B) 25.98 mm _{(1.023 in.)}	Clip Thickness (T) 1.07 mm +/- 0.075 _{(0.042 in.)}	Groove Dia. (Dg) 27.71 mm + 0.00 / - 0.06 _{(1.091 in.)}	Approx. Loose Circlip OD (Dr) 28.85 mm + 0.38 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.17 mm + 0.08 / - 0.00 Clearance in Bore (C): 17.78 mm Clearance in Groove (C1): 19.30 mm Min. Lug Diameter (h): 1.52 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02598-S15 (3 Pcs) Internal Retaining Rings - 25.98x1.07x27.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02598-S15 (3 Pcs) --- Internal Retaining Rings - 25.98x1.07x27.71 mm - Stainless Steel Grade PH15-7 Mo CCI-02598-S15 (3 Pcs) --- Internal Retaining Rings - 25.98x1.07x27.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $18.14 AUD Regular price Sale price $18.14 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 26.00 mm _{(1.024 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 27.20 mm + 0.00 / - 0.06 _{(1.071 in.)}	Approx. Loose Circlip OD (Dr) 27.90 mm + 0.42 / - 0.21		Groove Width (W) 1.30 mm + 0.08 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 16.10 mm Clearance in Groove (C1): 17.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02600-S15 (3 Pcs) Internal Retaining Rings - 26x1.2x27.2 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Per 3
Housing Bore (B) 26.00 mm _{(1.024 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 27.20 mm + 0.00 / - 0.06 _{(1.071 in.)}	Approx. Loose Circlip OD (Dr) 27.90 mm + 0.42 / - 0.21
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.08 / - 0.00 Clearance in Bore (C): 16.10 mm Clearance in Groove (C1): 17.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 1.80 Standard: DIN472
Part Number: CCI-02600-S15 (3 Pcs) Internal Retaining Rings - 26x1.2x27.2 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02600-S15 (3 Pcs) --- Internal Retaining Rings - 26x1.2x27.2 mm - Stainless Steel Grade PH15-7 Mo CCI-02600-S15 (3 Pcs) --- Internal Retaining Rings - 26x1.2x27.2 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 26.99 mm _{(1.063 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 28.70 mm + 0.00 / - 0.06 _{(1.13 in.)}	Approx. Loose Circlip OD (Dr) 29.97 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02699-S15 (3 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.86 AUD Regular price Sale price $27.86 AUD Unit price per Per 3
Housing Bore (B) 26.99 mm _{(1.063 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 28.70 mm + 0.00 / - 0.06 _{(1.13 in.)}	Approx. Loose Circlip OD (Dr) 29.97 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.53 mm Clearance in Groove (C1): 19.05 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.59 Standard: MIL-16625
Part Number: CCI-02699-S15 (3 Pcs) Internal Retaining Rings - 26.99x1.27x28.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $27.86 AUD Regular price Sale price $27.86 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02699-S15 (3 Pcs) --- Internal Retaining Rings - 26.99x1.27x28.7 mm - Stainless Steel Grade PH15-7 Mo CCI-02699-S15 (3 Pcs) --- Internal Retaining Rings - 26.99x1.27x28.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $27.86 AUD Regular price Sale price $27.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 27.00 mm _{(1.063 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 28.40 mm + 0.00 / - 0.06 _{(1.118 in.)}	Approx. Loose Circlip OD (Dr) 29.10 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.10 mm Clearance in Groove (C1): 19.00 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02700-S15 (5 Pcs) Internal Retaining Rings - 27x1.2x28.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Per 5
Housing Bore (B) 27.00 mm _{(1.063 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 28.40 mm + 0.00 / - 0.06 _{(1.118 in.)}	Approx. Loose Circlip OD (Dr) 29.10 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.10 mm Clearance in Groove (C1): 19.00 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02700-S15 (5 Pcs) Internal Retaining Rings - 27x1.2x28.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-02700-S15 (5 Pcs) --- Internal Retaining Rings - 27x1.2x28.4 mm - Stainless Steel Grade PH15-7 Mo CCI-02700-S15 (5 Pcs) --- Internal Retaining Rings - 27x1.2x28.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.05 AUD Regular price Sale price $20.05 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 28.00 mm _{(1.102 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 29.40 mm + 0.00 / - 0.06 _{(1.157 in.)}	Approx. Loose Circlip OD (Dr) 30.10 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 17.90 mm Clearance in Groove (C1): 19.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02800-S15 (5 Pcs) Internal Retaining Rings - 28x1.2x29.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Per 5
Housing Bore (B) 28.00 mm _{(1.102 in.)}	Clip Thickness (T) 1.20 mm + 0.21 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 29.40 mm + 0.00 / - 0.06 _{(1.157 in.)}	Approx. Loose Circlip OD (Dr) 30.10 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 17.90 mm Clearance in Groove (C1): 19.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02800-S15 (5 Pcs) Internal Retaining Rings - 28x1.2x29.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-02800-S15 (5 Pcs) --- Internal Retaining Rings - 28x1.2x29.4 mm - Stainless Steel Grade PH15-7 Mo CCI-02800-S15 (5 Pcs) --- Internal Retaining Rings - 28x1.2x29.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $20.68 AUD Regular price Sale price $20.68 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 30.40 mm + 0.00 / - 0.06 _{(1.197 in.)}	Approx. Loose Circlip OD (Dr) 31.72 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625
Part Number: CCI-02858-S15 (3 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 3
Housing Bore (B) 28.58 mm _{(1.125 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 30.40 mm + 0.00 / - 0.06 _{(1.197 in.)}	Approx. Loose Circlip OD (Dr) 31.72 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 19.05 mm Clearance in Groove (C1): 20.83 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.74 Standard: MIL-16625
Part Number: CCI-02858-S15 (3 Pcs) Internal Retaining Rings - 28.58x1.27x30.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02858-S15 (3 Pcs) --- Internal Retaining Rings - 28.58x1.27x30.4 mm - Stainless Steel Grade PH15-7 Mo CCI-02858-S15 (3 Pcs) --- Internal Retaining Rings - 28.58x1.27x30.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 29.00 mm _{(1.142 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 30.40 mm + 0.00 / - 0.06 _{(1.197 in.)}	Approx. Loose Circlip OD (Dr) 31.10 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 18.90 mm Clearance in Groove (C1): 20.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02900-S15 (3 Pcs) Internal Retaining Rings - 29x1.2x30.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Per 3
Housing Bore (B) 29.00 mm _{(1.142 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 30.40 mm + 0.00 / - 0.06 _{(1.197 in.)}	Approx. Loose Circlip OD (Dr) 31.10 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 18.90 mm Clearance in Groove (C1): 20.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-02900-S15 (3 Pcs) Internal Retaining Rings - 29x1.2x30.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-02900-S15 (3 Pcs) --- Internal Retaining Rings - 29x1.2x30.4 mm - Stainless Steel Grade PH15-7 Mo CCI-02900-S15 (3 Pcs) --- Internal Retaining Rings - 29x1.2x30.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $24.41 AUD Regular price Sale price $24.41 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 30.00 mm _{(1.181 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 31.40 mm + 0.00 / - 0.06 _{(1.236 in.)}	Approx. Loose Circlip OD (Dr) 32.10 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 19.90 mm Clearance in Groove (C1): 21.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-03000-S15 (3 Pcs) Internal Retaining Rings - 30x1.2x31.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Per 3
Housing Bore (B) 30.00 mm _{(1.181 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 31.40 mm + 0.00 / - 0.06 _{(1.236 in.)}	Approx. Loose Circlip OD (Dr) 32.10 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 19.90 mm Clearance in Groove (C1): 21.80 mm Min. Lug Diameter (h): 2.00 mm Min. Extension (n): 2.10 Standard: DIN472
Part Number: CCI-03000-S15 (3 Pcs) Internal Retaining Rings - 30x1.2x31.4 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-03000-S15 (3 Pcs) --- Internal Retaining Rings - 30x1.2x31.4 mm - Stainless Steel Grade PH15-7 Mo CCI-03000-S15 (3 Pcs) --- Internal Retaining Rings - 30x1.2x31.4 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.86 AUD Regular price Sale price $23.86 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 30.16 mm _{(1.187 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 32.05 mm + 0.00 / - 0.06 _{(1.262 in.)}	Approx. Loose Circlip OD (Dr) 33.50 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 20.57 mm Clearance in Groove (C1): 22.35 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.82 Standard: MIL-16625
Part Number: CCI-03016-S15 (50 Pcs) Internal Retaining Rings - 30.16x1.27x32.05 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 02, 2025 Regular price $565.23 AUD Regular price Sale price $565.23 AUD Unit price per Per 50
Housing Bore (B) 30.16 mm _{(1.187 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 32.05 mm + 0.00 / - 0.06 _{(1.262 in.)}	Approx. Loose Circlip OD (Dr) 33.50 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.57 mm Clearance in Groove (C1): 22.35 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 2.82 Standard: MIL-16625
Part Number: CCI-03016-S15 (50 Pcs) Internal Retaining Rings - 30.16x1.27x32.05 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Wed, Jul 02, 2025 Regular price $565.23 AUD Regular price Sale price $565.23 AUD Unit price per Per 50 View the product page first if you are unsure.
CCI-03016-S15 (50 Pcs) --- Internal Retaining Rings - 30.16x1.27x32.05 mm - Stainless Steel Grade PH15-7 Mo CCI-03016-S15 (50 Pcs) --- Internal Retaining Rings - 30.16x1.27x32.05 mm - Stainless Steel Grade PH15-7 Mo Regular price $565.23 AUD Regular price Sale price $565.23 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.00 mm _{(1.22 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 32.70 mm + 0.00 / - 0.06 _{(1.287 in.)}	Approx. Loose Circlip OD (Dr) 33.40 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 20.00 mm Clearance in Groove (C1): 22.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03100-S15 (3 Pcs) Internal Retaining Rings - 31x1.2x32.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 3
Housing Bore (B) 31.00 mm _{(1.22 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 32.70 mm + 0.00 / - 0.06 _{(1.287 in.)}	Approx. Loose Circlip OD (Dr) 33.40 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.00 mm Clearance in Groove (C1): 22.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03100-S15 (3 Pcs) Internal Retaining Rings - 31x1.2x32.7 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Per 3 View the product page first if you are unsure.
CCI-03100-S15 (3 Pcs) --- Internal Retaining Rings - 31x1.2x32.7 mm - Stainless Steel Grade PH15-7 Mo CCI-03100-S15 (3 Pcs) --- Internal Retaining Rings - 31x1.2x32.7 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.77 AUD Regular price Sale price $23.77 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38		Groove Width (W) 1.42 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each
Housing Bore (B) 31.75 mm _{(1.25 in.)}	Clip Thickness (T) 1.27 mm +/- 0.102 _{(0.05 in.)}	Groove Dia. (Dg) 33.72 mm + 0.00 / - 0.06 _{(1.328 in.)}	Approx. Loose Circlip OD (Dr) 35.26 mm + 0.64 / - 0.38
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm + 0.10 / - 0.00 Clearance in Bore (C): 22.35 mm Clearance in Groove (C1): 24.13 mm Min. Lug Diameter (h): 1.93 mm Min. Extension (n): 3.05 Standard: MIL-16625
Part Number: CCI-03175-S15 Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo 13 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Each View the product page first if you are unsure.
CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo CCI-03175-S15 --- Internal Retaining Rings - 31.75x1.27x33.72 mm - Stainless Steel Grade PH15-7 Mo Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per 13 Available Now
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03200-S15 (5 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 5
Housing Bore (B) 32.00 mm _{(1.26 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 33.71 mm + 0.00 / - 0.06 _{(1.327 in.)}	Approx. Loose Circlip OD (Dr) 34.40 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 20.60 mm Clearance in Groove (C1): 22.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03200-S15 (5 Pcs) Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Per 5 View the product page first if you are unsure.
CCI-03200-S15 (5 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo CCI-03200-S15 (5 Pcs) --- Internal Retaining Rings - 32x1.2x33.71 mm - Stainless Steel Grade PH15-7 Mo Regular price $23.95 AUD Regular price Sale price $23.95 AUD Unit price per Out of stock! Backorder Now
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25		Groove Width (W) 1.30 mm + 0.10 / - 0.00
Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03300-S15 (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Per 250
Housing Bore (B) 33.00 mm _{(1.299 in.)}	Clip Thickness (T) 1.20 mm + 0.25 / - 0.00 _{(0.047 in.)}	Groove Dia. (Dg) 34.78 mm + 0.00 / - 0.06 _{(1.369 in.)}	Approx. Loose Circlip OD (Dr) 35.50 mm + 0.50 / - 0.25
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.30 mm + 0.10 / - 0.00 Clearance in Bore (C): 21.60 mm Clearance in Groove (C1): 23.90 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 2.60 Standard: DIN472
Part Number: CCI-03300-S15 (250 Pcs) Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Out of Stock \| Backorder Now \| Orders can be expected around Fri, Aug 08, 2025 Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Per 250 View the product page first if you are unsure.
CCI-03300-S15 (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo CCI-03300-S15 (250 Pcs) --- Internal Retaining Rings - 33x1.2x34.78 mm - Stainless Steel Grade PH15-7 Mo Regular price $2,157.41 AUD Regular price Sale price $2,157.41 AUD Unit price per Out of stock! Backorder Now
