| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

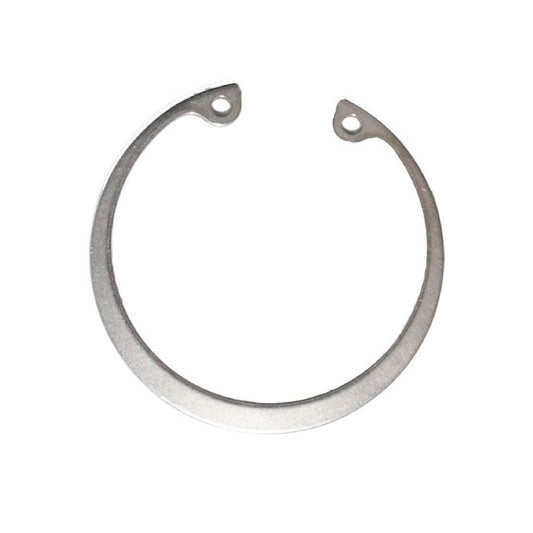

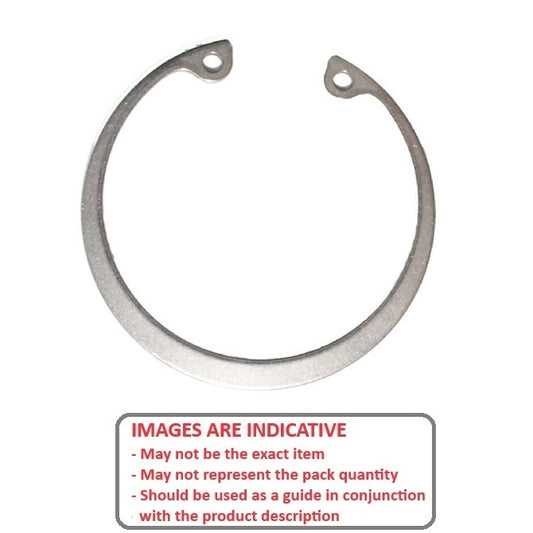

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 92x3x95.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
92.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.35 / - 0.00 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 73.70 mm Clearance in Groove (C1): 78.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09200-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 92x3x95.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
92.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.35 / - 0.00 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 73.70 mm Clearance in Groove (C1): 78.10 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09200-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029 |
||||||
| Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
92.08
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm +/- 0.152 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 74.17 mm Clearance in Groove (C1): 79.50 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.23 | ||||||
|
Part Number: CCI-09208-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026 Regular price
$233.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
92.08
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm +/- 0.152 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 74.17 mm Clearance in Groove (C1): 79.50 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.23 | ||||||
|
Part Number: CCI-09208-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026 Regular price
$233.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 95x3x98.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
95.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.50
mm + 0.35 / - 0.00 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 76.50 mm Clearance in Groove (C1): 80.90 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09500-S15 (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Sep 24, 2026 Regular price
$513.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 95x3x98.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
95.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.50
mm + 0.35 / - 0.00 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 76.50 mm Clearance in Groove (C1): 80.90 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09500-S15 (PK-10)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Sep 24, 2026 Regular price
$513.68 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
95.25
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm +/- 0.152 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
105.59
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 77.22 mm Clearance in Groove (C1): 81.69 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.53 | ||||||
|
Part Number: CCI-09525-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026 Regular price
$249.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
95.25
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm +/- 0.152 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
105.59
mm + 1.65 / - 1.65 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 77.22 mm Clearance in Groove (C1): 81.69 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.53 | ||||||
|
Part Number: CCI-09525-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026 Regular price
$249.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
98.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.35 / - 0.00 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 79.00 mm Clearance in Groove (C1): 83.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
98.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.35 / - 0.00 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 79.00 mm Clearance in Groove (C1): 83.50 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09800-S15 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029 |
||||||
| Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
98.43
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.152 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
108.99
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 | ||||||
|
Part Number: CCI-09843-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026 Regular price
$263.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
98.43
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.152 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
108.99
mm + 1.65 / - 1.65 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Clearance in Bore (C): 80.52 mm Clearance in Groove (C1): 86.36 mm Min. Lug Diameter (h): 3.12 mm Min. Extension (n): 8.84 | ||||||
|
Part Number: CCI-09843-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Jul 13, 2026 Regular price
$263.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
100.01
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.10 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.152 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.99
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 10 |
||||||
|
Part Number: CCI-10001-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026 Regular price
$101.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
100.01
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.10 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.152 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.99
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 10 |
||||||
|
Part Number: CCI-10001-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026 Regular price
$101.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 110x4x114 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
110.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
114.00
mm + 0.54 / - 0.00 (Equiv. 4.488 in.) |
Approx. Loose Circlip OD (Dr)
117.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 88.20 mm
Clearance in Groove (C1): 93.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 3 |
||||||
|
Part Number: CCI-11000-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026 Regular price
$129.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 110x4x114 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
110.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
114.00
mm + 0.54 / - 0.00 (Equiv. 4.488 in.) |
Approx. Loose Circlip OD (Dr)
117.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 88.20 mm
Clearance in Groove (C1): 93.20 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 3 |
||||||
|
Part Number: CCI-11000-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026 Regular price
$129.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 110.01x2.77x116 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
110.01
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.10 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
116.00
mm +/- 0.152 (Equiv. 4.567 in.) |
Approx. Loose Circlip OD (Dr)
120.80
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 88.20 mm
Clearance in Groove (C1): 93.20 mm
Min. Lug Diameter (h): 2.50 mm
Min. Extension (n): 6.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 10 |
||||||
|
Part Number: CCI-11001N-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026 Regular price
$118.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 110.01x2.77x116 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
110.01
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.10 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
116.00
mm +/- 0.152 (Equiv. 4.567 in.) |
Approx. Loose Circlip OD (Dr)
120.80
mm + 1.65 / - 1.65 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 88.20 mm
Clearance in Groove (C1): 93.20 mm
Min. Lug Diameter (h): 2.50 mm
Min. Extension (n): 6.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 10 |
||||||
|
Part Number: CCI-11001N-S15 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Jul 02, 2026 Regular price
$118.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 120.65x2.77x126.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
120.65
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.10 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
126.21
mm +/- 0.152 (Equiv. 4.969 in.) |
Approx. Loose Circlip OD (Dr)
129.03
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
| Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16625 | ||||||
|
Part Number: CCI-12065-S15 (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 29, 2026 Regular price
$411.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 120.65x2.77x126.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip | ||||||
|
Housing Bore (B)
120.65
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.10 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
126.21
mm +/- 0.152 (Equiv. 4.969 in.) |
Approx. Loose Circlip OD (Dr)
129.03
mm + 1.65 / - 1.65 |
|
||
| Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 3.05 mm + 0.13 / - 0.00 Standard: MIL-16625 | ||||||
|
Part Number: CCI-12065-S15 (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Sat, Aug 29, 2026 Regular price
$411.86 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
