| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

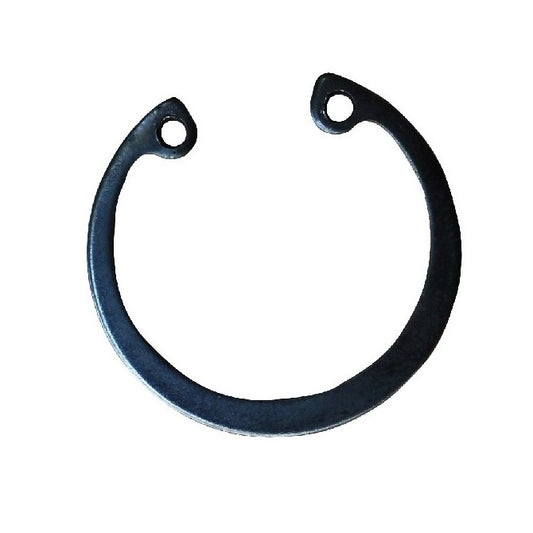

Indicative Image |
|---|---|---|---|---|---|---|
| Internal Retaining Rings - 90x4x93.5 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
90.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
93.50
mm + 0.35 / - 0.00 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-09000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
| Internal Retaining Rings - 90x4x93.5 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
90.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
93.50
mm + 0.35 / - 0.00 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-09000H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029 |
||||||
| Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.152 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
Groove Width (W)
2.62
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 61.72 mm
Clearance in Groove (C1): 66.04 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.93
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1656 |
||||||
|
Part Number: CCI-07620-C (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$12.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 76.2x2.36x80.82 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
76.20
mm |
Clip Thickness (T)
2.36
mm + 0.00 / - 0.07 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
80.82
mm +/- 0.152 (Equiv. 3.182 in.) |
Approx. Loose Circlip OD (Dr)
84.46
mm + 1.02 / - 0.76 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.62 mm + 0.13 / - 0.00
Clearance in Bore (C): 61.72 mm
Clearance in Groove (C1): 66.04 mm
Min. Lug Diameter (h): 2.74 mm
Min. Extension (n): 6.93
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1656 |
||||||
|
Part Number: CCI-07620-C (PK-3)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$12.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 3 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
92.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.35 / - 0.00 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 73.70 mm
Clearance in Groove (C1): 78.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 79 |
||||||
|
Part Number: CCI-09200-C (PK-250)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$1,571.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
92.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.35 / - 0.00 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 73.70 mm
Clearance in Groove (C1): 78.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 79 |
||||||
|
Part Number: CCI-09200-C (PK-250)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$1,571.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 250 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
77.79
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.07 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.152 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
86.82
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 62.48 mm
Clearance in Groove (C1): 67.06 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.09
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 440 |
||||||
|
Part Number: CCI-07779-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$11.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 77.79x2.77x82.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
77.79
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.07 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
82.50
mm +/- 0.152 (Equiv. 3.248 in.) |
Approx. Loose Circlip OD (Dr)
86.82
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 62.48 mm
Clearance in Groove (C1): 67.06 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.09
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 440 |
||||||
|
Part Number: CCI-07779-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$11.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
78.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
81.00
mm + 0.35 / - 0.00 (Equiv. 3.189 in.) |
Approx. Loose Circlip OD (Dr)
82.50
mm + 1.30 / - 0.54 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 60.10 mm
Clearance in Groove (C1): 64.00 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 188 |
||||||
|
Part Number: CCI-07800-C (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$15.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 78x2.5x81 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
78.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.07 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
81.00
mm + 0.35 / - 0.00 (Equiv. 3.189 in.) |
Approx. Loose Circlip OD (Dr)
82.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 60.10 mm
Clearance in Groove (C1): 64.00 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 4.50
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 188 |
||||||
|
Part Number: CCI-07800-C (PK-5)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$15.77 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 5 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
79.38
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm +/- 0.152 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 64.01 mm
Clearance in Groove (C1): 68.83 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.24
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 195 |
||||||
|
Part Number: CCI-07938-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 79.38x2.77x84.2 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
79.38
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
84.20
mm +/- 0.152 (Equiv. 3.315 in.) |
Approx. Loose Circlip OD (Dr)
88.60
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 64.01 mm
Clearance in Groove (C1): 68.83 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.24
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 195 |
||||||
|
Part Number: CCI-07938-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
79.98
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.04
mm +/- 0.152 (Equiv. 3.348 in.) |
Approx. Loose Circlip OD (Dr)
89.48
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 64.77 mm
Clearance in Groove (C1): 69.60 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.32
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 999 |
||||||
|
Part Number: CCI-07998-C (Each)
2 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 79.98x2.77x85.04 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
79.98
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
85.04
mm +/- 0.152 (Equiv. 3.348 in.) |
Approx. Loose Circlip OD (Dr)
89.48
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 64.77 mm
Clearance in Groove (C1): 69.60 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.32
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 999 |
||||||
|
Part Number: CCI-07998-C (Each)
2 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 95x4x98.5 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
95.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
98.50
mm + 0.35 / - 0.00 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-09500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 95x4x98.5 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
95.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
98.50
mm + 0.35 / - 0.00 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-09500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029 |
||||||
| Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
97.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
100.50
mm + 0.35 / - 0.00 (Equiv. 3.957 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel phosphate and oil finish Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
97.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
100.50
mm + 0.35 / - 0.00 (Equiv. 3.957 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 3.15 mm + 0.13 / - 0.00 Min. Extension (n): 5.30 Standard: DIN472 | ||||||
|
Part Number: CCI-09700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029 |
||||||
| Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
82.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
85.50
mm + 0.35 / - 0.00 (Equiv. 3.366 in.) |
Approx. Loose Circlip OD (Dr)
87.50
mm + 1.30 / - 0.54 |
Groove Width (W)
2.65
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 64.10 mm
Clearance in Groove (C1): 68.50 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 125 |
||||||
|
Part Number: CCI-08200-C (Each)
18 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 82x2.5x85.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
82.00
mm |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.08 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
85.50
mm + 0.35 / - 0.00 (Equiv. 3.366 in.) |
Approx. Loose Circlip OD (Dr)
87.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.65 mm + 0.13 / - 0.00
Clearance in Bore (C): 64.10 mm
Clearance in Groove (C1): 68.50 mm
Min. Lug Diameter (h): 3.00 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 125 |
||||||
|
Part Number: CCI-08200-C (Each)
18 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$2.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.53
mm +/- 0.152 (Equiv. 3.446 in.) |
Approx. Loose Circlip OD (Dr)
92.02
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 67.31 mm
Clearance in Groove (C1): 72.14 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.47
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1396 |
||||||
|
Part Number: CCI-08255-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$10.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 82.55x2.77x87.53 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
82.55
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
87.53
mm +/- 0.152 (Equiv. 3.446 in.) |
Approx. Loose Circlip OD (Dr)
92.02
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 67.31 mm
Clearance in Groove (C1): 72.14 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.47
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 1396 |
||||||
|
Part Number: CCI-08255-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$10.95 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
84.99
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
90.07
mm +/- 0.152 (Equiv. 3.546 in.) |
Approx. Loose Circlip OD (Dr)
94.84
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 68.33 mm
Clearance in Groove (C1): 73.41 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.62
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 874 |
||||||
|
Part Number: CCI-08499-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 84.99x2.77x90.07 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
84.99
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
90.07
mm +/- 0.152 (Equiv. 3.546 in.) |
Approx. Loose Circlip OD (Dr)
94.84
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 68.33 mm
Clearance in Groove (C1): 73.41 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.62
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 874 |
||||||
|
Part Number: CCI-08499-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$11.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 85x3x88.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
85.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
88.50
mm + 0.35 / - 0.00 (Equiv. 3.484 in.) |
Approx. Loose Circlip OD (Dr)
90.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 66.90 mm
Clearance in Groove (C1): 71.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 138 |
||||||
|
Part Number: CCI-08500-C (Each)
27 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$2.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 85x3x88.5 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
85.00
mm |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.08 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
88.50
mm + 0.35 / - 0.00 (Equiv. 3.484 in.) |
Approx. Loose Circlip OD (Dr)
90.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 66.90 mm
Clearance in Groove (C1): 71.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 138 |
||||||
|
Part Number: CCI-08500-C (Each)
27 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$2.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
102.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.54 / - 0.00 (Equiv. 4.173 in.) |
Approx. Loose Circlip OD (Dr)
108.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 82.00 mm
Clearance in Groove (C1): 87.00 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 458 |
||||||
|
Part Number: CCI-10200-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$15.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
102.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.54 / - 0.00 (Equiv. 4.173 in.) |
Approx. Loose Circlip OD (Dr)
108.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.00 mm
Clearance in Groove (C1): 87.00 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 458 |
||||||
|
Part Number: CCI-10200-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$15.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 103x4x108 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
103.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
108.00
mm + 0.54 / - 0.00 (Equiv. 4.252 in.) |
Approx. Loose Circlip OD (Dr)
110.76
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Clearance in Bore (C): 83.00 mm Clearance in Groove (C1): 88.00 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10300-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 103x4x108 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
103.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
108.00
mm + 0.54 / - 0.00 (Equiv. 4.252 in.) |
Approx. Loose Circlip OD (Dr)
110.76
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 83.00 mm Clearance in Groove (C1): 88.00 mm Min. Lug Diameter (h): 3.500 mm Min. Extension (n): 6.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10300-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029 |
||||||
| Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
88.11
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm +/- 0.152 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 139 |
||||||
|
Part Number: CCI-08811-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$15.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
88.11
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm +/- 0.152 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 139 |
||||||
|
Part Number: CCI-08811-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$15.59 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
88.90
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.152 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 669 |
||||||
|
Part Number: CCI-08890-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$14.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
88.90
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm +/- 0.152 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 669 |
||||||
|
Part Number: CCI-08890-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$14.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 105x4x409 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
105.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
409.00
mm + 0.54 / - 0.00 (Equiv. 16.102 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 85.00 mm
Clearance in Groove (C1): 90.00 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 212 |
||||||
|
Part Number: CCI-10500-C (Each)
22 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 105x4x409 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
105.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
409.00
mm + 0.54 / - 0.00 (Equiv. 16.102 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 85.00 mm
Clearance in Groove (C1): 90.00 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 6.00
Standard: DIN472
Additional stock available from USA subject to Prior Sale = 212 |
||||||
|
Part Number: CCI-10500-C (Each)
22 Available Now | Further orders can be expected around Thu, Aug 13, 2026 Regular price
$5.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 105x5x109 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
105.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
109.00
mm + 0.54 / - 0.00 (Equiv. 4.291 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
Groove Width (W)
5.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-10500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 105x5x109 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
105.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
109.00
mm + 0.54 / - 0.00 (Equiv. 4.291 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.13 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10500H-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029 |
||||||
| Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
89.99
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm +/- 0.152 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
99.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 72.14 mm
Clearance in Groove (C1): 77.98 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.15
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 3620 |
||||||
|
Part Number: CCI-08999-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$13.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
89.99
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm +/- 0.152 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
99.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 72.14 mm
Clearance in Groove (C1): 77.98 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.15
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 3620 |
||||||
|
Part Number: CCI-08999-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$13.14 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 107x4x111 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
107.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.54 / - 0.00 (Equiv. 4.37 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel phosphate and oil finish Min. Extension (n): 6.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Internal Retaining Rings - 107x4x111 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip | ||||||
|
Housing Bore (B)
107.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.54 / - 0.00 (Equiv. 4.37 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel phosphate and oil finish Groove Width (W): 4.15 mm + 0.13 / - 0.00 Min. Extension (n): 6.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10700-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Apr 10, 2029 |
||||||
| Internal Retaining Rings - 108x4x112 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
108.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
112.00
mm + 0.54 / - 0.00 (Equiv. 4.409 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Steel Clearance in Bore (C): 88.00 mm Clearance in Groove (C1): 93.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10800-C (PK-25)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Oct 04, 2026 Regular price
$191.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 108x4x112 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
108.00
mm |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.10 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
112.00
mm + 0.54 / - 0.00 (Equiv. 4.409 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Steel Groove Width (W): 4.15 mm + 0.13 / - 0.00 Clearance in Bore (C): 88.00 mm Clearance in Groove (C1): 93.00 mm Min. Lug Diameter (h): 3.50 mm Min. Extension (n): 6.00 Standard: DIN472 | ||||||
|
Part Number: CCI-10800-C (PK-25)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Oct 04, 2026 Regular price
$191.50 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 25 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 110x5x114 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
110.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
114.00
mm + 0.54 / - 0.00 (Equiv. 4.488 in.) |
Approx. Loose Circlip OD (Dr)
117.00
mm + 1.30 / - 0.54 |
Groove Width (W)
5.15
mm + 0.13 / - 0.00 |
|
|
| Material: Carbon Spring Steel Self Finish Standard: DIN472 | ||||||
|
Part Number: CCI-11000H-C (PK-13)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Oct 12, 2026 Regular price
$184.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 13 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 110x5x114 mm Circlips - Carbon Spring Steel Self Finish Circlip | ||||||
|
Housing Bore (B)
110.00
mm |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.12 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
114.00
mm + 0.54 / - 0.00 (Equiv. 4.488 in.) |
Approx. Loose Circlip OD (Dr)
117.00
mm + 1.30 / - 0.54 |
|
||
| Material: Carbon Spring Steel Self Finish Groove Width (W): 5.15 mm + 0.13 / - 0.00 Standard: DIN472 | ||||||
|
Part Number: CCI-11000H-C (PK-13)
Out of Stock | Backorder Now | Backorder now for delivery around Mon, Oct 12, 2026 Regular price
$184.41 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 13 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
| Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
92.08
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm +/- 0.152 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 74.17 mm
Clearance in Groove (C1): 79.50 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.23
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 246 |
||||||
|
Part Number: CCI-09208-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$18.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
| Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip | ||||||
|
Housing Bore (B)
92.08
mm |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.08 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm +/- 0.152 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 74.17 mm
Clearance in Groove (C1): 79.50 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.23
Standard: MIL-16625
Additional stock available from USA subject to Prior Sale = 246 |
||||||
|
Part Number: CCI-09208-C (PK-2)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026 Regular price
$18.23 AUD
Regular price
Unit price
per
Priced, Stocked and Sold Per 2 Units
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
