| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

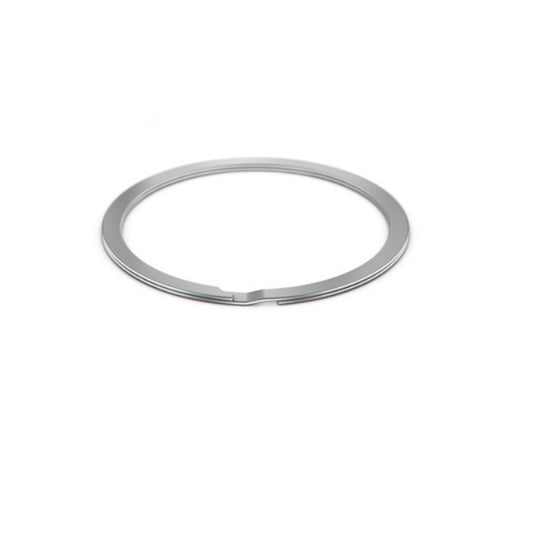

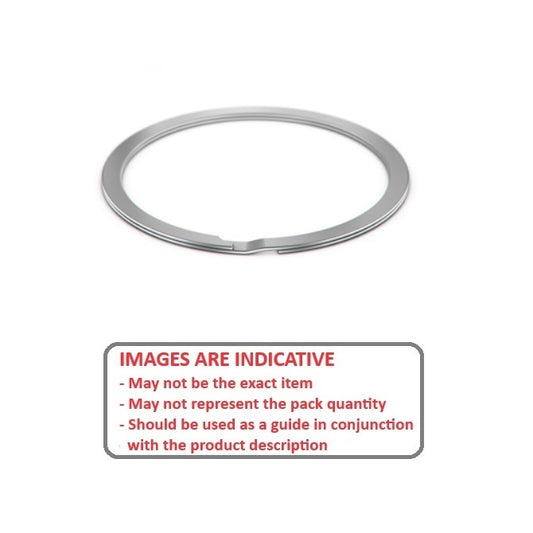

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
73.76
mm (Equiv. 2.904 in.) |
Approx. Loose Circlip ID (A)
71.63
mm + 0.00 / - 0.76 |
Radial Wall (S) min/max
4.27
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 80.17 +/- 0.06
Groove Depth (d): 1.22
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel |
||||||
|
Part Number: RS-300-S02 (100 Pcs)
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
73.76
mm (Equiv. 2.904 in.) |
Approx. Loose Circlip ID (A)
71.63
mm + 0.00 / - 0.76 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) min/max: 4.27 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip OD: 80.17 +/- 0.06
Groove Depth (d): 1.22
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel |
||||||
|
Part Number: RS-300-S02 (100 Pcs)
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$10.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
73.76
mm (Equiv. 2.904 in.) |
Approx. Loose Circlip ID (A)
71.63
mm + 0.00 / - 0.76 |
Radial Wall (S) min/max
4.27
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 80.17 +/- 0.06
Groove Depth (d): 1.22
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-300 (5 Pcs)
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$26.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 5
|
||||||
|
Shaft Diameter (Ds)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
73.76
mm (Equiv. 2.904 in.) |
Approx. Loose Circlip ID (A)
71.63
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 4.27 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip OD: 80.17 +/- 0.06
Groove Depth (d): 1.22
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-300 (5 Pcs)
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$26.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
80.95
mm (Equiv. 3.187 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
78.46
mm (Equiv. 3.089 in.) |
Approx. Loose Circlip ID (A)
76.09
mm + 0.00 / - 0.76 |
Radial Wall (S) min/max
4.52
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 85.13 +/- 0.06
Groove Depth (d): 1.24
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel |
||||||
|
Part Number: RS-318-S02
External Retaining Rings - 80.95x1.55x78.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$16.68 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
80.95
mm (Equiv. 3.187 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
78.46
mm (Equiv. 3.089 in.) |
Approx. Loose Circlip ID (A)
76.09
mm + 0.00 / - 0.76 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) min/max: 4.52 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip OD: 85.13 +/- 0.06
Groove Depth (d): 1.24
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel |
||||||
|
Part Number: RS-318-S02
External Retaining Rings - 80.95x1.55x78.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$16.68 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
84.12
mm (Equiv. 3.312 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
81.49
mm (Equiv. 3.208 in.) |
Approx. Loose Circlip ID (A)
79.07
mm + 0.00 / - 0.76 |
Radial Wall (S) min/max
4.78
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 88.63 +/- 0.06
Groove Depth (d): 1.32
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-331
External Retaining Rings - 84.12x1.55x81.49 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
84.12
mm (Equiv. 3.312 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
81.49
mm (Equiv. 3.208 in.) |
Approx. Loose Circlip ID (A)
79.07
mm + 0.00 / - 0.76 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 4.78 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip OD: 88.63 +/- 0.06
Groove Depth (d): 1.32
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-331
External Retaining Rings - 84.12x1.55x81.49 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
86.21
mm (Equiv. 3.394 in.) |
Approx. Loose Circlip ID (A)
83.57
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
4.78
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 93.13 +/- 0.06
Groove Depth (d): 1.35
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-350
External Retaining Rings - 88.9x1.55x86.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
86.21
mm (Equiv. 3.394 in.) |
Approx. Loose Circlip ID (A)
83.57
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 4.78 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip OD: 93.13 +/- 0.06
Groove Depth (d): 1.35
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-350
External Retaining Rings - 88.9x1.55x86.21 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
89.92
mm (Equiv. 3.54 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
87.20
mm (Equiv. 3.433 in.) |
Approx. Loose Circlip ID (A)
84.52
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 94.58 +/- 0.06
Groove Depth (d): 1.40
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-354 (50 Pcs)
External Retaining Rings - 89.92x1.55x87.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$55.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 50
|
||||||
|
Shaft Diameter (Ds)
89.92
mm (Equiv. 3.54 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
87.20
mm (Equiv. 3.433 in.) |
Approx. Loose Circlip ID (A)
84.52
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip OD: 94.58 +/- 0.06
Groove Depth (d): 1.40
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-354 (50 Pcs)
External Retaining Rings - 89.92x1.55x87.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$55.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
92.41
mm (Equiv. 3.638 in.) |
Approx. Loose Circlip ID (A)
89.54
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
5.03
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 99.6 +/- 0.06
Groove Depth (d): 1.42
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-375
External Retaining Rings - 95.25x1.55x92.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
92.41
mm (Equiv. 3.638 in.) |
Approx. Loose Circlip ID (A)
89.54
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.03 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip OD: 99.6 +/- 0.06
Groove Depth (d): 1.42
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-375
External Retaining Rings - 95.25x1.55x92.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
99.89
mm (Equiv. 3.933 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
97.03
mm (Equiv. 3.82 in.) |
Approx. Loose Circlip ID (A)
93.90
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
5.29
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 104.48 +/- 0.06
Groove Depth (d): 1.50
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-393 (2 Pcs)
External Retaining Rings - 99.89x1.55x97.03 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (8 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.24 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 2
|
||||||
|
Shaft Diameter (Ds)
99.89
mm (Equiv. 3.933 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
97.03
mm (Equiv. 3.82 in.) |
Approx. Loose Circlip ID (A)
93.90
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.29 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.15
Approx. Loose Clip OD: 104.48 +/- 0.06
Groove Depth (d): 1.50
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-393 (2 Pcs)
External Retaining Rings - 99.89x1.55x97.03 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (8 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.24 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
114.30
mm (Equiv. 4.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
110.85
mm (Equiv. 4.364 in.) |
Approx. Loose Circlip ID (A)
107.44
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
6.05
mm +/- 0.13 |
Groove Width (W)
1.79
mm +/- 0.16 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 119.54 +/- 0.06
Groove Depth (d): 1.73
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-450
External Retaining Rings - 114.3x1.55x110.85 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
114.30
mm (Equiv. 4.5 in.) |
Clip Thickness (T)
1.55
mm +/- 0.08 (Equiv. 0.061 in.) |
Groove Dia. (Dg)
110.85
mm (Equiv. 4.364 in.) |
Approx. Loose Circlip ID (A)
107.44
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.05 mm +/- 0.13
Groove Width (W): 1.79 mm +/- 0.16
Approx. Loose Clip OD: 119.54 +/- 0.06
Groove Depth (d): 1.73
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-450
External Retaining Rings - 114.3x1.55x110.85 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
115.87
mm (Equiv. 4.562 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
112.32
mm (Equiv. 4.422 in.) |
Approx. Loose Circlip ID (A)
108.92
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 121.62 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-456 (2 Pcs)
External Retaining Rings - 115.87x1.83x112.32 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$13.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 2
|
||||||
|
Shaft Diameter (Ds)
115.87
mm (Equiv. 4.562 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
112.32
mm (Equiv. 4.422 in.) |
Approx. Loose Circlip ID (A)
108.92
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.15
Approx. Loose Clip OD: 121.62 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-456 (2 Pcs)
External Retaining Rings - 115.87x1.83x112.32 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$13.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
117.48
mm (Equiv. 4.625 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
113.92
mm (Equiv. 4.485 in.) |
Approx. Loose Circlip ID (A)
110.43
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 123.13 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-462 (100 Pcs)
External Retaining Rings - 117.48x1.83x113.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
Shaft Diameter (Ds)
117.48
mm (Equiv. 4.625 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
113.92
mm (Equiv. 4.485 in.) |
Approx. Loose Circlip ID (A)
110.43
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.15
Approx. Loose Clip OD: 123.13 +/- 0.06
Groove Depth (d): 1.78
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-462 (100 Pcs)
External Retaining Rings - 117.48x1.83x113.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
123.34
mm (Equiv. 4.856 in.) |
Approx. Loose Circlip ID (A)
119.38
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 132.08 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-500
External Retaining Rings - 127x1.83x123.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
123.34
mm (Equiv. 4.856 in.) |
Approx. Loose Circlip ID (A)
119.38
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.15
Approx. Loose Clip OD: 132.08 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-500
External Retaining Rings - 127x1.83x123.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
126.34
mm (Equiv. 4.974 in.) |
Approx. Loose Circlip ID (A)
122.20
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 134.9 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-511 (100 Pcs)
External Retaining Rings - 130x1.83x126.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
126.34
mm (Equiv. 4.974 in.) |
Approx. Loose Circlip ID (A)
122.20
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.15
Approx. Loose Clip OD: 134.9 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-511 (100 Pcs)
External Retaining Rings - 130x1.83x126.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
129.72
mm (Equiv. 5.107 in.) |
Approx. Loose Circlip ID (A)
125.35
mm + 0.00 / - 1.27 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.18 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 138.05 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-525
External Retaining Rings - 133.35x1.83x129.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 Available Now | Further orders can be expected around Tue, Sep 30, 2025 Regular price
$13.23 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
129.72
mm (Equiv. 5.107 in.) |
Approx. Loose Circlip ID (A)
125.35
mm + 0.00 / - 1.27 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.18
Approx. Loose Clip OD: 138.05 +/- 0.06
Groove Depth (d): 1.83
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-525
External Retaining Rings - 133.35x1.83x129.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 Available Now | Further orders can be expected around Tue, Sep 30, 2025 Regular price
$13.23 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
135.97
mm (Equiv. 5.353 in.) |
Approx. Loose Circlip ID (A)
131.32
mm + 0.00 / - 1.27 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.17 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 144.02 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-550 (100 Pcs)
External Retaining Rings - 139.7x1.83x135.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
135.97
mm (Equiv. 5.353 in.) |
Approx. Loose Circlip ID (A)
131.32
mm + 0.00 / - 1.27 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.17
Approx. Loose Clip OD: 144.02 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-550 (100 Pcs)
External Retaining Rings - 139.7x1.83x135.97 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
142.88
mm (Equiv. 5.625 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
139.14
mm (Equiv. 5.478 in.) |
Approx. Loose Circlip ID (A)
134.31
mm + 0.00 / - 1.27 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.18 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 147.01 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-562
External Retaining Rings - 142.88x1.83x139.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$32.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
142.88
mm (Equiv. 5.625 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
139.14
mm (Equiv. 5.478 in.) |
Approx. Loose Circlip ID (A)
134.31
mm + 0.00 / - 1.27 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.18
Approx. Loose Clip OD: 147.01 +/- 0.06
Groove Depth (d): 1.88
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-562
External Retaining Rings - 142.88x1.83x139.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$32.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
148.52
mm (Equiv. 5.847 in.) |
Approx. Loose Circlip ID (A)
143.26
mm + 0.00 / - 1.27 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.17 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 155.96 +/- 0.06
Groove Depth (d): 1.96
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-600 (5 Pcs)
External Retaining Rings - 152.4x1.83x148.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$26.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 5
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
148.52
mm (Equiv. 5.847 in.) |
Approx. Loose Circlip ID (A)
143.26
mm + 0.00 / - 1.27 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.17
Approx. Loose Clip OD: 155.96 +/- 0.06
Groove Depth (d): 1.96
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-600 (5 Pcs)
External Retaining Rings - 152.4x1.83x148.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$26.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
2.19
mm +/- 0.11 (Equiv. 0.086 in.) |
Groove Dia. (Dg)
173.18
mm (Equiv. 6.818 in.) |
Approx. Loose Circlip ID (A)
167.13
mm + 0.00 / - 1.52 |
Radial Wall (S) min/max
7.93
mm +/- 0.16 |
Groove Width (W)
2.47
mm +/- 0.20 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 182.99 +/- 0.08
Groove Depth (d): 2.31
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-700
External Retaining Rings - 177.8x2.19x173.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$36.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Shaft Diameter (Ds)
177.80
mm (Equiv. 7 in.) |
Clip Thickness (T)
2.19
mm +/- 0.11 (Equiv. 0.086 in.) |
Groove Dia. (Dg)
173.18
mm (Equiv. 6.818 in.) |
Approx. Loose Circlip ID (A)
167.13
mm + 0.00 / - 1.52 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 7.93 mm +/- 0.16
Groove Width (W): 2.47 mm +/- 0.20
Approx. Loose Clip OD: 182.99 +/- 0.08
Groove Depth (d): 2.31
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-700
External Retaining Rings - 177.8x2.19x173.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$36.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
