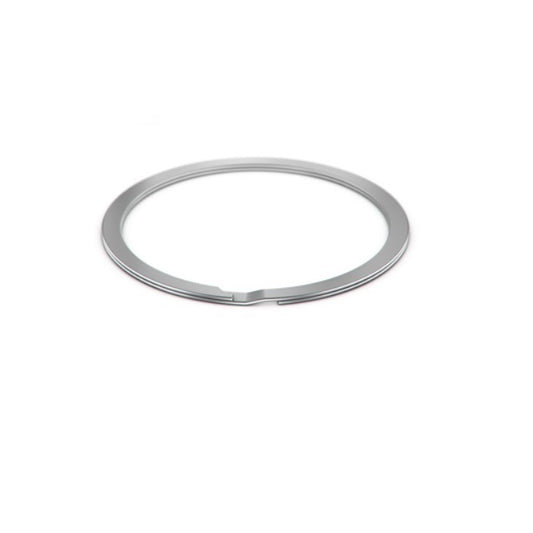

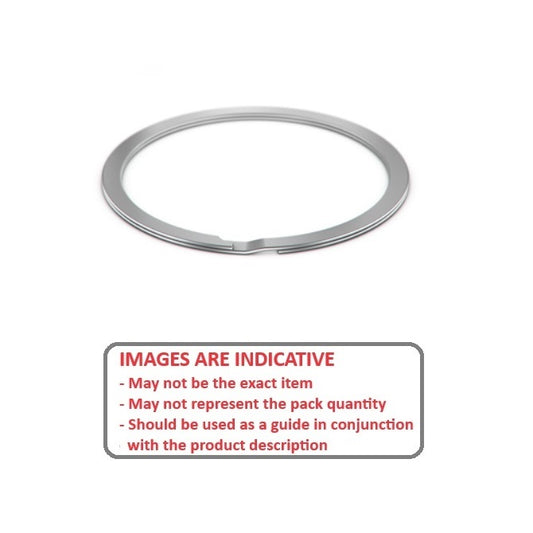

Collection: Retaining Rings - External - Spiral Rings - Medium Duty

Retaining Rings (With Images)

External

Spiral Rings

Medium-Heavy
Medium-Heavy Duty

66 Products in this selection

This is a combined category of Medium Duty Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings - Medium Duty. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 39.78 mm _{(1.566 in.)}	Approx. Loose Circlip ID (A) 38.80 mm + 0.00 / - 0.51	Radial Wall (S) min/max 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 44.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-162 External Retaining Rings - 41.28x1.25x39.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 39.78 mm _{(1.566 in.)}	Approx. Loose Circlip ID (A) 38.80 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 44.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-162 External Retaining Rings - 41.28x1.25x39.78 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Each View the product page first if you are unsure.
RS-162 --- External Retaining Rings - 41.28x1.25x39.78 mm - Spring Steel RS-162 --- External Retaining Rings - 41.28x1.25x39.78 mm - Spring Steel Regular price $8.59 AUD Regular price Sale price $8.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 39.78 mm _{(1.566 in.)}	Approx. Loose Circlip ID (A) 38.80 mm + 0.00 / - 0.51	Radial Wall (S) min/max 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 44.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-162-S02 (2 Pcs) External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 2
Shaft Diameter (Ds) 41.28 mm _{(1.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 39.78 mm _{(1.566 in.)}	Approx. Loose Circlip ID (A) 38.80 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 44.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-162-S02 (2 Pcs) External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-162-S02 (2 Pcs) --- External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-162-S02 (2 Pcs) --- External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 41.35 mm _{(1.628 in.)}	Approx. Loose Circlip ID (A) 40.28 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 46.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-168 (36 Pcs) External Retaining Rings - 42.85x1.25x41.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Per 36
Shaft Diameter (Ds) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 41.35 mm _{(1.628 in.)}	Approx. Loose Circlip ID (A) 40.28 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 46.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-168 (36 Pcs) External Retaining Rings - 42.85x1.25x41.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Per 36 View the product page first if you are unsure.
RS-168 (36 Pcs) --- External Retaining Rings - 42.85x1.25x41.35 mm - Spring Steel RS-168 (36 Pcs) --- External Retaining Rings - 42.85x1.25x41.35 mm - Spring Steel Regular price $15.77 AUD Regular price Sale price $15.77 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 41.35 mm _{(1.628 in.)}	Approx. Loose Circlip ID (A) 40.28 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 46.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-168-S02 (8 Pcs) External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Per 8
Shaft Diameter (Ds) 42.85 mm _{(1.687 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 41.35 mm _{(1.628 in.)}	Approx. Loose Circlip ID (A) 40.28 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 46.28 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-168-S02 (8 Pcs) External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Per 8 View the product page first if you are unsure.
RS-168-S02 (8 Pcs) --- External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-168-S02 (8 Pcs) --- External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $10.50 AUD Regular price Sale price $10.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.95 mm _{(1.691 in.)}	Approx. Loose Circlip ID (A) 41.78 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 47.78 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-175 External Retaining Rings - 44.45x1.25x42.95 mm - Spring Steel 16 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
Shaft Diameter (Ds) 44.45 mm _{(1.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 42.95 mm _{(1.691 in.)}	Approx. Loose Circlip ID (A) 41.78 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 47.78 +/- 0.05 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-175 External Retaining Rings - 44.45x1.25x42.95 mm - Spring Steel 16 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
RS-175 --- External Retaining Rings - 44.45x1.25x42.95 mm - Spring Steel RS-175 --- External Retaining Rings - 44.45x1.25x42.95 mm - Spring Steel Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 16 Available Now
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 45.93 mm _{(1.808 in.)}	Approx. Loose Circlip ID (A) 44.77 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 51.27 +/- 0.05 Groove Depth (d): 0.86 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-187 (5 Pcs) External Retaining Rings - 47.63x1.25x45.93 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 47.63 mm _{(1.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 45.93 mm _{(1.808 in.)}	Approx. Loose Circlip ID (A) 44.77 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 51.27 +/- 0.05 Groove Depth (d): 0.86 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-187 (5 Pcs) External Retaining Rings - 47.63x1.25x45.93 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-187 (5 Pcs) --- External Retaining Rings - 47.63x1.25x45.93 mm - Spring Steel RS-187 (5 Pcs) --- External Retaining Rings - 47.63x1.25x45.93 mm - Spring Steel Regular price $19.05 AUD Regular price Sale price $19.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 49.00 mm _{(1.929 in.)}	Approx. Loose Circlip ID (A) 47.75 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Spring Steel Approx. Loose Clip OD: 54.25 +/- 0.05 Groove Depth (d): 0.89 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-200 (2 Pcs) External Retaining Rings - 50.8x1.25x49 mm - Spring Steel 86 units (172 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 2
Shaft Diameter (Ds) 50.80 mm _{(2 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 49.00 mm _{(1.929 in.)}	Approx. Loose Circlip ID (A) 47.75 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 54.25 +/- 0.05 Groove Depth (d): 0.89 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-200 (2 Pcs) External Retaining Rings - 50.8x1.25x49 mm - Spring Steel 86 units (172 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-200 (2 Pcs) --- External Retaining Rings - 50.8x1.25x49 mm - Spring Steel RS-200 (2 Pcs) --- External Retaining Rings - 50.8x1.25x49 mm - Spring Steel Regular price $9.50 AUD Regular price Sale price $9.50 AUD Unit price per 86 Available Now
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 55.73 +/- 0.05 Groove Depth (d): 0.89 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-206-S02 External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 55.73 +/- 0.05 Groove Depth (d): 0.89 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-206-S02 External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Each View the product page first if you are unsure.
RS-206-S02 --- External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-206-S02 --- External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 55.73 +/- 0.05 Groove Depth (d): 0.89 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-206 (2 Pcs) External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 2
Shaft Diameter (Ds) 52.37 mm _{(2.062 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 50.60 mm _{(1.992 in.)}	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 55.73 +/- 0.05 Groove Depth (d): 0.89 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-206 (2 Pcs) External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-206 (2 Pcs) --- External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel RS-206 (2 Pcs) --- External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.10 mm _{(2.051 in.)}	Approx. Loose Circlip ID (A) 50.74 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 57.24 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-212 External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel 19 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.10 mm _{(2.051 in.)}	Approx. Loose Circlip ID (A) 50.74 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 57.24 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-212 External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel 19 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
RS-212 --- External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel RS-212 --- External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 19 Available Now
Shaft Diameter (Ds) 54.76 mm _{(2.156 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.89 mm _{(2.082 in.)}	Approx. Loose Circlip ID (A) 51.47 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 58.49 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-215 (3 Pcs) External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 3
Shaft Diameter (Ds) 54.76 mm _{(2.156 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.89 mm _{(2.082 in.)}	Approx. Loose Circlip ID (A) 51.47 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 58.49 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-215 (3 Pcs) External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 3 View the product page first if you are unsure.
RS-215 (3 Pcs) --- External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel RS-215 (3 Pcs) --- External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 54.86 mm _{(2.16 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.11 mm _{(2.091 in.)}	Approx. Loose Circlip ID (A) 51.57 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 58.59 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-216 (3 Pcs) External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3
Shaft Diameter (Ds) 54.86 mm _{(2.16 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.11 mm _{(2.091 in.)}	Approx. Loose Circlip ID (A) 51.57 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 58.59 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-216 (3 Pcs) External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3 View the product page first if you are unsure.
RS-216 (3 Pcs) --- External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel RS-216 (3 Pcs) --- External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 55.58 mm _{(2.188 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.67 mm _{(2.113 in.)}	Approx. Loose Circlip ID (A) 52.25 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 59.27 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-218 (24 Pcs) External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Per 24
Shaft Diameter (Ds) 55.58 mm _{(2.188 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.67 mm _{(2.113 in.)}	Approx. Loose Circlip ID (A) 52.25 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 59.27 +/- 0.05 Groove Depth (d): 0.94 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-218 (24 Pcs) External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 19, 2025 Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Per 24 View the product page first if you are unsure.
RS-218 (24 Pcs) --- External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel RS-218 (24 Pcs) --- External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.75 mm _{(2.234 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 62.22 +/- 0.05 Groove Depth (d): 0.99 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-231 (2 Pcs) External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 2
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.75 mm _{(2.234 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 62.22 +/- 0.05 Groove Depth (d): 0.99 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-231 (2 Pcs) External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-231 (2 Pcs) --- External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel RS-231 (2 Pcs) --- External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 59.99 mm _{(2.362 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.02 mm _{(2.284 in.)}	Approx. Loose Circlip ID (A) 56.39 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 63.41 +/- 0.05 Groove Depth (d): 0.99 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-236 (2 Pcs) External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel 2 units (4 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2
Shaft Diameter (Ds) 59.99 mm _{(2.362 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.02 mm _{(2.284 in.)}	Approx. Loose Circlip ID (A) 56.39 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 63.41 +/- 0.05 Groove Depth (d): 0.99 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-236 (2 Pcs) External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel 2 units (4 pcs) Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-236 (2 Pcs) --- External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel RS-236 (2 Pcs) --- External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per 2 Available Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.35 mm _{(2.297 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 63.73 +/- 0.05 Groove Depth (d): 0.99 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-237 (5 Pcs) External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.35 mm _{(2.297 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 63.73 +/- 0.05 Groove Depth (d): 0.99 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-237 (5 Pcs) External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-237 (5 Pcs) --- External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel RS-237 (5 Pcs) --- External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 61.42 mm _{(2.418 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 67.21 +/- 0.05 Groove Depth (d): 1.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-250 (5 Pcs) External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 61.42 mm _{(2.418 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 67.21 +/- 0.05 Groove Depth (d): 1.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-250 (5 Pcs) External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-250 (5 Pcs) --- External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel RS-250 (5 Pcs) --- External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 65.07 mm _{(2.562 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 62.89 mm _{(2.476 in.)}	Approx. Loose Circlip ID (A) 61.17 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 68.69 +/- 0.05 Groove Depth (d): 1.09 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-256 (100 Pcs) External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 65.07 mm _{(2.562 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 62.89 mm _{(2.476 in.)}	Approx. Loose Circlip ID (A) 61.17 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 68.69 +/- 0.05 Groove Depth (d): 1.09 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-256 (100 Pcs) External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-256 (100 Pcs) --- External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel RS-256 (100 Pcs) --- External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 64.49 mm _{(2.539 in.)}	Approx. Loose Circlip ID (A) 62.68 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 70.2 +/- 0.05 Groove Depth (d): 1.09 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-262 External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel 8 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 64.49 mm _{(2.539 in.)}	Approx. Loose Circlip ID (A) 62.68 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 70.2 +/- 0.05 Groove Depth (d): 1.09 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-262 External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel 8 Available Immediately \| Further orders can be expected around Thu, Jun 19, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each View the product page first if you are unsure.
RS-262 --- External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel RS-262 --- External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per 8 Available Now
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 67.57 mm _{(2.66 in.)}	Approx. Loose Circlip ID (A) 65.66 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 73.68 +/- 0.05 Groove Depth (d): 1.14 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-275 External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 67.57 mm _{(2.66 in.)}	Approx. Loose Circlip ID (A) 65.66 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 73.68 +/- 0.05 Groove Depth (d): 1.14 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-275 External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each View the product page first if you are unsure.
RS-275 --- External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel RS-275 --- External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 67.57 mm _{(2.66 in.)}	Approx. Loose Circlip ID (A) 65.66 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 73.68 +/- 0.05 Groove Depth (d): 1.14 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-275-S02 External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $25.95 AUD Regular price Sale price $25.95 AUD Unit price per Each
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 67.57 mm _{(2.66 in.)}	Approx. Loose Circlip ID (A) 65.66 mm + 0.00 / - 0.76
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 73.68 +/- 0.05 Groove Depth (d): 1.14 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-275-S02 External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8 Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $25.95 AUD Regular price Sale price $25.95 AUD Unit price per Each View the product page first if you are unsure.
RS-275-S02 --- External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8 RS-275-S02 --- External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $25.95 AUD Regular price Sale price $25.95 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 70.64 mm _{(2.781 in.)}	Approx. Loose Circlip ID (A) 68.65 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 1.47 mm +/- 0.15
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 77.19 +/- 0.05 Groove Depth (d): 1.19 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-287-S02 External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 16 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 70.64 mm _{(2.781 in.)}	Approx. Loose Circlip ID (A) 68.65 mm + 0.00 / - 0.76
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 77.19 +/- 0.05 Groove Depth (d): 1.19 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
Part Number: RS-287-S02 External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 16 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Each
RS-287-S02 --- External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 Sale RS-287-S02 --- External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8 Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 16 Available Now Sale
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 70.64 mm _{(2.781 in.)}	Approx. Loose Circlip ID (A) 68.65 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 77.19 +/- 0.05 Groove Depth (d): 1.19 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-287 External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel 15 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.50 AUD Regular price ~~$6.60 AUD~~ Sale price $5.50 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 70.64 mm _{(2.781 in.)}	Approx. Loose Circlip ID (A) 68.65 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 77.19 +/- 0.05 Groove Depth (d): 1.19 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-287 External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel 15 Available Immediately \| Further orders can be expected around Sat, Jun 07, 2025 Regular price $5.50 AUD Regular price ~~$6.60 AUD~~ Sale price $5.50 AUD Unit price per Each View the product page first if you are unsure.
RS-287 --- External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel Sale RS-287 --- External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel Regular price $5.50 AUD Regular price ~~$6.60 AUD~~ Sale price $5.50 AUD Unit price per 15 Available Now Sale
Shaft Diameter (Ds) 74.60 mm _{(2.937 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 72.21 mm _{(2.843 in.)}	Approx. Loose Circlip ID (A) 70.12 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 78.66 +/- 0.05 Groove Depth (d): 1.19 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-293 (100 Pcs) External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 74.60 mm _{(2.937 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 72.21 mm _{(2.843 in.)}	Approx. Loose Circlip ID (A) 70.12 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 78.66 +/- 0.05 Groove Depth (d): 1.19 Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
Part Number: RS-293 (100 Pcs) External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jun 07, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-293 (100 Pcs) --- External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel RS-293 (100 Pcs) --- External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
