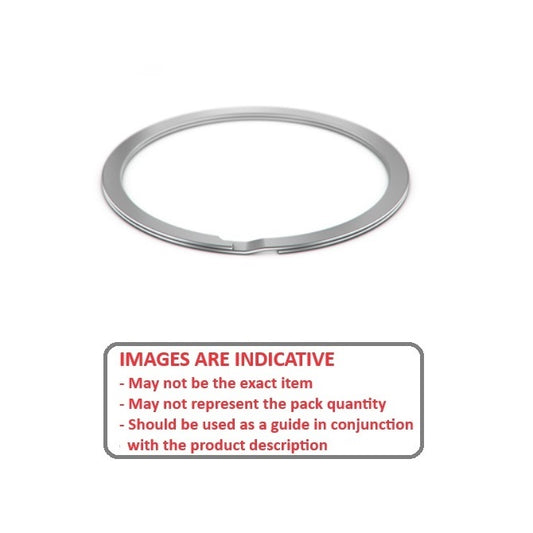

Collection: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Retaining Rings (With Images)

External

Spiral Rings

Medium Duty

Carbon Steel
Stainless Steel

53 Products in this selection

AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel
Popular series that will accommodate light and medium bearing series thrust loads.
Available in military and aerospace specifications.
Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Additional resources:
Spiral Rings and Snap Rings PDF

A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel. Smallparts promote the most popular MBA products.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.10 mm _{(2.051 in.)}	Approx. Loose Circlip ID (A) 50.74 mm + 0.00 / - 0.51	Radial Wall (S) min/max 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 57.24 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-212 External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel 19 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 53.98 mm _{(2.125 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.10 mm _{(2.051 in.)}	Approx. Loose Circlip ID (A) 50.74 mm + 0.00 / - 0.51
Material: Spring Steel Radial Wall (S) min/max: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 57.24 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-212 External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel 19 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each View the product page first if you are unsure.
RS-212 --- External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel RS-212 --- External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 19 Available Now
Shaft Diameter (Ds) 54.76 mm _{(2.156 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.89 mm _{(2.082 in.)}	Approx. Loose Circlip ID (A) 51.47 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 58.49 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-215 (3 Pcs) External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 3
Shaft Diameter (Ds) 54.76 mm _{(2.156 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 52.89 mm _{(2.082 in.)}	Approx. Loose Circlip ID (A) 51.47 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 58.49 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-215 (3 Pcs) External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 3 View the product page first if you are unsure.
RS-215 (3 Pcs) --- External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel RS-215 (3 Pcs) --- External Retaining Rings - 54.76x1.25x52.89 mm - Spring Steel Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 54.86 mm _{(2.16 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.11 mm _{(2.091 in.)}	Approx. Loose Circlip ID (A) 51.57 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 58.59 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-216 (3 Pcs) External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3
Shaft Diameter (Ds) 54.86 mm _{(2.16 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.11 mm _{(2.091 in.)}	Approx. Loose Circlip ID (A) 51.57 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 58.59 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-216 (3 Pcs) External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Per 3 View the product page first if you are unsure.
RS-216 (3 Pcs) --- External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel RS-216 (3 Pcs) --- External Retaining Rings - 54.86x1.25x53.11 mm - Spring Steel Regular price $9.14 AUD Regular price Sale price $9.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 55.58 mm _{(2.188 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.67 mm _{(2.113 in.)}	Approx. Loose Circlip ID (A) 52.25 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 59.27 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-218 (24 Pcs) External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Per 24
Shaft Diameter (Ds) 55.58 mm _{(2.188 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 53.67 mm _{(2.113 in.)}	Approx. Loose Circlip ID (A) 52.25 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 59.27 +/- 0.05 Groove Depth (d): 0.94
Part Number: RS-218 (24 Pcs) External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Fri, Jun 20, 2025 Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Per 24 View the product page first if you are unsure.
RS-218 (24 Pcs) --- External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel RS-218 (24 Pcs) --- External Retaining Rings - 55.58x1.25x53.67 mm - Spring Steel Regular price $276.50 AUD Regular price Sale price $276.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.75 mm _{(2.234 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 62.22 +/- 0.05 Groove Depth (d): 0.99
Part Number: RS-231 (2 Pcs) External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 2
Shaft Diameter (Ds) 58.72 mm _{(2.312 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 56.75 mm _{(2.234 in.)}	Approx. Loose Circlip ID (A) 55.20 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 62.22 +/- 0.05 Groove Depth (d): 0.99
Part Number: RS-231 (2 Pcs) External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-231 (2 Pcs) --- External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel RS-231 (2 Pcs) --- External Retaining Rings - 58.72x1.25x56.75 mm - Spring Steel Regular price $15.86 AUD Regular price Sale price $15.86 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 59.99 mm _{(2.362 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.02 mm _{(2.284 in.)}	Approx. Loose Circlip ID (A) 56.39 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 63.41 +/- 0.05 Groove Depth (d): 0.99
Part Number: RS-236 (2 Pcs) External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel 2 units (4 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2
Shaft Diameter (Ds) 59.99 mm _{(2.362 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.02 mm _{(2.284 in.)}	Approx. Loose Circlip ID (A) 56.39 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 63.41 +/- 0.05 Groove Depth (d): 0.99
Part Number: RS-236 (2 Pcs) External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel 2 units (4 pcs) Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-236 (2 Pcs) --- External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel RS-236 (2 Pcs) --- External Retaining Rings - 59.99x1.25x58.02 mm - Spring Steel Regular price $15.68 AUD Regular price Sale price $15.68 AUD Unit price per 2 Available Now
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.35 mm _{(2.297 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.51 mm +/- 0.11	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 63.73 +/- 0.05 Groove Depth (d): 0.99
Part Number: RS-237 (5 Pcs) External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 5
Shaft Diameter (Ds) 60.33 mm _{(2.375 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 58.35 mm _{(2.297 in.)}	Approx. Loose Circlip ID (A) 56.71 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.51 mm +/- 0.11 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 63.73 +/- 0.05 Groove Depth (d): 0.99
Part Number: RS-237 (5 Pcs) External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-237 (5 Pcs) --- External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel RS-237 (5 Pcs) --- External Retaining Rings - 60.33x1.25x58.35 mm - Spring Steel Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 61.42 mm _{(2.418 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 67.21 +/- 0.05 Groove Depth (d): 1.04
Part Number: RS-250 (5 Pcs) External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5
Shaft Diameter (Ds) 63.50 mm _{(2.5 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 61.42 mm _{(2.418 in.)}	Approx. Loose Circlip ID (A) 59.69 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 67.21 +/- 0.05 Groove Depth (d): 1.04
Part Number: RS-250 (5 Pcs) External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-250 (5 Pcs) --- External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel RS-250 (5 Pcs) --- External Retaining Rings - 63.5x1.25x61.42 mm - Spring Steel Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 65.07 mm _{(2.562 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 62.89 mm _{(2.476 in.)}	Approx. Loose Circlip ID (A) 61.17 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 68.69 +/- 0.05 Groove Depth (d): 1.09
Part Number: RS-256 (100 Pcs) External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 100
Shaft Diameter (Ds) 65.07 mm _{(2.562 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 62.89 mm _{(2.476 in.)}	Approx. Loose Circlip ID (A) 61.17 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 68.69 +/- 0.05 Groove Depth (d): 1.09
Part Number: RS-256 (100 Pcs) External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-256 (100 Pcs) --- External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel RS-256 (100 Pcs) --- External Retaining Rings - 65.07x1.25x62.89 mm - Spring Steel Regular price $13.50 AUD Regular price Sale price $13.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 64.49 mm _{(2.539 in.)}	Approx. Loose Circlip ID (A) 62.68 mm + 0.00 / - 0.64	Radial Wall (S) min/max 3.76 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 70.2 +/- 0.05 Groove Depth (d): 1.09
Part Number: RS-262 External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel 8 Available Immediately \| Further orders can be expected around Fri, Jun 20, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each
Shaft Diameter (Ds) 66.68 mm _{(2.625 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 64.49 mm _{(2.539 in.)}	Approx. Loose Circlip ID (A) 62.68 mm + 0.00 / - 0.64
Material: Spring Steel Radial Wall (S) min/max: 3.76 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 70.2 +/- 0.05 Groove Depth (d): 1.09
Part Number: RS-262 External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel 8 Available Immediately \| Further orders can be expected around Fri, Jun 20, 2025 Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per Each View the product page first if you are unsure.
RS-262 --- External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel RS-262 --- External Retaining Rings - 66.68x1.25x64.49 mm - Spring Steel Regular price $14.68 AUD Regular price Sale price $14.68 AUD Unit price per 8 Available Now
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 67.57 mm _{(2.66 in.)}	Approx. Loose Circlip ID (A) 65.66 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.01 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 73.68 +/- 0.05 Groove Depth (d): 1.14
Part Number: RS-275 External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each
Shaft Diameter (Ds) 69.85 mm _{(2.75 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 67.57 mm _{(2.66 in.)}	Approx. Loose Circlip ID (A) 65.66 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.01 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 73.68 +/- 0.05 Groove Depth (d): 1.14
Part Number: RS-275 External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Each View the product page first if you are unsure.
RS-275 --- External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel RS-275 --- External Retaining Rings - 69.85x1.25x67.57 mm - Spring Steel Regular price $15.05 AUD Regular price Sale price $15.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 70.64 mm _{(2.781 in.)}	Approx. Loose Circlip ID (A) 68.65 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 77.19 +/- 0.05 Groove Depth (d): 1.19
Part Number: RS-287 External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel 15 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.50 AUD Regular price ~~$6.60 AUD~~ Sale price $5.50 AUD Unit price per Each
Shaft Diameter (Ds) 73.03 mm _{(2.875 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 70.64 mm _{(2.781 in.)}	Approx. Loose Circlip ID (A) 68.65 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 77.19 +/- 0.05 Groove Depth (d): 1.19
Part Number: RS-287 External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel 15 Available Immediately \| Further orders can be expected around Sun, Jun 08, 2025 Regular price $5.50 AUD Regular price ~~$6.60 AUD~~ Sale price $5.50 AUD Unit price per Each View the product page first if you are unsure.
RS-287 --- External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel Sale RS-287 --- External Retaining Rings - 73.03x1.25x70.64 mm - Spring Steel Regular price $5.50 AUD Regular price ~~$6.60 AUD~~ Sale price $5.50 AUD Unit price per 15 Available Now Sale
Shaft Diameter (Ds) 74.60 mm _{(2.937 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 72.21 mm _{(2.843 in.)}	Approx. Loose Circlip ID (A) 70.12 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 1.47 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 78.66 +/- 0.05 Groove Depth (d): 1.19
Part Number: RS-293 (100 Pcs) External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 74.60 mm _{(2.937 in.)}	Clip Thickness (T) 1.25 mm +/- 0.08 _{(0.049 in.)}	Groove Dia. (Dg) 72.21 mm _{(2.843 in.)}	Approx. Loose Circlip ID (A) 70.12 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 1.47 mm +/- 0.15 Approx. Loose Clip OD: 78.66 +/- 0.05 Groove Depth (d): 1.19
Part Number: RS-293 (100 Pcs) External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-293 (100 Pcs) --- External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel RS-293 (100 Pcs) --- External Retaining Rings - 74.6x1.25x72.21 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 73.76 mm _{(2.904 in.)}	Approx. Loose Circlip ID (A) 71.63 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.27 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 80.17 +/- 0.06 Groove Depth (d): 1.22
Part Number: RS-300 (5 Pcs) External Retaining Rings - 76.2x1.55x73.76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Per 5
Shaft Diameter (Ds) 76.20 mm _{(3 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 73.76 mm _{(2.904 in.)}	Approx. Loose Circlip ID (A) 71.63 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.27 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 80.17 +/- 0.06 Groove Depth (d): 1.22
Part Number: RS-300 (5 Pcs) External Retaining Rings - 76.2x1.55x73.76 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Per 5 View the product page first if you are unsure.
RS-300 (5 Pcs) --- External Retaining Rings - 76.2x1.55x73.76 mm - Spring Steel RS-300 (5 Pcs) --- External Retaining Rings - 76.2x1.55x73.76 mm - Spring Steel Regular price $26.50 AUD Regular price Sale price $26.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 84.12 mm _{(3.312 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 81.49 mm _{(3.208 in.)}	Approx. Loose Circlip ID (A) 79.07 mm + 0.00 / - 0.76	Radial Wall (S) min/max 4.78 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 88.63 +/- 0.06 Groove Depth (d): 1.32
Part Number: RS-331 External Retaining Rings - 84.12x1.55x81.49 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Each
Shaft Diameter (Ds) 84.12 mm _{(3.312 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 81.49 mm _{(3.208 in.)}	Approx. Loose Circlip ID (A) 79.07 mm + 0.00 / - 0.76
Material: Spring Steel Radial Wall (S) min/max: 4.78 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.16 Approx. Loose Clip OD: 88.63 +/- 0.06 Groove Depth (d): 1.32
Part Number: RS-331 External Retaining Rings - 84.12x1.55x81.49 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Each View the product page first if you are unsure.
RS-331 --- External Retaining Rings - 84.12x1.55x81.49 mm - Spring Steel RS-331 --- External Retaining Rings - 84.12x1.55x81.49 mm - Spring Steel Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 86.21 mm _{(3.394 in.)}	Approx. Loose Circlip ID (A) 83.57 mm + 0.00 / - 1.02	Radial Wall (S) min/max 4.78 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 93.13 +/- 0.06 Groove Depth (d): 1.35
Part Number: RS-350 External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each
Shaft Diameter (Ds) 88.90 mm _{(3.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 86.21 mm _{(3.394 in.)}	Approx. Loose Circlip ID (A) 83.57 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 4.78 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 93.13 +/- 0.06 Groove Depth (d): 1.35
Part Number: RS-350 External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Each View the product page first if you are unsure.
RS-350 --- External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel RS-350 --- External Retaining Rings - 88.9x1.55x86.21 mm - Spring Steel Regular price $6.59 AUD Regular price Sale price $6.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 89.92 mm _{(3.54 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 87.20 mm _{(3.433 in.)}	Approx. Loose Circlip ID (A) 84.52 mm + 0.00 / - 1.02	Radial Wall (S) min/max 5.03 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 94.58 +/- 0.06 Groove Depth (d): 1.40
Part Number: RS-354 (50 Pcs) External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Per 50
Shaft Diameter (Ds) 89.92 mm _{(3.54 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 87.20 mm _{(3.433 in.)}	Approx. Loose Circlip ID (A) 84.52 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 5.03 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 94.58 +/- 0.06 Groove Depth (d): 1.40
Part Number: RS-354 (50 Pcs) External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Per 50 View the product page first if you are unsure.
RS-354 (50 Pcs) --- External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel RS-354 (50 Pcs) --- External Retaining Rings - 89.92x1.55x87.2 mm - Spring Steel Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 92.41 mm _{(3.638 in.)}	Approx. Loose Circlip ID (A) 89.54 mm + 0.00 / - 1.02	Radial Wall (S) min/max 5.03 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 99.6 +/- 0.06 Groove Depth (d): 1.42
Part Number: RS-375 External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each
Shaft Diameter (Ds) 95.25 mm _{(3.75 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 92.41 mm _{(3.638 in.)}	Approx. Loose Circlip ID (A) 89.54 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 5.03 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.16 Approx. Loose Clip OD: 99.6 +/- 0.06 Groove Depth (d): 1.42
Part Number: RS-375 External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Each View the product page first if you are unsure.
RS-375 --- External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel RS-375 --- External Retaining Rings - 95.25x1.55x92.41 mm - Spring Steel Regular price $5.32 AUD Regular price Sale price $5.32 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 99.89 mm _{(3.933 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 97.03 mm _{(3.82 in.)}	Approx. Loose Circlip ID (A) 93.90 mm + 0.00 / - 1.02	Radial Wall (S) min/max 5.29 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 104.48 +/- 0.06 Groove Depth (d): 1.50
Part Number: RS-393 (2 Pcs) External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel 4 units (8 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.24 AUD Regular price ~~$6.15 AUD~~ Sale price $3.24 AUD Unit price per Per 2
Shaft Diameter (Ds) 99.89 mm _{(3.933 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 97.03 mm _{(3.82 in.)}	Approx. Loose Circlip ID (A) 93.90 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 5.29 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.15 Approx. Loose Clip OD: 104.48 +/- 0.06 Groove Depth (d): 1.50
Part Number: RS-393 (2 Pcs) External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel 4 units (8 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $3.24 AUD Regular price ~~$6.15 AUD~~ Sale price $3.24 AUD Unit price per Per 2
RS-393 (2 Pcs) --- External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel Sale RS-393 (2 Pcs) --- External Retaining Rings - 99.89x1.55x97.03 mm - Spring Steel Regular price $3.24 AUD Regular price ~~$6.15 AUD~~ Sale price $3.24 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 110.85 mm _{(4.364 in.)}	Approx. Loose Circlip ID (A) 107.44 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.05 mm +/- 0.13	Groove Width (W) 1.79 mm +/- 0.16
Material: Spring Steel Approx. Loose Clip OD: 119.54 +/- 0.06 Groove Depth (d): 1.73
Part Number: RS-450 External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each
Shaft Diameter (Ds) 114.30 mm _{(4.5 in.)}	Clip Thickness (T) 1.55 mm +/- 0.08 _{(0.061 in.)}	Groove Dia. (Dg) 110.85 mm _{(4.364 in.)}	Approx. Loose Circlip ID (A) 107.44 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.05 mm +/- 0.13 Groove Width (W): 1.79 mm +/- 0.16 Approx. Loose Clip OD: 119.54 +/- 0.06 Groove Depth (d): 1.73
Part Number: RS-450 External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Each View the product page first if you are unsure.
RS-450 --- External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel RS-450 --- External Retaining Rings - 114.3x1.55x110.85 mm - Spring Steel Regular price $29.59 AUD Regular price Sale price $29.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 115.87 mm _{(4.562 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 112.32 mm _{(4.422 in.)}	Approx. Loose Circlip ID (A) 108.92 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 121.62 +/- 0.06 Groove Depth (d): 1.78
Part Number: RS-456 (2 Pcs) External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 2
Shaft Diameter (Ds) 115.87 mm _{(4.562 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 112.32 mm _{(4.422 in.)}	Approx. Loose Circlip ID (A) 108.92 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 121.62 +/- 0.06 Groove Depth (d): 1.78
Part Number: RS-456 (2 Pcs) External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 2 View the product page first if you are unsure.
RS-456 (2 Pcs) --- External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel RS-456 (2 Pcs) --- External Retaining Rings - 115.87x1.83x112.32 mm - Spring Steel Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 117.48 mm _{(4.625 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 113.92 mm _{(4.485 in.)}	Approx. Loose Circlip ID (A) 110.43 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 123.13 +/- 0.06 Groove Depth (d): 1.78
Part Number: RS-462 (100 Pcs) External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 117.48 mm _{(4.625 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 113.92 mm _{(4.485 in.)}	Approx. Loose Circlip ID (A) 110.43 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 123.13 +/- 0.06 Groove Depth (d): 1.78
Part Number: RS-462 (100 Pcs) External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-462 (100 Pcs) --- External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel RS-462 (100 Pcs) --- External Retaining Rings - 117.48x1.83x113.92 mm - Spring Steel Regular price $16.68 AUD Regular price Sale price $16.68 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 123.34 mm _{(4.856 in.)}	Approx. Loose Circlip ID (A) 119.38 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 132.08 +/- 0.06 Groove Depth (d): 1.83
Part Number: RS-500 External Retaining Rings - 127x1.83x123.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each
Shaft Diameter (Ds) 127.00 mm _{(5 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 123.34 mm _{(4.856 in.)}	Approx. Loose Circlip ID (A) 119.38 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 132.08 +/- 0.06 Groove Depth (d): 1.83
Part Number: RS-500 External Retaining Rings - 127x1.83x123.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Each View the product page first if you are unsure.
RS-500 --- External Retaining Rings - 127x1.83x123.34 mm - Spring Steel RS-500 --- External Retaining Rings - 127x1.83x123.34 mm - Spring Steel Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 130.00 mm _{(5.118 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 126.34 mm _{(4.974 in.)}	Approx. Loose Circlip ID (A) 122.20 mm + 0.00 / - 1.02	Radial Wall (S) min/max 6.35 mm +/- 0.13	Groove Width (W) 2.07 mm +/- 0.15
Material: Spring Steel Approx. Loose Clip OD: 134.9 +/- 0.06 Groove Depth (d): 1.83
Part Number: RS-511 (100 Pcs) External Retaining Rings - 130x1.83x126.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 100
Shaft Diameter (Ds) 130.00 mm _{(5.118 in.)}	Clip Thickness (T) 1.83 mm +/- 0.10 _{(0.072 in.)}	Groove Dia. (Dg) 126.34 mm _{(4.974 in.)}	Approx. Loose Circlip ID (A) 122.20 mm + 0.00 / - 1.02
Material: Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.13 Groove Width (W): 2.07 mm +/- 0.15 Approx. Loose Clip OD: 134.9 +/- 0.06 Groove Depth (d): 1.83
Part Number: RS-511 (100 Pcs) External Retaining Rings - 130x1.83x126.34 mm - Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 08, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 100 View the product page first if you are unsure.
RS-511 (100 Pcs) --- External Retaining Rings - 130x1.83x126.34 mm - Spring Steel RS-511 (100 Pcs) --- External Retaining Rings - 130x1.83x126.34 mm - Spring Steel Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
