Collection: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Retaining Rings -> External -> Spiral Rings -> Medium Duty -> Carbon Steel

There are 53 products in the sub-categories of Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel. Scroll down or follow the link to Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

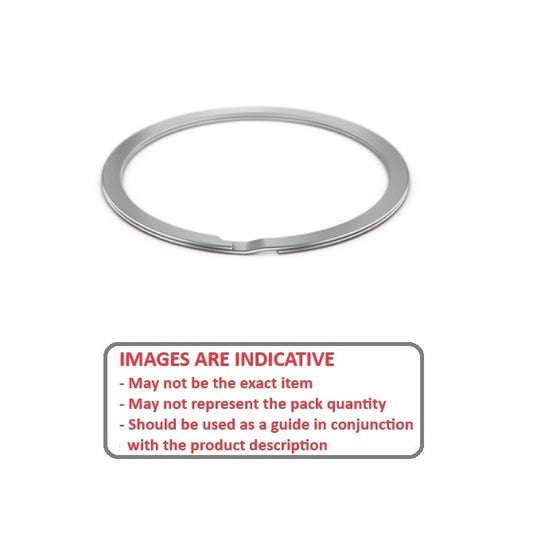

A selection of Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

An expanded range may be available on special order. Please enquire.
Popular series that will accommodate light and medium bearing series thrust loads.
Available in military and aerospace specifications.
Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spiral Rings and Snap Rings PDF

A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) Approx.	Groove Width (W)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 12.70 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.04 mm	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.22 +/- 0.04 Groove Depth (d): 0.33 Additional stock available from USA subject to Prior Sale = 7625
Part Number: RS-050 (Pack of 5) 24 units (120 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 24 available can be backordered.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 12.70 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.04 mm	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Groove Depth (d): 0.33 Additional stock available from USA subject to Prior Sale = 7625
Part Number: RS-050 (Pack of 5) 24 units (120 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 24 units (120 pcs) Available Now. Backorder if more than 24.
RS-050 (Pack of 5) --- External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-050 (Pack of 5) --- External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 24 Available Now
External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 13.49 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.83 mm	Approx. Loose Circlip ID (A) 12.68 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.96 +/- 0.04 Groove Depth (d): 0.33 Additional stock available from USA subject to Prior Sale = 22474
Part Number: RS-053 (Pack of 19) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Priced, Stocked and Sold Per 19 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 13.49 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.83 mm	Approx. Loose Circlip ID (A) 12.68 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.96 +/- 0.04 Groove Depth (d): 0.33 Additional stock available from USA subject to Prior Sale = 22474
Part Number: RS-053 (Pack of 19) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Priced, Stocked and Sold Per 19 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-053 (Pack of 19) --- External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-053 (Pack of 19) --- External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Priced, Stocked and Sold Per 19 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 15.88 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.10 mm	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.06
Material: Carbon Spring Steel Approx. Loose Clip OD: 17.73 +/- 0.04 Groove Depth (d): 0.41 Deleted Item. Available while stocks last.
Part Number: RS-062 (Pack of 2) 88 units (176 pcs) Available Now \| Further orders can be expected around Tue, Sep 08, 2026 Regular price $8.00 AUD Regular price Sale price $8.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 88 available can be backordered.
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 15.88 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.10 mm	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.06 Approx. Loose Clip OD: 17.73 +/- 0.04 Groove Depth (d): 0.41 Deleted Item. Available while stocks last.
Part Number: RS-062 (Pack of 2) 88 units (176 pcs) Available Now \| Further orders can be expected around Tue, Sep 08, 2026 Regular price $8.00 AUD Regular price Sale price $8.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 88 units (176 pcs) Available Now. Backorder if more than 88.
RS-062 (Pack of 2) --- External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-062 (Pack of 2) --- External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.00 AUD Regular price Sale price $8.00 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 88 Available Now
External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 17.27 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.67 mm	Approx. Loose Circlip ID (A) 16.23 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 19.03 +/- 0.04 Groove Depth (d): 0.41 Additional stock available from USA subject to Prior Sale = 125
Part Number: RS-068 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $35.86 AUD Regular price Sale price $35.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 17.27 mm	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.67 mm	Approx. Loose Circlip ID (A) 16.23 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.07 Approx. Loose Clip OD: 19.03 +/- 0.04 Groove Depth (d): 0.41 Additional stock available from USA subject to Prior Sale = 125
Part Number: RS-068 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $35.86 AUD Regular price Sale price $35.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-068 (Pack of 5) --- External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-068 (Pack of 5) --- External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $35.86 AUD Regular price Sale price $35.86 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 19.05 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 18.27 mm	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.21 +/- 0.04 Groove Depth (d): 0.41 Additional stock available from USA subject to Prior Sale = 13872
Part Number: RS-075 (Pack of 10) 42 units (420 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 42 available can be backordered.
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 19.05 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 18.27 mm	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 21.21 +/- 0.04 Groove Depth (d): 0.41 Additional stock available from USA subject to Prior Sale = 13872
Part Number: RS-075 (Pack of 10) 42 units (420 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 42 units (420 pcs) Available Now. Backorder if more than 42.
RS-075 (Pack of 10) --- External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-075 (Pack of 10) --- External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 42 Available Now
External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 20.64 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 19.84 mm	Approx. Loose Circlip ID (A) 19.40 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 22.7 +/- 0.04 Groove Depth (d): 0.41 Additional stock available from USA subject to Prior Sale = 5
Part Number: RS-081 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $34.32 AUD Regular price Sale price $34.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 20.64 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 19.84 mm	Approx. Loose Circlip ID (A) 19.40 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 22.7 +/- 0.04 Groove Depth (d): 0.41 Additional stock available from USA subject to Prior Sale = 5
Part Number: RS-081 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $34.32 AUD Regular price Sale price $34.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-081 (Pack of 5) --- External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-081 (Pack of 5) --- External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $34.32 AUD Regular price Sale price $34.32 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 22.23 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 21.29 mm	Approx. Loose Circlip ID (A) 20.90 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.2 +/- 0.04 Groove Depth (d): 0.48 Additional stock available from USA subject to Prior Sale = 75
Part Number: RS-087 (Pack of 100) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Sep 12, 2026 Regular price $427.86 AUD Regular price ~~$511.84 AUD~~ Sale price $427.86 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 22.23 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 21.29 mm	Approx. Loose Circlip ID (A) 20.90 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 24.2 +/- 0.04 Groove Depth (d): 0.48 Additional stock available from USA subject to Prior Sale = 75
Part Number: RS-087 (Pack of 100) Out of Stock \| Backorder Now \| Backorder now for delivery around Sat, Sep 12, 2026 Regular price $427.86 AUD Regular price ~~$511.84 AUD~~ Sale price $427.86 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-087 (Pack of 100) --- External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-087 (Pack of 100) --- External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $427.86 AUD Regular price ~~$511.84 AUD~~ Sale price $427.86 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 23.01 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 22.08 mm	Approx. Loose Circlip ID (A) 21.63 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.93 +/- 0.04 Groove Depth (d): 0.48
Part Number: RS-090 (Pack of 500) Contact Us \| Backorder Now \| Backorder now for delivery around Fri, Oct 30, 2026 Quantity Required Backorder: Contact Us.
External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 23.01 mm	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 22.08 mm	Approx. Loose Circlip ID (A) 21.63 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 24.93 +/- 0.04 Groove Depth (d): 0.48
Part Number: RS-090 (Pack of 500) Contact Us \| Backorder Now \| Backorder now for delivery around Fri, Oct 30, 2026 Quantity Required Backorder: Contact Us.
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 25.40 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 24.31 mm	Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33	Radial Wall (S) Approx. 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.7 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 16239
Part Number: RS-100 (Pack of 50) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $137.77 AUD Regular price ~~$163.73 AUD~~ Sale price $137.77 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 25.40 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 24.31 mm	Approx. Loose Circlip ID (A) 23.88 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.07 Approx. Loose Clip OD: 27.7 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 16239
Part Number: RS-100 (Pack of 50) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $137.77 AUD Regular price ~~$163.73 AUD~~ Sale price $137.77 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-100 (Pack of 50) --- External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-100 (Pack of 50) --- External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $137.77 AUD Regular price ~~$163.73 AUD~~ Sale price $137.77 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 26.97 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 25.91 mm	Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 29.17 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 1239
Part Number: RS-106 (Pack of 5) 92 units (460 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $3.14 AUD Regular price Sale price $3.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 92 available can be backordered.
External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 26.97 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 25.91 mm	Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 29.17 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 1239
Part Number: RS-106 (Pack of 5) 92 units (460 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $3.14 AUD Regular price Sale price $3.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 92 units (460 pcs) Available Now. Backorder if more than 92.
RS-106 (Pack of 5) --- External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-106 (Pack of 5) --- External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $3.14 AUD Regular price Sale price $3.14 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 92 Available Now
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 28.58 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 27.51 mm	Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 30.69 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 7972
Part Number: RS-112 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 28.58 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 27.51 mm	Approx. Loose Circlip ID (A) 26.87 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 30.69 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 7972
Part Number: RS-112 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-112 (Pack of 5) --- External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-112 (Pack of 5) --- External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $17.05 AUD Regular price Sale price $17.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 29.36 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 28.30 mm	Approx. Loose Circlip ID (A) 27.60 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 1.91 mm +/- 0.11	Groove Width (W) 1.11 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 31.42 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 4153
Part Number: RS-115 (Pack of 100) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $16.86 AUD Regular price ~~$19.64 AUD~~ Sale price $16.86 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 29.36 mm	Clip Thickness (T) 0.94 mm _{+/- 0.05} (Equiv. 0.037 in.)	Groove Dia. (Dg) 28.30 mm	Approx. Loose Circlip ID (A) 27.60 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 1.91 mm +/- 0.11 Groove Width (W): 1.11 mm +/- 0.10 Approx. Loose Clip OD: 31.42 +/- 0.03 Groove Depth (d): 0.53 Additional stock available from USA subject to Prior Sale = 4153
Part Number: RS-115 (Pack of 100) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $16.86 AUD Regular price ~~$19.64 AUD~~ Sale price $16.86 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-115 (Pack of 100) --- External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-115 (Pack of 100) --- External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $16.86 AUD Regular price ~~$19.64 AUD~~ Sale price $16.86 AUD Unit price per Priced, Stocked and Sold Per 100 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 30.18x1.09x28.96 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 30.18 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 28.96 mm	Approx. Loose Circlip ID (A) 28.37 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 32.69 +/- 0.05 Groove Depth (d): 0.61
Part Number: RS-118 (Pack of 122) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Sep 08, 2026 Regular price $373.77 AUD Regular price Sale price $373.77 AUD Unit price per Priced, Stocked and Sold Per 122 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 30.18x1.09x28.96 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 30.18 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 28.96 mm	Approx. Loose Circlip ID (A) 28.37 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 32.69 +/- 0.05 Groove Depth (d): 0.61
Part Number: RS-118 (Pack of 122) Out of Stock \| Backorder Now \| Backorder now for delivery around Tue, Sep 08, 2026 Regular price $373.77 AUD Regular price Sale price $373.77 AUD Unit price per Priced, Stocked and Sold Per 122 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-118 (Pack of 122) --- External Retaining Rings - 30.18x1.09x28.96 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-118 (Pack of 122) --- External Retaining Rings - 30.18x1.09x28.96 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $373.77 AUD Regular price Sale price $373.77 AUD Unit price per Priced, Stocked and Sold Per 122 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 31.75 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 30.53 mm	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 2.16 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 34.17 +/- 0.05 Groove Depth (d): 0.61 Additional stock available from USA subject to Prior Sale = 10392
Part Number: RS-125 (Pack of 5) 56 units (280 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 56 available can be backordered.
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 31.75 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 30.53 mm	Approx. Loose Circlip ID (A) 29.85 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.16 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 34.17 +/- 0.05 Groove Depth (d): 0.61 Additional stock available from USA subject to Prior Sale = 10392
Part Number: RS-125 (Pack of 5) 56 units (280 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 56 units (280 pcs) Available Now. Backorder if more than 56.
RS-125 (Pack of 5) --- External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-125 (Pack of 5) --- External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 56 Available Now
External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 33.32 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 32.11 mm	Approx. Loose Circlip ID (A) 31.32 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Carbon Spring Steel Approx. Loose Clip OD: 36.14 +/- 0.05 Groove Depth (d): 0.61 Additional stock available from USA subject to Prior Sale = 1797
Part Number: RS-131 (Pack of 34) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $10.41 AUD Regular price ~~$12.09 AUD~~ Sale price $10.41 AUD Unit price per Priced, Stocked and Sold Per 34 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 33.32 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 32.11 mm	Approx. Loose Circlip ID (A) 31.32 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip OD: 36.14 +/- 0.05 Groove Depth (d): 0.61 Additional stock available from USA subject to Prior Sale = 1797
Part Number: RS-131 (Pack of 34) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $10.41 AUD Regular price ~~$12.09 AUD~~ Sale price $10.41 AUD Unit price per Priced, Stocked and Sold Per 34 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-131 (Pack of 34) --- External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-131 (Pack of 34) --- External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $10.41 AUD Regular price ~~$12.09 AUD~~ Sale price $10.41 AUD Unit price per Priced, Stocked and Sold Per 34 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 34.93 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 33.61 mm	Approx. Loose Circlip ID (A) 32.83 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.11
Material: Carbon Spring Steel Approx. Loose Clip OD: 37.65 +/- 0.05 Groove Depth (d): 0.66 Additional stock available from USA subject to Prior Sale = 6722
Part Number: RS-137 (Each) 9 Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 9 available can be backordered.
External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 34.93 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 33.61 mm	Approx. Loose Circlip ID (A) 32.83 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.11 Approx. Loose Clip OD: 37.65 +/- 0.05 Groove Depth (d): 0.66 Additional stock available from USA subject to Prior Sale = 6722
Part Number: RS-137 (Each) 9 Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 9 Available Now. Backorder if more than 9.
RS-137 (Each) --- External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-137 (Each) --- External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.41 AUD Regular price Sale price $8.41 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 9 Available Now
External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 36.50 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 35.18 mm	Approx. Loose Circlip ID (A) 34.31 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 39.13 +/- 0.05 Groove Depth (d): 0.66 Additional stock available from USA subject to Prior Sale = 1389
Part Number: RS-143 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $10.50 AUD Regular price ~~$12.20 AUD~~ Sale price $10.50 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 36.50 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 35.18 mm	Approx. Loose Circlip ID (A) 34.31 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 39.13 +/- 0.05 Groove Depth (d): 0.66 Additional stock available from USA subject to Prior Sale = 1389
Part Number: RS-143 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $10.50 AUD Regular price ~~$12.20 AUD~~ Sale price $10.50 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-143 (Pack of 5) --- External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-143 (Pack of 5) --- External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $10.50 AUD Regular price ~~$12.20 AUD~~ Sale price $10.50 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 38.10 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 36.78 mm	Approx. Loose Circlip ID (A) 35.81 mm + 0.00 / - 0.38	Radial Wall (S) Approx. 2.41 mm +/- 0.10	Groove Width (W) 1.27 mm +/- 0.10
Material: Carbon Spring Steel Approx. Loose Clip OD: 40.63 +/- 0.05 Groove Depth (d): 0.66 Additional stock available from USA subject to Prior Sale = 8788
Part Number: RS-150 (Pack of 5) 21 units (105 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 21 available can be backordered.
External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 38.10 mm	Clip Thickness (T) 1.09 mm _{+/- 0.05} (Equiv. 0.043 in.)	Groove Dia. (Dg) 36.78 mm	Approx. Loose Circlip ID (A) 35.81 mm + 0.00 / - 0.38
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.41 mm +/- 0.10 Groove Width (W): 1.27 mm +/- 0.10 Approx. Loose Clip OD: 40.63 +/- 0.05 Groove Depth (d): 0.66 Additional stock available from USA subject to Prior Sale = 8788
Part Number: RS-150 (Pack of 5) 21 units (105 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 21 units (105 pcs) Available Now. Backorder if more than 21.
RS-150 (Pack of 5) --- External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-150 (Pack of 5) --- External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $7.95 AUD Regular price Sale price $7.95 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 21 Available Now
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 41.28 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 39.78 mm	Approx. Loose Circlip ID (A) 38.80 mm + 0.00 / - 0.51	Radial Wall (S) Approx. 2.74 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip OD: 44.28 +/- 0.05 Groove Depth (d): 0.76 Additional stock available from USA subject to Prior Sale = 15714
Part Number: RS-162 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $9.32 AUD Regular price ~~$10.78 AUD~~ Sale price $9.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 41.28 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 39.78 mm	Approx. Loose Circlip ID (A) 38.80 mm + 0.00 / - 0.51
Material: Carbon Spring Steel Radial Wall (S) Approx.: 2.74 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 44.28 +/- 0.05 Groove Depth (d): 0.76 Additional stock available from USA subject to Prior Sale = 15714
Part Number: RS-162 (Each) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $9.32 AUD Regular price ~~$10.78 AUD~~ Sale price $9.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-162 (Each) --- External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-162 (Each) --- External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.32 AUD Regular price ~~$10.78 AUD~~ Sale price $9.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 42.85 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 41.35 mm	Approx. Loose Circlip ID (A) 40.28 mm + 0.00 / - 0.51	Radial Wall (S) Approx. 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip OD: 46.28 +/- 0.05 Groove Depth (d): 0.76 Additional stock available from USA subject to Prior Sale = 4091
Part Number: RS-168 (Pack of 36) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Priced, Stocked and Sold Per 36 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 42.85 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 41.35 mm	Approx. Loose Circlip ID (A) 40.28 mm + 0.00 / - 0.51
Material: Carbon Spring Steel Radial Wall (S) Approx.: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 46.28 +/- 0.05 Groove Depth (d): 0.76 Additional stock available from USA subject to Prior Sale = 4091
Part Number: RS-168 (Pack of 36) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Priced, Stocked and Sold Per 36 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-168 (Pack of 36) --- External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-168 (Pack of 36) --- External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $18.50 AUD Regular price Sale price $18.50 AUD Unit price per Priced, Stocked and Sold Per 36 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
External Retaining Rings - 44.45x1.25x42.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 44.45 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 42.95 mm	Approx. Loose Circlip ID (A) 41.78 mm + 0.00 / - 0.51	Radial Wall (S) Approx. 3.00 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip OD: 47.78 +/- 0.05 Groove Depth (d): 0.76 Additional stock available from USA subject to Prior Sale = 442
Part Number: RS-175 (Each) 16 Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 16 available can be backordered.
External Retaining Rings - 44.45x1.25x42.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 44.45 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 42.95 mm	Approx. Loose Circlip ID (A) 41.78 mm + 0.00 / - 0.51
Material: Carbon Spring Steel Radial Wall (S) Approx.: 3.00 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 47.78 +/- 0.05 Groove Depth (d): 0.76 Additional stock available from USA subject to Prior Sale = 442
Part Number: RS-175 (Each) 16 Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required 16 Available Now. Backorder if more than 16.
RS-175 (Each) --- External Retaining Rings - 44.45x1.25x42.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-175 (Each) --- External Retaining Rings - 44.45x1.25x42.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each Excludes GST and overseas Taxes & Duties 16 Available Now
External Retaining Rings - 47.63x1.25x45.93 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 47.63 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 45.93 mm	Approx. Loose Circlip ID (A) 44.77 mm + 0.00 / - 0.51	Radial Wall (S) Approx. 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip OD: 51.27 +/- 0.05 Groove Depth (d): 0.86 Additional stock available from USA subject to Prior Sale = 67
Part Number: RS-187 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 47.63x1.25x45.93 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 47.63 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 45.93 mm	Approx. Loose Circlip ID (A) 44.77 mm + 0.00 / - 0.51
Material: Carbon Spring Steel Radial Wall (S) Approx.: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 51.27 +/- 0.05 Groove Depth (d): 0.86 Additional stock available from USA subject to Prior Sale = 67
Part Number: RS-187 (Pack of 5) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-187 (Pack of 5) --- External Retaining Rings - 47.63x1.25x45.93 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-187 (Pack of 5) --- External Retaining Rings - 47.63x1.25x45.93 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $22.05 AUD Regular price Sale price $22.05 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
External Retaining Rings - 50.8x1.25x49 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 50.80 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 49.00 mm	Approx. Loose Circlip ID (A) 47.75 mm + 0.00 / - 0.51	Radial Wall (S) Approx. 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.13
Material: Carbon Spring Steel Approx. Loose Clip OD: 54.25 +/- 0.05 Groove Depth (d): 0.89 Additional stock available from USA subject to Prior Sale = 2869
Part Number: RS-200 (Pack of 2) 76 units (152 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Larger quantities than the 76 available can be backordered.
External Retaining Rings - 50.8x1.25x49 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 50.80 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 49.00 mm	Approx. Loose Circlip ID (A) 47.75 mm + 0.00 / - 0.51
Material: Carbon Spring Steel Radial Wall (S) Approx.: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.13 Approx. Loose Clip OD: 54.25 +/- 0.05 Groove Depth (d): 0.89 Additional stock available from USA subject to Prior Sale = 2869
Part Number: RS-200 (Pack of 2) 76 units (152 pcs) Available Now \| Further orders can be expected around Wed, Aug 19, 2026 Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required 76 units (152 pcs) Available Now. Backorder if more than 76.
RS-200 (Pack of 2) --- External Retaining Rings - 50.8x1.25x49 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-200 (Pack of 2) --- External Retaining Rings - 50.8x1.25x49 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $10.05 AUD Regular price Sale price $10.05 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties 76 Available Now
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 52.37 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 50.60 mm	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51	Radial Wall (S) Approx. 3.25 mm +/- 0.10	Groove Width (W) 1.47 mm +/- 0.16
Material: Carbon Spring Steel Approx. Loose Clip OD: 55.73 +/- 0.05 Groove Depth (d): 0.89 Additional stock available from USA subject to Prior Sale = 13
Part Number: RS-206 (Pack of 2) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $15.32 AUD Regular price ~~$17.78 AUD~~ Sale price $15.32 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Shaft Diameter (Ds) 52.37 mm	Clip Thickness (T) 1.25 mm _{+/- 0.08} (Equiv. 0.049 in.)	Groove Dia. (Dg) 50.60 mm	Approx. Loose Circlip ID (A) 49.23 mm + 0.00 / - 0.51
Material: Carbon Spring Steel Radial Wall (S) Approx.: 3.25 mm +/- 0.10 Groove Width (W): 1.47 mm +/- 0.16 Approx. Loose Clip OD: 55.73 +/- 0.05 Groove Depth (d): 0.89 Additional stock available from USA subject to Prior Sale = 13
Part Number: RS-206 (Pack of 2) Out of Stock \| Backorder Now \| Backorder now for delivery around Wed, Aug 19, 2026 Regular price $15.32 AUD Regular price ~~$17.78 AUD~~ Sale price $15.32 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
RS-206 (Pack of 2) --- External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-206 (Pack of 2) --- External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $15.32 AUD Regular price ~~$17.78 AUD~~ Sale price $15.32 AUD Unit price per Priced, Stocked and Sold Per 2 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Category Details

Filter

Filter

Subscribe to our emails
