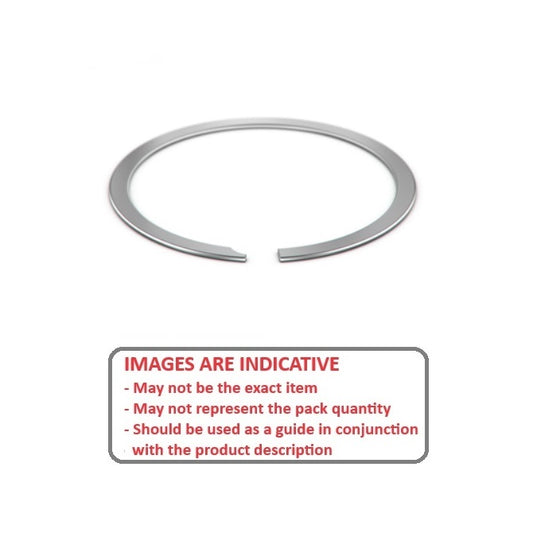

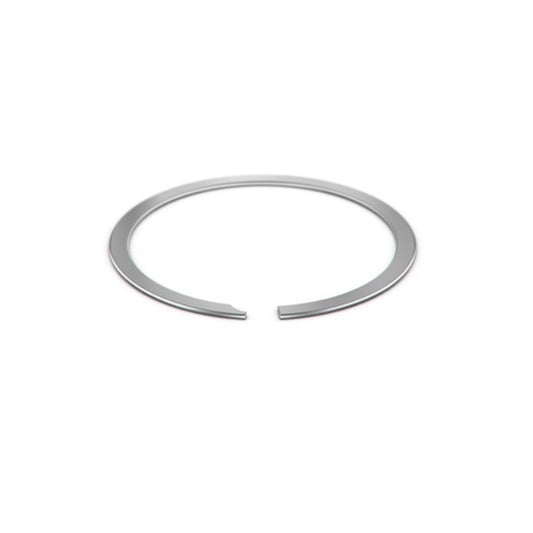

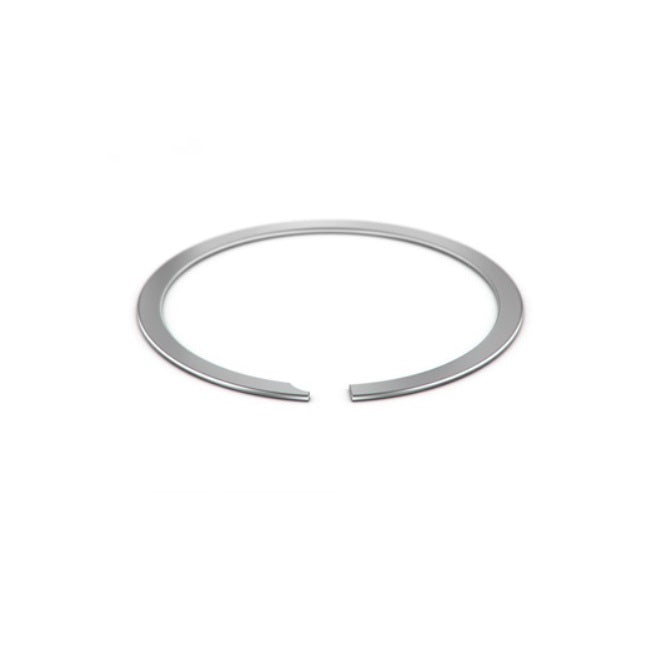

Retaining Rings - External - Spiral Rings - Light Duty

4 Products in this selection
This is a combined category of Light Duty Spiral Rings External Retaining Rings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.
Additional resources:
Spiral Rings and Snap Rings PDF
A more concise listing may be found on the Smallparts store at Retaining Rings - External - Spiral Rings - Light Duty. Smallparts promote the most popular MBA products.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Groove Width (W) Indicative
Shaft Diameter (Ds)
9.525
mm

(0.375 in.)
Clip Thickness (T)
0.38
mm
+/- 0.05
(0.015 in.)
Groove Dia. (Dg)
8.92
mm

(0.351 in.)
Approx. Loose Circlip ID (A)
8.83
mm
+ 0.00 / - 0.25
Radial Wall (S)
0.635
mm
+/- 0.10
Groove Width (W)
0.46
mm
+/- 0.05
External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip OD: 10.10 +/- - 0.03   Groove Depth (d): 0.30
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$56.86 AUD
$56.86 AUD
Per 25
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
9.525
mm

(0.375 in.)
Clip Thickness (T)
0.38
mm
+/- 0.05
(0.015 in.)
Groove Dia. (Dg)
8.92
mm

(0.351 in.)
Approx. Loose Circlip ID (A)
8.83
mm
+ 0.00 / - 0.25
External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 0.635 mm +/- 0.10    Groove Width (W): 0.46 mm +/- 0.05   Approx. Loose Clip OD: 10.10 +/- - 0.03   Groove Depth (d): 0.30
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Wed, Jun 18, 2025
$56.86 AUD
$56.86 AUD
Per 25
View the product page first if you are unsure.
Shaft Diameter (Ds)
12.70
mm

(0.5 in.)
Clip Thickness (T)
0.46
mm
+/- 0.04
(0.018 in.)
Groove Dia. (Dg)
11.99
mm

(0.472 in.)
Approx. Loose Circlip ID (A)
12.07
mm
+ 0.00 / - 0.33
Radial Wall (S)
1.14
mm
+/- 0.10
Groove Width (W)
0.59
mm
+/- 0.05
External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 14.35 +/- - 0.03   Groove Depth (d): 0.36
Category: Retaining Rings - External - Spiral Rings - Light Duty - Stainless Steel
Part Number: US-050-S02 (678 Pcs) External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025
$1,198.14 AUD
$1,198.14 AUD
Per 678
Shaft Diameter (Ds)
12.70
mm

(0.5 in.)
Clip Thickness (T)
0.46
mm
+/- 0.04
(0.018 in.)
Groove Dia. (Dg)
11.99
mm

(0.472 in.)
Approx. Loose Circlip ID (A)
12.07
mm
+ 0.00 / - 0.33
External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S): 1.14 mm +/- 0.10    Groove Width (W): 0.59 mm +/- 0.05   Approx. Loose Clip OD: 14.35 +/- - 0.03   Groove Depth (d): 0.36
Category: Retaining Rings - External - Spiral Rings - Light Duty - Stainless Steel
Part Number: US-050-S02 (678 Pcs) External Retaining Rings - 12.7x0.46x11.99 mm - Stainless Steel 302/304 Similar to A2, 18-8
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025
$1,198.14 AUD
$1,198.14 AUD
Per 678
View the product page first if you are unsure.
Shaft Diameter (Ds)
25.40
mm

(1 in.)
Clip Thickness (T)
0.54
mm
+/- 0.04
(0.021 in.)
Groove Dia. (Dg)
24.34
mm

(0.958 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.33
Radial Wall (S)
1.65
mm
+/- 0.10
Groove Width (W)
0.69
mm
+/- 0.07
External Retaining Rings - 25.4x0.54x24.34 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip OD: 27.43 +/- - 0.03   Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-100 (50 Pcs) External Retaining Rings - 25.4x0.54x24.34 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$65.95 AUD
$65.95 AUD
Per 50
Shaft Diameter (Ds)
25.40
mm

(1 in.)
Clip Thickness (T)
0.54
mm
+/- 0.04
(0.021 in.)
Groove Dia. (Dg)
24.34
mm

(0.958 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.33
External Retaining Rings - 25.4x0.54x24.34 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 1.65 mm +/- 0.10    Groove Width (W): 0.69 mm +/- 0.07   Approx. Loose Clip OD: 27.43 +/- - 0.03   Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-100 (50 Pcs) External Retaining Rings - 25.4x0.54x24.34 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025
$65.95 AUD
$65.95 AUD
Per 50
View the product page first if you are unsure.
Shaft Diameter (Ds)
88.90
mm

(3.5 in.)
Clip Thickness (T)
0.99
mm
+/- 0.05
(0.039 in.)
Groove Dia. (Dg)
85.65
mm

(3.372 in.)
Approx. Loose Circlip ID (A)
84.46
mm
+ 0.00 / - 0.76
Radial Wall (S)
4.78
mm
+/- 0.13
Groove Width (W)
1.16
mm
+/- 0.15
External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel
Material: Spring Steel    Approx. Loose Clip OD: 94.02 +/- - 0.03   Groove Depth (d): 1.17
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025
$285.86 AUD
$285.86 AUD
Per 26
Shaft Diameter (Ds)
88.90
mm

(3.5 in.)
Clip Thickness (T)
0.99
mm
+/- 0.05
(0.039 in.)
Groove Dia. (Dg)
85.65
mm

(3.372 in.)
Approx. Loose Circlip ID (A)
84.46
mm
+ 0.00 / - 0.76
External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel
Material: Spring Steel    Radial Wall (S): 4.78 mm +/- 0.13    Groove Width (W): 1.16 mm +/- 0.15   Approx. Loose Clip OD: 94.02 +/- - 0.03   Groove Depth (d): 1.17
Category: Retaining Rings - External - Spiral Rings - Light Duty - Carbon Steel
Part Number: US-350 (26 Pcs) External Retaining Rings - 88.9x0.99x85.65 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Jun 19, 2025
$285.86 AUD
$285.86 AUD
Per 26
View the product page first if you are unsure.
