Retaining Rings - External - Snap Rings

Retaining Rings -> External -> Snap Rings
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
External Retaining Rings - 20.63x1.58x19.81 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
20.63
mm
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
19.81
mm
+ 0.08 / - 0.00
(Equiv. 0.78 in.)
Approx. Loose Circlip ID (A)
19.63
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.58
mm
+/- 0.05
Groove Width (W)
1.75
mm

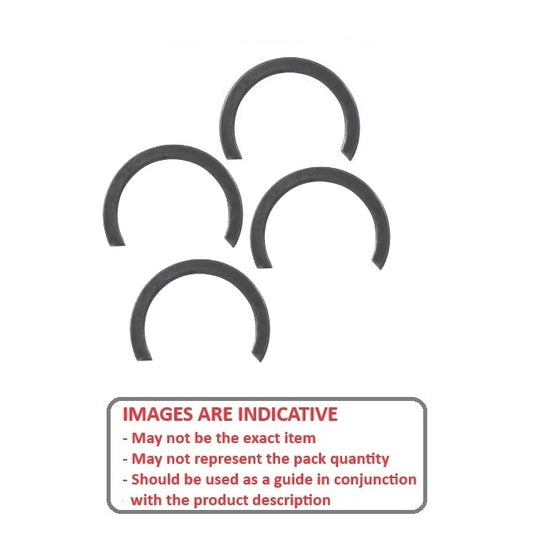

External Retaining Rings - 20.63x1.58x19.81 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 22.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0206-SQ-O (Pack of 50)
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
External Retaining Rings - 20.63x1.58x19.81 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
20.63
mm
Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.)
Groove Dia. (Dg)
19.81
mm
+ 0.08 / - 0.00
(Equiv. 0.78 in.)
Approx. Loose Circlip ID (A)
19.63
mm
+ 0.00 / - 0.90
External Retaining Rings - 20.63x1.58x19.81 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.58 mm +/- 0.05    Groove Width (W): 1.75 mm    Approx. Loose Clip OD: 22.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0206-SQ-O (Pack of 50)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Thu, Nov 12, 2026
External Retaining Rings - 21x1.2x20.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
21.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
20.20
mm
+ 0 / - 0.13
(Equiv. 0.795 in.)
Approx. Loose Circlip ID (A)
19.70
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 21x1.2x20.2 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 23.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0210-LS (Pack of 10)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026
$40.23 AUD
$40.23 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 21x1.2x20.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
21.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
20.20
mm
+ 0 / - 0.13
(Equiv. 0.795 in.)
Approx. Loose Circlip ID (A)
19.70
mm
External Retaining Rings - 21x1.2x20.2 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 23.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0210-LS (Pack of 10)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026
$40.23 AUD
$40.23 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 22x1.2x21.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
22.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
21.20
mm
+ 0 / - 0.13
(Equiv. 0.835 in.)
Approx. Loose Circlip ID (A)
20.70
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 22x1.2x21.2 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 24.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0220-LS (Pack of 10)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026
$25.32 AUD
$25.32 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 22x1.2x21.2 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
22.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
21.20
mm
+ 0 / - 0.13
(Equiv. 0.835 in.)
Approx. Loose Circlip ID (A)
20.70
mm
External Retaining Rings - 22x1.2x21.2 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 24.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0220-LS (Pack of 10)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026
$25.32 AUD
$25.32 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 25.4x1.07x24.23 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.23
mm
+/- 0.08
(Equiv. 0.954 in.)
Approx. Loose Circlip ID (A)
23.98
mm
- 0.00 / + 0.80
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
External Retaining Rings - 25.4x1.07x24.23 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254A-SR-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x1.07x24.23 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.23
mm
+/- 0.08
(Equiv. 0.954 in.)
Approx. Loose Circlip ID (A)
23.98
mm
- 0.00 / + 0.80
External Retaining Rings - 25.4x1.07x24.23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 28.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254A-SR-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x1.07x24.31 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.04
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.31
mm
Approx. Loose Circlip ID (A)
24.26
mm
+ 0.00 / - 1.21
Radial Wall (S) Approx.
2.06
mm
Groove Width (W)
1.17
mm
External Retaining Rings - 25.4x1.07x24.31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.38
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x1.07x24.31 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.07
mm
+/- 0.04
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.31
mm
Approx. Loose Circlip ID (A)
24.26
mm
+ 0.00 / - 1.21
External Retaining Rings - 25.4x1.07x24.31 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.06 mm    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 28.38
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
23.83
mm
+ 0.08 / - 0.00
(Equiv. 0.938 in.)
Approx. Loose Circlip ID (A)
23.60
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.40
mm
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
23.83
mm
+ 0.08 / - 0.00
(Equiv. 0.938 in.)
Approx. Loose Circlip ID (A)
23.60
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 29.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 23x1.2x22.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
23.00
mm
+ 0.10 / - 0.00
(Equiv. 0.906 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.20
mm
Approx. Loose Circlip ID (A)
21.70
mm
External Retaining Rings - 23x1.2x22.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 25.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0230-LS (Pack of 10)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026
$27.59 AUD
$32.11 AUD $27.59 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 23x1.2x22.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
23.00
mm
+ 0.10 / - 0.00
(Equiv. 0.906 in.)
Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
22.20
mm
Approx. Loose Circlip ID (A)
21.70
mm
External Retaining Rings - 23x1.2x22.2 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 25.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0230-LS (Pack of 10)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Sep 04, 2026
$27.59 AUD
$32.11 AUD $27.59 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
External Retaining Rings - 25.98x1.07x24.82 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.98
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.82
mm
+/- 0.08
(Equiv. 0.977 in.)
Approx. Loose Circlip ID (A)
24.44
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
External Retaining Rings - 25.98x1.07x24.82 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0260-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 25.98x1.07x24.82 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
25.98
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.82
mm
+/- 0.08
(Equiv. 0.977 in.)
Approx. Loose Circlip ID (A)
24.44
mm
+ 0.00 / - 0.79
External Retaining Rings - 25.98x1.07x24.82 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 29.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0260-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
24.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.00
mm
+ 0 / - 0.13
(Equiv. 0.906 in.)
Approx. Loose Circlip ID (A)
22.50
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 26
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0240-LS (Pack of 10)
17 units (170 pcs) Available Now | Further orders can be expected around Fri, Sep 04, 2026
$28.68 AUD
$48.54 AUD $28.68 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 17 available can be backordered.
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
24.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.00
mm
+ 0 / - 0.13
(Equiv. 0.906 in.)
Approx. Loose Circlip ID (A)
22.50
mm
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 26
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0240-LS (Pack of 10)
17 units (170 pcs) Available Now | Further orders can be expected around Fri, Sep 04, 2026
$28.68 AUD
$48.54 AUD $28.68 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

17 units (170 pcs) Available Now. Backorder if more than 17.
External Retaining Rings - 26.98x1.27x25.81 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
26.98
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
25.81
mm
+/- 0.08
(Equiv. 1.016 in.)
Approx. Loose Circlip ID (A)
25.40
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
External Retaining Rings - 26.98x1.27x25.81 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 30.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 26.98x1.27x25.81 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
26.98
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
25.81
mm
+/- 0.08
(Equiv. 1.016 in.)
Approx. Loose Circlip ID (A)
25.40
mm
+ 0.00 / - 0.79
External Retaining Rings - 26.98x1.27x25.81 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip OD: 30.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
27.00
mm
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.00
mm
+ 0 / - 0.13
(Equiv. 0.945 in.)
Approx. Loose Circlip ID (A)
23.50
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 27
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0250-LS (Pack of 10)
28 units (280 pcs) Available Now | Further orders can be expected around Tue, Sep 08, 2026
$13.14 AUD
$13.14 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 28 available can be backordered.
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
25.00
mm
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.00
mm
+ 0 / - 0.13
(Equiv. 0.945 in.)
Approx. Loose Circlip ID (A)
23.50
mm
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 27
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0250-LS (Pack of 10)
28 units (280 pcs) Available Now | Further orders can be expected around Tue, Sep 08, 2026
$13.14 AUD
$13.14 AUD
Priced, Stocked and Sold Per pack of 10
Excludes GST and overseas Taxes & Duties
Quantity Required

28 units (280 pcs) Available Now. Backorder if more than 28.
External Retaining Rings - 28.58x1.07x27.36 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.36
mm
+/- 0.08
(Equiv. 1.077 in.)
Approx. Loose Circlip ID (A)
40.77
mm
- 0.00 / + 0.80
Radial Wall (S) Approx.
3.18
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 28.58x1.07x27.36 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 47.13
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x1.07x27.36 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.36
mm
+/- 0.08
(Equiv. 1.077 in.)
Approx. Loose Circlip ID (A)
40.77
mm
- 0.00 / + 0.80
External Retaining Rings - 28.58x1.07x27.36 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 47.13
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-LS-L (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 28.58x1.27x27.31 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
27.31
mm
+/- 0.08
(Equiv. 1.075 in.)
Approx. Loose Circlip ID (A)
26.92
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
External Retaining Rings - 28.58x1.27x27.31 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.64
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x1.27x27.31 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
27.31
mm
+/- 0.08
(Equiv. 1.075 in.)
Approx. Loose Circlip ID (A)
26.92
mm
+ 0.00 / - 0.79
External Retaining Rings - 28.58x1.27x27.31 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip OD: 31.64
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 28.58x2.36x27.41 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
27.41
mm
+ 0.08 / - 0.00
(Equiv. 1.079 in.)
Approx. Loose Circlip ID (A)
27.13
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
2.36
mm
+/- 0.05
Groove Width (W)
2.54
mm
External Retaining Rings - 28.58x2.36x27.41 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.85
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x2.36x27.41 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
27.41
mm
+ 0.08 / - 0.00
(Equiv. 1.079 in.)
Approx. Loose Circlip ID (A)
27.13
mm
+ 0.00 / - 0.90
External Retaining Rings - 28.58x2.36x27.41 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.05    Groove Width (W): 2.54 mm    Approx. Loose Clip OD: 31.85
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-O (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 28.58x2.36x27.41 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
27.41
mm
+ 0.08 / - 0.00
(Equiv. 1.079 in.)
Approx. Loose Circlip ID (A)
27.13
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
2.36
mm
+/- 0.05
Groove Width (W)
2.54
mm
External Retaining Rings - 28.58x2.36x27.41 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.85
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x2.36x27.41 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
2.36
mm
+/- 0.05
(Equiv. 0.093 in.)
Groove Dia. (Dg)
27.41
mm
+ 0.08 / - 0.00
(Equiv. 1.079 in.)
Approx. Loose Circlip ID (A)
27.13
mm
+ 0.00 / - 0.90
External Retaining Rings - 28.58x2.36x27.41 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.05    Groove Width (W): 2.54 mm    Approx. Loose Clip OD: 31.85
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-C (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 28.58x3.56x26.8 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
3.56
mm
+/- 0.05
(Equiv. 0.14 in.)
Groove Dia. (Dg)
26.80
mm
+ 0.08 / - 0.00
(Equiv. 1.055 in.)
Approx. Loose Circlip ID (A)
26.52
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.56
mm
+/- 0.05
Groove Width (W)
3.76
mm
External Retaining Rings - 28.58x3.56x26.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 33.64
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x3.56x26.8 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
3.56
mm
+/- 0.05
(Equiv. 0.14 in.)
Groove Dia. (Dg)
26.80
mm
+ 0.08 / - 0.00
(Equiv. 1.055 in.)
Approx. Loose Circlip ID (A)
26.52
mm
+ 0.00 / - 0.90
External Retaining Rings - 28.58x3.56x26.8 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.56 mm +/- 0.05    Groove Width (W): 3.76 mm    Approx. Loose Clip OD: 33.64
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-HO (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 28.58x3.56x26.8 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
3.56
mm
+/- 0.05
(Equiv. 0.14 in.)
Groove Dia. (Dg)
26.80
mm
+ 0.08 / - 0.00
(Equiv. 1.055 in.)
Approx. Loose Circlip ID (A)
26.52
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.56
mm
+/- 0.05
Groove Width (W)
3.76
mm
External Retaining Rings - 28.58x3.56x26.8 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 33.64
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 28.58x3.56x26.8 mm Snap Rings - Carbon Spring Steel
Shaft or Bearing OD (d1)
28.58
mm
Clip Thickness (T)
3.56
mm
+/- 0.05
(Equiv. 0.14 in.)
Groove Dia. (Dg)
26.80
mm
+ 0.08 / - 0.00
(Equiv. 1.055 in.)
Approx. Loose Circlip ID (A)
26.52
mm
+ 0.00 / - 0.90
External Retaining Rings - 28.58x3.56x26.8 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.56 mm +/- 0.05    Groove Width (W): 3.76 mm    Approx. Loose Clip OD: 33.64
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-SQ-HC (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
External Retaining Rings - 29x1.5x28 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
29.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
28.00
mm
+ 0 / - 0.13
(Equiv. 1.102 in.)
Approx. Loose Circlip ID (A)
27.50
mm
Radial Wall (S) Approx.
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
External Retaining Rings - 29x1.5x28 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 32.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity
External Retaining Rings - 29x1.5x28 mm Snap Rings - Carbon Spring Steel Snap Ring
Shaft or Bearing OD (d1)
29.00
mm
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
28.00
mm
+ 0 / - 0.13
(Equiv. 1.102 in.)
Approx. Loose Circlip ID (A)
27.50
mm
External Retaining Rings - 29x1.5x28 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip OD: 32.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0290-LS (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Mon, Apr 23, 2029
