| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

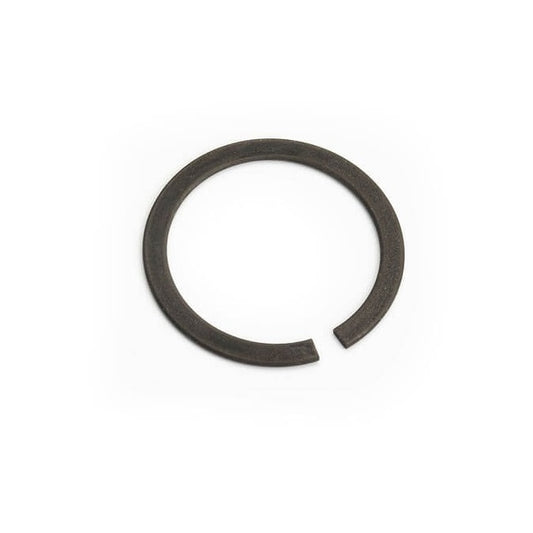

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
69.85
mm (2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
66.09
mm +/- 0.15 (2.602 in.) |
Approx. Loose Circlip ID (A)
65.46
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 76.54
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0699-LS-N External Retaining Rings - 69.85x2.36x66.09 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |

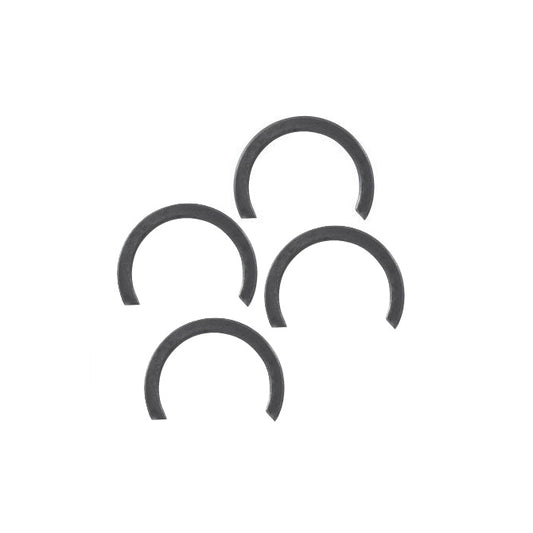

Indicative Image |
||
|
Shaft or Bearing OD (d1)
69.85
mm (2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
66.09
mm +/- 0.15 (2.602 in.) |
Approx. Loose Circlip ID (A)
65.46
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 76.54
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0699-LS-N External Retaining Rings - 69.85x2.36x66.09 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
66.65
mm +/- 0.15 (2.624 in.) |
Approx. Loose Circlip ID (A)
65.89
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 75.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0699-LS External Retaining Rings - 69.85x2.36x66.65 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
66.65
mm +/- 0.15 (2.624 in.) |
Approx. Loose Circlip ID (A)
65.89
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 75.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0699-LS External Retaining Rings - 69.85x2.36x66.65 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.00
mm (2.874 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (0.079 in.) |
Groove Dia. (Dg)
71.20
mm + 0 / - 0.19 (2.803 in.) |
Approx. Loose Circlip ID (A)
70.40
mm |
Radial Wall (S) min/max
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 76
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0730-LS External Retaining Rings - 73x2x71.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.00
mm (2.874 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (0.079 in.) |
Groove Dia. (Dg)
71.20
mm + 0 / - 0.19 (2.803 in.) |
Approx. Loose Circlip ID (A)
70.40
mm |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 2.80 mm + 0 / - 0.10
Groove Width (W): 2.20 mm
Approx. Loose Clip OD: 76
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0730-LS External Retaining Rings - 73x2x71.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
69.11
mm +/- 0.15 (2.721 in.) |
Approx. Loose Circlip ID (A)
68.48
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 79.56
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0730-LS-N External Retaining Rings - 73.03x2.36x69.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
69.11
mm +/- 0.15 (2.721 in.) |
Approx. Loose Circlip ID (A)
68.48
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 79.56
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0730-LS-N External Retaining Rings - 73.03x2.36x69.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
69.67
mm +/- 0.15 (2.743 in.) |
Approx. Loose Circlip ID (A)
68.91
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 78.41
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0730-LS-L External Retaining Rings - 73.03x2.36x69.67 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
69.67
mm +/- 0.15 (2.743 in.) |
Approx. Loose Circlip ID (A)
68.91
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 78.41
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0730-LS-L External Retaining Rings - 73.03x2.36x69.67 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (2.937 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
71.45
mm +/- 0.15 (2.813 in.) |
Approx. Loose Circlip ID (A)
70.69
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 80.19
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0746-LS-L External Retaining Rings - 74.6x1.58x71.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (2.937 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
71.45
mm +/- 0.15 (2.813 in.) |
Approx. Loose Circlip ID (A)
70.69
mm - 0.00 / + 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip OD: 80.19
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0746-LS-L External Retaining Rings - 74.6x1.58x71.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (2.937 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
71.15
mm +/- 0.15 (2.801 in.) |
Approx. Loose Circlip ID (A)
70.38
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 79.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0746-LS External Retaining Rings - 74.6x2.36x71.15 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (2.937 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
71.15
mm +/- 0.15 (2.801 in.) |
Approx. Loose Circlip ID (A)
70.38
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 79.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0746-LS External Retaining Rings - 74.6x2.36x71.15 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.63
mm (2.938 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
71.10
mm +/- 0.15 (2.799 in.) |
Approx. Loose Circlip ID (A)
69.95
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 81.03
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0746-LS-N External Retaining Rings - 74.63x2.36x71.1 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.63
mm (2.938 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
71.10
mm +/- 0.15 (2.799 in.) |
Approx. Loose Circlip ID (A)
69.95
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 81.03
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0746-LS-N External Retaining Rings - 74.63x2.36x71.1 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
73.05
mm +/- 0.15 (2.876 in.) |
Approx. Loose Circlip ID (A)
72.29
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 81.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-LS-L External Retaining Rings - 76.2x1.58x73.05 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
73.05
mm +/- 0.15 (2.876 in.) |
Approx. Loose Circlip ID (A)
72.29
mm - 0.00 / + 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip OD: 81.79
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-LS-L External Retaining Rings - 76.2x1.58x73.05 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.15 (2.838 in.) |
Approx. Loose Circlip ID (A)
71.45
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 82.53
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-LS-N External Retaining Rings - 76.2x2.36x72.09 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.15 (2.838 in.) |
Approx. Loose Circlip ID (A)
71.45
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 82.53
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-LS-N External Retaining Rings - 76.2x2.36x72.09 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.64
mm +/- 0.15 (2.86 in.) |
Approx. Loose Circlip ID (A)
71.88
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 82.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-LS External Retaining Rings - 76.2x2.36x72.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
72.64
mm +/- 0.15 (2.86 in.) |
Approx. Loose Circlip ID (A)
71.88
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 82.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-LS External Retaining Rings - 76.2x2.36x72.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.08 |
Groove Width (W)
6.73
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-O External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.08
Groove Width (W): 6.73 mm
Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-O External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.08 |
Groove Width (W)
6.73
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-C External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.08
Groove Width (W): 6.73 mm
Approx. Loose Clip OD: 84.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-C External Retaining Rings - 76.2x6.35x73.03 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.93
mm +/- 0.08 |
Groove Width (W)
8.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-HC External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.93 mm +/- 0.08
Groove Width (W): 8.31 mm
Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-HC External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.93
mm +/- 0.08 |
Groove Width (W)
8.31
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-HO External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 7.93 mm +/- 0.08
Groove Width (W): 8.31 mm
Approx. Loose Clip OD: 87.39
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0762-SQ-HO External Retaining Rings - 76.2x7.93x72.24 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.15 (2.898 in.) |
Approx. Loose Circlip ID (A)
72.97
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 84.05
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0778-LS-N External Retaining Rings - 77.78x2.36x73.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.15 (2.898 in.) |
Approx. Loose Circlip ID (A)
72.97
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 84.05
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0778-LS-N External Retaining Rings - 77.78x2.36x73.61 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
74.17
mm +/- 0.15 (2.92 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 84.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0778-LS External Retaining Rings - 77.78x2.36x74.17 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
74.17
mm +/- 0.15 (2.92 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 84.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0778-LS External Retaining Rings - 77.78x2.36x74.17 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
76.20
mm +/- 0.15 (3 in.) |
Approx. Loose Circlip ID (A)
75.31
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 84.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0794-LS-L External Retaining Rings - 79.38x1.58x76.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
76.20
mm +/- 0.15 (3 in.) |
Approx. Loose Circlip ID (A)
75.31
mm - 0.00 / + 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip OD: 84.81
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0794-LS-L External Retaining Rings - 79.38x1.58x76.2 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.11
mm +/- 0.15 (2.957 in.) |
Approx. Loose Circlip ID (A)
74.47
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 85.55
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0794-LS-N External Retaining Rings - 79.38x2.36x75.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.11
mm +/- 0.15 (2.957 in.) |
Approx. Loose Circlip ID (A)
74.47
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 85.55
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0794-LS-N External Retaining Rings - 79.38x2.36x75.11 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.72
mm +/- 0.15 (2.981 in.) |
Approx. Loose Circlip ID (A)
74.96
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 86.04
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0794-LS External Retaining Rings - 79.38x2.36x75.72 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (3.125 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.72
mm +/- 0.15 (2.981 in.) |
Approx. Loose Circlip ID (A)
74.96
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 86.04
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0794-LS External Retaining Rings - 79.38x2.36x75.72 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.84
mm +/- 0.15 (2.986 in.) |
Approx. Loose Circlip ID (A)
75.21
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 87.91
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0802-LS-N External Retaining Rings - 80.16x2.36x75.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
75.84
mm +/- 0.15 (2.986 in.) |
Approx. Loose Circlip ID (A)
75.21
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 87.91
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0802-LS-N External Retaining Rings - 80.16x2.36x75.84 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
76.45
mm +/- 0.15 (3.01 in.) |
Approx. Loose Circlip ID (A)
75.69
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 86.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0802-LS External Retaining Rings - 80.16x2.36x76.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
80.16
mm (3.156 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
76.45
mm +/- 0.15 (3.01 in.) |
Approx. Loose Circlip ID (A)
75.69
mm + 0.00 / - 1.58 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 86.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0802-LS External Retaining Rings - 80.16x2.36x76.45 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
79.38
mm +/- 0.15 (3.125 in.) |
Approx. Loose Circlip ID (A)
78.49
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 87.99
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0826-LS-L External Retaining Rings - 82.55x1.58x79.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (0.062 in.) |
Groove Dia. (Dg)
79.38
mm +/- 0.15 (3.125 in.) |
Approx. Loose Circlip ID (A)
78.49
mm - 0.00 / + 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Approx. Loose Clip OD: 87.99
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0826-LS-L External Retaining Rings - 82.55x1.58x79.38 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
78.13
mm +/- 0.15 (3.076 in.) |
Approx. Loose Circlip ID (A)
77.50
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
|
Material: Spring Steel
Approx. Loose Clip OD: 90.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0826-LS-N External Retaining Rings - 82.55x2.36x78.13 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
82.55
mm (3.25 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (0.093 in.) |
Groove Dia. (Dg)
78.13
mm +/- 0.15 (3.076 in.) |
Approx. Loose Circlip ID (A)
77.50
mm + 0.00 / - 2.00 |
|
||
|
Material: Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.62 mm
Approx. Loose Clip OD: 90.2
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0826-LS-N External Retaining Rings - 82.55x2.36x78.13 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
