| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

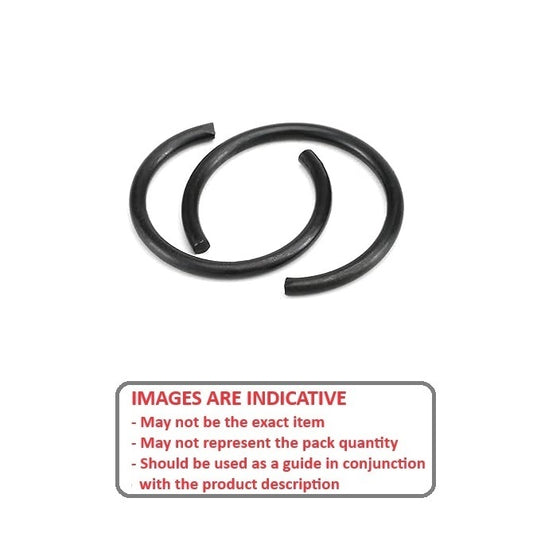

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
12.70
mm (0.5 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
11.48
mm (0.452 in.) |
Approx. Loose Circlip ID (A)
11.13
mm |
Radial Wall (S) min/max
11.48
mm + 0.08 / - 0.00 |
Groove Width (W)
1.27
mm + 0.08 / - 0.00 |
|
| Material: Spring Steel Free Outside Dia (Dr): 13.57 Section Profile: Round Section | ||||||
|
Part Number: WRE-0127-RD External Retaining Rings - 12.7x1.22x11.48 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
12.70
mm (0.5 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
11.48
mm (0.452 in.) |
Approx. Loose Circlip ID (A)
11.13
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 11.48 mm + 0.08 / - 0.00 Groove Width (W): 1.27 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 13.57 Section Profile: Round Section | ||||||
|
Part Number: WRE-0127-RD External Retaining Rings - 12.7x1.22x11.48 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
12.70
mm (0.5 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
11.79
mm + 0.08 / - 0.00 (0.464 in.) |
Approx. Loose Circlip ID (A)
11.63
mm |
Radial Wall (S) min/max
11.79
mm |
Groove Width (W)
1.55
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 14.63 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0127-RD-HC (2 Pcs) External Retaining Rings - 12.7x1.5x11.79 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$14.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
12.70
mm (0.5 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
11.79
mm + 0.08 / - 0.00 (0.464 in.) |
Approx. Loose Circlip ID (A)
11.63
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 11.79 mm Groove Width (W): 1.55 mm Free Outside Dia (Dr): 14.63 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0127-RD-HC (2 Pcs) External Retaining Rings - 12.7x1.5x11.79 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$14.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
12.70
mm (0.5 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
11.79
mm + 0.08 / - 0.00 (0.464 in.) |
Approx. Loose Circlip ID (A)
11.63
mm |
Radial Wall (S) min/max
11.79
mm |
Groove Width (W)
1.55
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 14.63 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0127-RD-HO External Retaining Rings - 12.7x1.5x11.79 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
12.70
mm (0.5 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
11.79
mm + 0.08 / - 0.00 (0.464 in.) |
Approx. Loose Circlip ID (A)
11.63
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 11.79 mm Groove Width (W): 1.55 mm Free Outside Dia (Dr): 14.63 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0127-RD-HO External Retaining Rings - 12.7x1.5x11.79 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.00
mm (0.551 in.) |
Clip Thickness (T)
1.00
mm (0.039 in.) |
Groove Dia. (Dg)
13.0
mm + 0 / - 0.40 (0.512 in.) |
Approx. Loose Circlip ID (A)
12.8
mm |
Radial Wall (S) min/max
13.0
mm +/- 0.05 |
Groove Width (W)
1.2
mm Min. |
|
| Material: Spring Steel Free Outside Dia (Dr): 14.8 Section Profile: Round Section | ||||||
|
Part Number: WRE-0140-RD (50 Pcs) External Retaining Rings - 14x1x13 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$102.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
14.00
mm (0.551 in.) |
Clip Thickness (T)
1.00
mm (0.039 in.) |
Groove Dia. (Dg)
13.0
mm + 0 / - 0.40 (0.512 in.) |
Approx. Loose Circlip ID (A)
12.8
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 13.0 mm +/- 0.05 Groove Width (W): 1.2 mm Min. Free Outside Dia (Dr): 14.8 Section Profile: Round Section | ||||||
|
Part Number: WRE-0140-RD (50 Pcs) External Retaining Rings - 14x1x13 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$102.50 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.14
mm +/- 0.06 (0.045 in.) |
Groove Dia. (Dg)
13.56
mm + 0.08 / - 0.00 (0.534 in.) |
Approx. Loose Circlip ID (A)
13.44
mm |
Radial Wall (S) min/max
13.56
mm |
Groove Width (W)
0.43
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 15.72 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0143-RD-C External Retaining Rings - 14.28x1.14x13.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.14
mm +/- 0.06 (0.045 in.) |
Groove Dia. (Dg)
13.56
mm + 0.08 / - 0.00 (0.534 in.) |
Approx. Loose Circlip ID (A)
13.44
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 13.56 mm Groove Width (W): 0.43 mm Free Outside Dia (Dr): 15.72 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0143-RD-C External Retaining Rings - 14.28x1.14x13.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.14
mm +/- 0.06 (0.045 in.) |
Groove Dia. (Dg)
13.56
mm + 0.08 / - 0.00 (0.534 in.) |
Approx. Loose Circlip ID (A)
13.44
mm |
Radial Wall (S) min/max
13.56
mm |
Groove Width (W)
1.19
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 15.72 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0143-RD-O External Retaining Rings - 14.28x1.14x13.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.14
mm +/- 0.06 (0.045 in.) |
Groove Dia. (Dg)
13.56
mm + 0.08 / - 0.00 (0.534 in.) |
Approx. Loose Circlip ID (A)
13.44
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 13.56 mm Groove Width (W): 1.19 mm Free Outside Dia (Dr): 15.72 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0143-RD-O External Retaining Rings - 14.28x1.14x13.56 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
13.06
mm (0.514 in.) |
Approx. Loose Circlip ID (A)
12.65
mm |
Radial Wall (S) min/max
13.06
mm + 0.10 / - 0.00 |
Groove Width (W)
1.27
mm + 0.10 / - 0.00 |
|
| Material: Spring Steel Free Outside Dia (Dr): 15.09 Section Profile: Round Section | ||||||
|
Part Number: WRE-0143-RD External Retaining Rings - 14.28x1.22x13.06 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
13.06
mm (0.514 in.) |
Approx. Loose Circlip ID (A)
12.65
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 13.06 mm + 0.10 / - 0.00 Groove Width (W): 1.27 mm + 0.10 / - 0.00 Free Outside Dia (Dr): 15.09 Section Profile: Round Section | ||||||
|
Part Number: WRE-0143-RD External Retaining Rings - 14.28x1.22x13.06 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
13.31
mm + 0.08 / - 0.00 (0.524 in.) |
Approx. Loose Circlip ID (A)
13.16
mm |
Radial Wall (S) min/max
13.31
mm |
Groove Width (W)
1.63
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 16.32 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0143-RD-HO External Retaining Rings - 14.28x1.58x13.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
14.28
mm (0.562 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (0.062 in.) |
Groove Dia. (Dg)
13.31
mm + 0.08 / - 0.00 (0.524 in.) |
Approx. Loose Circlip ID (A)
13.16
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 13.31 mm Groove Width (W): 1.63 mm Free Outside Dia (Dr): 16.32 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0143-RD-HO External Retaining Rings - 14.28x1.58x13.31 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
14.66
mm (0.577 in.) |
Approx. Loose Circlip ID (A)
14.22
mm |
Radial Wall (S) min/max
14.66
mm + 0.10 / - 0.00 |
Groove Width (W)
1.27
mm + 0.10 / - 0.00 |
|
| Material: Spring Steel Free Outside Dia (Dr): 16.66 Section Profile: Round Section | ||||||
|
Part Number: WRE-0159-RD External Retaining Rings - 15.88x1.22x14.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
14.66
mm (0.577 in.) |
Approx. Loose Circlip ID (A)
14.22
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 14.66 mm + 0.10 / - 0.00 Groove Width (W): 1.27 mm + 0.10 / - 0.00 Free Outside Dia (Dr): 16.66 Section Profile: Round Section | ||||||
|
Part Number: WRE-0159-RD External Retaining Rings - 15.88x1.22x14.66 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
15.06
mm + 0.08 / - 0.00 (0.593 in.) |
Approx. Loose Circlip ID (A)
14.91
mm |
Radial Wall (S) min/max
15.06
mm |
Groove Width (W)
1.35
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 17.51 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0159-RD-O (5 Pcs) External Retaining Rings - 15.88x1.3x15.06 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
15.06
mm + 0.08 / - 0.00 (0.593 in.) |
Approx. Loose Circlip ID (A)
14.91
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 15.06 mm Groove Width (W): 1.35 mm Free Outside Dia (Dr): 17.51 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0159-RD-O (5 Pcs) External Retaining Rings - 15.88x1.3x15.06 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$17.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
15.06
mm + 0.08 / - 0.00 (0.593 in.) |
Approx. Loose Circlip ID (A)
14.91
mm |
Radial Wall (S) min/max
15.06
mm |
Groove Width (W)
1.60
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 17.51 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0159-RD-C (2 Pcs) External Retaining Rings - 15.88x1.3x15.06 mm - Spring Steel
10 units (20 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
15.06
mm + 0.08 / - 0.00 (0.593 in.) |
Approx. Loose Circlip ID (A)
14.91
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 15.06 mm Groove Width (W): 1.60 mm Free Outside Dia (Dr): 17.51 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0159-RD-C (2 Pcs) External Retaining Rings - 15.88x1.3x15.06 mm - Spring Steel
10 units (20 pcs) Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
14.76
mm + 0.08 / - 0.00 (0.581 in.) |
Approx. Loose Circlip ID (A)
14.61
mm |
Radial Wall (S) min/max
14.76
mm |
Groove Width (W)
1.85
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 18.21 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0159-RD-HO External Retaining Rings - 15.88x1.8x14.76 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
15.88
mm (0.625 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
14.76
mm + 0.08 / - 0.00 (0.581 in.) |
Approx. Loose Circlip ID (A)
14.61
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 14.76 mm Groove Width (W): 1.85 mm Free Outside Dia (Dr): 18.21 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0159-RD-HO External Retaining Rings - 15.88x1.8x14.76 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.60
mm (0.063 in.) |
Groove Dia. (Dg)
14.4
mm + 0 / - 0.40 (0.567 in.) |
Approx. Loose Circlip ID (A)
14.2
mm |
Radial Wall (S) min/max
14.4
mm +/- 0.05 |
Groove Width (W)
1.8
mm Min. |
|
| Material: Spring Steel Free Outside Dia (Dr): 17.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0160-RD (100 Pcs) External Retaining Rings - 16x1.6x14.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
16.00
mm (0.63 in.) |
Clip Thickness (T)
1.60
mm (0.063 in.) |
Groove Dia. (Dg)
14.4
mm + 0 / - 0.40 (0.567 in.) |
Approx. Loose Circlip ID (A)
14.2
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 14.4 mm +/- 0.05 Groove Width (W): 1.8 mm Min. Free Outside Dia (Dr): 17.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0160-RD (100 Pcs) External Retaining Rings - 16x1.6x14.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
16.26
mm (0.64 in.) |
Approx. Loose Circlip ID (A)
15.77
mm |
Radial Wall (S) min/max
16.26
mm + 0.10 / - 0.00 |
Groove Width (W)
1.27
mm + 0.10 / - 0.00 |
|
| Material: Spring Steel Free Outside Dia (Dr): 18.21 Section Profile: Round Section | ||||||
|
Part Number: WRE-0175-RD External Retaining Rings - 17.48x1.22x16.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.22
mm (0.048 in.) |
Groove Dia. (Dg)
16.26
mm (0.64 in.) |
Approx. Loose Circlip ID (A)
15.77
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 16.26 mm + 0.10 / - 0.00 Groove Width (W): 1.27 mm + 0.10 / - 0.00 Free Outside Dia (Dr): 18.21 Section Profile: Round Section | ||||||
|
Part Number: WRE-0175-RD External Retaining Rings - 17.48x1.22x16.26 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
Radial Wall (S) min/max
16.64
mm |
Groove Width (W)
0.14
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 19.09 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0175-RD-C (100 Pcs) External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$16.41 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 16.64 mm Groove Width (W): 0.14 mm Free Outside Dia (Dr): 19.09 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0175-RD-C (100 Pcs) External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Sat, Jun 07, 2025 Regular price
$16.41 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
Radial Wall (S) min/max
16.64
mm |
Groove Width (W)
1.35
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 19.09 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0175-RD-O External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (0.051 in.) |
Groove Dia. (Dg)
16.64
mm + 0.08 / - 0.00 (0.655 in.) |
Approx. Loose Circlip ID (A)
16.49
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 16.64 mm Groove Width (W): 1.35 mm Free Outside Dia (Dr): 19.09 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0175-RD-O External Retaining Rings - 17.48x1.3x16.64 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
Radial Wall (S) min/max
16.33
mm |
Groove Width (W)
1.85
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 19.78 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0175-RD-HC External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 16.33 mm Groove Width (W): 1.85 mm Free Outside Dia (Dr): 19.78 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0175-RD-HC External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
Radial Wall (S) min/max
16.33
mm |
Groove Width (W)
1.85
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 19.78 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0175-RD-HO External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
17.48
mm (0.688 in.) |
Clip Thickness (T)
1.80
mm +/- 0.06 (0.071 in.) |
Groove Dia. (Dg)
16.33
mm + 0.08 / - 0.00 (0.643 in.) |
Approx. Loose Circlip ID (A)
16.18
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 16.33 mm Groove Width (W): 1.85 mm Free Outside Dia (Dr): 19.78 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0175-RD-HO External Retaining Rings - 17.48x1.8x16.33 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
18.00
mm (0.709 in.) |
Clip Thickness (T)
1.60
mm (0.063 in.) |
Groove Dia. (Dg)
16.4
mm + 0 / - 0.40 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.2
mm |
Radial Wall (S) min/max
16.4
mm +/- 0.05 |
Groove Width (W)
1.8
mm Min. |
|
| Material: Spring Steel Free Outside Dia (Dr): 19.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0180-RD (250 Pcs) External Retaining Rings - 18x1.6x16.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 02, 2026 Regular price
$338.95 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Shaft Diameter (Ds)
18.00
mm (0.709 in.) |
Clip Thickness (T)
1.60
mm (0.063 in.) |
Groove Dia. (Dg)
16.4
mm + 0 / - 0.40 (0.646 in.) |
Approx. Loose Circlip ID (A)
16.2
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 16.4 mm +/- 0.05 Groove Width (W): 1.8 mm Min. Free Outside Dia (Dr): 19.4 Section Profile: Round Section | ||||||
|
Part Number: WRE-0180-RD (250 Pcs) External Retaining Rings - 18x1.6x16.4 mm - Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Fri, Jan 02, 2026 Regular price
$338.95 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
18.14
mm + /- 0.08 (0.714 in.) |
Approx. Loose Circlip ID (A)
17.93
mm |
Radial Wall (S) min/max
18.14
mm |
Groove Width (W)
1.55
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 20.93 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0191-RD-C External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
18.14
mm + /- 0.08 (0.714 in.) |
Approx. Loose Circlip ID (A)
17.93
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 18.14 mm Groove Width (W): 1.55 mm Free Outside Dia (Dr): 20.93 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0191-RD-C External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
18.14
mm + /- 0.08 (0.714 in.) |
Approx. Loose Circlip ID (A)
17.93
mm |
Radial Wall (S) min/max
18.14
mm |
Groove Width (W)
1.55
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 20.93 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0191-RD-O External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
1 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$12.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
1.50
mm +/- 0.06 (0.059 in.) |
Groove Dia. (Dg)
18.14
mm + /- 0.08 (0.714 in.) |
Approx. Loose Circlip ID (A)
17.93
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 18.14 mm Groove Width (W): 1.55 mm Free Outside Dia (Dr): 20.93 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0191-RD-O External Retaining Rings - 19.05x1.5x18.14 mm - Spring Steel
1 Available Immediately | Further orders can be expected around Sat, Jun 07, 2025 Regular price
$12.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
1.63
mm (0.064 in.) |
Groove Dia. (Dg)
17.42
mm (0.686 in.) |
Approx. Loose Circlip ID (A)
16.89
mm |
Radial Wall (S) min/max
17.42
mm + 0.10 / - 0.00 |
Groove Width (W)
1.70
mm + 0.10 / - 0.00 |
|
| Material: Spring Steel Free Outside Dia (Dr): 20.15 Section Profile: Round Section | ||||||
|
Part Number: WRE-0191-RD External Retaining Rings - 19.05x1.63x17.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
1.63
mm (0.064 in.) |
Groove Dia. (Dg)
17.42
mm (0.686 in.) |
Approx. Loose Circlip ID (A)
16.89
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 17.42 mm + 0.10 / - 0.00 Groove Width (W): 1.70 mm + 0.10 / - 0.00 Free Outside Dia (Dr): 20.15 Section Profile: Round Section | ||||||
|
Part Number: WRE-0191-RD External Retaining Rings - 19.05x1.63x17.42 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
2.16
mm +/- 0.06 (0.085 in.) |
Groove Dia. (Dg)
17.73
mm + /- 0.08 (0.698 in.) |
Approx. Loose Circlip ID (A)
17.53
mm |
Radial Wall (S) min/max
17.73
mm |
Groove Width (W)
2.21
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 21.85 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0191-RD-HO External Retaining Rings - 19.05x2.16x17.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
2.16
mm +/- 0.06 (0.085 in.) |
Groove Dia. (Dg)
17.73
mm + /- 0.08 (0.698 in.) |
Approx. Loose Circlip ID (A)
17.53
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 17.73 mm Groove Width (W): 2.21 mm Free Outside Dia (Dr): 21.85 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0191-RD-HO External Retaining Rings - 19.05x2.16x17.73 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
2.16
mm +/- 0.06 (0.085 in.) |
Groove Dia. (Dg)
24.59
mm + /- 0.08 (0.968 in.) |
Approx. Loose Circlip ID (A)
17.53
mm |
Radial Wall (S) min/max
24.59
mm |
Groove Width (W)
2.21
mm |
|
| Material: Spring Steel Free Outside Dia (Dr): 21.85 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0191-RD-HC External Retaining Rings - 19.05x2.16x24.59 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
19.05
mm (0.75 in.) |
Clip Thickness (T)
2.16
mm +/- 0.06 (0.085 in.) |
Groove Dia. (Dg)
24.59
mm + /- 0.08 (0.968 in.) |
Approx. Loose Circlip ID (A)
17.53
mm |
|
||
| Material: Spring Steel Radial Wall (S) min/max: 24.59 mm Groove Width (W): 2.21 mm Free Outside Dia (Dr): 21.85 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0191-RD-HC External Retaining Rings - 19.05x2.16x24.59 mm - Spring Steel
Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
