| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |

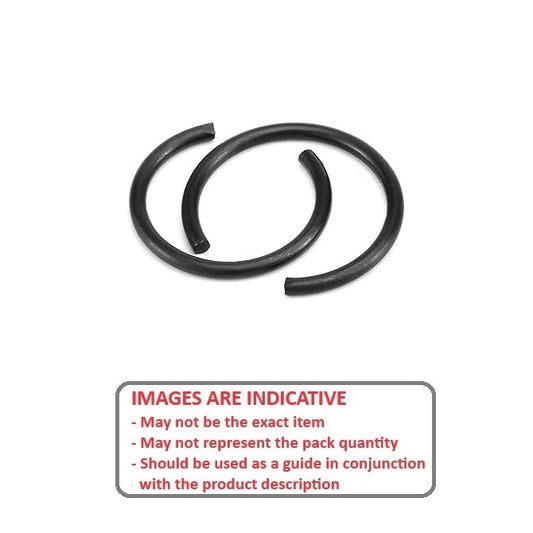

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
7.14
mm (Equiv. 0.281 in.) |
Clip Thickness (T)
0.56
mm (Equiv. 0.022 in.) |
Groove Dia. (Dg)
6.58
mm (Equiv. 0.259 in.) |
Approx. Loose Circlip ID (A)
6.38
mm |
Radial Wall (S) Approx.
6.58
mm + 0.08 / - 0.00 |
Groove Width (W)
0.58
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 7.5 Section Profile: Round Section | ||||||
|
Part Number: WRE-0071-RD
External Retaining Rings - 7.14x0.56x6.58 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
7.14
mm (Equiv. 0.281 in.) |
Clip Thickness (T)
0.56
mm (Equiv. 0.022 in.) |
Groove Dia. (Dg)
6.58
mm (Equiv. 0.259 in.) |
Approx. Loose Circlip ID (A)
6.38
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 6.58 mm + 0.08 / - 0.00 Groove Width (W): 0.58 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 7.5 Section Profile: Round Section | ||||||
|
Part Number: WRE-0071-RD
External Retaining Rings - 7.14x0.56x6.58 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.14
mm (Equiv. 0.281 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (Equiv. 0.029 in.) |
Groove Dia. (Dg)
6.68
mm + 0.08 / - 0.00 (Equiv. 0.263 in.) |
Approx. Loose Circlip ID (A)
6.60
mm |
Radial Wall (S) Approx.
6.68
mm |
Groove Width (W)
0.79
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 8.08 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0071-RD-C (50 Pcs)
External Retaining Rings - 7.14x0.74x6.68 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.14
mm (Equiv. 0.281 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (Equiv. 0.029 in.) |
Groove Dia. (Dg)
6.68
mm + 0.08 / - 0.00 (Equiv. 0.263 in.) |
Approx. Loose Circlip ID (A)
6.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 6.68 mm Groove Width (W): 0.79 mm Free Outside Dia (Dr): 8.08 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0071-RD-C (50 Pcs)
External Retaining Rings - 7.14x0.74x6.68 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.14
mm (Equiv. 0.281 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (Equiv. 0.029 in.) |
Groove Dia. (Dg)
6.68
mm + 0.08 / - 0.00 (Equiv. 0.263 in.) |
Approx. Loose Circlip ID (A)
6.60
mm |
Radial Wall (S) Approx.
6.68
mm |
Groove Width (W)
0.79
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 8.08 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0071-RD-O
External Retaining Rings - 7.14x0.74x6.68 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.14
mm (Equiv. 0.281 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (Equiv. 0.029 in.) |
Groove Dia. (Dg)
6.68
mm + 0.08 / - 0.00 (Equiv. 0.263 in.) |
Approx. Loose Circlip ID (A)
6.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 6.68 mm Groove Width (W): 0.79 mm Free Outside Dia (Dr): 8.08 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0071-RD-O
External Retaining Rings - 7.14x0.74x6.68 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.56
mm (Equiv. 0.022 in.) |
Groove Dia. (Dg)
7.37
mm (Equiv. 0.29 in.) |
Approx. Loose Circlip ID (A)
7.14
mm |
Radial Wall (S) Approx.
7.37
mm + 0.08 / - 0.00 |
Groove Width (W)
0.58
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 8.26 Section Profile: Round Section | ||||||
|
Part Number: WRE-0079-RD
External Retaining Rings - 7.93x0.56x7.37 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.56
mm (Equiv. 0.022 in.) |
Groove Dia. (Dg)
7.37
mm (Equiv. 0.29 in.) |
Approx. Loose Circlip ID (A)
7.14
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 7.37 mm + 0.08 / - 0.00 Groove Width (W): 0.58 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 8.26 Section Profile: Round Section | ||||||
|
Part Number: WRE-0079-RD
External Retaining Rings - 7.93x0.56x7.37 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
7.57
mm + 0.08 / - 0.00 (Equiv. 0.298 in.) |
Approx. Loose Circlip ID (A)
7.52
mm |
Radial Wall (S) Approx.
7.57
mm |
Groove Width (W)
0.61
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 8.64 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0079-RD-C
External Retaining Rings - 7.93x0.56x7.57 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
7.57
mm + 0.08 / - 0.00 (Equiv. 0.298 in.) |
Approx. Loose Circlip ID (A)
7.52
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 7.57 mm Groove Width (W): 0.61 mm Free Outside Dia (Dr): 8.64 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0079-RD-C
External Retaining Rings - 7.93x0.56x7.57 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
7.57
mm + 0.08 / - 0.00 (Equiv. 0.298 in.) |
Approx. Loose Circlip ID (A)
7.52
mm |
Radial Wall (S) Approx.
7.57
mm |
Groove Width (W)
0.61
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 8.64 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0079-RD-O
External Retaining Rings - 7.93x0.56x7.57 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.56
mm +/- 0.10 (Equiv. 0.022 in.) |
Groove Dia. (Dg)
7.57
mm + 0.08 / - 0.00 (Equiv. 0.298 in.) |
Approx. Loose Circlip ID (A)
7.52
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 7.57 mm Groove Width (W): 0.61 mm Free Outside Dia (Dr): 8.64 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0079-RD-O
External Retaining Rings - 7.93x0.56x7.57 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
7.37
mm + 0.08 / - 0.00 (Equiv. 0.29 in.) |
Approx. Loose Circlip ID (A)
7.32
mm |
Radial Wall (S) Approx.
7.37
mm |
Groove Width (W)
0.94
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 9.1 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0079-RD-HC
External Retaining Rings - 7.93x0.89x7.37 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
7.37
mm + 0.08 / - 0.00 (Equiv. 0.29 in.) |
Approx. Loose Circlip ID (A)
7.32
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 7.37 mm Groove Width (W): 0.94 mm Free Outside Dia (Dr): 9.1 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0079-RD-HC
External Retaining Rings - 7.93x0.89x7.37 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
7.37
mm + 0.08 / - 0.00 (Equiv. 0.29 in.) |
Approx. Loose Circlip ID (A)
7.32
mm |
Radial Wall (S) Approx.
7.37
mm |
Groove Width (W)
0.94
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 9.1 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0079-RD-HO
External Retaining Rings - 7.93x0.89x7.37 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
7.93
mm (Equiv. 0.312 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
7.37
mm + 0.08 / - 0.00 (Equiv. 0.29 in.) |
Approx. Loose Circlip ID (A)
7.32
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 7.37 mm Groove Width (W): 0.94 mm Free Outside Dia (Dr): 9.1 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0079-RD-HO
External Retaining Rings - 7.93x0.89x7.37 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
8.00
mm (Equiv. 0.315 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Groove Dia. (Dg)
7.2
mm + 0 / - 0.30 (Equiv. 0.283 in.) |
Approx. Loose Circlip ID (A)
7.1
mm |
Radial Wall (S) Approx.
7.2
mm +/- 0.05 |
Groove Width (W)
1.0
mm Min. |
|
|
Material: Carbon Spring Steel
Free Outside Dia (Dr): 8.7
Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 3491 |
||||||
|
Part Number: WRE-0080-RD (100 Pcs)
External Retaining Rings - 8x0.8x7.2 mm Round Wire - Carbon Spring Steel Circlip 6 units (600 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$20.23 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
8.00
mm (Equiv. 0.315 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Groove Dia. (Dg)
7.2
mm + 0 / - 0.30 (Equiv. 0.283 in.) |
Approx. Loose Circlip ID (A)
7.1
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.2 mm +/- 0.05
Groove Width (W): 1.0 mm Min.
Free Outside Dia (Dr): 8.7
Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 3491 |
||||||
|
Part Number: WRE-0080-RD (100 Pcs)
External Retaining Rings - 8x0.8x7.2 mm Round Wire - Carbon Spring Steel Circlip 6 units (600 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$20.23 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
8.74
mm (Equiv. 0.344 in.) |
Clip Thickness (T)
0.56
mm (Equiv. 0.022 in.) |
Groove Dia. (Dg)
8.18
mm (Equiv. 0.322 in.) |
Approx. Loose Circlip ID (A)
7.93
mm |
Radial Wall (S) Approx.
8.18
mm + 0.08 / - 0.00 |
Groove Width (W)
0.58
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 9.05 Section Profile: Round Section | ||||||
|
Part Number: WRE-0087-RD
External Retaining Rings - 8.74x0.56x8.18 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
8.74
mm (Equiv. 0.344 in.) |
Clip Thickness (T)
0.56
mm (Equiv. 0.022 in.) |
Groove Dia. (Dg)
8.18
mm (Equiv. 0.322 in.) |
Approx. Loose Circlip ID (A)
7.93
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 8.18 mm + 0.08 / - 0.00 Groove Width (W): 0.58 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 9.05 Section Profile: Round Section | ||||||
|
Part Number: WRE-0087-RD
External Retaining Rings - 8.74x0.56x8.18 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
8.61
mm (Equiv. 0.339 in.) |
Approx. Loose Circlip ID (A)
8.36
mm |
Radial Wall (S) Approx.
8.61
mm + 0.08 / - 0.00 |
Groove Width (W)
0.97
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 10.18 Section Profile: Round Section | ||||||
|
Part Number: WRE-0095-RD
External Retaining Rings - 9.53x0.91x8.61 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
8.61
mm (Equiv. 0.339 in.) |
Approx. Loose Circlip ID (A)
8.36
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 8.61 mm + 0.08 / - 0.00 Groove Width (W): 0.97 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 10.18 Section Profile: Round Section | ||||||
|
Part Number: WRE-0095-RD
External Retaining Rings - 9.53x0.91x8.61 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (Equiv. 0.029 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (Equiv. 0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
Radial Wall (S) Approx.
9.07
mm |
Groove Width (W)
0.79
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 10.45 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0095-RD-O
External Retaining Rings - 9.53x0.74x9.07 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
0.74
mm +/- 0.10 (Equiv. 0.029 in.) |
Groove Dia. (Dg)
9.07
mm + 0.08 / - 0.00 (Equiv. 0.357 in.) |
Approx. Loose Circlip ID (A)
8.97
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 9.07 mm Groove Width (W): 0.79 mm Free Outside Dia (Dr): 10.45 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0095-RD-O
External Retaining Rings - 9.53x0.74x9.07 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (Equiv. 0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
Radial Wall (S) Approx.
8.87
mm |
Groove Width (W)
1.14
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 10.94 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0095-RD-HC
External Retaining Rings - 9.53x1.09x8.87 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (Equiv. 0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 8.87 mm Groove Width (W): 1.14 mm Free Outside Dia (Dr): 10.94 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0095-RD-HC
External Retaining Rings - 9.53x1.09x8.87 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (Equiv. 0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
Radial Wall (S) Approx.
8.87
mm |
Groove Width (W)
1.14
mm |
|
|
Material: Carbon Spring Steel
Free Outside Dia (Dr): 10.94
Section Profile: Round Section
Info: Radial Assembly - Open Gap
Additional stock available from USA subject to Prior Sale = 176 |
||||||
|
Part Number: WRE-0095-RD-HO (3 Pcs)
External Retaining Rings - 9.53x1.09x8.87 mm Round Wire - Carbon Spring Steel 2 units (6 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$14.68 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
9.53
mm (Equiv. 0.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.10 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
8.87
mm + 0.08 / - 0.00 (Equiv. 0.349 in.) |
Approx. Loose Circlip ID (A)
8.76
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.87 mm
Groove Width (W): 1.14 mm
Free Outside Dia (Dr): 10.94
Section Profile: Round Section
Info: Radial Assembly - Open Gap
Additional stock available from USA subject to Prior Sale = 176 |
||||||
|
Part Number: WRE-0095-RD-HO (3 Pcs)
External Retaining Rings - 9.53x1.09x8.87 mm Round Wire - Carbon Spring Steel 2 units (6 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$14.68 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
10.00
mm (Equiv. 0.394 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Groove Dia. (Dg)
9.2
mm + 0 / - 0.30 (Equiv. 0.362 in.) |
Approx. Loose Circlip ID (A)
9.1
mm |
Radial Wall (S) Approx.
9.2
mm +/- 0.05 |
Groove Width (W)
1.0
mm Min. |
|
|
Material: Carbon Spring Steel
Free Outside Dia (Dr): 10.7
Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 4747 |
||||||
|
Part Number: WRE-0100-RD (10 Pcs)
External Retaining Rings - 10x0.8x9.2 mm Round Wire - Carbon Spring Steel Circlip 495 units (4950 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$9.05 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
10.00
mm (Equiv. 0.394 in.) |
Clip Thickness (T)
0.80
mm (Equiv. 0.031 in.) |
Groove Dia. (Dg)
9.2
mm + 0 / - 0.30 (Equiv. 0.362 in.) |
Approx. Loose Circlip ID (A)
9.1
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 9.2 mm +/- 0.05
Groove Width (W): 1.0 mm Min.
Free Outside Dia (Dr): 10.7
Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 4747 |
||||||
|
Part Number: WRE-0100-RD (10 Pcs)
External Retaining Rings - 10x0.8x9.2 mm Round Wire - Carbon Spring Steel Circlip 495 units (4950 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$9.05 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
10.31
mm (Equiv. 0.406 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
9.40
mm (Equiv. 0.37 in.) |
Approx. Loose Circlip ID (A)
9.12
mm |
Radial Wall (S) Approx.
9.40
mm + 0.08 / - 0.00 |
Groove Width (W)
0.97
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 10.94 Section Profile: Round Section | ||||||
|
Part Number: WRE-0103-RD
External Retaining Rings - 10.31x0.91x9.4 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
10.31
mm (Equiv. 0.406 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
9.40
mm (Equiv. 0.37 in.) |
Approx. Loose Circlip ID (A)
9.12
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 9.40 mm + 0.08 / - 0.00 Groove Width (W): 0.97 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 10.94 Section Profile: Round Section | ||||||
|
Part Number: WRE-0103-RD
External Retaining Rings - 10.31x0.91x9.4 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
10.54
mm + 0.08 / - 0.00 (Equiv. 0.415 in.) |
Approx. Loose Circlip ID (A)
10.47
mm |
Radial Wall (S) Approx.
10.54
mm |
Groove Width (W)
0.94
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 12.25 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0111-RD-C
External Retaining Rings - 11.13x0.89x10.54 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
10.54
mm + 0.08 / - 0.00 (Equiv. 0.415 in.) |
Approx. Loose Circlip ID (A)
10.47
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 10.54 mm Groove Width (W): 0.94 mm Free Outside Dia (Dr): 12.25 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0111-RD-C
External Retaining Rings - 11.13x0.89x10.54 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
10.21
mm (Equiv. 0.402 in.) |
Approx. Loose Circlip ID (A)
9.91
mm |
Radial Wall (S) Approx.
10.21
mm + 0.08 / - 0.00 |
Groove Width (W)
0.97
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 11.73 Section Profile: Round Section | ||||||
|
Part Number: WRE-0111-RD
External Retaining Rings - 11.13x0.91x10.21 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
10.21
mm (Equiv. 0.402 in.) |
Approx. Loose Circlip ID (A)
9.91
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 10.21 mm + 0.08 / - 0.00 Groove Width (W): 0.97 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 11.73 Section Profile: Round Section | ||||||
|
Part Number: WRE-0111-RD
External Retaining Rings - 11.13x0.91x10.21 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
10.54
mm + 0.08 / - 0.00 (Equiv. 0.415 in.) |
Approx. Loose Circlip ID (A)
10.47
mm |
Radial Wall (S) Approx.
10.54
mm |
Groove Width (W)
0.94
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 12.25 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0111-RD-O
External Retaining Rings - 11.13x0.89x10.54 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
0.89
mm +/- 0.10 (Equiv. 0.035 in.) |
Groove Dia. (Dg)
10.54
mm + 0.08 / - 0.00 (Equiv. 0.415 in.) |
Approx. Loose Circlip ID (A)
10.47
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 10.54 mm Groove Width (W): 0.94 mm Free Outside Dia (Dr): 12.25 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0111-RD-O
External Retaining Rings - 11.13x0.89x10.54 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (Equiv. 0.051 in.) |
Groove Dia. (Dg)
10.29
mm + 0.08 / - 0.00 (Equiv. 0.405 in.) |
Approx. Loose Circlip ID (A)
10.21
mm |
Radial Wall (S) Approx.
10.29
mm |
Groove Width (W)
1.35
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 12.81 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0111-RD-HC
External Retaining Rings - 11.13x1.3x10.29 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (Equiv. 0.051 in.) |
Groove Dia. (Dg)
10.29
mm + 0.08 / - 0.00 (Equiv. 0.405 in.) |
Approx. Loose Circlip ID (A)
10.21
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 10.29 mm Groove Width (W): 1.35 mm Free Outside Dia (Dr): 12.81 Section Profile: Round Section Info: Axial Assembly - Closed Gap | ||||||
|
Part Number: WRE-0111-RD-HC
External Retaining Rings - 11.13x1.3x10.29 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (Equiv. 0.051 in.) |
Groove Dia. (Dg)
10.29
mm + 0.08 / - 0.00 (Equiv. 0.405 in.) |
Approx. Loose Circlip ID (A)
10.21
mm |
Radial Wall (S) Approx.
10.29
mm |
Groove Width (W)
1.35
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 12.81 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0111-RD-HO
External Retaining Rings - 11.13x1.3x10.29 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
11.13
mm (Equiv. 0.438 in.) |
Clip Thickness (T)
1.30
mm +/- 0.06 (Equiv. 0.051 in.) |
Groove Dia. (Dg)
10.29
mm + 0.08 / - 0.00 (Equiv. 0.405 in.) |
Approx. Loose Circlip ID (A)
10.21
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 10.29 mm Groove Width (W): 1.35 mm Free Outside Dia (Dr): 12.81 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0111-RD-HO
External Retaining Rings - 11.13x1.3x10.29 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
11.91
mm (Equiv. 0.469 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
11.00
mm (Equiv. 0.433 in.) |
Approx. Loose Circlip ID (A)
10.67
mm |
Radial Wall (S) Approx.
11.00
mm + 0.08 / - 0.00 |
Groove Width (W)
0.97
mm + 0.08 / - 0.00 |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 12.49 Section Profile: Round Section | ||||||
|
Part Number: WRE-0119-RD
External Retaining Rings - 11.91x0.91x11 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
11.91
mm (Equiv. 0.469 in.) |
Clip Thickness (T)
0.91
mm (Equiv. 0.036 in.) |
Groove Dia. (Dg)
11.00
mm (Equiv. 0.433 in.) |
Approx. Loose Circlip ID (A)
10.67
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 11.00 mm + 0.08 / - 0.00 Groove Width (W): 0.97 mm + 0.08 / - 0.00 Free Outside Dia (Dr): 12.49 Section Profile: Round Section | ||||||
|
Part Number: WRE-0119-RD
External Retaining Rings - 11.91x0.91x11 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
|
Shaft Diameter (Ds)
12.00
mm (Equiv. 0.472 in.) |
Clip Thickness (T)
1.00
mm (Equiv. 0.039 in.) |
Groove Dia. (Dg)
11.0
mm + 0 / - 0.40 (Equiv. 0.433 in.) |
Approx. Loose Circlip ID (A)
10.8
mm |
Radial Wall (S) Approx.
11.0
mm +/- 0.05 |
Groove Width (W)
1.2
mm Min. |
|
|
Material: Carbon Spring Steel
Free Outside Dia (Dr): 12.8
Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 2517 |
||||||
|
Part Number: WRE-0120-RD (50 Pcs)
External Retaining Rings - 12x1x11 mm Round Wire - Carbon Spring Steel Circlip 8 units (400 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$12.59 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
12.00
mm (Equiv. 0.472 in.) |
Clip Thickness (T)
1.00
mm (Equiv. 0.039 in.) |
Groove Dia. (Dg)
11.0
mm + 0 / - 0.40 (Equiv. 0.433 in.) |
Approx. Loose Circlip ID (A)
10.8
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 11.0 mm +/- 0.05
Groove Width (W): 1.2 mm Min.
Free Outside Dia (Dr): 12.8
Section Profile: Round Section
Additional stock available from USA subject to Prior Sale = 2517 |
||||||
|
Part Number: WRE-0120-RD (50 Pcs)
External Retaining Rings - 12x1x11 mm Round Wire - Carbon Spring Steel Circlip 8 units (400 pcs) Available Now | Further orders can be expected around Sat, Nov 22, 2025 Regular price
$12.59 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
1.09
mm +/- 0.06 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
12.04
mm + 0.08 / - 0.00 (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.89
mm |
Radial Wall (S) Approx.
12.04
mm |
Groove Width (W)
1.14
mm |
|
| Material: Carbon Spring Steel Free Outside Dia (Dr): 14.07 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0127-RD-O
External Retaining Rings - 12.7x1.09x12.04 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
1.09
mm +/- 0.06 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
12.04
mm + 0.08 / - 0.00 (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.89
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) Approx.: 12.04 mm Groove Width (W): 1.14 mm Free Outside Dia (Dr): 14.07 Section Profile: Round Section Info: Radial Assembly - Open Gap | ||||||
|
Part Number: WRE-0127-RD-O
External Retaining Rings - 12.7x1.09x12.04 mm Round Wire - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Thu, Jul 20, 2028 |
||||||
